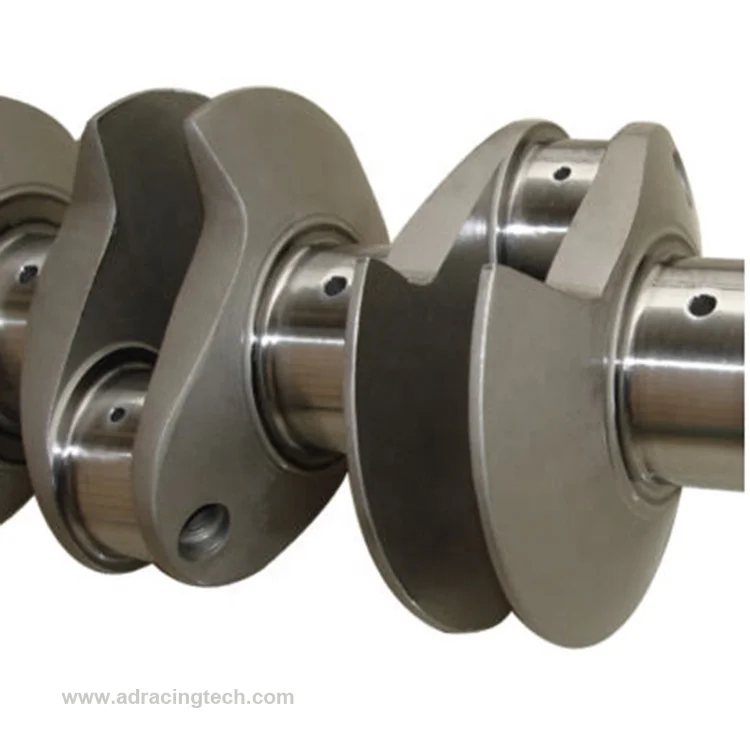

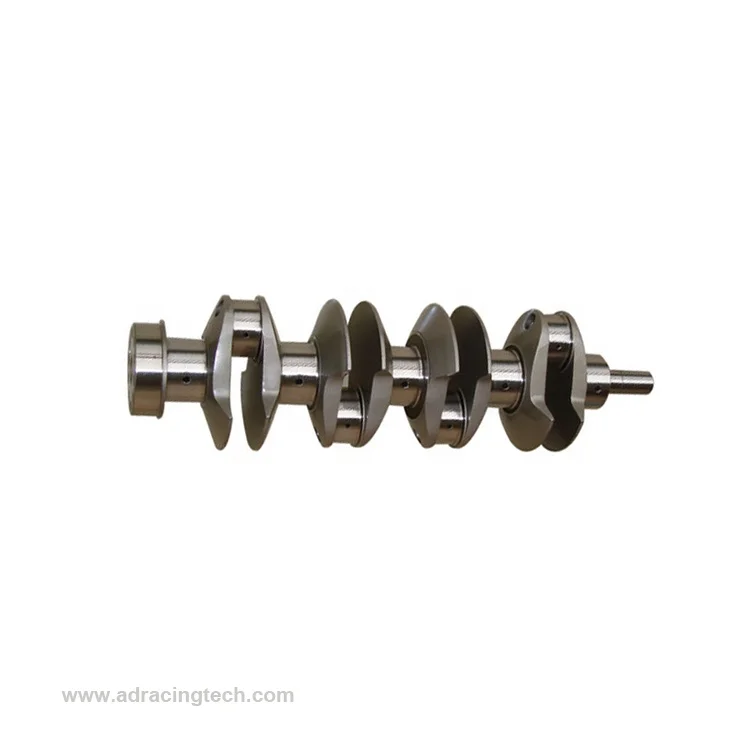

4340 Billet 100mm Stroke Crankshaft For Mitsubishi Eclipse 4G64 Crankshaft

Product Overview

Description

4340 Billet 88mm Stroke Crankshaft For Mitsubishi Eclipse 4G64 Crankshaft





For Mitsubishi Eclipse 4G64 Crankshaft Specifications





Brand:Adracing
Application(s)	For Mitsubishi Eclipse Crankshaft
Engine(s)	4G64
Material	Billet 4340 Steel
Stoker	100mm
Main Journal Diameter	57mm
Rod Journal Diameter	45mm





Technical Features



- Full CNC Machining

- Multi-step heat treatment process

- Knife-edged counterweights

- Gun drilled crank pin and counterweights to reduce weight and rotating mass

- Micro-polishing for longer bearing life

- Heating treatment:HRC34-38

- Peening treatment will be done after balance weight

- magnetic flaw detecting will be done according to standard JB/76729-93











Difference between Forged steel crankshaft and billet crankshaft:



- Forged steel crankshaft need to machine balance hole to keep good balance result

- Billet Crankshaft can get good balance by different design on counterweight. and Surface on counterweight will be more beautiful







Custom Service

- Our main business is to supply customized service

- we supply customized service based on your sample or drawing

- Price can be estimated if you can send Stroke--rod journal--rod journal width--main journal--main journal width--total length--fan plate bore--width between fan plate bore and photo



Delivery Time

- If the goods are in stock,the delivery time is 1-3 days

- If the goods are not in stock,the delivery time is 80-90 days
