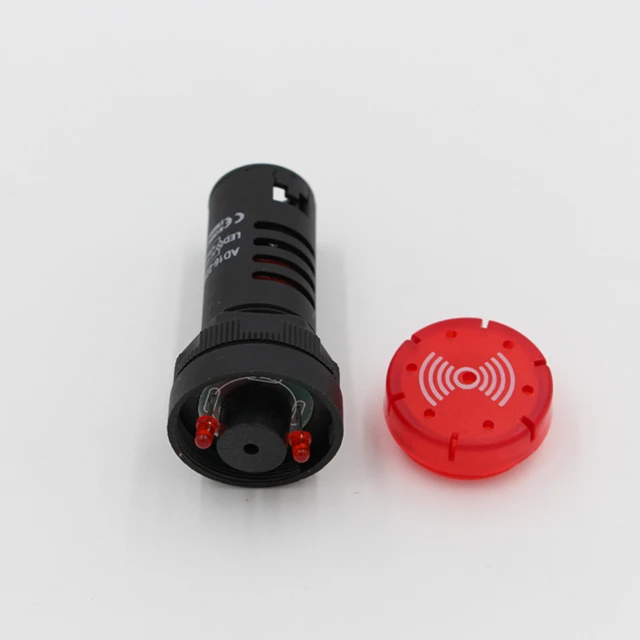

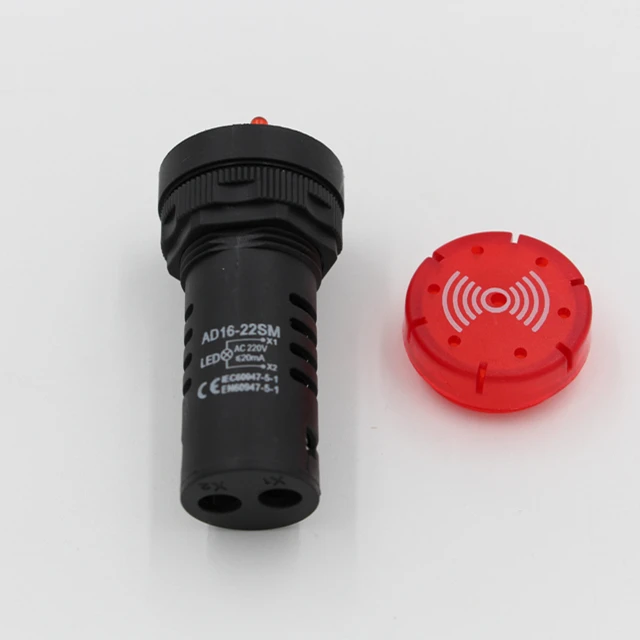

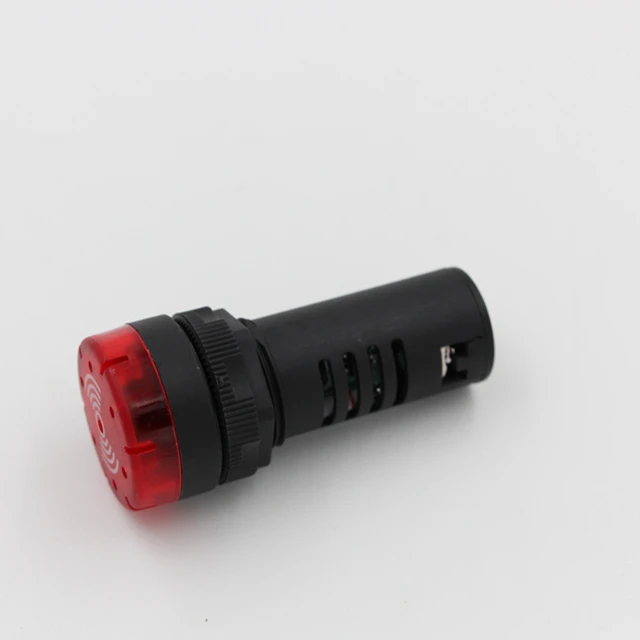

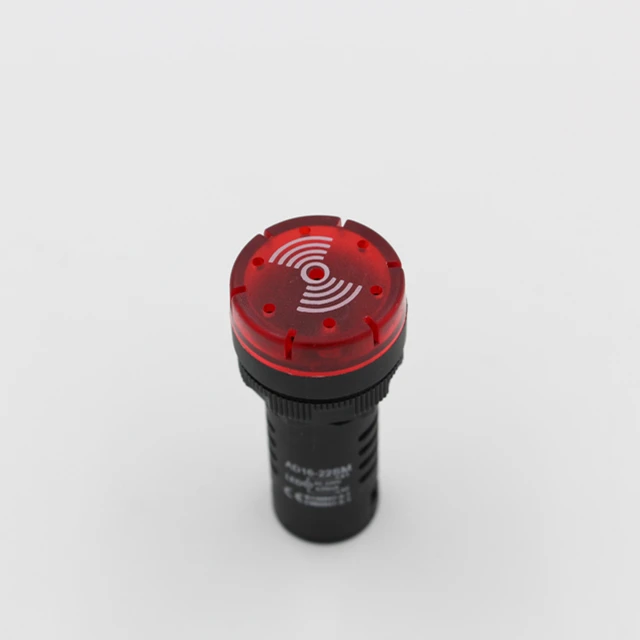

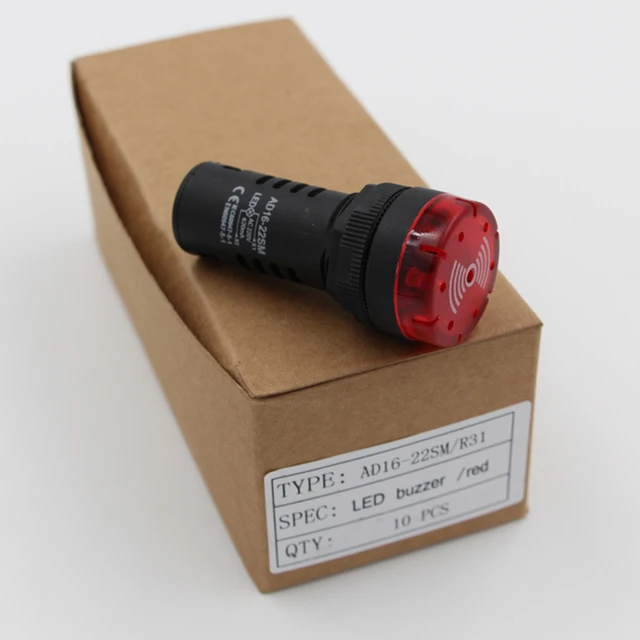

ad16 22ds indicator lamp for fire alarm with red indication lamp with buzzer indicator light

Product Overview

Description

AD16-22D Series 22mm Indicator Lamp 220V AC Red/Green/Yellow/White/Blue Color



AD16-22D series signal lamp only use LED lamp as the light source. The advantage have: long life, gentle weight, small cubage, save energy. The cover of the lamp is made of PC material, and have good shock resistance it can be used as indication pilot light, accident signal and other signals in the circuits of such equipment as telecommunication.

Technical Specification:

1. Working life hours:≥3000 Hours
2. The voltage fluctuation:+-20%(above 110V)
3. Dielectric strength: 2.5KV(ACRMS),1 min
4. Usage Frequency(AC): 50-60Hz
5. Rated operating current:≤20mA
6. Brightness:≥100cd/m2
7. Comparative tracking index CT≥100, flame retardant
8. Insulation resistance:ui≤60v,5mMΩ;60V<ui≤660V,5MΩ
9. Light color: red, green, yellow, white, blue.

Attentions:

1. The frequency of AC type pilot lamp is 50-60Hz. If work in other frequency ranges, it will be broken.
2. The common threshold value of anti-interference pilot lamp is below 40V; and if you need higher threshold value please tell us. We suggest that the threshold value should not be too high. Please check the routing if the interference voltage is too high.
3. connection error is not allowable to Ac type dual-color light,otherwise pilot lamp will be broken.
4. Avoid using mode to connect lines as possible and you should using general plug(2.5.0.8mm)to connect and wear the protective sleeve. If you need to weld, please finish it in 3 seconds by the electric iron which is below 30W and don not exert external force on terminals.

Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.
2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.
3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.
