Product Description

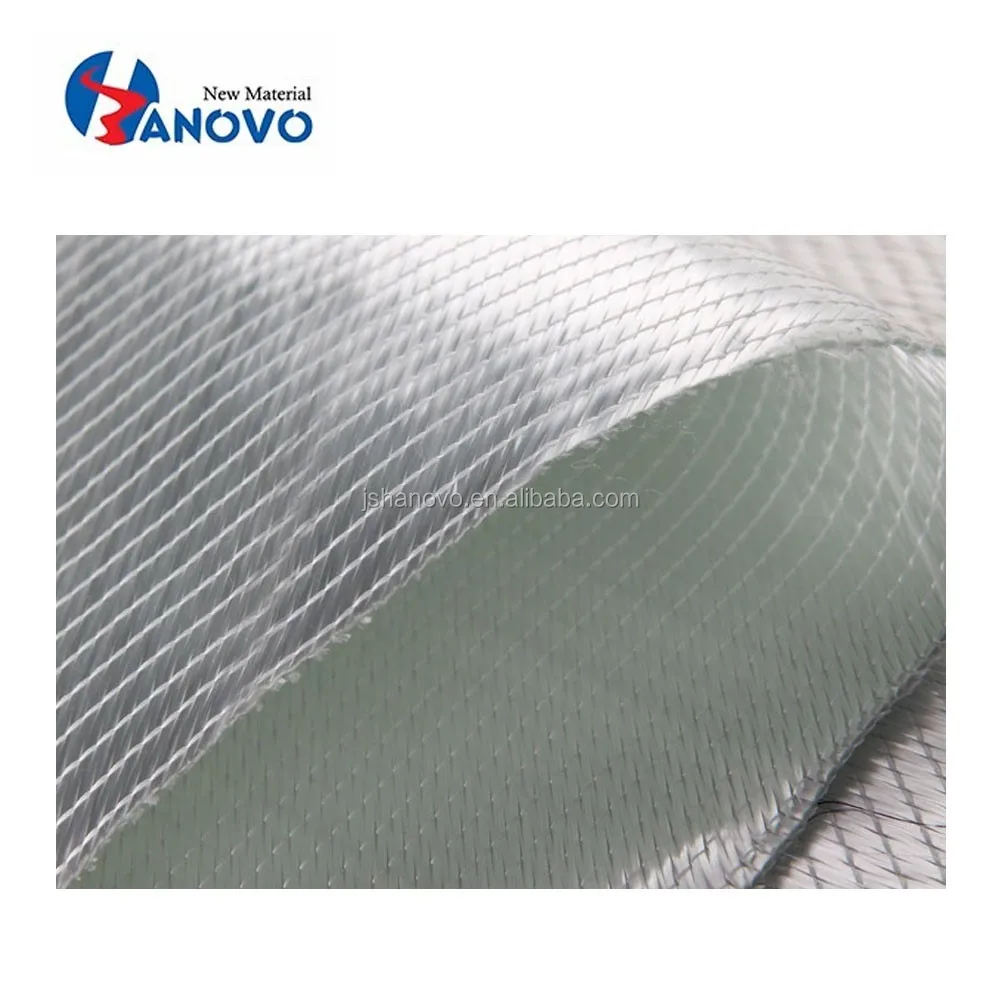

Fiberglass Quadraxial Roving Fabric.

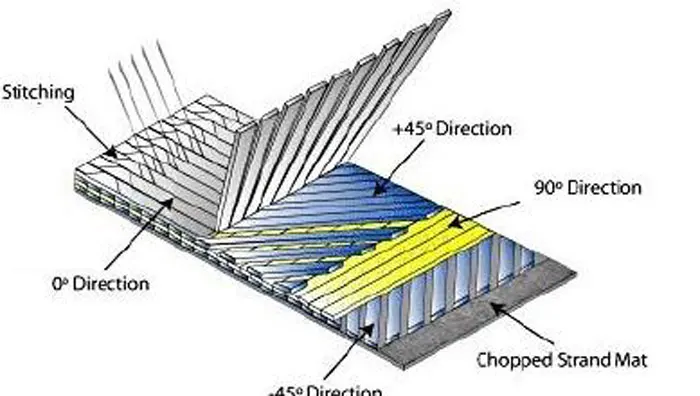

Fiberglass Quadraxial Roving Fabric is made of direct roving parallel aligned in +45/0/90/-45 degree directions, then stitched together by polyester yarn,Without filament crimp in woven roving,the quadraxial fabrics are in advantage of high strength,excellent stiffness,low weight and thickness,as well as the improved fabric surface quality.The fabric can be combined with chopped strand mat or tissue or nonwoven materials.
Detailed Images

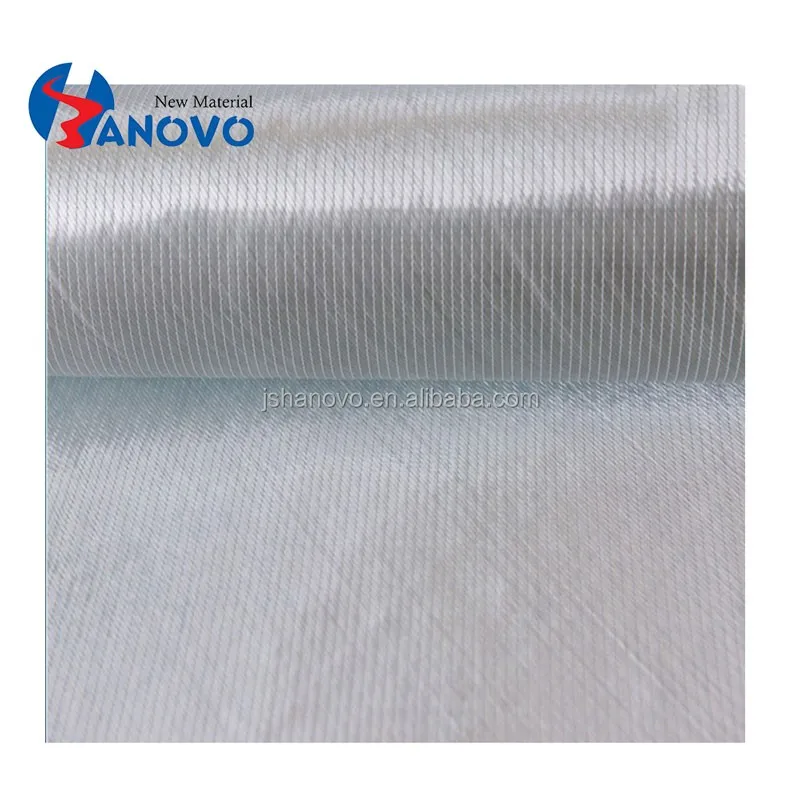

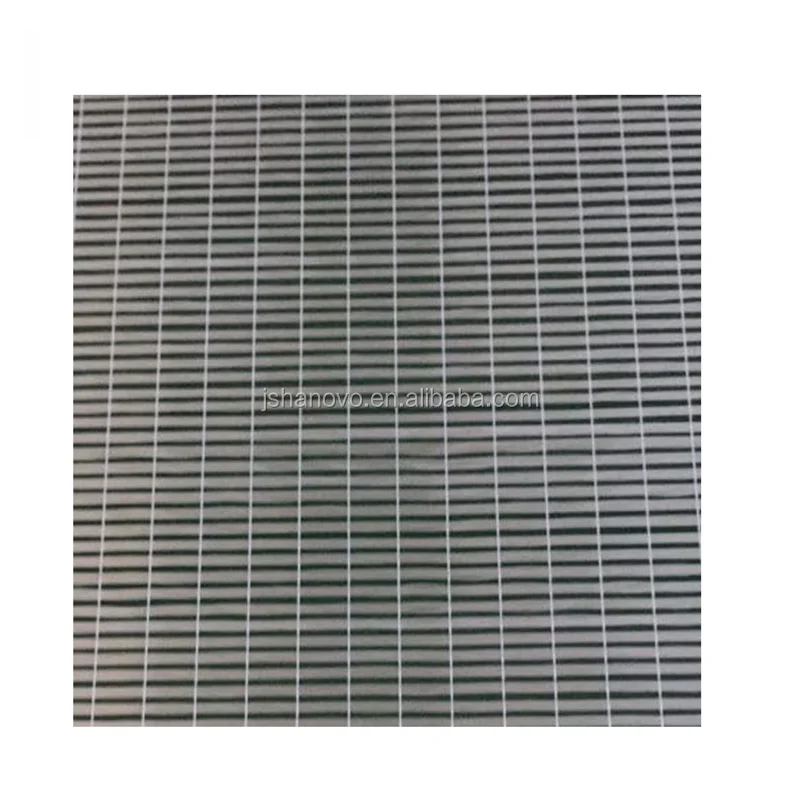

Unidirectional Fabric

Unidirectional glass fiber fabric is made of alkali-free glass fiber yarn directly with one-way 0 ° or 90 ° in parallel, weaves thread lockstitch with polyester sewing and become, with the glass fiber chopped layer and stitch-bonded nonwoven layer for composite mat.

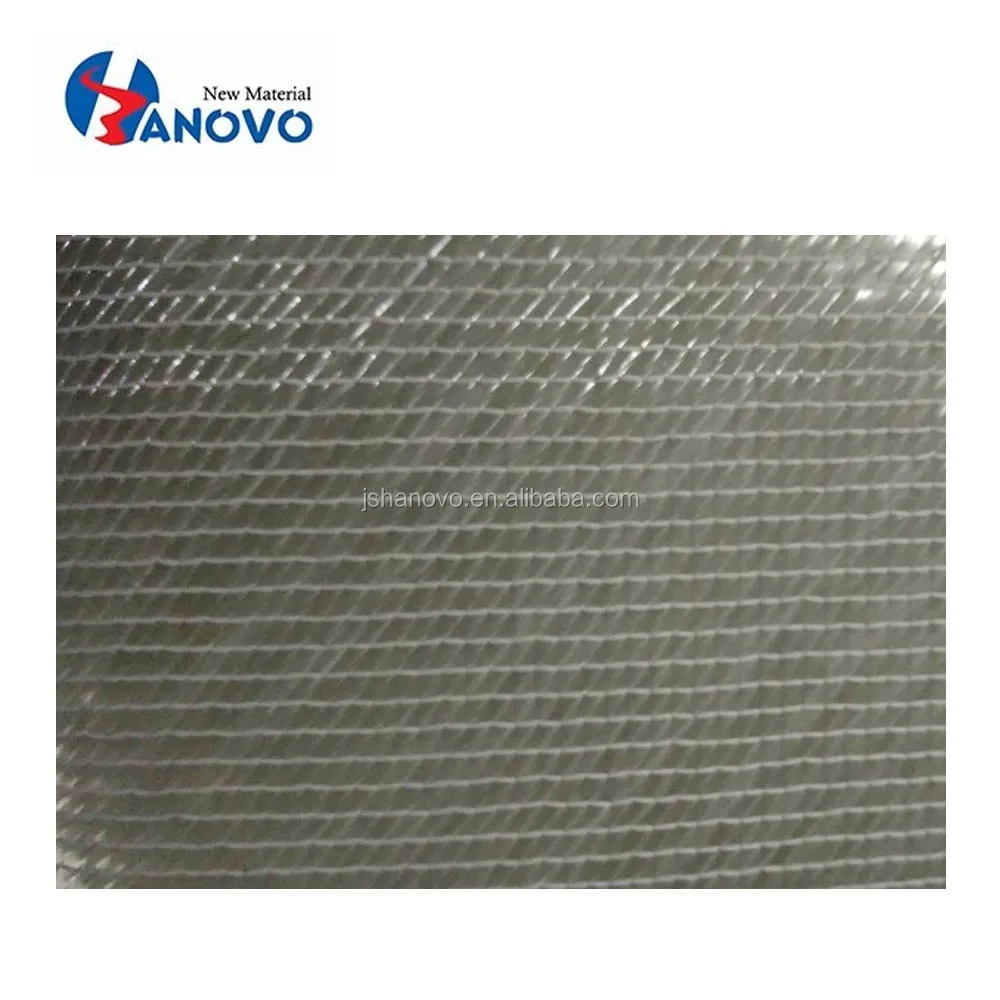

Biaxial Fabric

The general direction of Biaxial fabrics are 45° ,also the directions can be randomly changed from±20°--±90°, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.

The total weight is 300-2000g/m2, the width is from 5-100 inches.

Triaxial Fabric

Triaxial glass fiber fabric are the Fibers in the Triaxial Series are laid at 0°/+45°/-45° or +45°/90°/-45° to the length of the cloth. It also can be added the chopping layer (50~600g/m2) or non-woven fabrics (15~100g/m2), stitched together with polyester yarn. The area weight can be 600~2000 g/m2. The width can be 2~100 inches. This fabric is suitable for Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin etc. It is mainly used in wind energy, boat-building, sports, automobile, train industry etc.

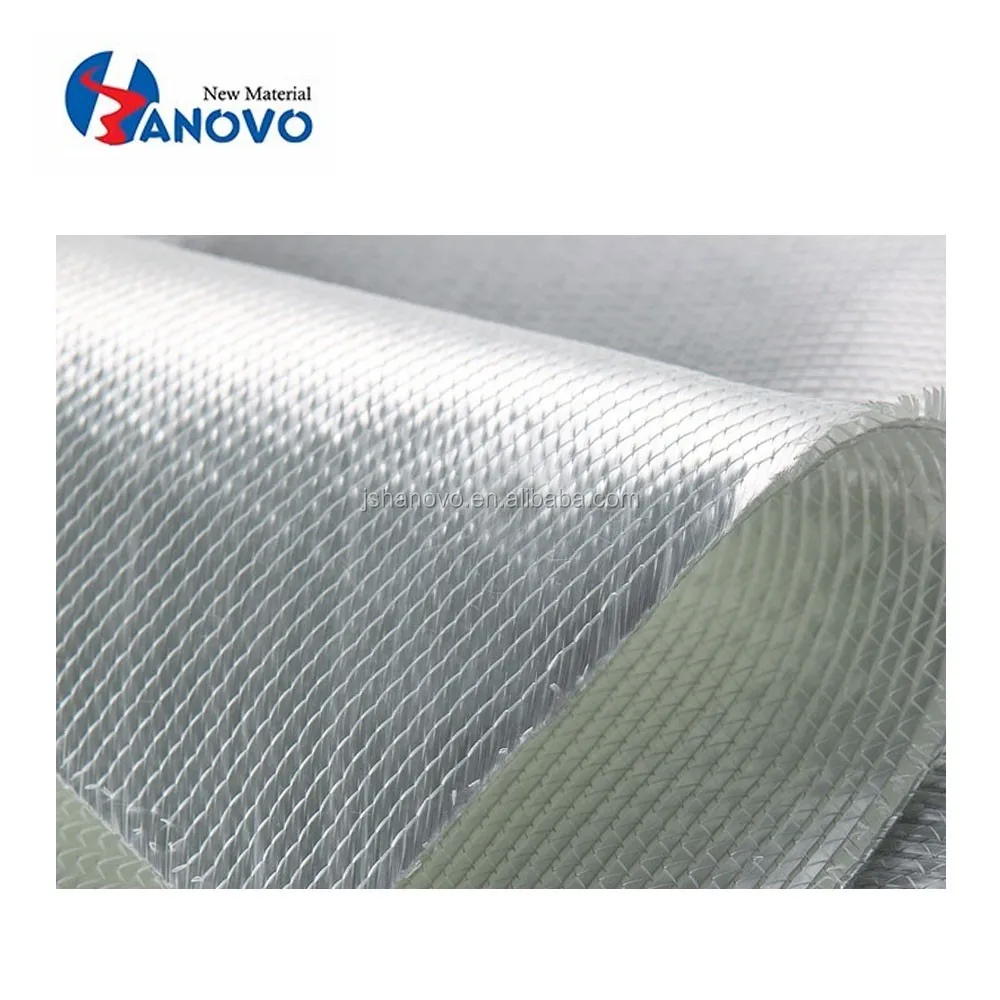

Quadraxial Fabric

The general direction of  Quad-axial Fabrics are 0°/90°/+45°/-45°, also the directions can be randomly changed from ±20°--±90°, attaching (50-500g/m2) CSM or nonwoven fabric. The weight of fabric s 600-2000g/m2 and the width is from 5-100 inches.

This fabric is suitable for Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin etc.

The main usages are mould manufacturing, various trunks and hulls industries.

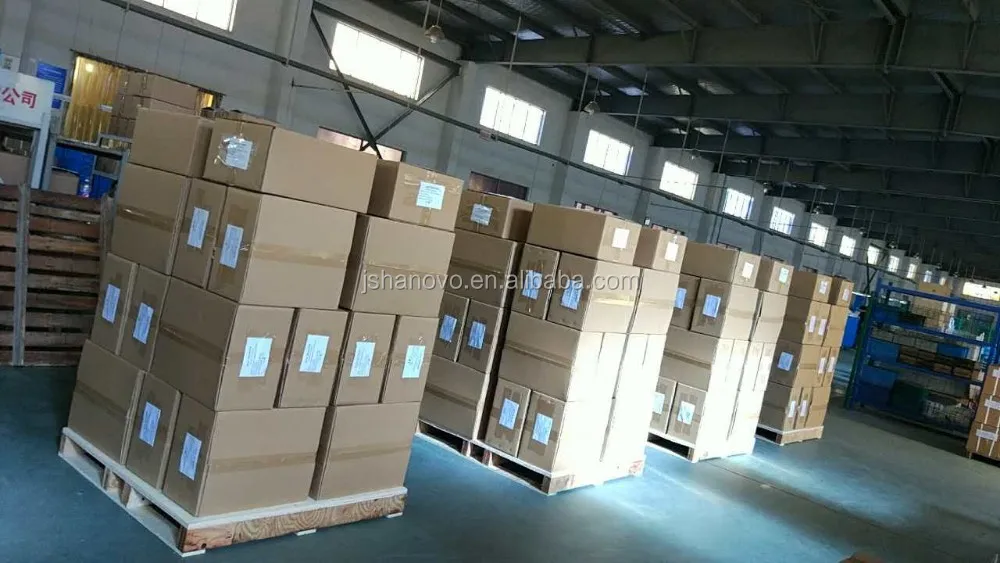

Packing & Delivery

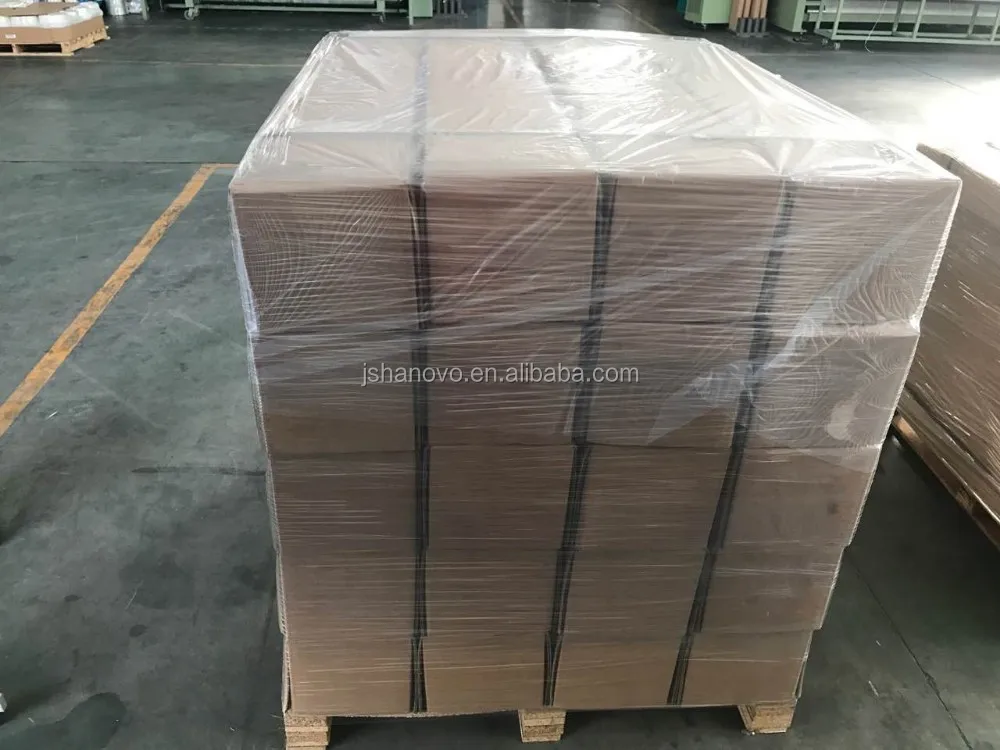

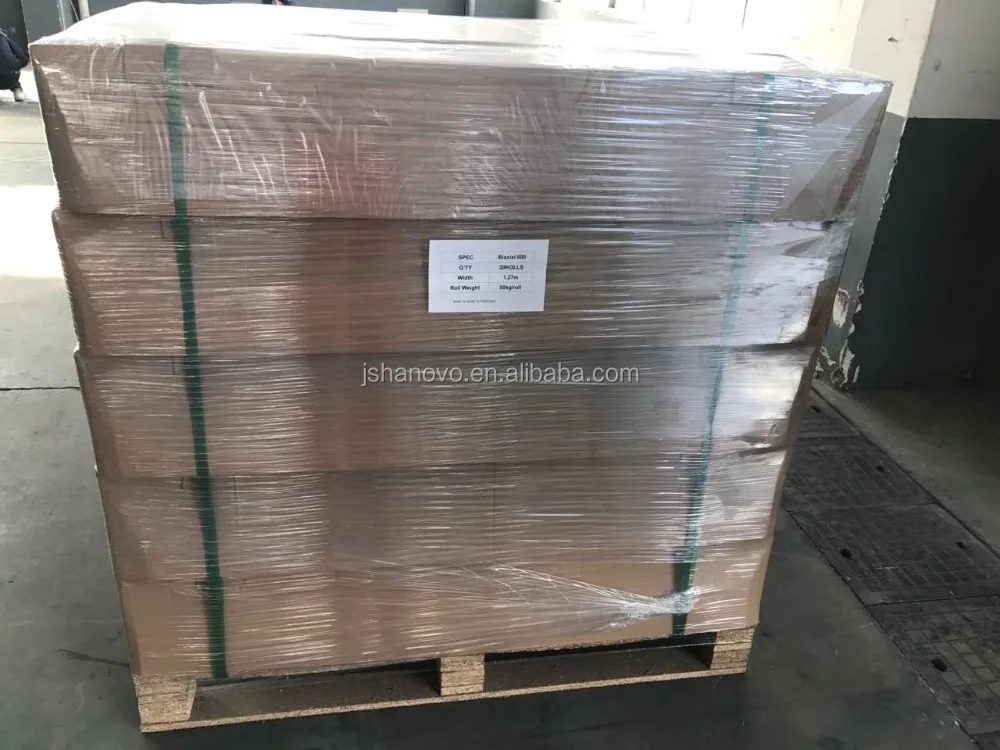

Packing

Packaging Details:50kg/roll,cartons,pallet.

Each roll is packed in a polyethylene bag inside,then outside with a cardboard box,then on pallet.

Delivery Detail:15-20 days after receive the advance payment
