*High quality cutting, bending and punching, fast cycle time
*High operating safety with built-in safety-system
* With the help of hydraulic power, easy and quick operation can be achieved.
*Include: CB-200A, CH-70, CWC-200 and EHP-63A

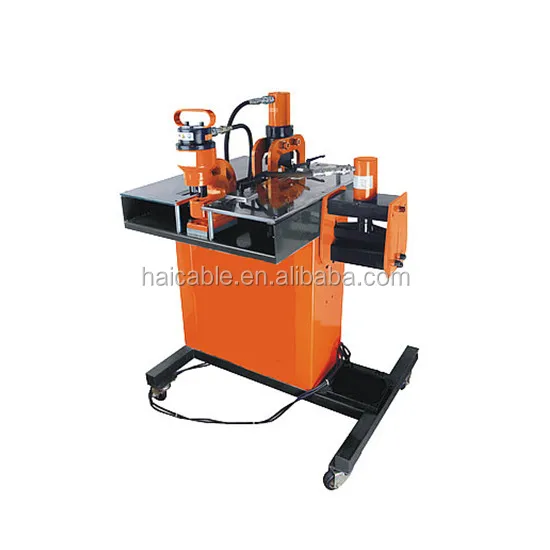

3-in-1 Busbar Processing Machine HB-200W Hydraulic Copper Bus bar Bending Cutting Punching Machine
Parameters:
Model
HB-200W
Max Cutting Capacity
200*12mm
Max Punching Capacity
Ø11.1mm-Ø20.6mm
Thickness 12mm
Max Bending Capacity
200*12mm
Power
220V/50HZ
Rated Pressure
700kg/cm2(10000psi)
Punching Dies
Ø11.1mm Ø14.3mm Ø17.5mm Ø20.6mm (Round Dies)
Size
900*660*1220mm
Weight
170kg
Application:
The bus bar main work for switch board, distribution box and electrical working, State Grid construction, underground cable construction, Building construction etc.
Haicable is specialized in electric tool manufacturing and offer full cable, wire, rebar processig solution, cut, crimping and stripping., etc. Our office is located in shanghai, the economic center of China. Founded in 2009, due to improve quality and prices competitiveness, we invest and shared several factories during last 10 years. We supply one-stop shopping service, saving our clients many purchase cost and make them profit maximization.
Our Services
We have professional technical team to meet your new items developing.
We will be your eyes while producing, which means we will send producing picture for every steps.
FAQ
Q: What's the kind of Blade Proceeding ?
A: By forging, which makes body more healthy and powerful.
Q: What's the different comparing other company?
A: we assure that our tools are light weight, but save about 50% labor cost.
Q: Are u manufacturer or trading Co?
A: Yes, we are manufacturer, but also we doing business.If u would like to buy more items, but u have no time. Please feel free to contact us. Our whole team will be at ur service!
