Gemstone Calibration Machine Lapidary Machine

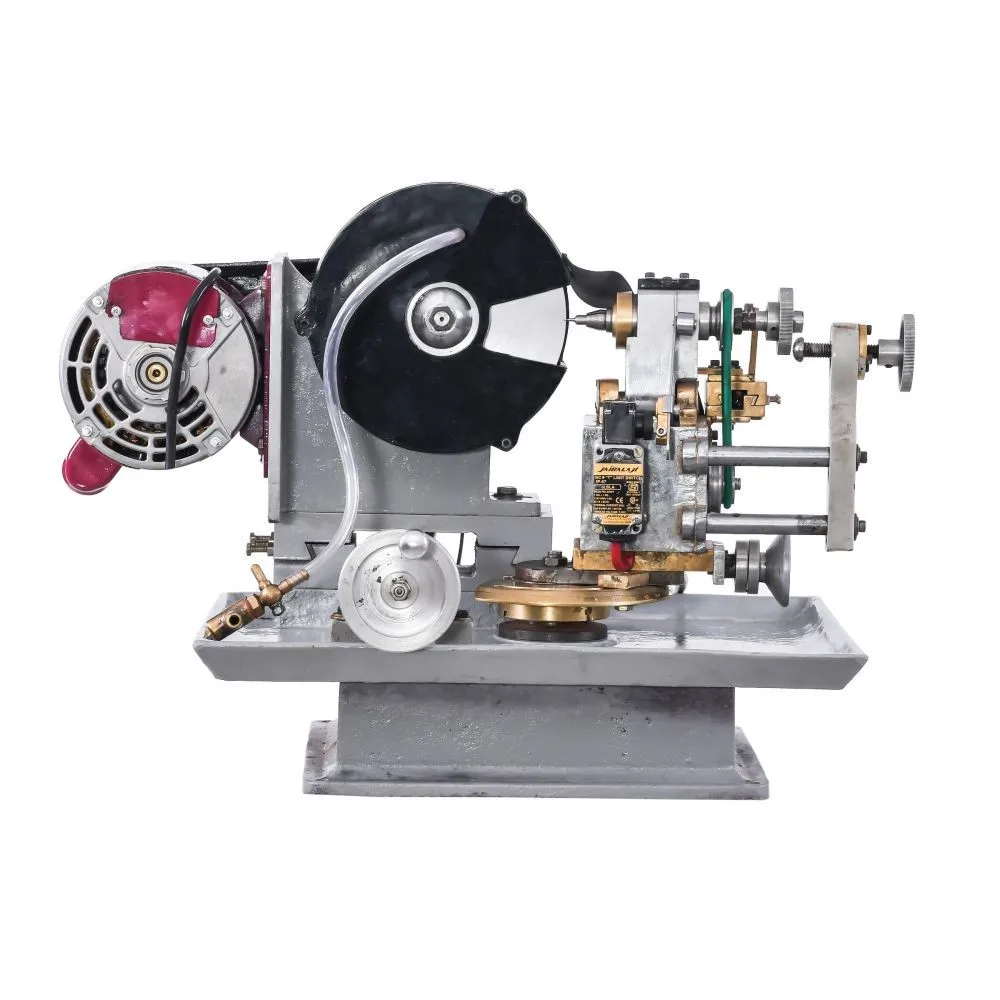

Gemstone Calibration Machine.

This Gemstone Calibration machine is equipped with a motor and reproduces the shape of all usual gems stones: oval, round, square, octagon, heart, pear marquise, trillion, six corners and eight corners, etc. Various cams are used to obtain the true shapes. The diamond lap plate of 8" is used for grinding. The stone turns automatically with the help of a motor.

The machine will run on 220V but can be made to run on 110V if requested. It is a high-quality machine for all types of Gemstones. It can be used to manufacture precision goods.

Specifications:

Height: 470 mm

Width x depth: 550 mm x 650 mm

Lap Diameter: 200 mm

Cams: Round, Ovals, Square, Octagon, Heart, Pear, Marquise, Trillion,

Dop: 8 mm Dia. 50 mm Length

Electric Motor: Spindle Motor 180 watt, AC 220 volts (or 110 Volts)

Coolant Motor: 50 watts, AC 220 Volts (or 110 Volts)

Net Weight: 75 Kg

Accessories included:
4 pc. Cams
2 pc. Diamond Discs
1 pc. Master lap
75 pcs. Dop sticks
