Product Overview

Description

Most popular chinese10A high current 24V 36V 48V brushless dc motor controller for bldc motor with hall

Main features

It can be connected with an external speed display board ZM-BL01, showing

the speed, set drive parameters;

It has double speed closed current design with low speed torque and smooth operation;

It has high speed output with the maximum speed of 10000rpm / min;

Speed control mode : analog quantity 0-5V,(according to the users’ requirement we can set PWM within 100Hz-100kHz)

It has have EN, DIR signal control side;

It can output tachometer pulse;

It has over-current, overvoltage, under voltage , motor stalling and other protection functions;

Product Overview

ZM-BL4810F brushless DC motor driver is our company's latest high-tech product for the field of medium power motor drive. This product uses a large-scale integrated circuit to replace the original hardware. It has higher anti-jamming and fast response ability. It is suitable for all the three-phase brushless DC motors with low voltage DC18V-50V(boards show DC24V-48V) and peak current below 10A. Even if working with large current, it is still in low temperature. It is widely used in knitting equipment, medical equipment, food packaging machinery, power tools and a series of areas of electrical automation and control.

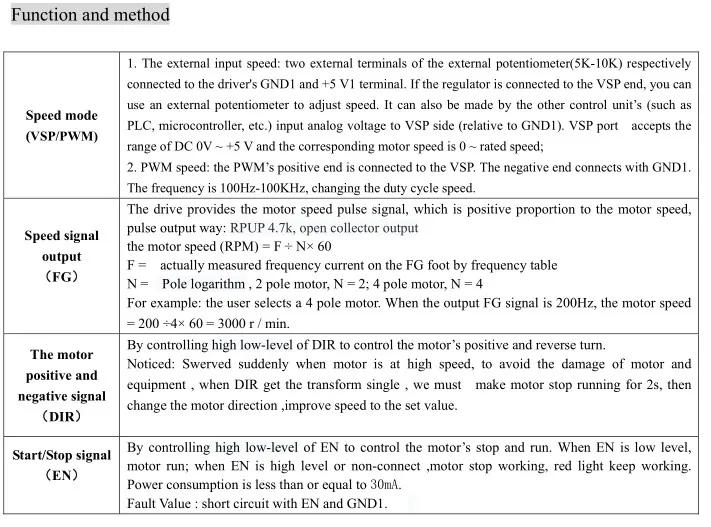

Functional Overview

Function as following: (default setting mode: Square wave, Hall, Open loop)

      1.Run model: square wave, with hall sensor, open loop speed

2.Run model: square wave, with hall sensor, closed loop speed

3.Run model: square wave, without hall sensor, open loop speed

4.Run model: square wave, without hall sensor, closed loop speed

5.Run model: constant-torque device, open loop speed(Don't run for long time with overloading)

6.Run model: constant-torque device, closed loop speed(Don't run for long time with overloading)

On the basis of our upper computer software and hand debugger, all the above functions can be set by yourself

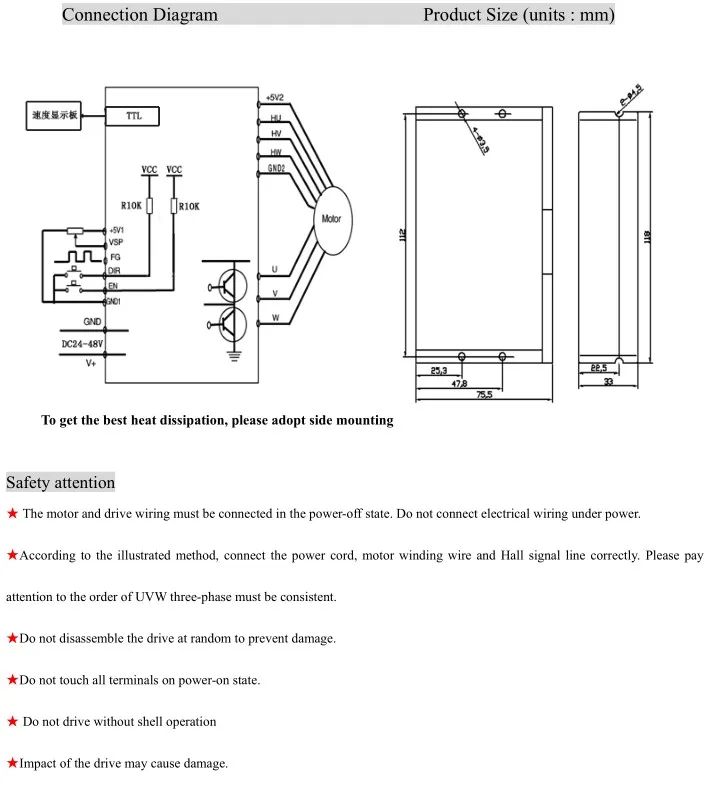

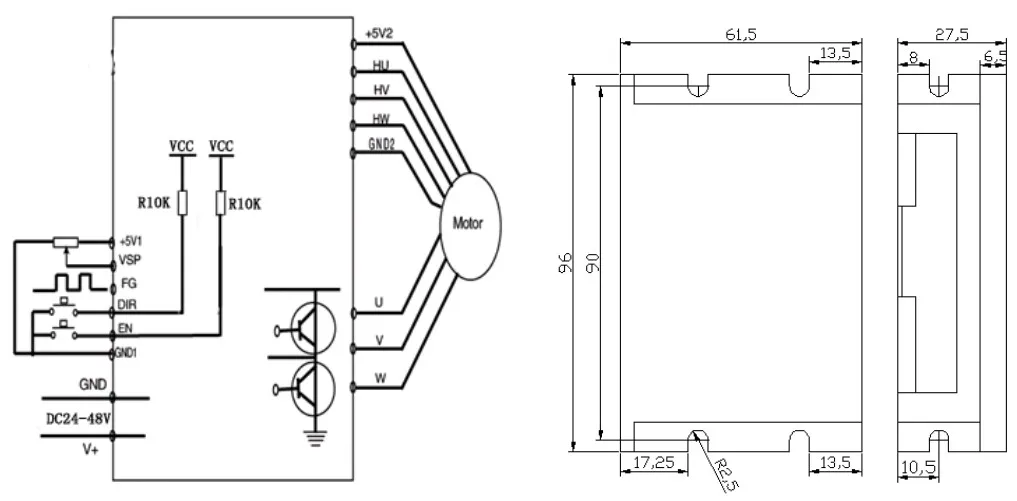

Wring and size:
