Normal Agm Gel Solar Deep Cycle Battery 12v 200ah 150ah Solar GEL battery 250ah 200ah 12V High Quality 12v 200ah ups Battery

Product Overview

Description

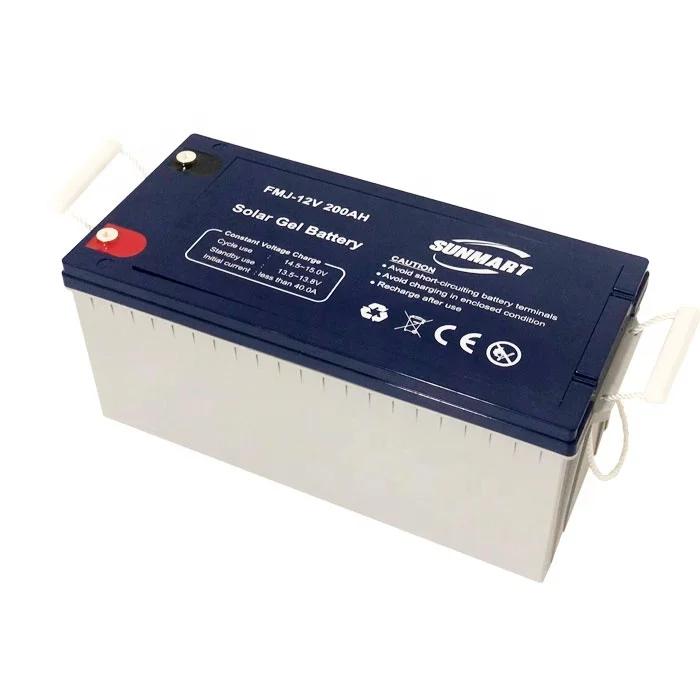

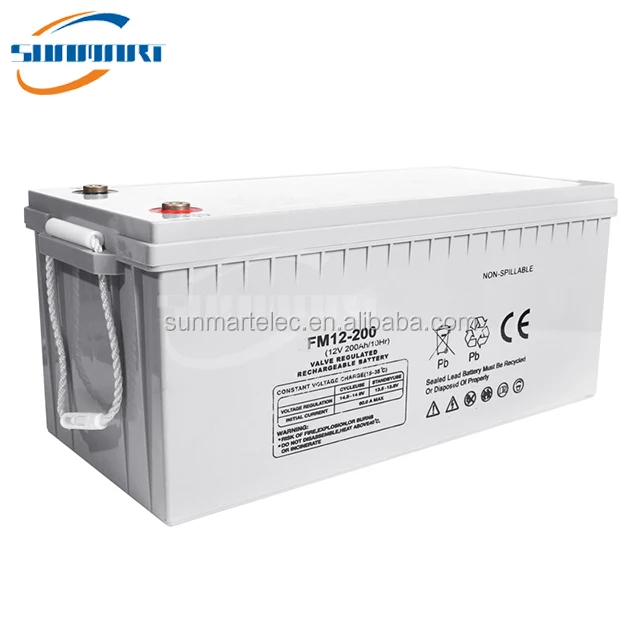

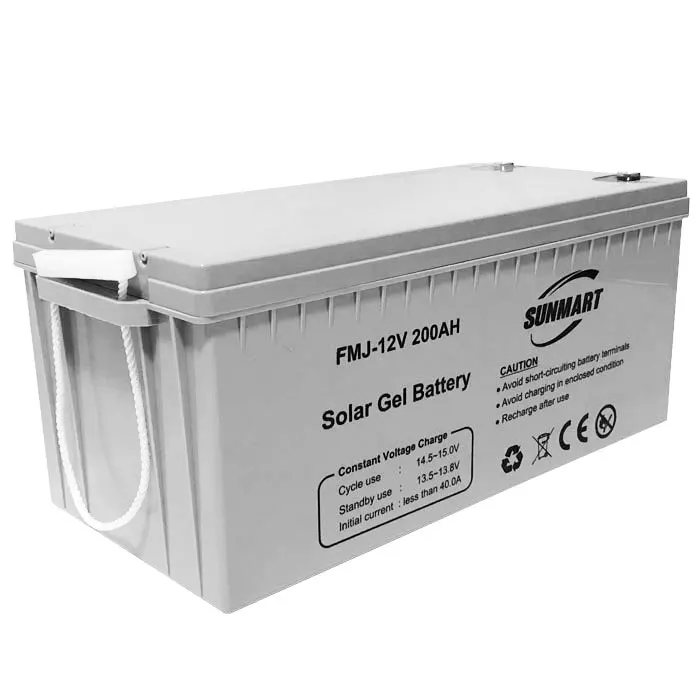

12V200AH Deep Cycle Gel Battery Hight Quality

Features :

1.Using oxygen recombination technology: maintenance-free

2.PbCaSn alloy for plate grids: less gassing, less self-discharging

3.High quality AGM separator: extend cycle life and prevent micro short circuit

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)

5.High purity raw material: ensure low self discharge rate

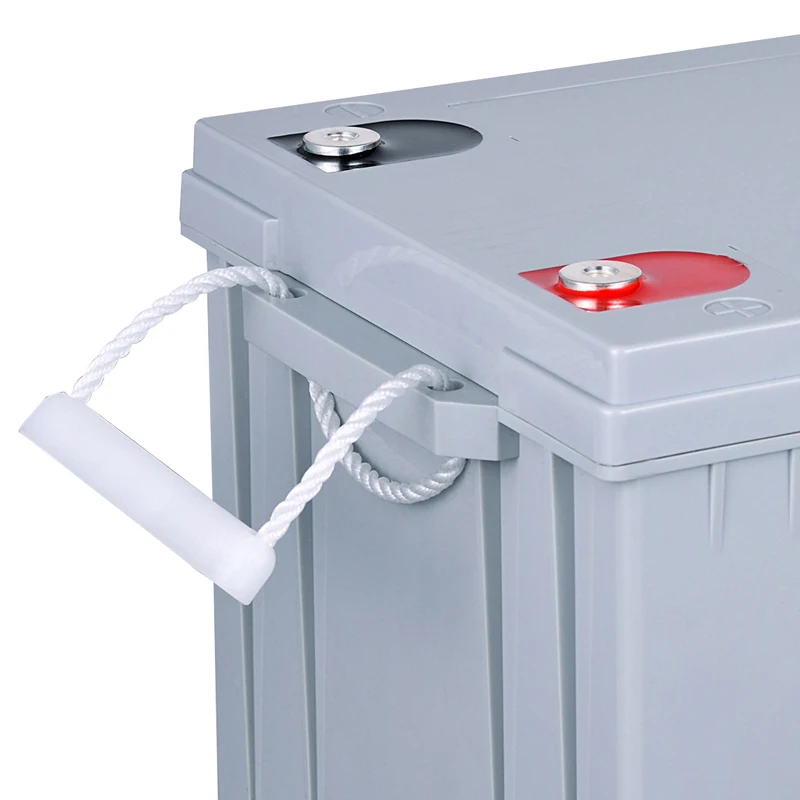

6.Silver-coated copper terminals, brass insert terminals and lead terminals improve theelectric conductivity

Application:

1. Alarm systems                                                   2. UPS

3. Access control equipment                                 4. Security systems

5. Emergency power systems                               6. Children Toys

7. Communication equipment                               8. Medical equipment

9.Electric powered vehicle                                   10.Golf cars and Bugy

11.Wheal chair                                                     12.Power tool

13.Control system                                                14.Vacuum cleaner

Technical Specifications:

Model	FMJ12-200
Designed life	8 Years (Floating) or > 2500 Cycles @ 50% D.O.D
Capacity (25℃)	20HR (10.5A)		10HR(20A)		5HR(34A)		1HR(110A)
	210AH		200AH		170AH		110AH
Dimensions	Length		Width		Height		Total Height
	520mm		240mm		245mm		245mm
Approx. Weight	56KG
Internal Resistance	Full charged at 25℃: 0.004 Ohm
Self Discharge	3% of capacity declined per month at (25℃)
Capacity Affected By Temp.	40℃	25℃		0℃		-15℃
	102%	100%		85%		65%
Charge voltage  (25℃)	Cycle use			Float use
	Constant Voltage 14.1-14.4V, Initial current is smaller than 80A			Constant Voltage 13.5-13.8V, Initial current is smaller than 30A

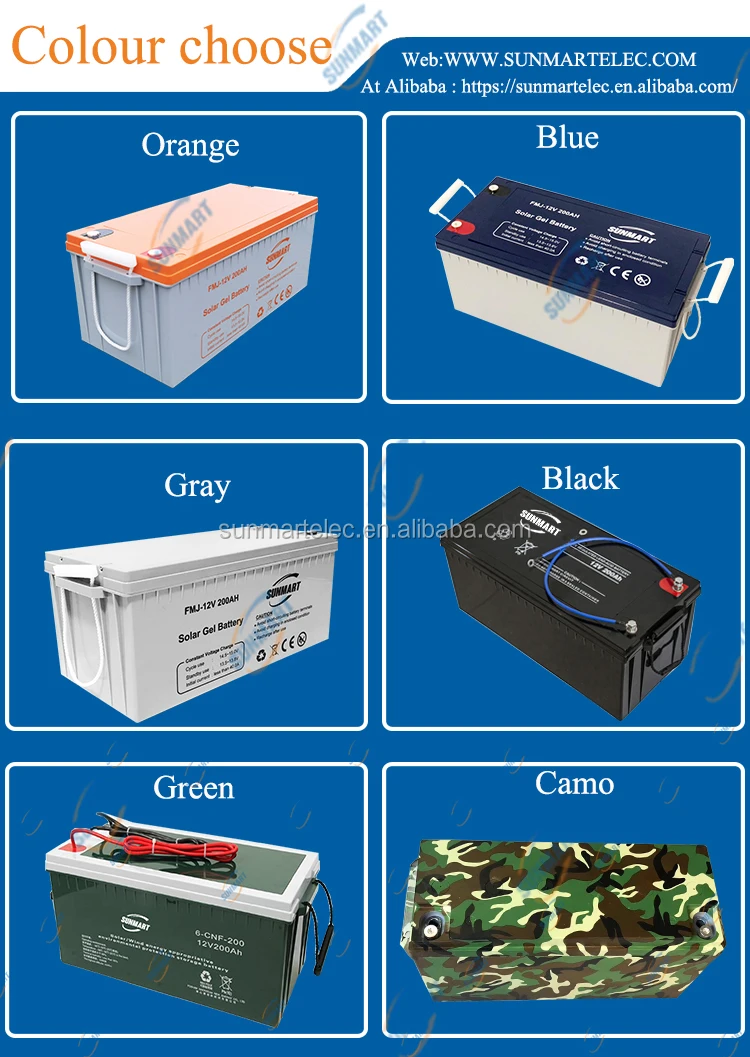

Color Optional :



Applications:

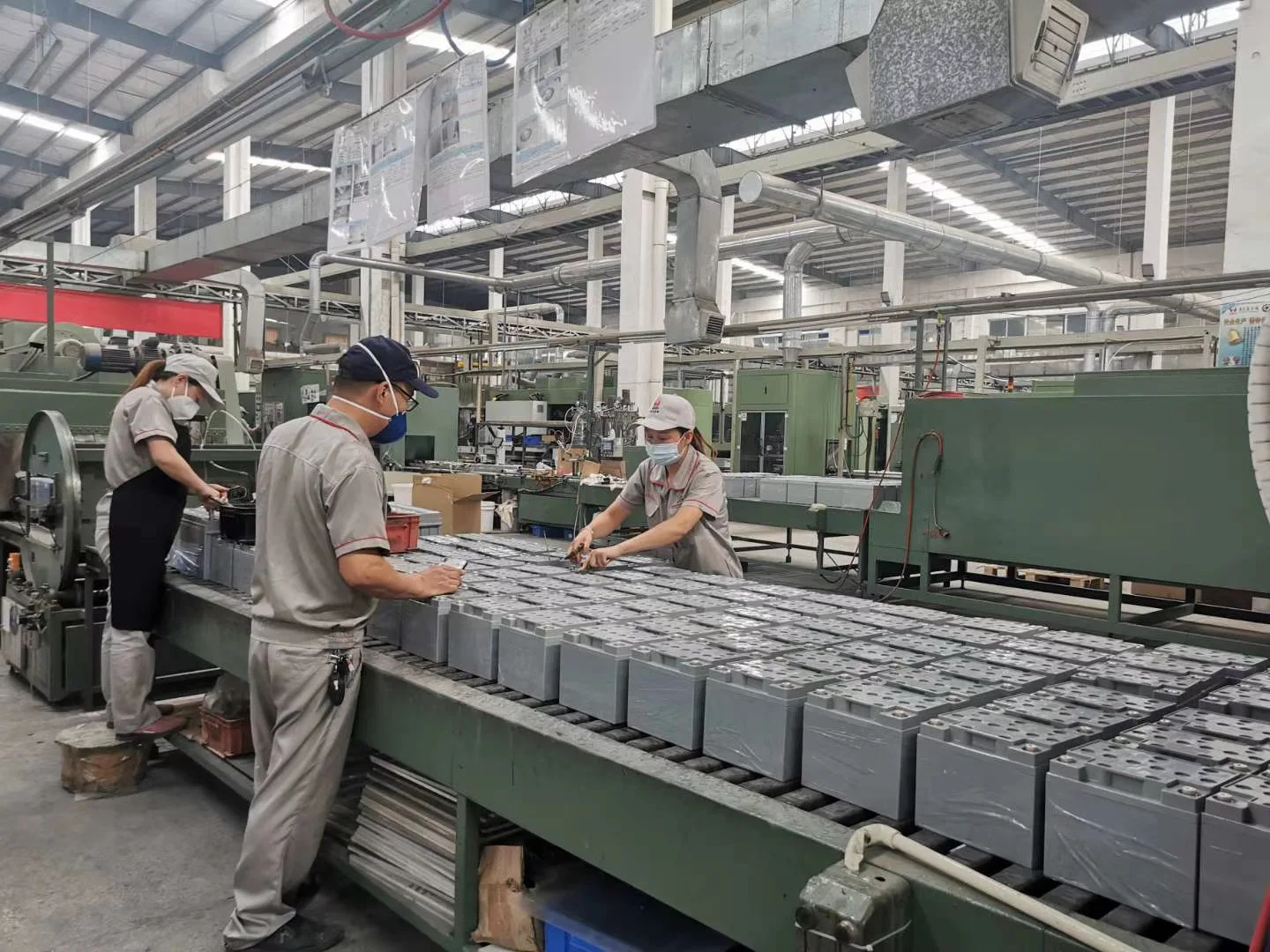

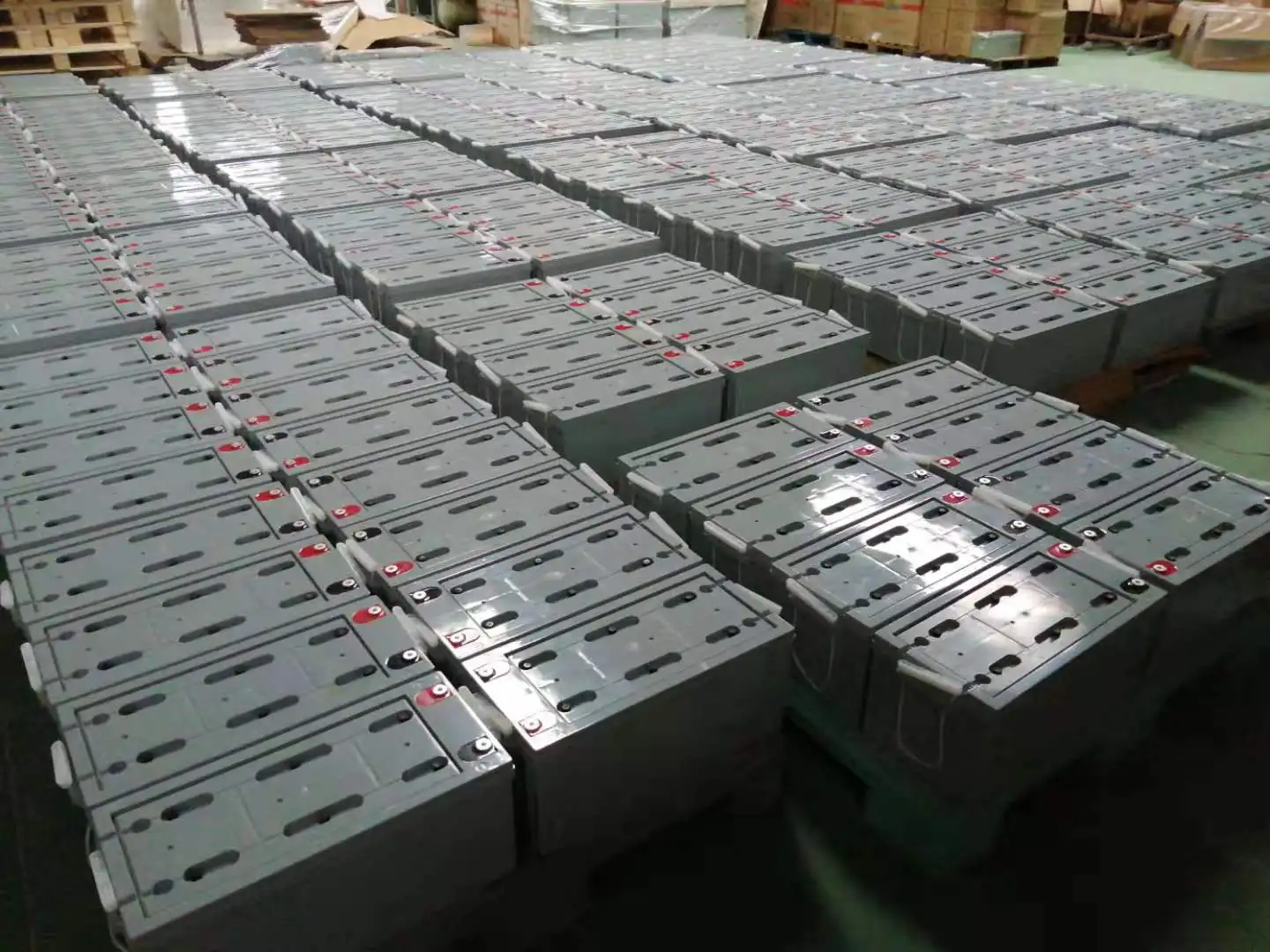

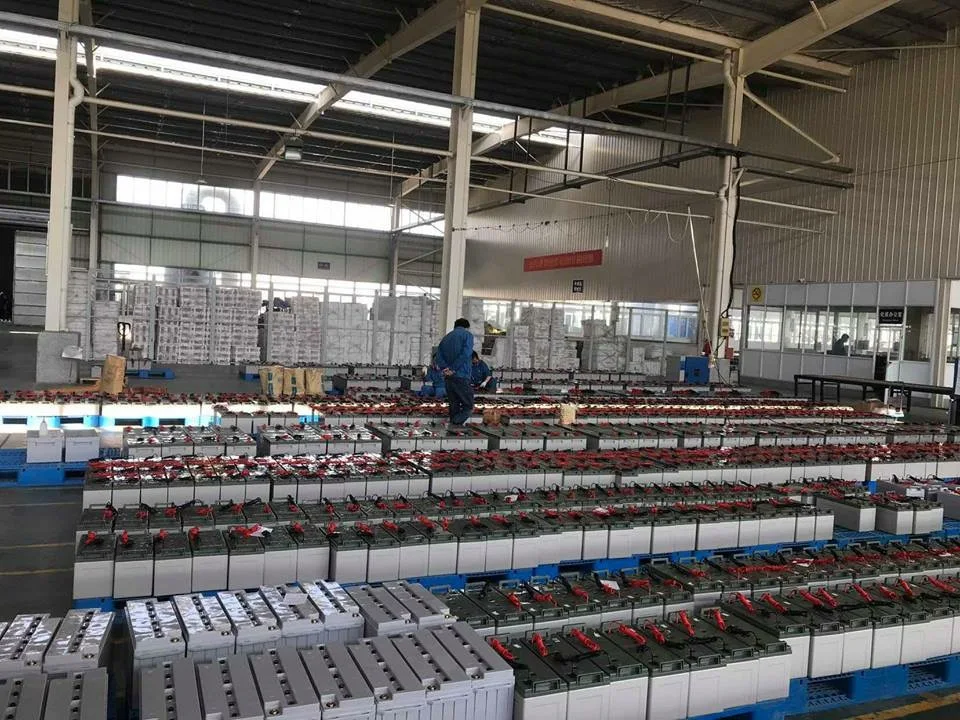

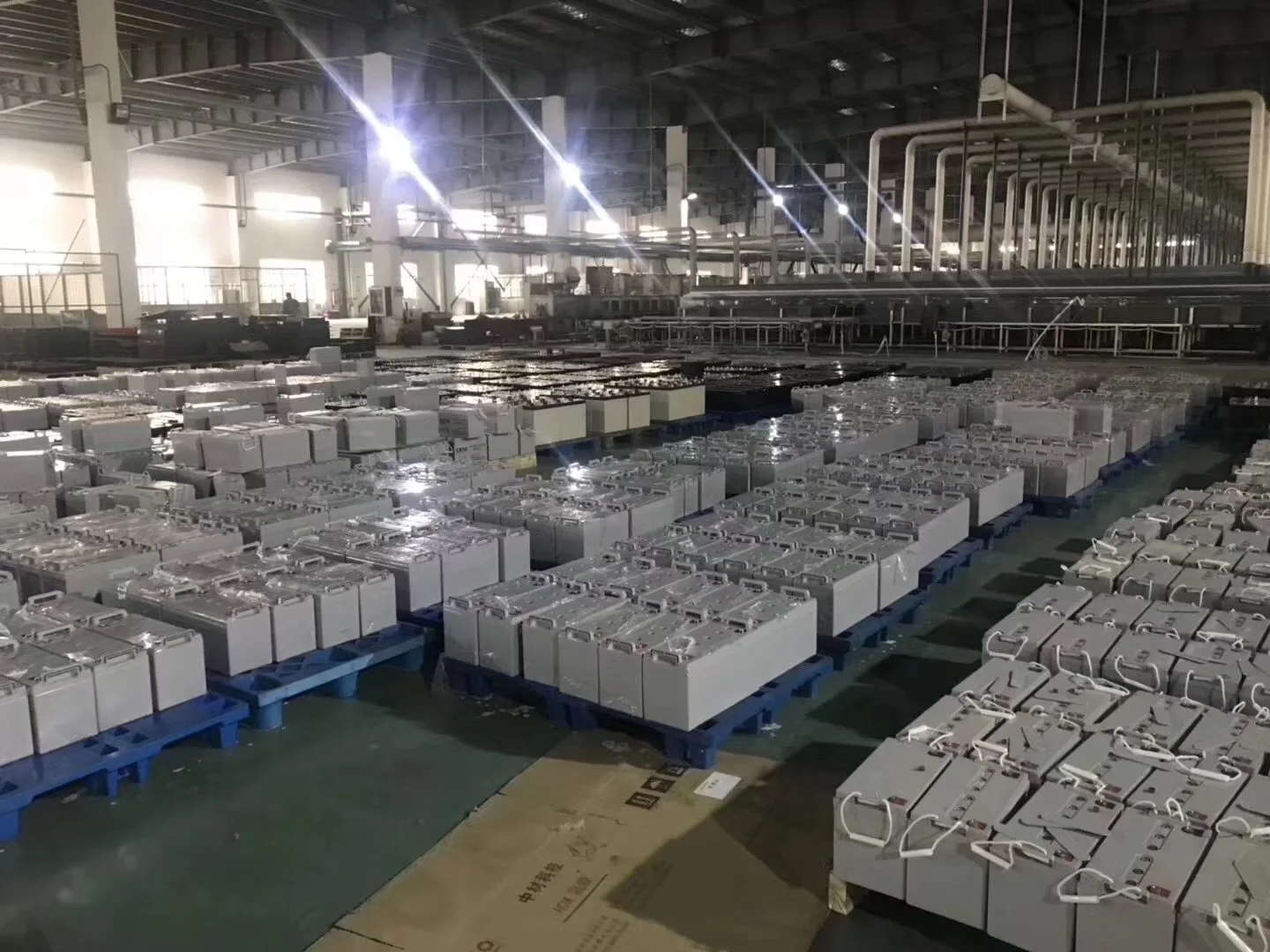

Production Process:







Why choose us ?



1 Rich experienced.

 We have over 10 years experience in production and installation of solar power system and wind power system products and our products are sold to more than twenty countries in the world. We can send installation team engineers to your location and instruct the system installation.



2 Strong technical support

 We have advanced R&D team to customize the system configuration and make sure our product is in stable performance, including solar panel , solar inverter , charge controller etc. Only if you have problem, we will provide professional technical support and solve it by the fastest speed.



3 Good quality, steady operation

 Quality and Service are our Culture! With over 10 years new energy experience with two factories (which produce solar panel, inverter and battery), introduced advanced production equipment and specialized production line, adopt international standard management and strict quality control to ensure the stable-performance and high-quality.



4 Competitive price

 We are professional manufacturer. We will not guarantee you the cheapest price in China, but we will guarantee you the advantaged competitive product .We will do our best to support our customers to open the market and reach a win-win situation in the end.



5 Fast delivery time.

 "Time is gold" We have high-efficiency supply chain and long-term cooperation with shipping company, thus rapid production and fast delivery are assured.



6 Excellent after sales service.

We have professional after sales service engineer team to help you solve any kind of problem:



1) Solar panel has 25years warranty, ship the free new one for service

2) Gel battery has 2 years warranty, ship the free new one for service

 3) Solar inverter has 2 years warranty, ship the free PCB by DHL or FEDEX for service. we are not doing one-time business!



Related Product:

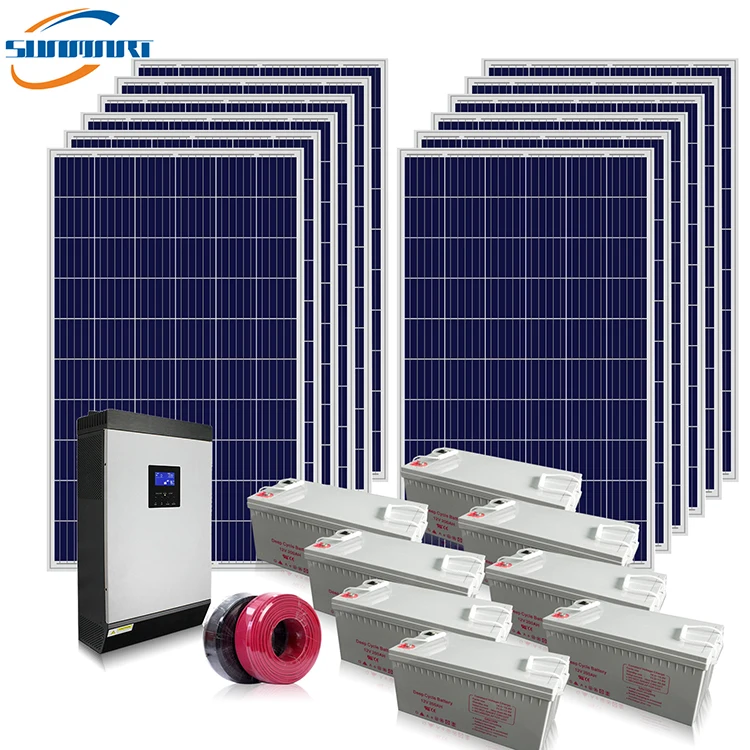

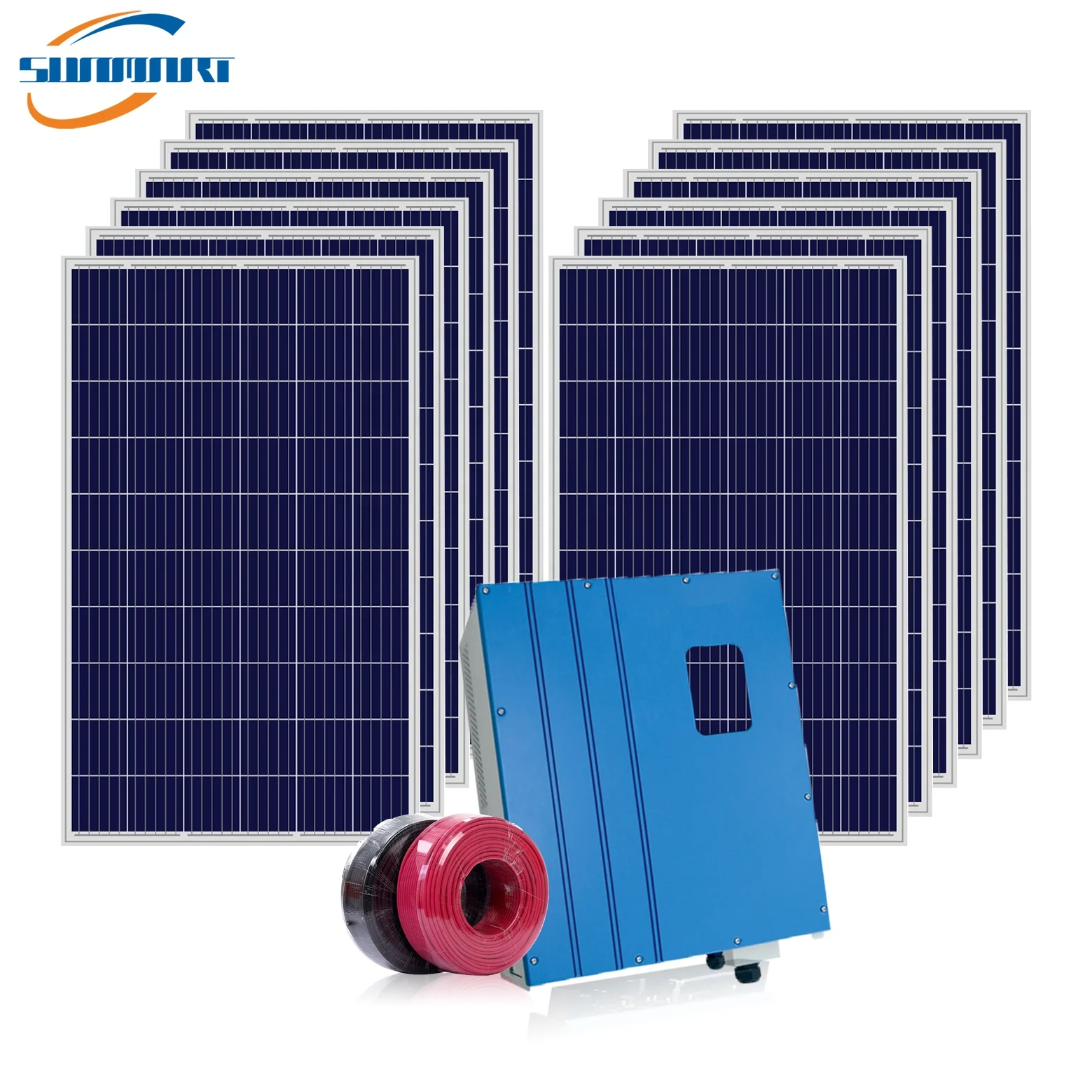

                     Off grid                                       On grid                                                 ON/OFF grid
