IMX179 gsm 8mp spi zoom 4K thermal medical mipi csi raspberry pi cmos camera module
- Category: Video Cameras >>>
- Supplier: Shenzhen City Haozhou Technology Co. Ltd
Share on (62009496791):
Product Overview
Description

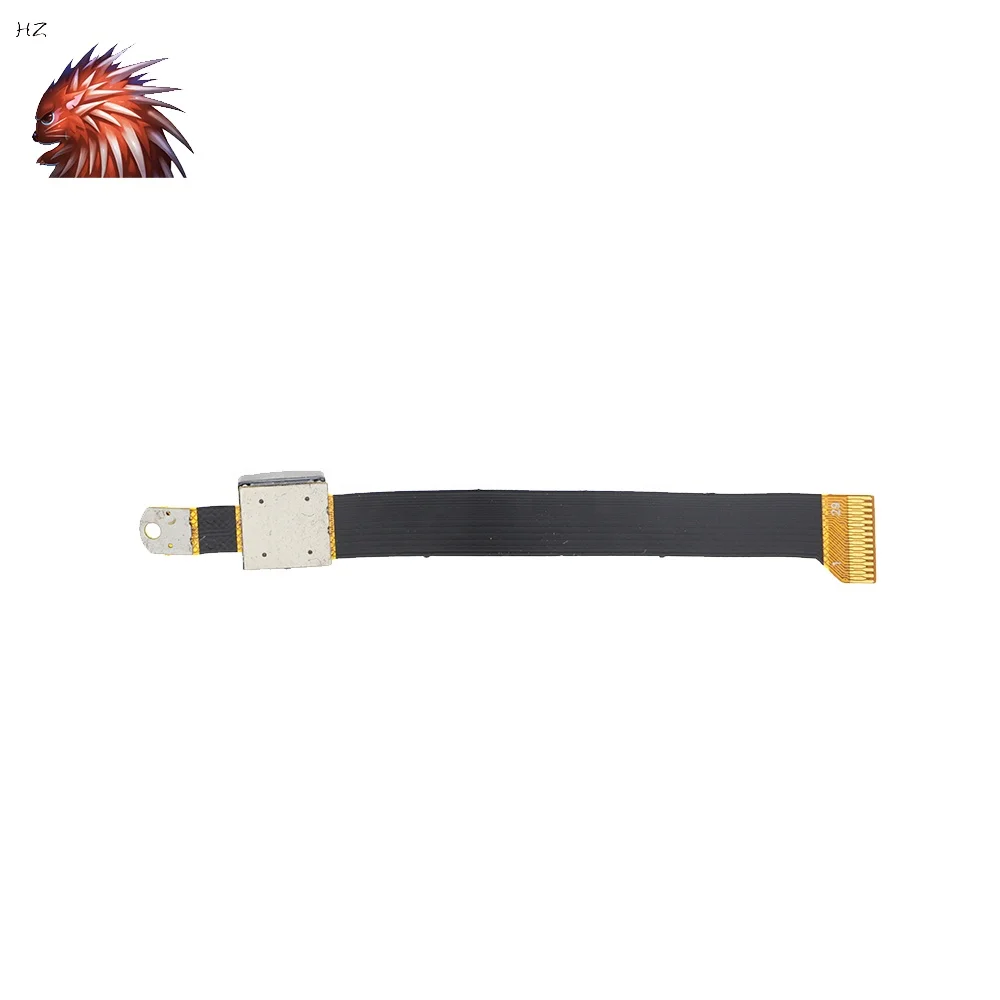

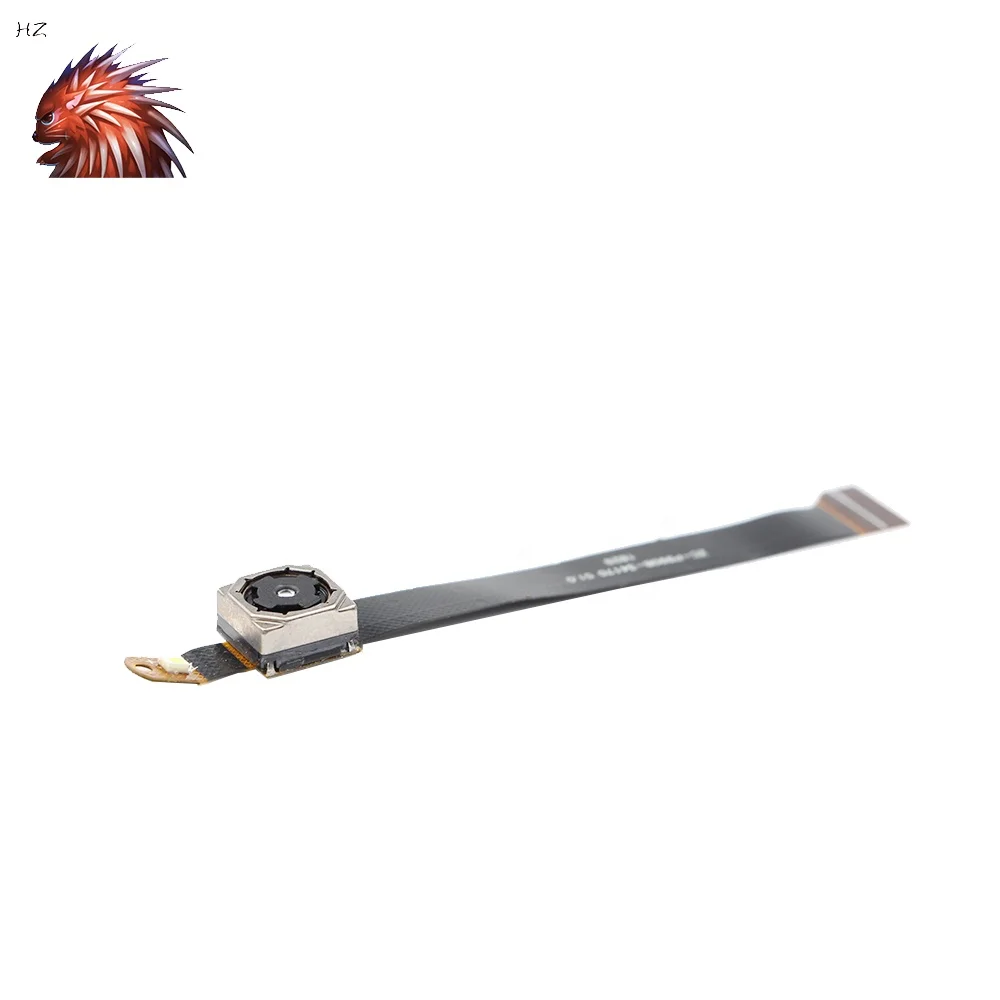

IMX179 gsm 8mp spi zoom 4K thermal medical mipi csi raspberry pi cmos camera module

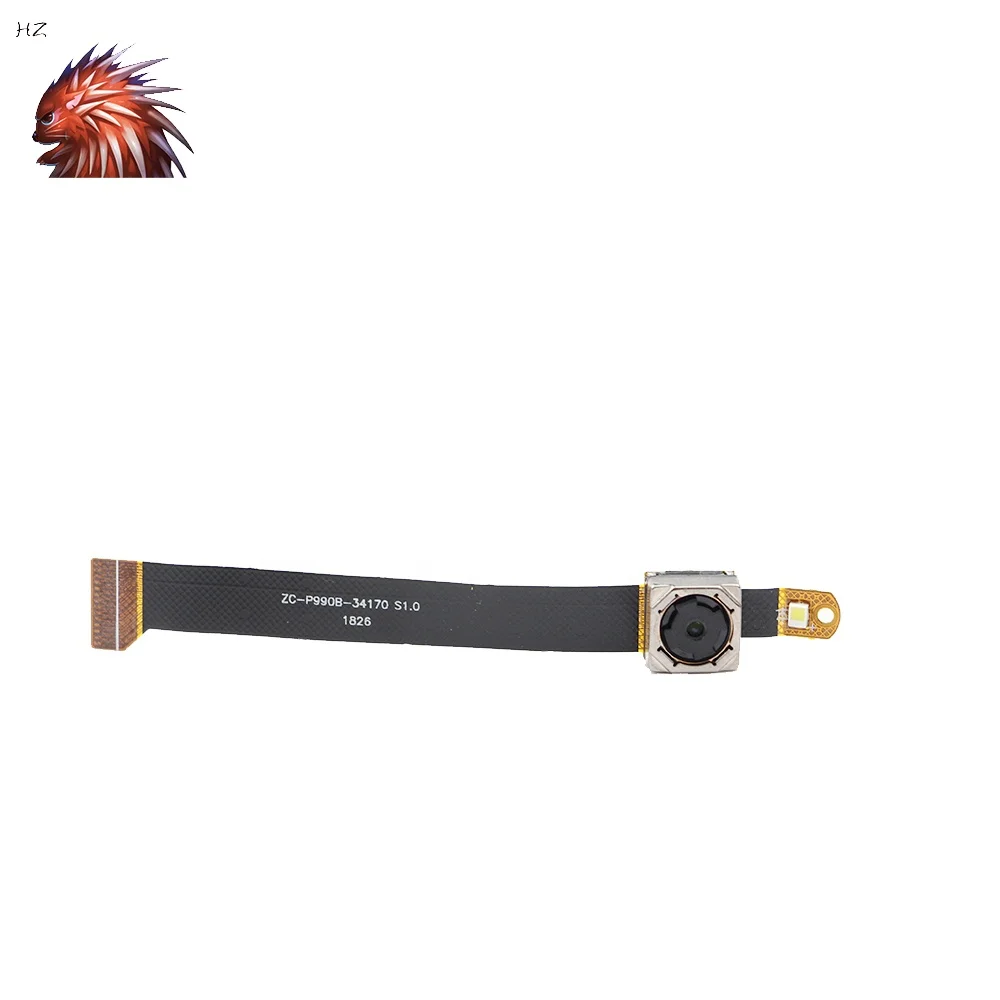

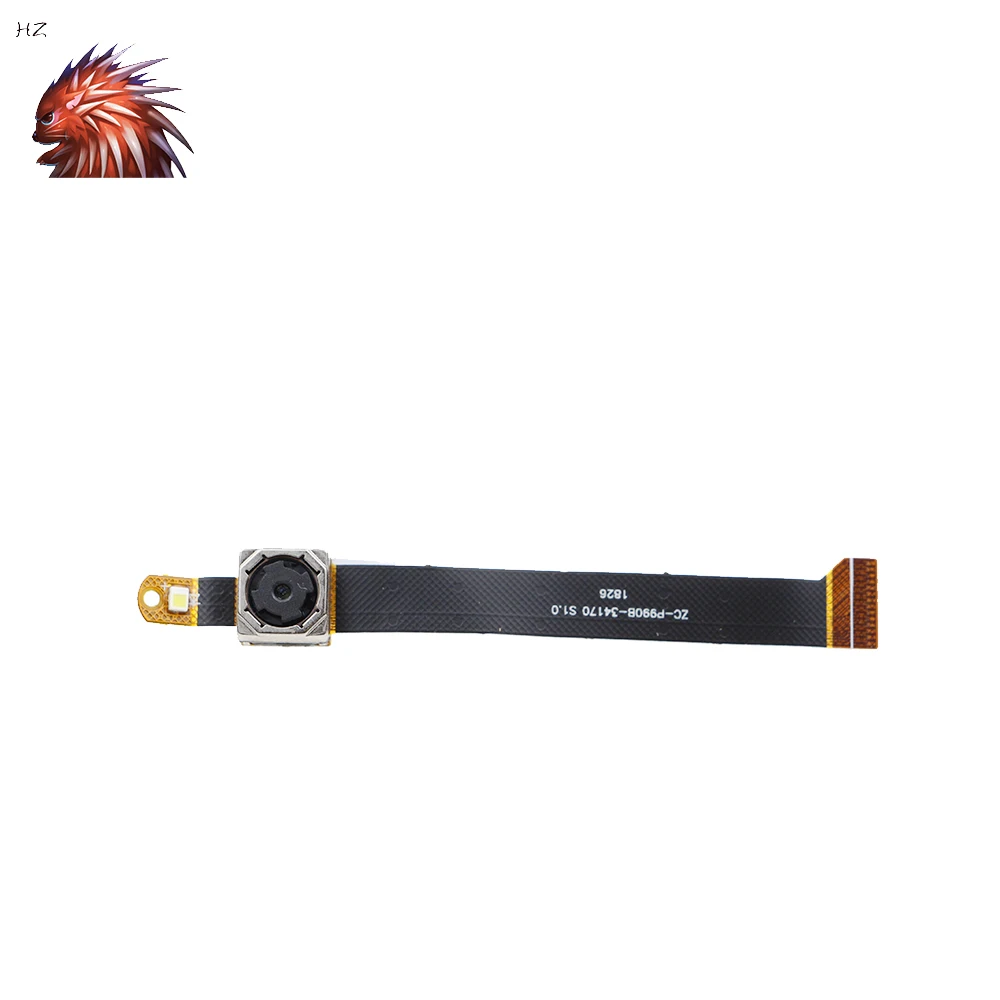

Module No. | ZC-P990B-34170 S1.0 | |
Module Size | 71mm × 9mm×5.1mm | |
Object distance | 20cm-∞ | |
Resolution | ≥1200lW/PH(Center) | |
Focus | Auto Focus | |
Interface | MIPI | |
Voltage | Core 1.0V~1.3V analog 2.7V~3.0V I/O 1.8V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Assembly technique | Glue | |
PCB printing ink | Black | |
Operating system request | Windows 2000 ,Windows XP/ 7 / 8 | |
Package | Anti-electrostatic tray | |
Sensor Type | ||
Sensor No. | MN34170 | |
Sercor Type | 1/3.06” | |
Active Array Size | 4224 X 3168 | |
Sensitivity | TBD | |
Pixel Size | 1.12µm x 1.12µm | |
Maximum Image Transfer Rate | 4224 X 3168@30fps | |
Dynamic Range | TBD | |
LED Type | ||

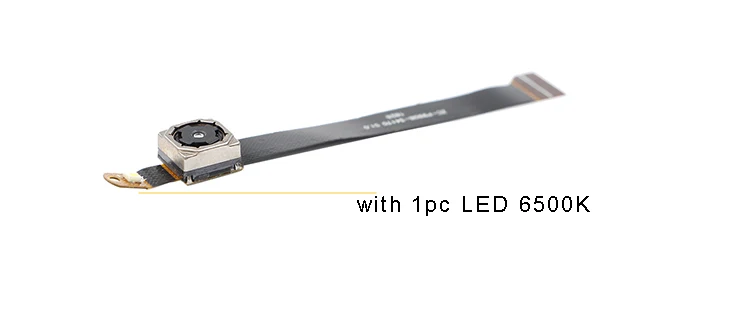

LED | RZX-2016W0.8T-6000-6500K | |
LENS | ||
Lens Construction | 4P | |
F/NO | 2.2mm | |
EFL | 3.46mm | |
FOV | 67.8° horizontal 82.8° diagonal 53.1° vertical | |
IR Filter | / | |
TV Distortion | <1.0% | |
DSP Type | ||
AGC/AEC/Whiter balance | Auto | |
Output Formats | USB suspend out | |
Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK | |
Application | ||
Application | Face Recognition | |
