Product Overview

Description

45HP water cooled chiller



Model         Item		LC-45W	Band
Power supply		380V/3PH/50HZ
Nominal cooling capacity	Kcal/h	115695
	kw	135
Refrigerant	Name	R22(or R407C/R404A)	Import of high quality refrigerant
	Control method	Thermostatic expansion valve
Compressor	Type	Scroll compressor	Copeland(America)
	Power(HP)	12.5*2+10*2
Condenser	Type	Shell tube	High efficiency Shell tube condenser
	Inlet and outlet pipe diameter(PT)	3″x2
	Environment water Temp(dissipate heat)	≤35℃
Evaporator	Type	Water tank with coil	Water tank with coil
	Chilled water flow (L/min)	700
	Thank volume(L)	400
	Inlet/out pipe(PT)	3″
Water pump	Power(HP)	5	Muchuan
	Lift(m)	19
Safety protection	Control pane	Compressor overheating  protection,over-current  protection,high and low  pressure protection,over temperature protection,  flow switch protection,phase sequence or missing phase  protection, exhaust overheating protection,antifreezing  protection.	Punp
	High/low pressure gauge		JAVE(Taiwan)
	Filter		ALCO(America)
	Relay		Schneider(France)
	Contactor		Schneider(France)
Dimension	weight(kg)	1100	Wooden case
	LxWxH(mm)	2100*1200*1400
	Surface treatment	Mainboard :2mm,  closingboard: 1.5mm	Baking varnish



1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° CRemark:



2.range of work:Chilled water(Temp range):5℃-45℃;inlet and outlet water(temp range)  :3℃-8℃.working environment: ≤35℃(condensation Temp)



3.Conversion of units:1kw cooling capacity=860kcal/hr

1RT=3024kcal/hr       1kcal/hr=3.969BTU/hr            1HP=0.735KW

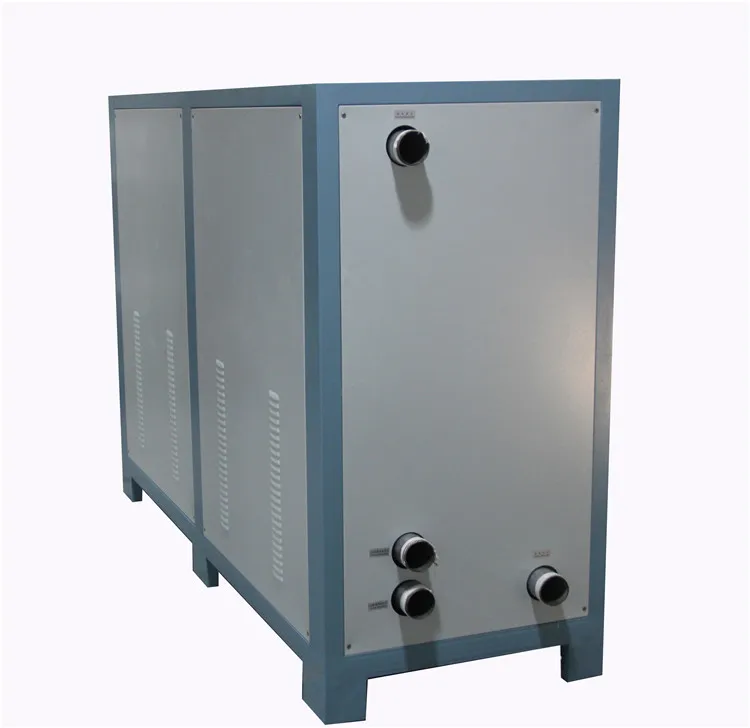

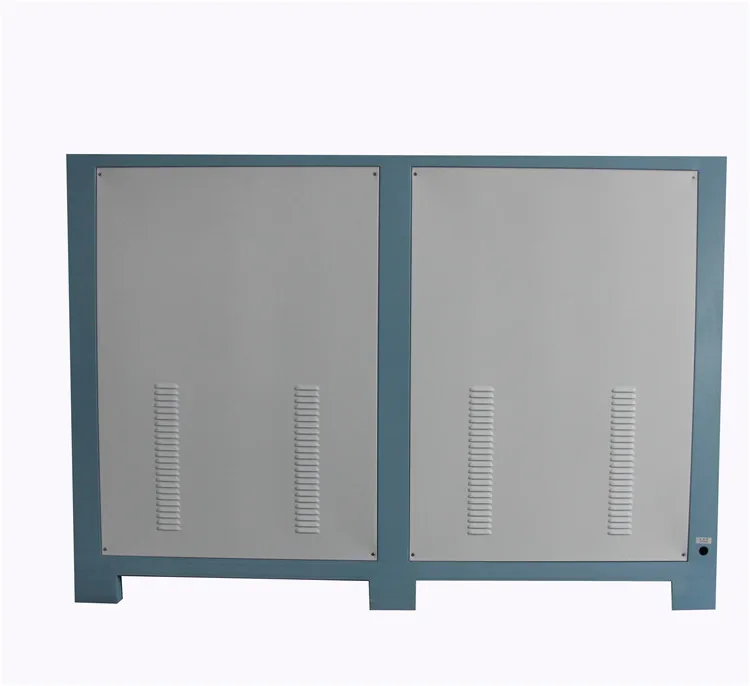

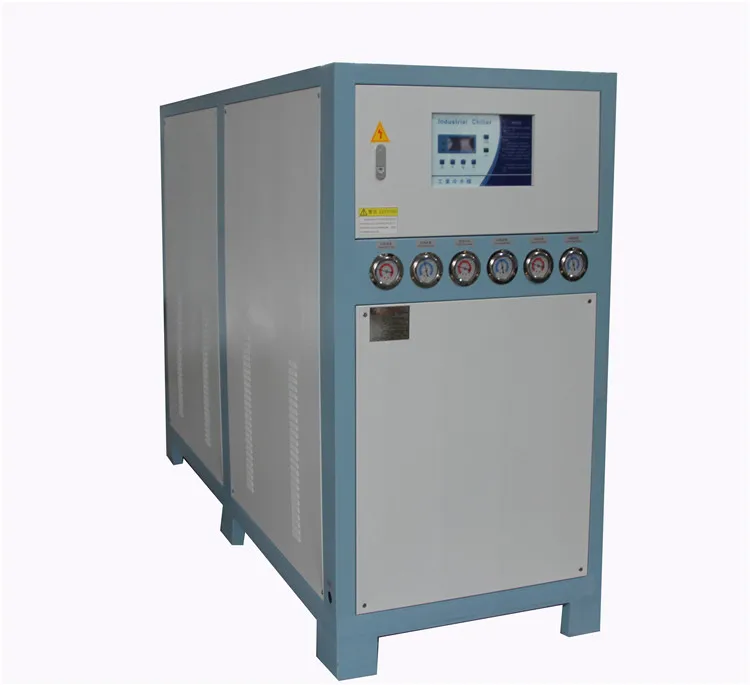

MACHINE PICTURES



OUR FACTORY





OUR CERTIFICATE



FAQ

Q1:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in cooled chiller more than 20 years, we provide wide range of industrial chillers available to suit any cooling need.



Q2:What's warranty and after-sale service of machine?

A:Twelve months Warranty for main machinery part like motor and electric;

Life-long maintenance service(Email and calling service in working hours)



Q3: How to install and run the machine?
A: Our technician have installed the machine before shipping.

Q4: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



 Q5:How about the quality of your product?

 · Our products manufactured strictly according to national and international standard.

 · We have CE, ISO certification.

 · We take a test on every product before shipping.



 Q6:Whether the product can be customized?

 · We can make products according to customer's requirements.



Q7:Don't know which type you need?

A:Please send us your requirement or contact us directly!



Q8:Don't know how the machine working?

A:Contact us to see the video and get further information!
