[Handy Age] High Performance One Handed Bar Clamp (HT2300 046)

Product Overview

Description

Item: High Performance One-Handed Bar Clamp (HT2300-046)



Features

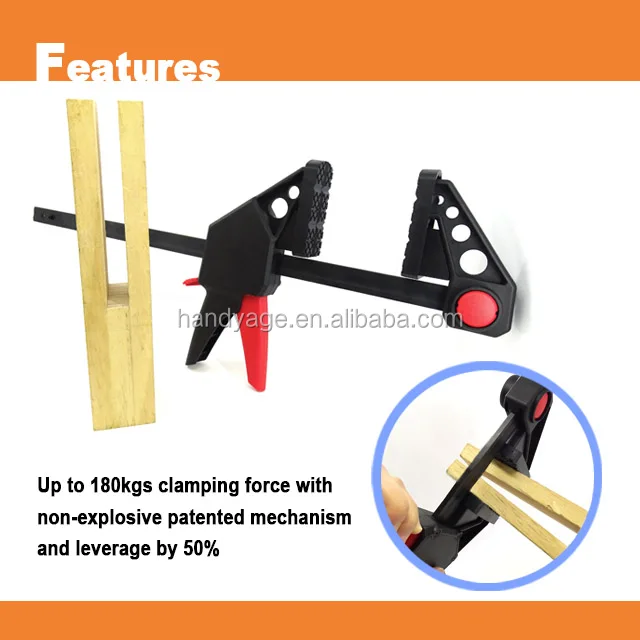

• Up to 180kgs clamping force with non-explosive patented mechanism and leverage by 50%

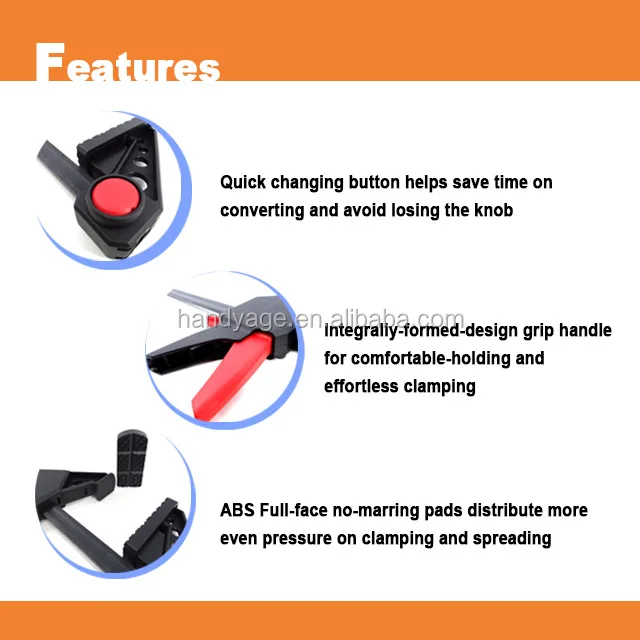

• Integrally-formed-design grip handle for comfortable-holding and effortless clamping

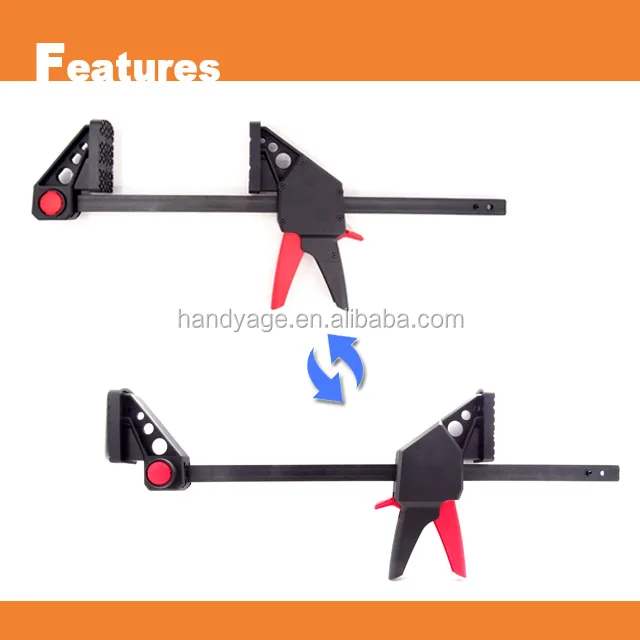

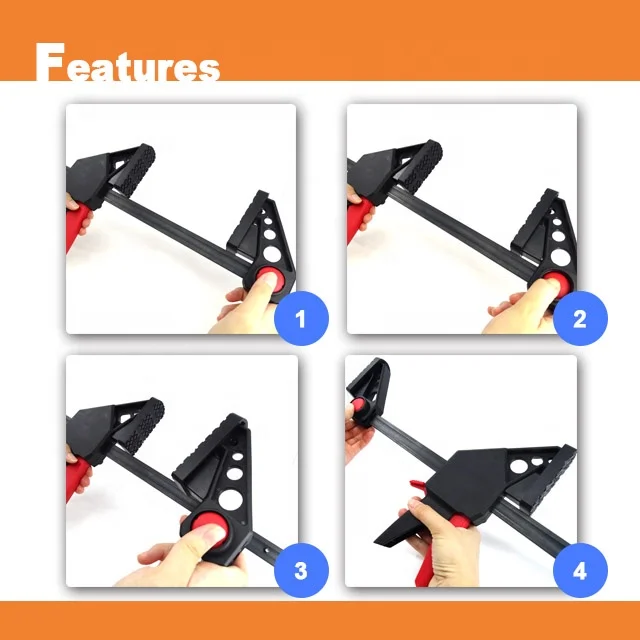

• Quick changing button helps save time on converting and avoid losing the knob



• ABS Full-face no-marring pads distribute more even pressure on clamping and spreading

Description

• Patented mechanism in Taiwan/Japan/USA/Germany/China



• Suitable for woodworking, DIY projects or construction



• Optional standard pads for general woodworking purpose



• Made in Taiwan without recycled materials for overall quality assurance and longer lifespan



• Welcome all OEM/ODM

Specification

• Throat Depth: 88mm



• Bar material: Alloy Steel



• Grip Handle material: Nylon+Fiberglass



• Body material: PP



• Pads material: ABS



• Optional standard pads available



• Full-Face Pads 5 Sizes available (Clamping / Spreading):




  • HT2300-046A: 175mm / 190-430mm



  • HT2300-046B: 325mm / 190-582mm



  • HT2300-046C: 495mm / 190-750mm



  • HT2300-046D: 635mm / 190-880mm



  • HT2300-046E: 940mm / 190-1190mm







• Standard Pads 5 Sizes available (Clamping / Spreading):




  • HT2300-046AS: 175mm / 190-430mm



  • HT2300-046BS: 325mm / 190-582mm



  • HT2300-046CS: 495mm / 190-750mm



  • HT2300-046DS: 635mm / 190-880mm



  • HT2300-046ES: 940mm / 190-1190mm
