Tobee Effluent Handling
$12,600
220v 50hz qdx 1hp single phase ac electric clean water submersible ac water electric powered water Submersible centrifugal pump
- Category: >>>
- Supplier: Sichuan Jianeng Mechanical And Electrical Co. Ltd.Sichuan Ltd.
Share on (62009620835):
Product Overview
Description

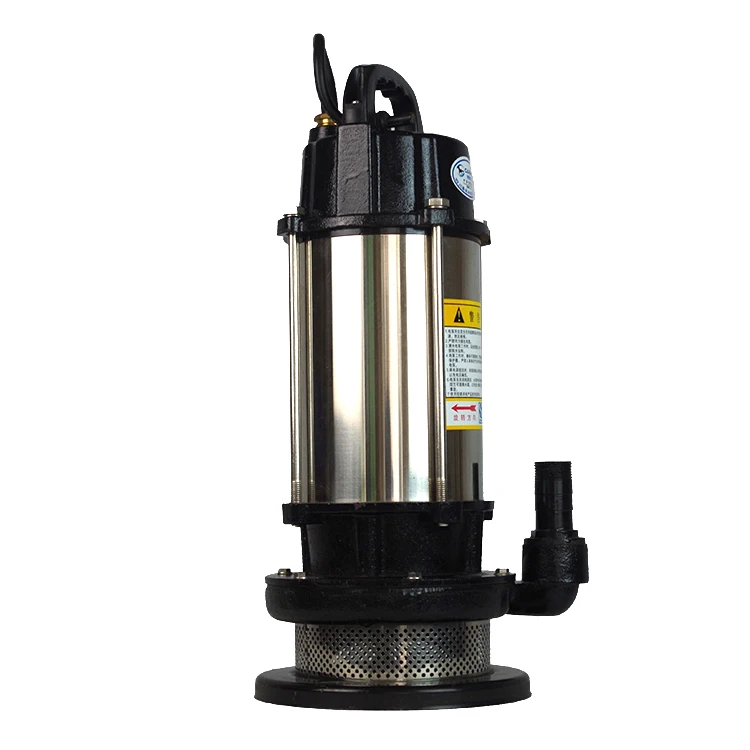

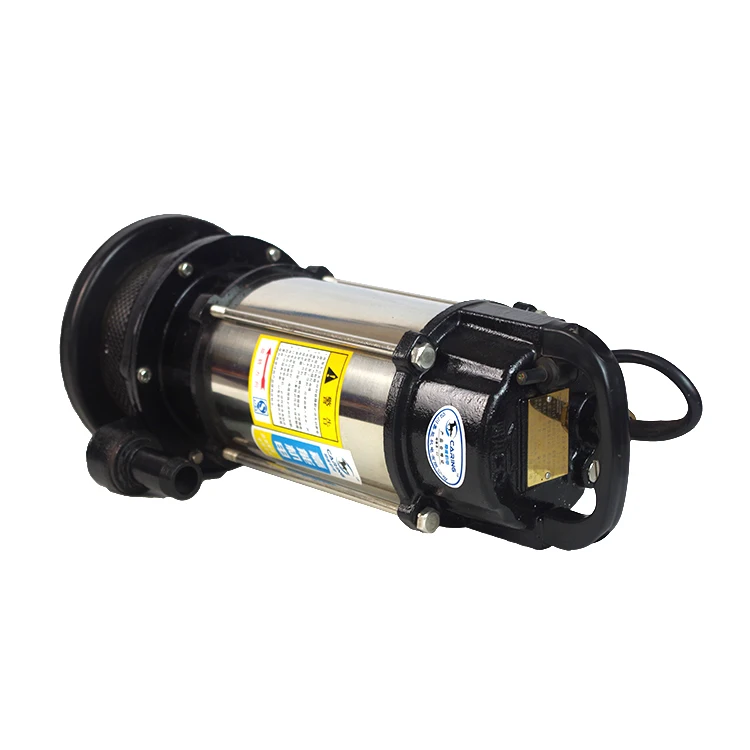

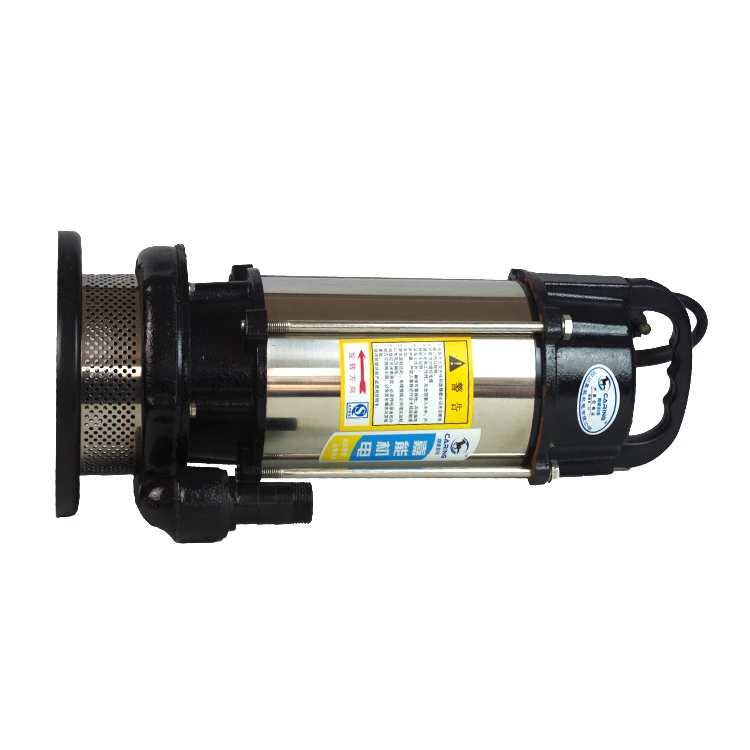

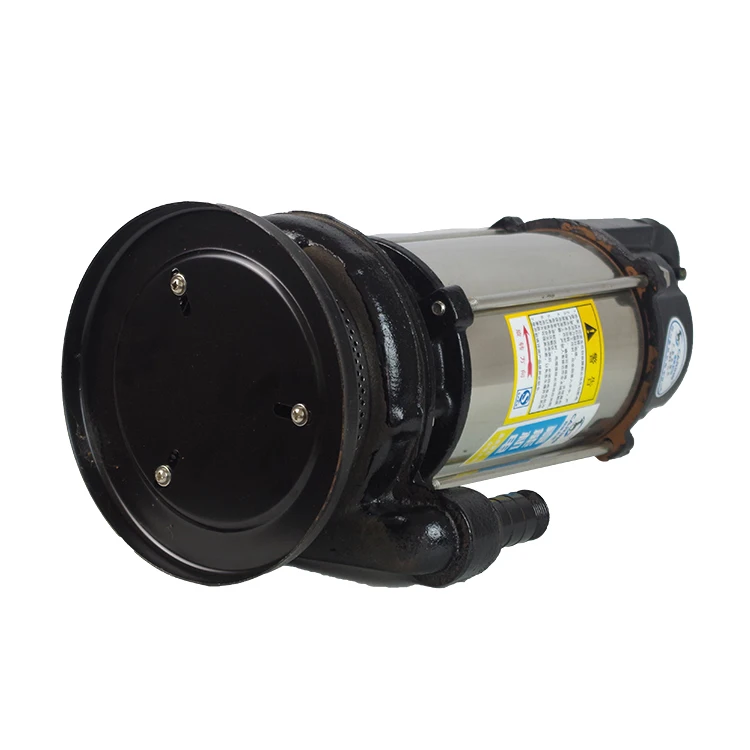

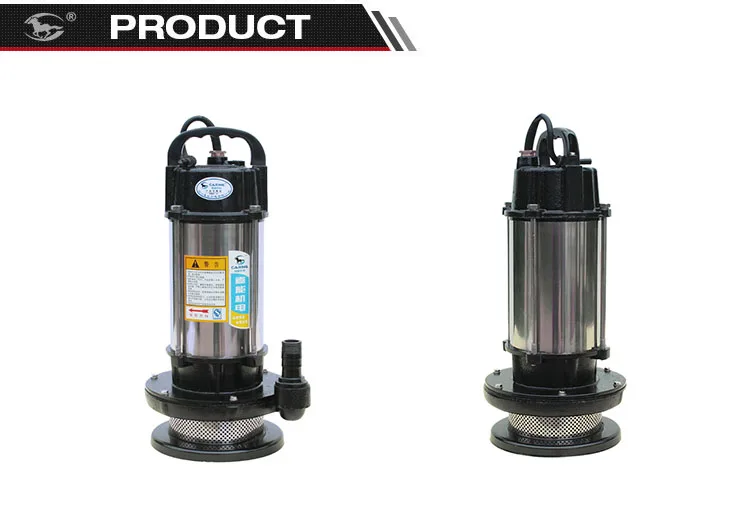

220v 50hz qdx 1hp single phase ac electric clean water submersible ac water electric powered water Submersible centrifugal pump
Basic introduction
maximum fluid temperature:40℃ PH value: 4 to 10 high head and lager flow
speed: 2860r/min Insulation :B pure copper

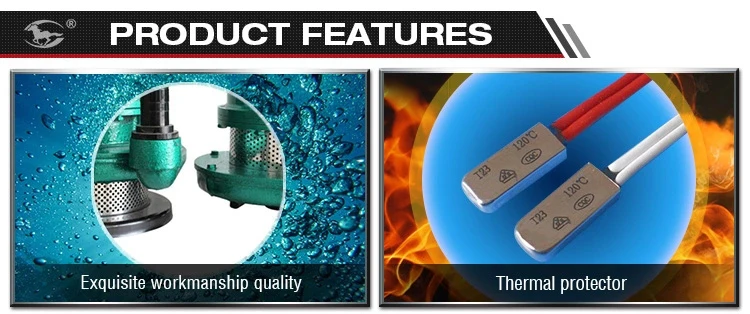

maximum immersion:5m screws:stainless steel overheating protector
Product Description

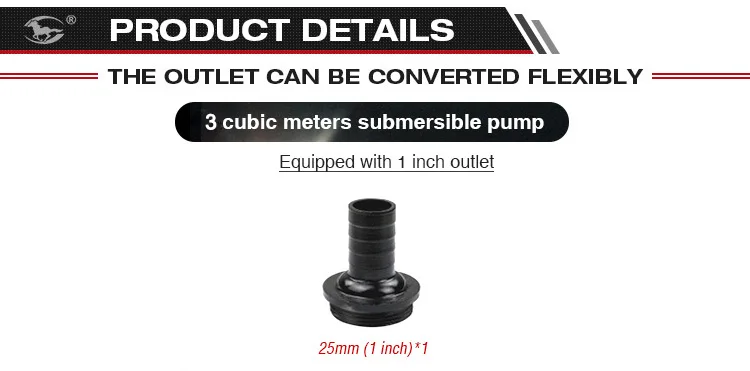

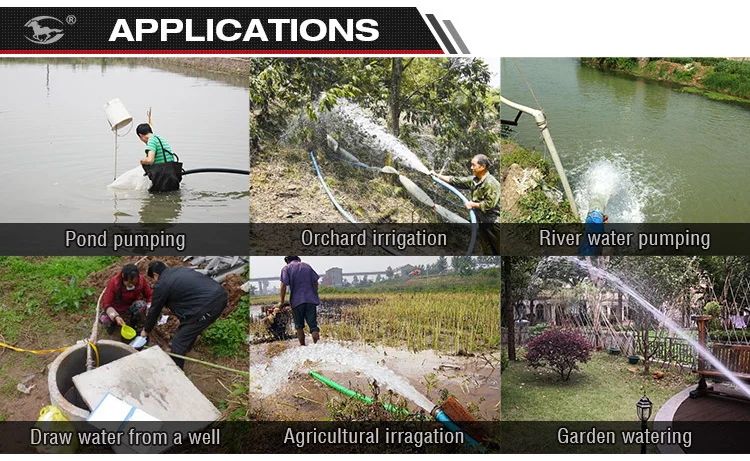

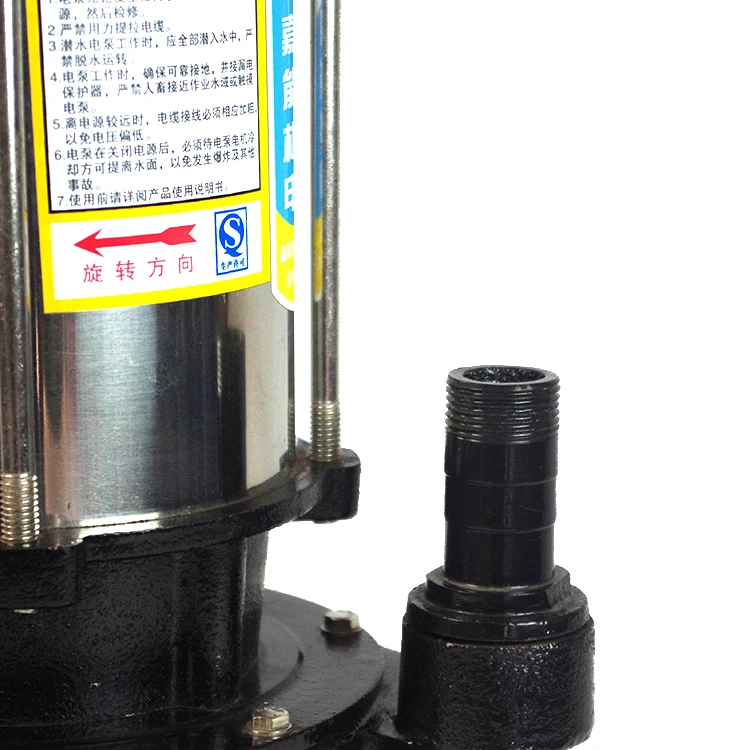

The clean water pump is equipped with different water outlets according to the different head and flow, which can be used for agricultural irrigation in rural areas, domestic water extraction from shallow Wells, pond water supply and other environments

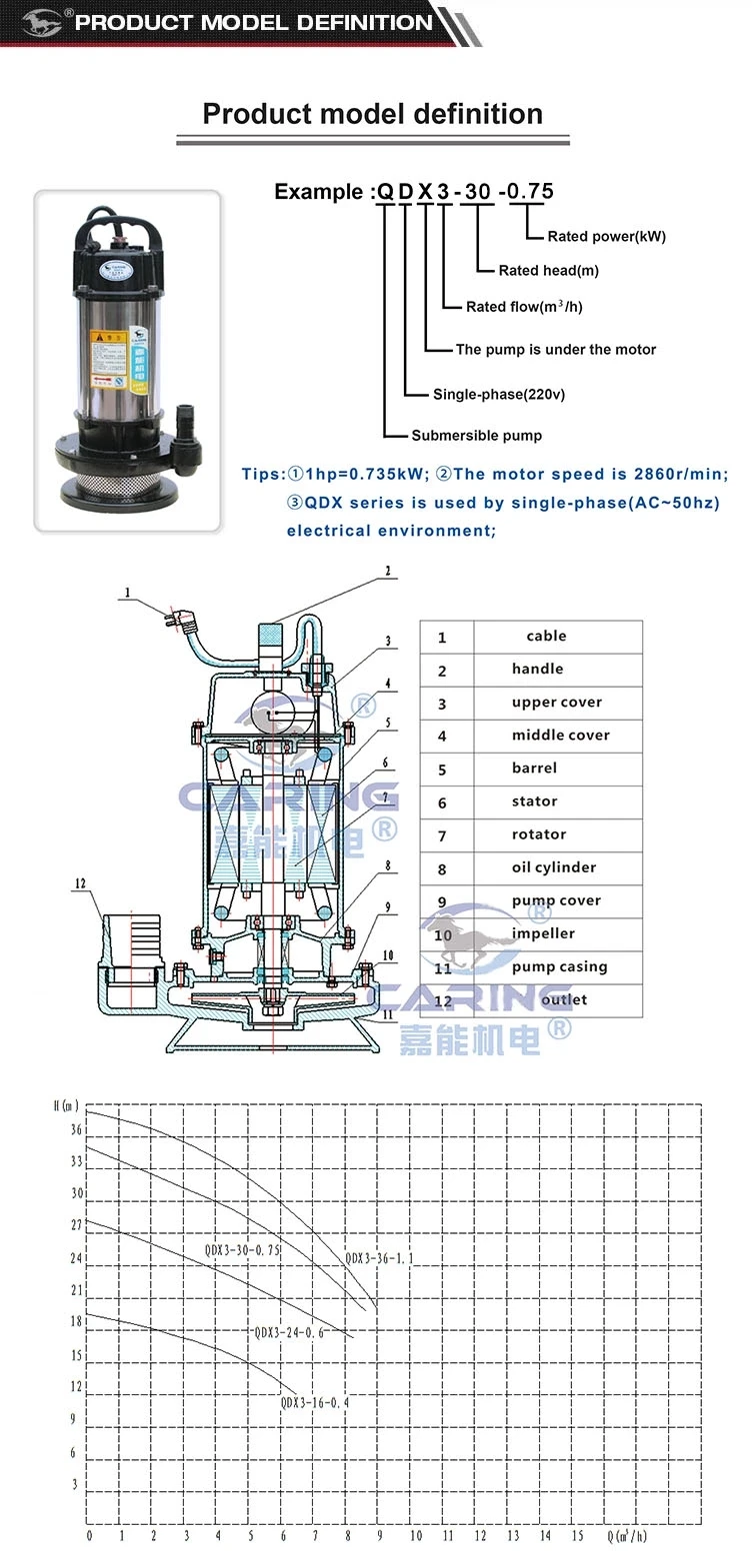

| Model | Power | Voltage | Flow | Head | Pump casing material | Outlet size | Height | Max diameter | |
| kW | hp | ||||||||
| QDX3-14-0.4 | 0.4 | 0.5 | 220V | 3m³/h | 14m | aluminum | 25mm | 370mm | 195mm |
| QDX3-16-0.4 | 0.4 | 0.5 | 220V | 3m³/h | 16m | cast iron Ⅱ | 25mm | 370mm | 195mm |
| QDX3-24-0.6 | 0.6 | 0.8 | 220V | 3m³/h | 24m | cast iron Ⅲ | 25mm | 420mm | 210mm |
| QDX3-24-0.6 | 0.6 | 0.8 | 220v | 3m³/h | 24m | aluminum | 25mm | 420mm | 210mm |
| QDX3-24-0.6 | 0.6 | 0.8 | 220v | 3m³/h | 24m | cast iron Ⅱ | 25mm | 420mm | 210mm |
| QDX3-24-0.6 | 0.6 | 0.8 | 220v | 3m³/h | 24m | stainless steel | 25mm | 420mm | 210mm |
| QDX6-14-0.6 | 0.6 | 0.8 | 220v | 6m³/h | 14m | aluminum | 25mm/38mm/50mm | 420mm | 210mm |
| QDX6-14-0.6 | 0.6 | 0.8 | 220V | 6m³/h | 14m | cast iron Ⅱ | 25mm/38mm/50mm | 420mm | 210mm |
| QDX6-14-0.6 | 0.6 | 0.8 | 220V | 6m³/h | 14m | stainless steel | 25mm/38mm/50mm | 420mm | 210mm |
| QDX3-30-0.75 | 0.75 | 1 | 220V | 3m³/h | 30m | aluminum/stainless steel | 25mm | 410mm | 235mm |
| QDX3-30-0.75 | 0.75 | 1 | 220V | 3m³/h | 30m | cast iron Ⅱ | 25mm | 410mm | 235mm |
| QDX3-30-0.75 | 0.75 | 1 | 220V | 3m³/h | 30m | cast iron Ⅲ | 25mm | 410mm | 235mm |
| QDX6-18-0.75 | 0.75 | 1 | 220V | 6m³/h | 18m | aluminum/stainless steel | 25mm/38mm/50mm | 420mm | 210mm |
| QDX6-18-0.75 | 0.75 | 1 | 220V | 6m³/h | 18m | cast iron Ⅱ | 25/38/55mm | 420mm | 210mm |
| QDX10-16-0.75 | 0.75 | 1 | 220V | 10m³/h | 16m | aluminum/stainless steel | 50mm | 420mm | 210mm |
| QDX10-16-0.75 | 0.75 | 1 | 220V | 10m³/h | 16m | cast iron Ⅱ | 50mm | 420mm | 210mm |
| QDX25-7-0.75 | 0.75 | 1 | 220V | 25m³/h | 7m | aluminum | 65mm/75mm | 420mm | 275mm |
| QDX25-7-0.75 | 0.75 | 1 | 220V | 25m³/h | 7m | cast iron Ⅱ | 65mm/75mm | 420mm | 275mm |
| QDX25-7-0.75 | 0.75 | 1 | 220V | 25m³/h | 7m | stainless steel | 65mm/75mm | 420mm | 275mm |
| QDX3-36-1.1 | 1.1 | 1.5 | 220v | 3m³/h | 36m | aluminum/stainless steel | 25mm | 410mm | 240mm |
| QDX3-36-1.1 | 1.1 | 1.5 | 220v | 3m³/h | 36m | cast iron Ⅱ | 25mm | 410mm | 240mm |
| QDX3-36-1.1 | 1.1 | 1.5 | 220V | 3m³/h | 36m | cast iron Ⅲ | 25mm | 410mm | 240mm |
| QDX6-26-1.1 | 1.1 | 1.5 | 220v | 6m³/h | 26m | aluminum/stainless steel | 25mm/38mm/50mm | 420mm | 235mm |
| QDX6-26-1.1 | 1.1 | 1.5 | 220V | 6m³/h | 26m | cast iron Ⅱ | 25mm/38mm/50mm | 420mm | 235mm |
| QDX15-15-1.1 | 1.1 | 1.5 | 220v | 15m³/h | 15m | aluminum/stainless steel | 50mm | 450mm | 265mm |
| QDX15-15-1.1 | 1.1 | 1.5 | 220V | 15m³/h | 15m | cast iron Ⅱ | 50mm | 450mm | 265mm |
| QDX25-9-1.1 | 1.1 | 1.5 | 220v | 25m³/h | 9m | aluminum | 65mm/75mm | 450mm | 275mm |
| QDX25-9-1.1 | 1.1 | 1.5 | 220V | 25m³/h | 9m | stainless steel | 65mm/75mm | 450mm | 275mm |
| QDX25-9-1.1 | 1.1 | 1.5 | 220V | 25m³/h | 9m | cast iron Ⅱ | 65mm/75mm | 470mm | 275mm |
| QDX6-32-1.5 | 1.5 | 2 | 220v | 6m³/h | 32m | cast iron Ⅱ | 25mm/38mm/50mm | 430mm | 265mm |
| QDX6-32-1.5 | 1.5 | 2 | 220v | 6m³/h | 32m | stainless steel | 25mm/38mm/50mm | 430mm | 265mm |
| QDX25-12-1.5 | 1.5 | 2 | 220V | 25m³/h | 12m | cast iron Ⅱ | 65mm/75mm | 480mm | 275mm |
| QDX25-12-1.5 | 1.5 | 2 | 220V | 25m³/h | 12m | stainless steel | 65mm/75mm | 480mm | 275mm |
More product
In addition, Jianeng has passed ISO9001:2015 certification and CCC certification, and obtained more than 10 related patent certificates. What’s more important, in recent years, our company has introduced a series of advanced equipment and has produced more good products to meet the different requirements of different customers. So there's always one kind of product for you. Even though we have our own brand “Caring”, OEM and ODM orders are also welcome.
"High quality, integrity, innovation, and win-win” is our business philosophy, our aim is offer best service and excellent quality products. Jianeng is expecting win-win cooperation with customers from all over the world.
Why choose us
1.Caring has passed the ISO9001 management system certification.
2.Electric motor strictly enforce national standards obtaining the corresponding CCC certification.
3.More than 17 years of industry experience.
FAQ
1.What's your factory main products?
We produce water pumps, especially sewage pump and double-balde cutting pump, and AC motor.
2.Are you a manufacturer ?
We are a manufacturer.
3.How long would it take to receive your goods?
About two weeks after payment.
4.Can you do OEM?
Yes, of course. Any OEM are welcomed!
5.How can I get more product quotation?
Please click the below linkage.
