CE ISO certified famous brand 3 m3 bucket wheel loader price

Product Overview

Description

CE ISO certified famous brand 3 m3 bucket wheel loader price



Main Technical Parameters of famous brand 3 m3 bucket wheel loader :

Model	ZL50
Total weight	kg	16500
Bucket capacity	m3	3
Rated load	kg	5000
Movable arm lifting time	S	≤6.5
Three item time	S	≤11.5
Min turning radius	mm	6770
Traveling speed	km/h
Forward I gear	km/h	0~11.5
Forward II gear	km/h	0~38
Reverse gear	km/h	0~16
Damping height	mm	3200
Damping reach	mm	1180
Overall dimension(L*W*H)	mm	7840*2950*3450
Engine model		WD10G220E21
Engine rated power	kW	162
Fuel tank capacity	L	280



Features of CE ISO certified famous brand 3 m3 bucket wheel loader price :

1.Completely new European-style fashion design, best auxiliary part in China(Weichai engine, Hangchi double shift change, Meichi drive bridge).

2.Single-stage four-component hydraulic torque converter, planet-type power gear shifting gearbox, capable of adjusting the output torque automatically and automatic realization from high-speed low-load condition to low-speed high-load condition.

3.Optimized and improved design of work unit, making the unit lifting capacity, digging force and unloading height as well as total cycle time at or better than the national figures for high-quality product.

4.The hydraulic system of the working unit adopts soft shaft operation with front location of operation valve.Small pressure loss, easy and reliable operation.

5.Fully hydraulic flow amplification and steering system. equal-distance riveting frame, uniform front and rear wheel track, eliminating the parasite power loss during steering, easy and flexible steering, and high operation efficiency.

6.Rear frame adopts single-sheet T-type beam, with good structure stability, high reliability, and big internal space, facilitating maintenance.

7.Integral operation platform, streamlined design, and humanized operation layout, equipped with new type of electronic instrument capable of quickly monitoring the working condition of the whole unit.

8.Large-vision, fully enclosed driver cab, luxury automobile interior decoration, standard heating and ventilation equipment(air conditioner optional),high-class engineering machine with shock absorption Seat.

9.Excellent coverage material, exquisite workmanship, novel and esthetic the whole machine has advanced economic figures, and good cost performance ratio.

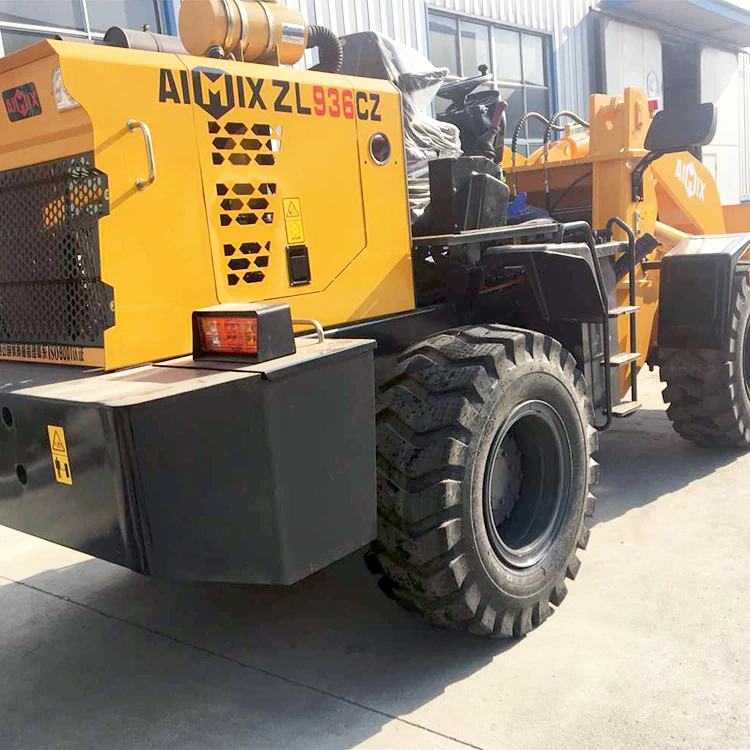

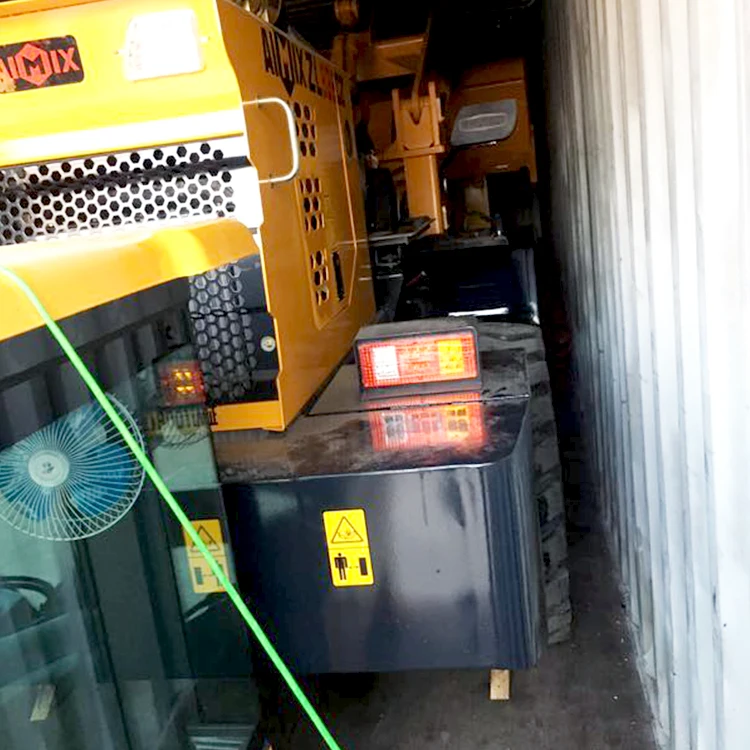

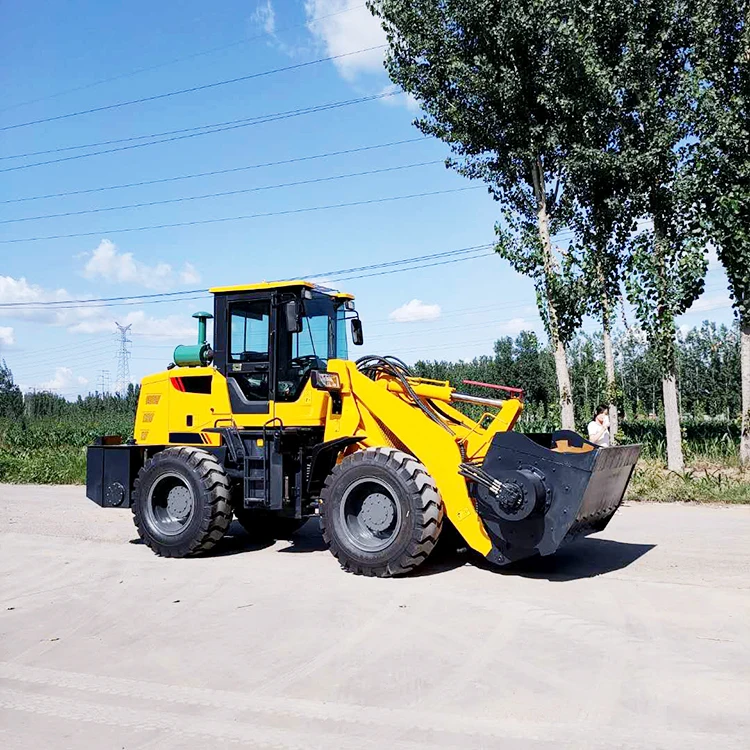

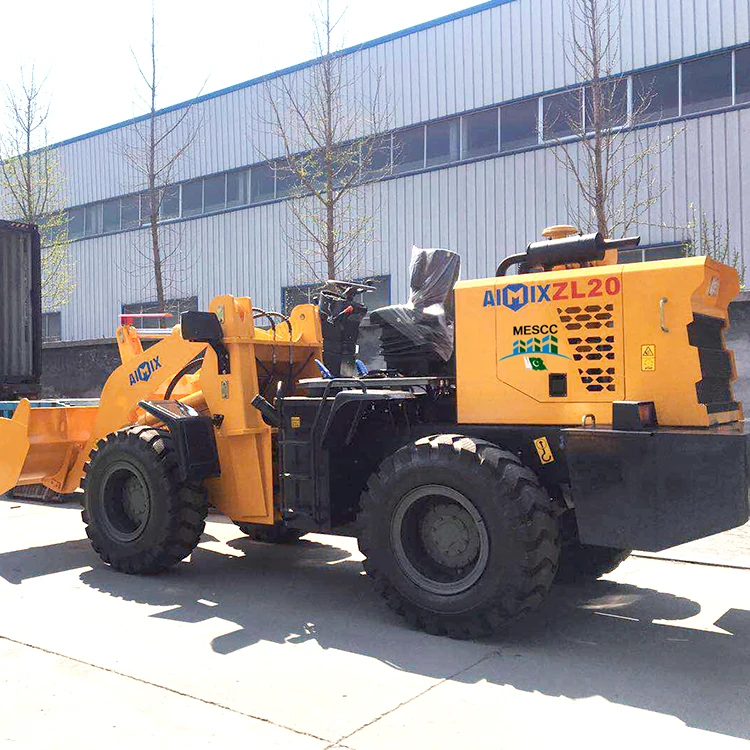

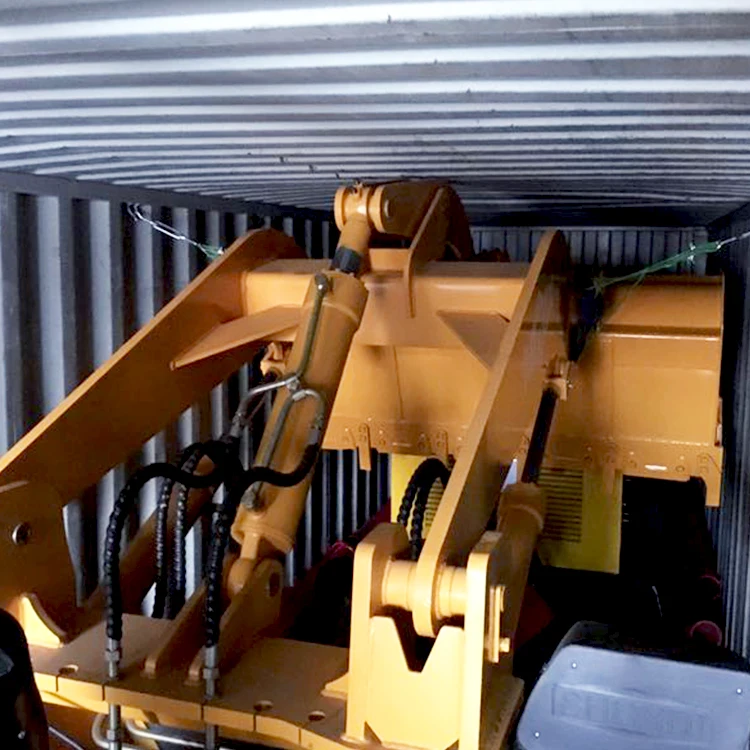

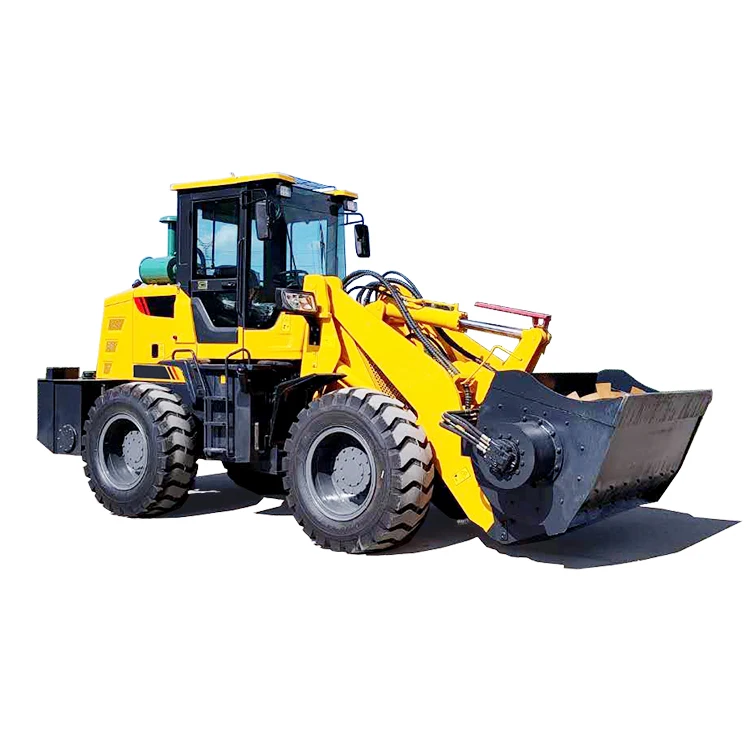

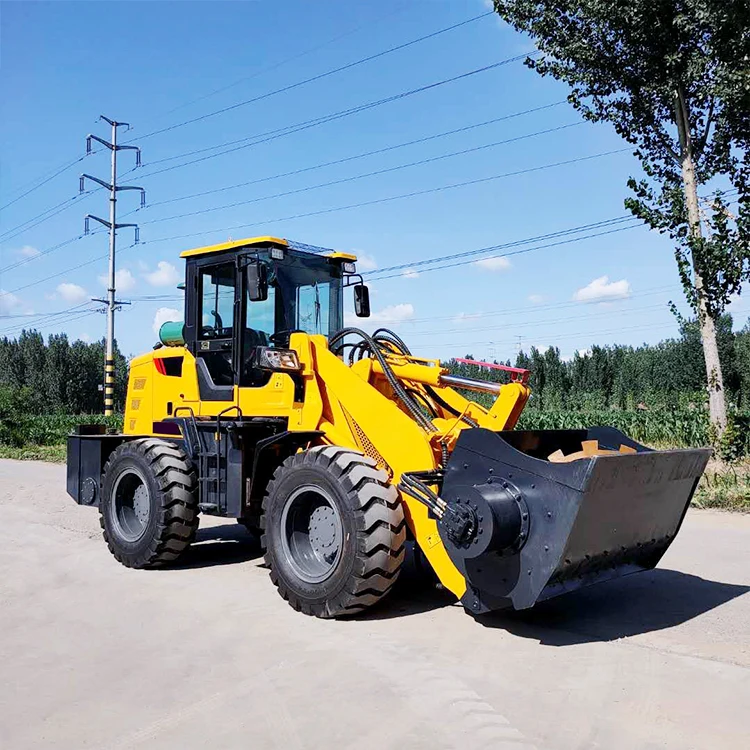

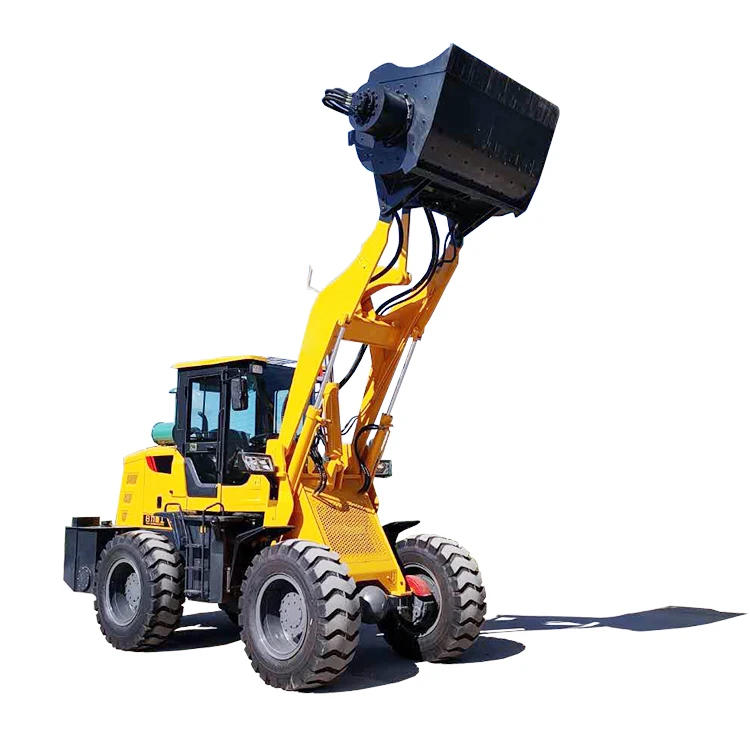

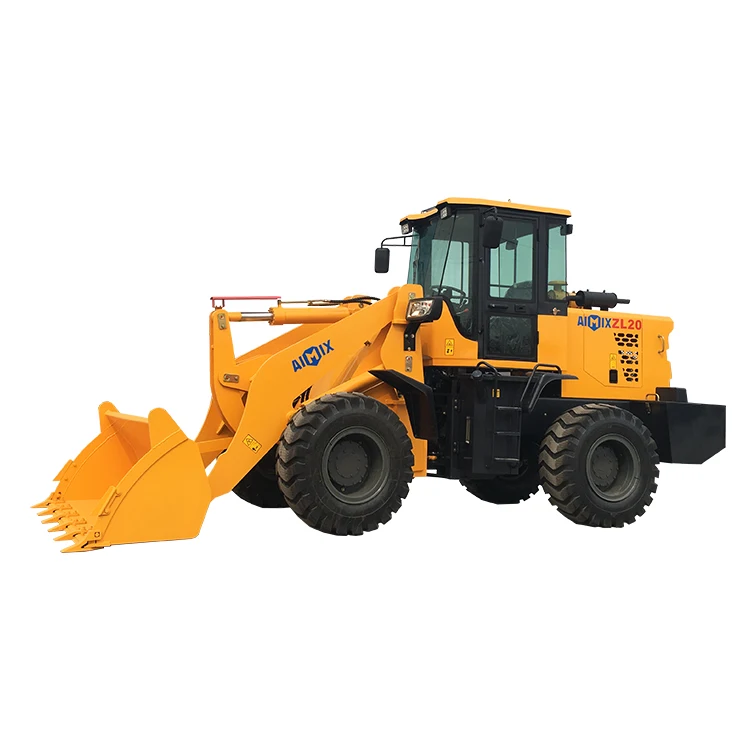

Pictures of CE ISO certified famous brand 3 m3 bucket wheel loader price :
