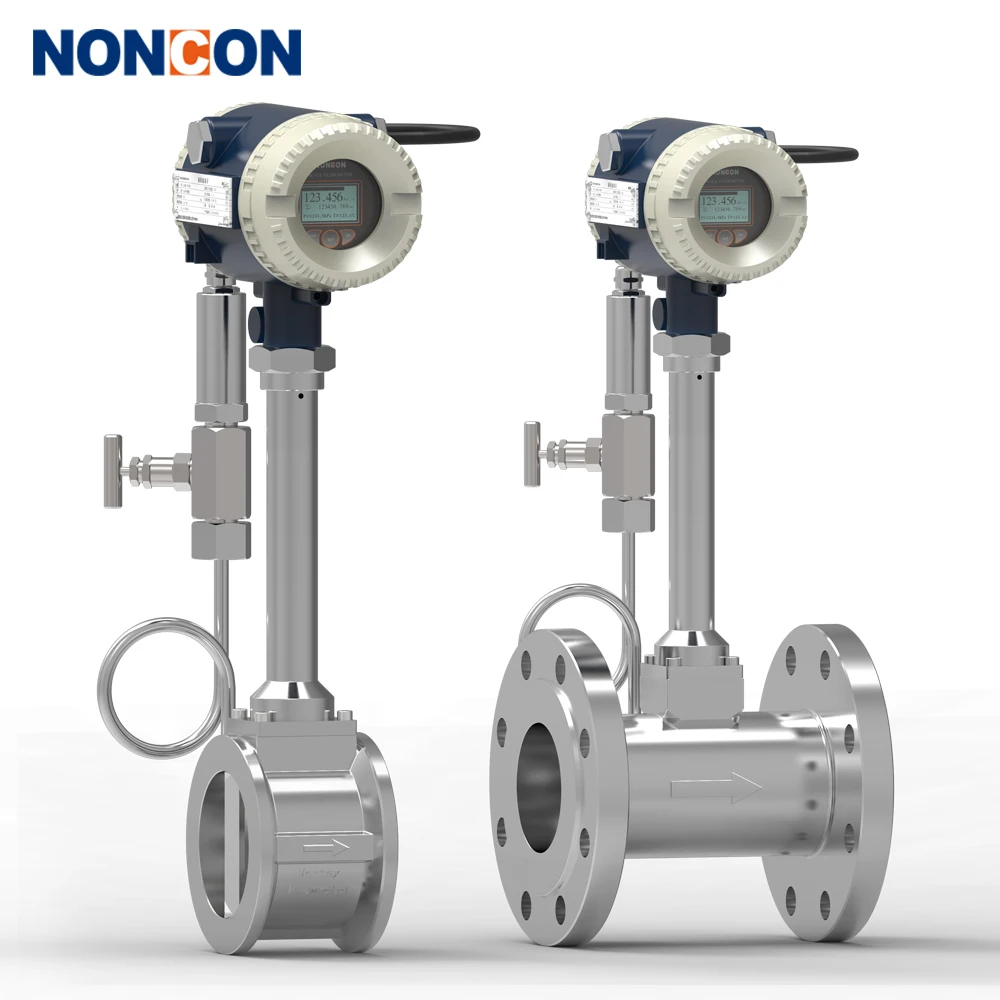

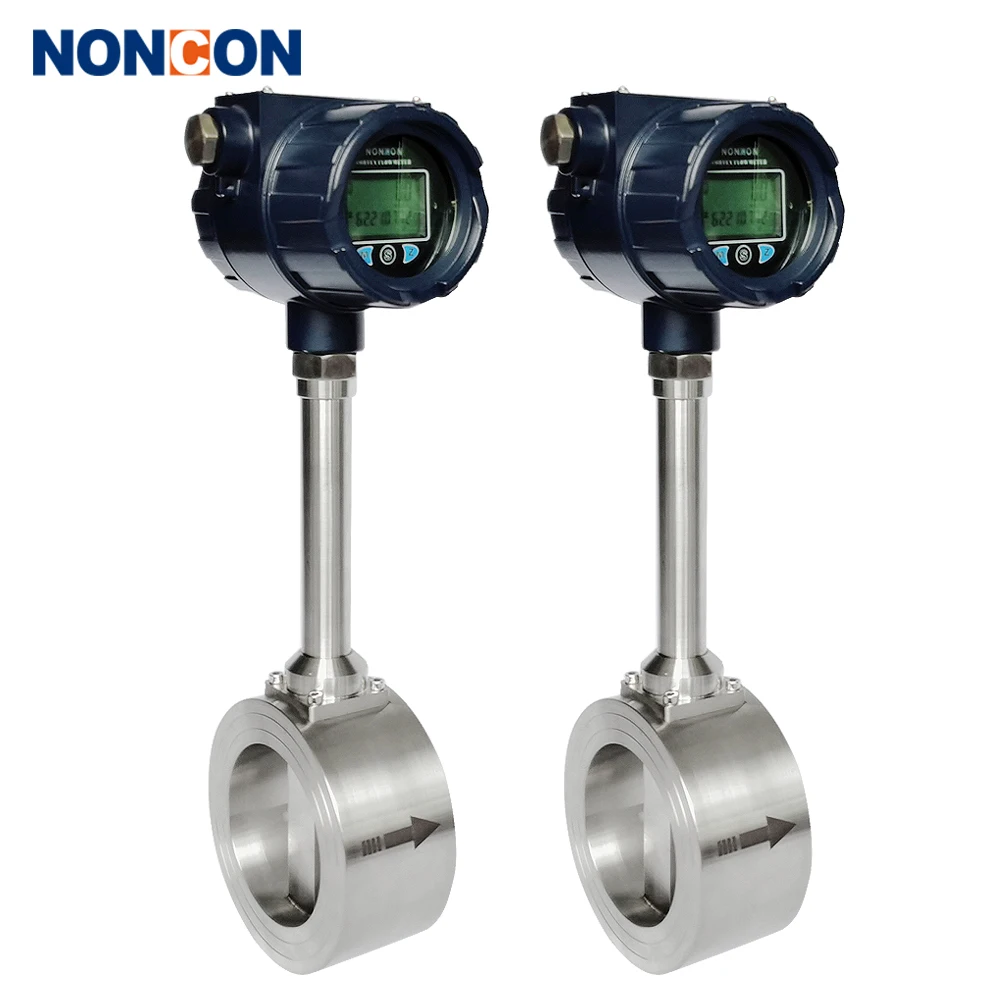

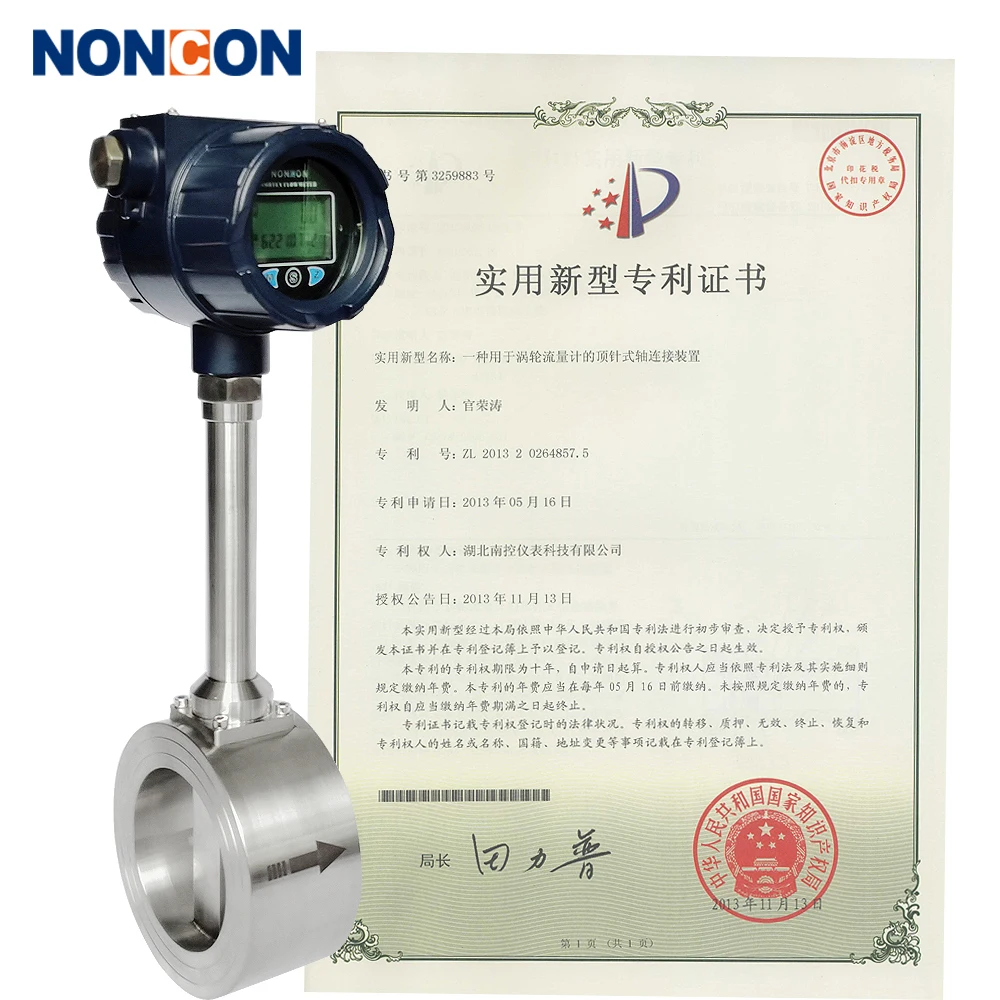

DN100 n2 air gas flow meter lpg compressed air vortex boiler steam flowmeter price
- Category: >>>
- Supplier: Hubei Nankong Instrument Technology Co. Ltd.
Share on (62009689294):
Product Overview
Description

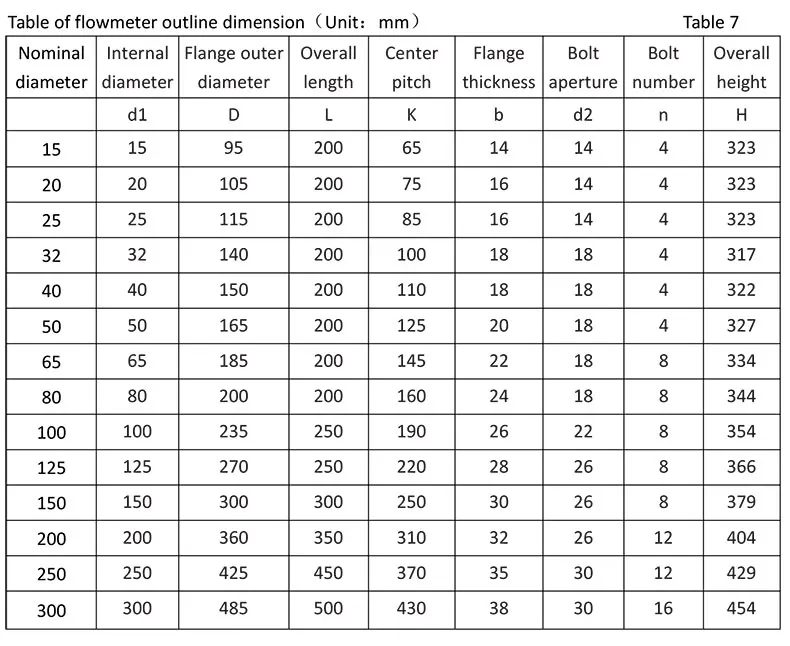

Diameter (mm) | Liquid flow range （m3/h） | Gas flow range （m3/h） | Connection mode | Max pressure (MPa) |
DN15 | 1.2~6.2 | 5~25 | Flange clamping/Flange connection | 2.5/1.6 |
DN20 | 1.5~10 | 8~50 | Flange clamping/Flange connection | 2.5/1.6 |
DN25 | 1.6~16 | 10~70 | Flange clamping/Flange connection | 2.5/1.6 |
DN32 | 1.9~19 | 15~150 | Flange clamping/Flange connection | 2.5/1.6 |
DN40 | 2.5~26 | 22~220 | Flange clamping/Flange connection | 2.5/1.6 |
DN50 | 3.5~38 | 36~320 | Flange clamping/Flange connection | 2.5/1.6 |
DN65 | 6.2~65 | 50~480 | Flange clamping/Flange connection | 2.5/1.6 |
DN80 | 10~100 | 70~640 | Flange clamping/Flange connection | 2.5/1.6 |
DN100 | 15~150 | 130~1100 | Flange clamping/Flange connection | 2.5/1.6 |
DN125 | 25~250 | 200~1700 | Flange clamping/Flange connection | 2.5/1.6 |
DN150 | 36~380 | 280~2240 | Flange clamping/Flange connection | 2.5/1.6 |
DN200 | 62~650 | 580~4960 | Flange clamping/Flange connection | 2.5/1.6 |
DN250 | 140~1400 | 970~8000 | Flange clamping/Flange connection | 2.5/1.6 |
DN300 | 200~2000 | 1380~11000 | Flange clamping/Flange connection | 2.5/1.6 |
Model | Interpretation | ||
LUGB | Vortex flow meter | ||

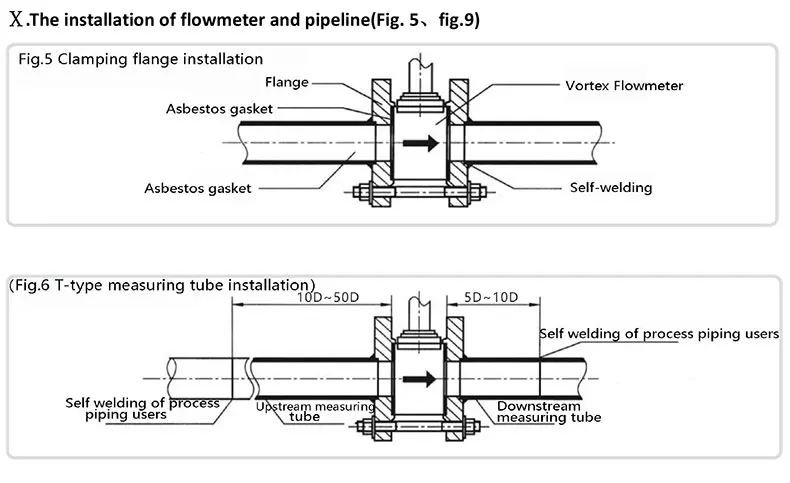

Connection mode | 1 | Flange connection | |
2 | Flange clamping | ||
Measured medium | 1 | Liquid | |
2 | general gas | ||
3 | compressed air | ||
4 | steam | ||
Inside nominal diameter | 00 | 15mm | |
01 | 20mm | ||
02 | 25mm | ||
03 | 32mm | ||
04 | 40mm | ||
05 | 50mm | ||
06 | 65mm | ||
08 | 80mm | ||
10 | 100mm | ||
12 | 125mm | ||
15 | 150mm | ||
20 | 200mm | ||
25 | 250mm | ||
30 | 300mm | ||
Compensation | N | Uncompensated | |
T | Temperature compensation | ||
P | Pressure compensation | ||
F | Temperature and pressure compensation | ||
Output type | N | Sensor type: 24VDC power supply, output three-wire pulse signal | |
A | Transmitter type: 24VDC power supply, output current signal 4~20mA | ||
B | Intelligent Lithium battery power supply status display dual power supply, pulse output optional | ||
C1 | Intelligent : 24VDC power supply, status display, output 4~20mA(pulse output optional) | ||
C2 | Intelligent : 24VDC power supply, status display, output 4~20mA HART (pulse output optional) | ||
C3 | Intelligent : 24VDC power supply, status display, RS485 (dual power supply， pulse output optional) | ||
Accuracy class | 15 | 1.5 level | |
10 | 1.0 level | ||
Material | S | 304 stainless steel | |
L | 316(L) stainless steel | ||
Explosion-proof | N | Non-explosion-proof type | |
E | Explosion-proof type, ExdIICT6 | ||
Pressure grade | P | Actual pressure grade | |
