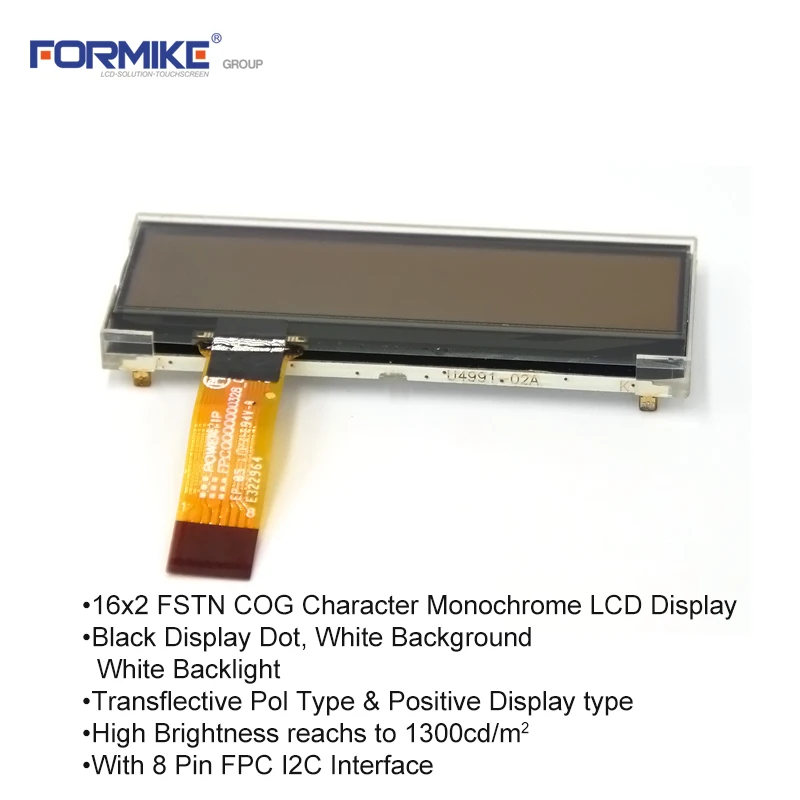

2x16 LCD Display COG LCD Character Display 16x2 Character LCD Module
- Category: >>>
- Supplier: Formike Electronic Co. Ltd. (Dongguan)
Share on (62009738835):
Product Overview
Description
Product Name | 2x16 LCD Display COG LCD Character Display 16x2 Character LCD Module |
Model | WC1602U8FSW7G-A |
Type | COG LCD Display, Character Display |
Dot Format | 16x2 Dots |
Display format | 16character*2line |
Display mode | FSTN, Positive ,Transflective |
Color | Black Display Dot White Background |
Backlight | White Backlight |
Brightness | 1300cd/m2 |

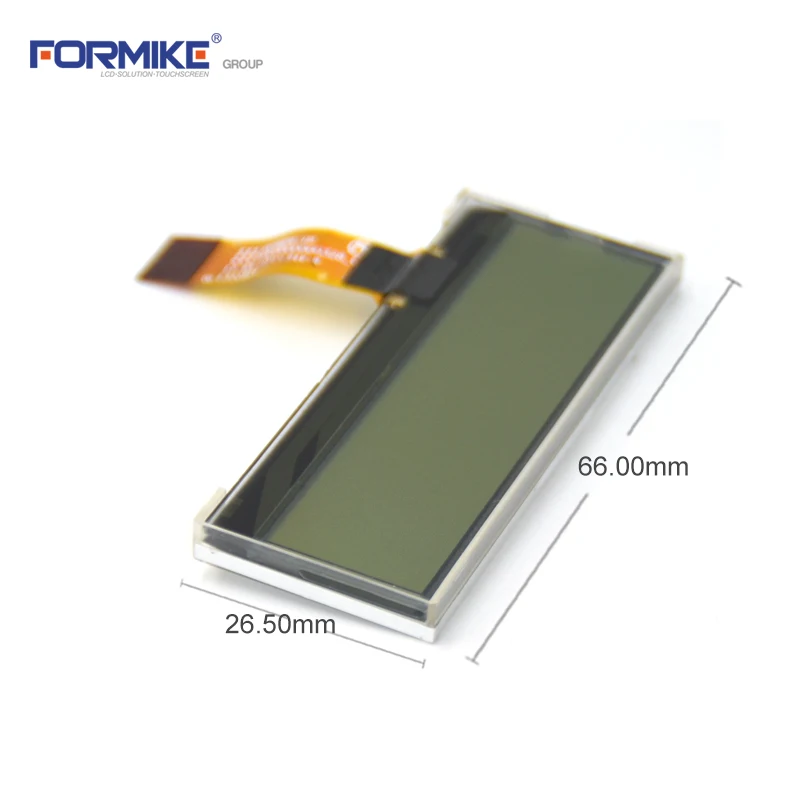

Outline Dimension | 66.00x 26.50 x 5.20mm |
Viewing Area | 62.00x16.00mm |
Active Area | 56.20x11.50mm |
Dot Size | 0.55x0.65mm |
Dot Pitch | 0.60x0.70mm |
Viewing Direction | 12 O'Clock |
Interface | I2C, 8 Pin |
Drive IC | ST7032I |
Driving Method | 1/16 Duty, 1/5 Bias |
Supply Voltage | 3.3V |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |

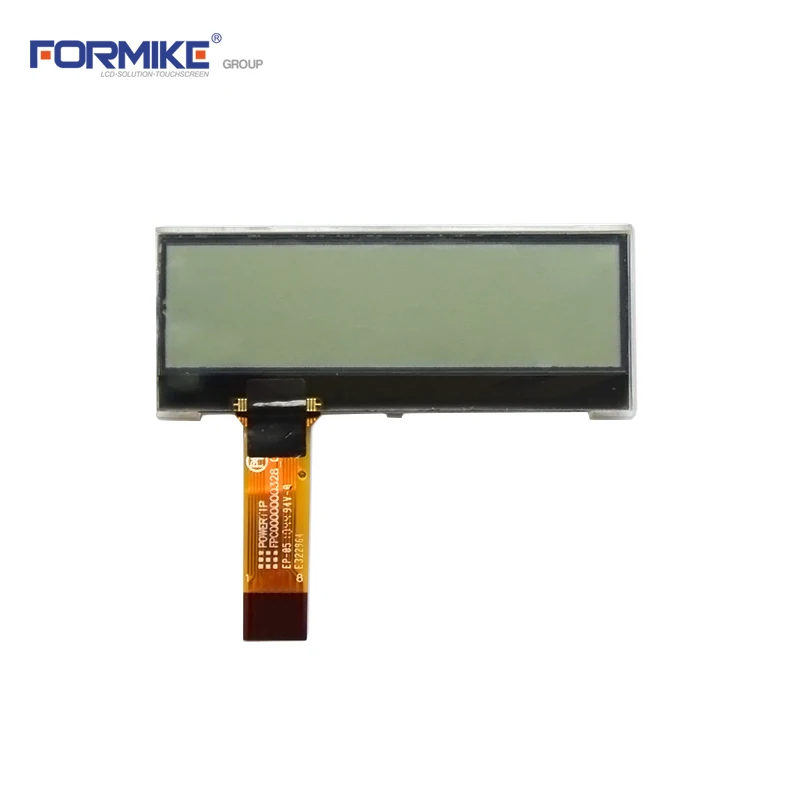

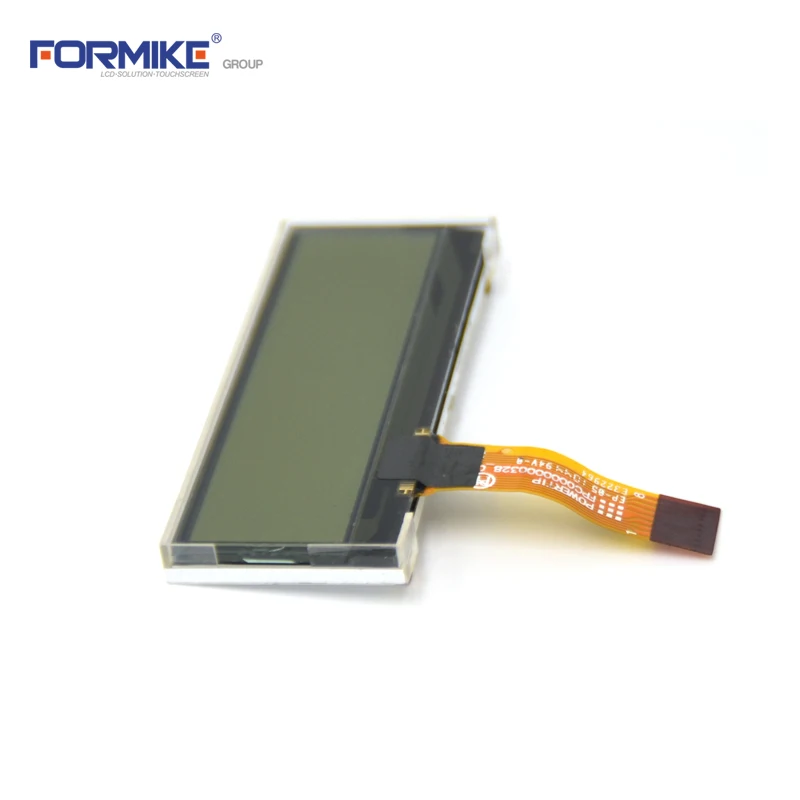

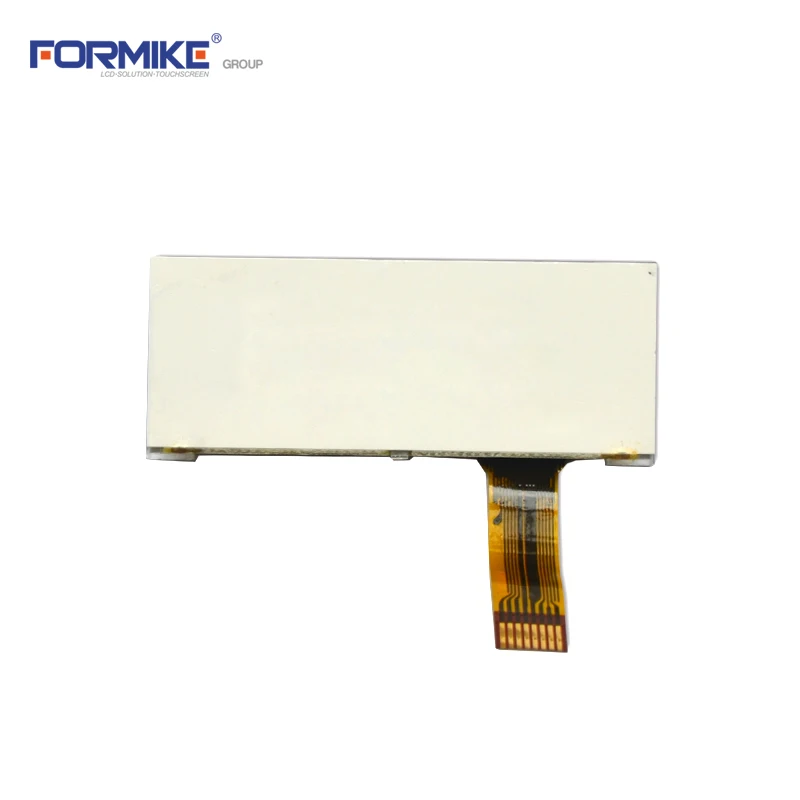

Detailed Images
Packing & Delivery
Packing | Standard carton, corrugated paper+outer carton. |
Delivery | In Stock: Delivery time is within 5-8 working days after received your full payment. No Stock: Wifi Module Products——About 2-4 weeks LCD Products——About 5-6 weeks Phone LCD/Backlight Products——About 1-4 weeks Phone Front Glass Lens/Cover Glass Products——About 7-15 days |
Payment | 50-100% deposit in advance and balance before shipping upon the payment amout. |
Loading Port | Shenzhen, Hongkong |
Shipping | By sea, by air, express |
Certifications
Company Profile
Formike Group was founded in 1999, which engaged in R&D, design, manufacture and sales of LCD display and accessories parts as well as Wi-Fi modules. All our operations are under ISO 9001:2000 and ISO 14000 standards. The company has a professional customer service team to answer questions for customers.With the help of our 50-people strong R&D team, we can also realize your ODM ideas into a real item within 20 days.
Perfect quality assurance system
We source our key materials and components from Japan and Germany, where over 10 suppliers have been working with us for over five years. Our 100 QC members conduct strict inspections during the entire production process to ensure our quality meets your requirements. According to the ISO quality inspection system to monitor the quality, the IQC sampling pass rate of the client is above 98%.
Advanced production equipment
We have 100 CNC machines, 12 polarizer attach machines, 10 2D measuring projectors complete equipment, eight ultrasonic cleaners, six liquid crystal machines, two fully automatic bonding machines, etching machines, fully automatic sticking film machines, cutting machines, UV machines and more apply in our process to ensure that our quality and capacity can always support customers' demand.
Exhibition
FAQ
Q1: Order process.
A1: Customers place an order → out of PI → customer payment → confirm receipt and reply delivery
→ we negotiate and confirm shipping method → shipping → tracking logistics → customer confirm receipt.
Q2: Lead time ( after payment is confirmed)
A2: Sample: 1-10 working days Volume: 3-60 working days
Q3: Payment.
A3: T/T , Western union, L/C, Credit card, and Cash.
Q4: Warranty
A4: 12 months warranty ( Please find more details via our datasheet by item of LIMITED WARRANTY)
Q5:RMA Process
A5:The customer submits the return to the salesman (with picture/video/bad sample)
→ the preliminary judgment of the project (all returns or partial returns or direct scrap)
→ confirmation → of the treatment method → confirmation of the mode of transport
→ return → receipt of return analysis And report out
→ confirm the treatment with the customer
