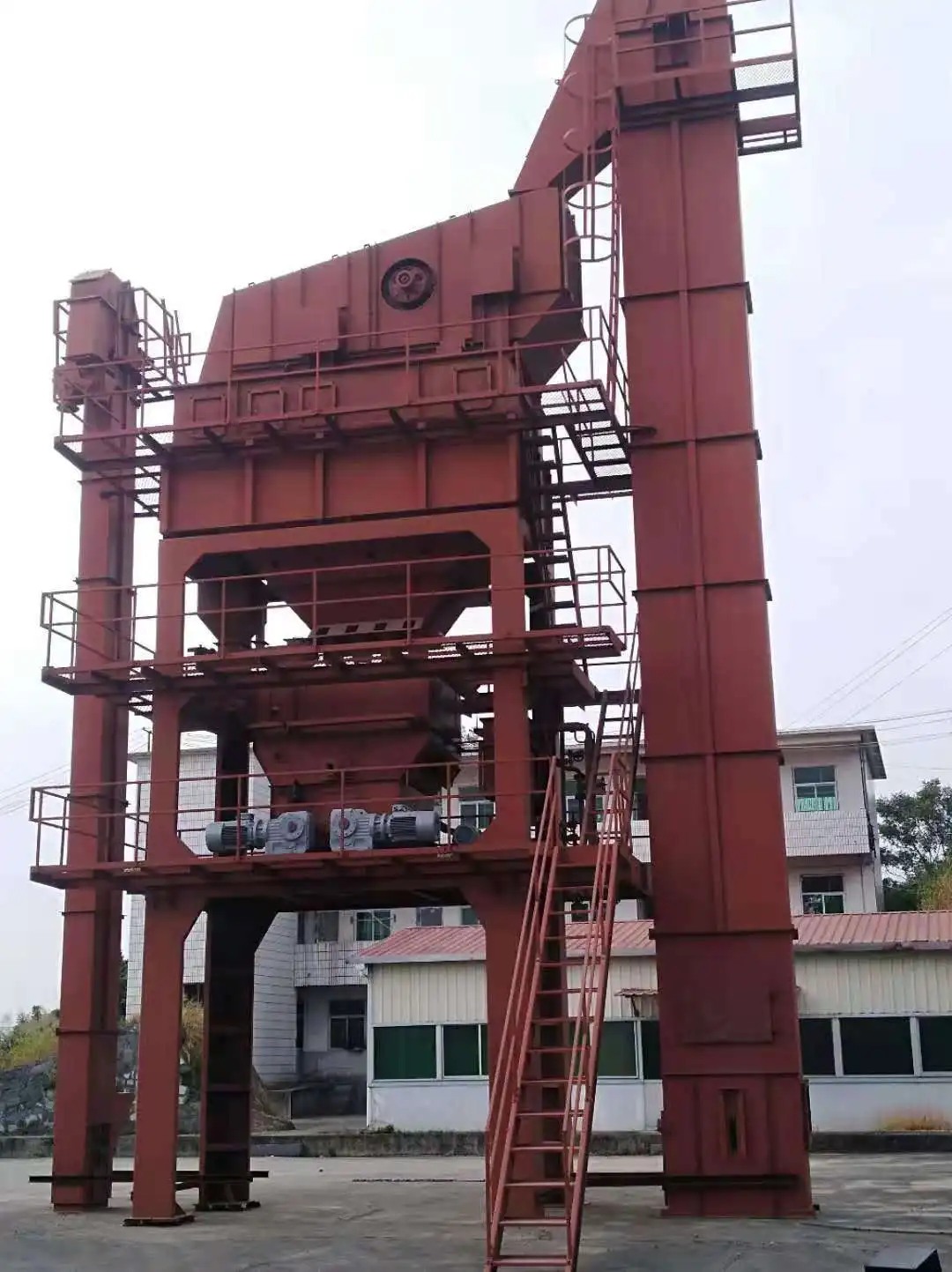

Asphalt Mixing Machine Speco ( 40/60/80/100/120/160/200/240/320 TPH ) types of asphalt plant
- Category: Asphalt Mixers >>>
- Supplier: AIMIX GROUP CO. LTD.
Share on (62009743761):
Product Overview
Description
Low Invest Asphalt Mixing Machine Speco (40/60/80/100/120/160/200/240/320 TPH),types of asphalt plant
Product Description
1.Introduction of mobile asphalt plant for sale
Asphalt mixing plant mainly including batching systems, drying systems, burning systems, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product storage bin,control system and other parts.
II.Technical parameters of LB series mobile asphalt plant for sale
Type | LB500 | LB750 | LB1000 |
Rated production | 30-40t/h | 50-60t/h | 60-80t/h |
Cold aggregate container | 4containers | 4containers | 4containers |
Dry cylinder | 1.1m×4.2m | 1.3m×5m | 1.5m×6m |
Bag dust-remover | CNM156 | CNM240 | CNM357 |
Emission standard | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 |
Vibrating screen | 4 layers | 4 layers | 4 layers |
Hot aggregate container | 12t | 12t | 26t |
Mixing kettle capacity | 500kg | 750kg | 1000kg |
Mixing cycle | 45s | 45s | 45s |
Mineral powder tank volume | 30t | 30t | 26+36t |
Asphalt tank volume | 30000L | 30000L | 50000L |
Heat conduction oil stove | 200,000 kcol/h | 200,000 kcol/h | 300,000 kcol/h |
End-product container volume | 50t | 50t | 90t |

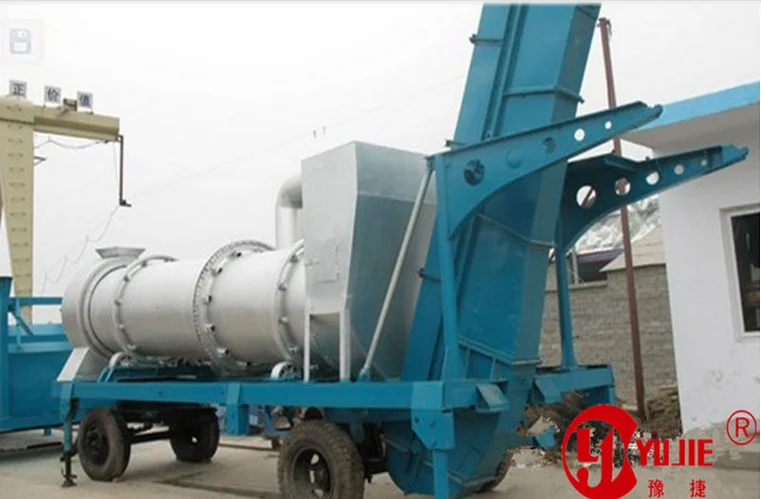

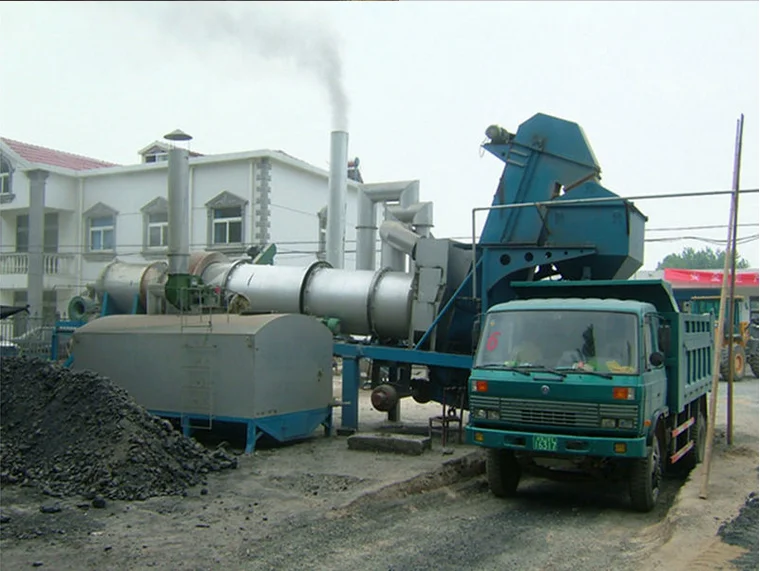

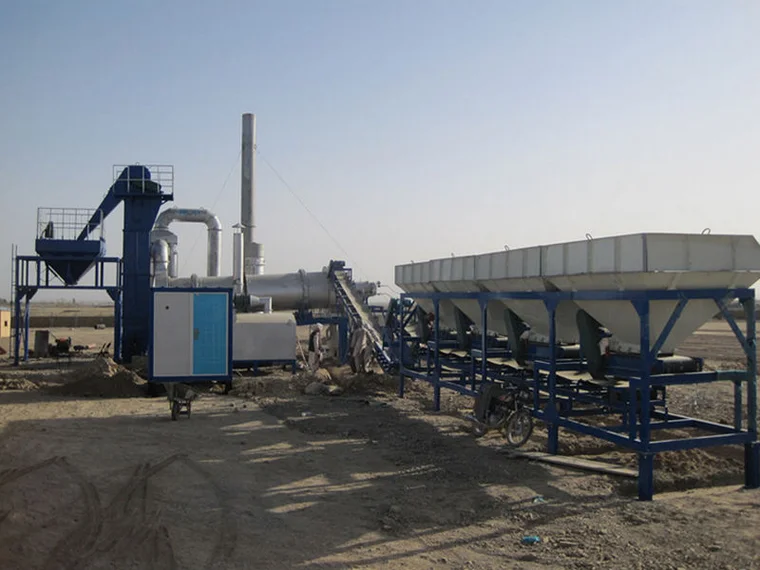

III.More detailed pictures of mobile asphalt plant for sale

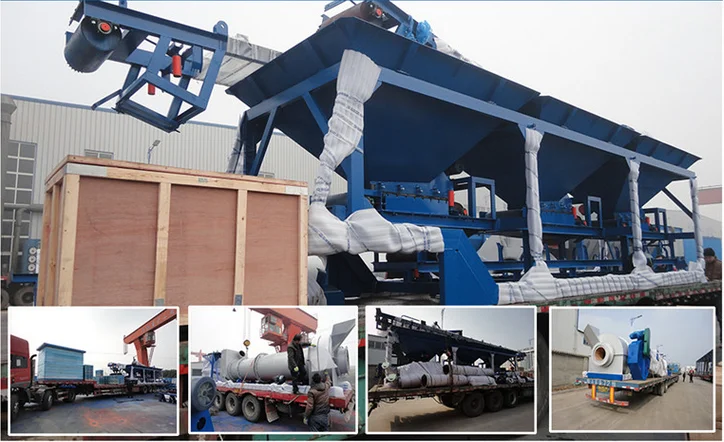

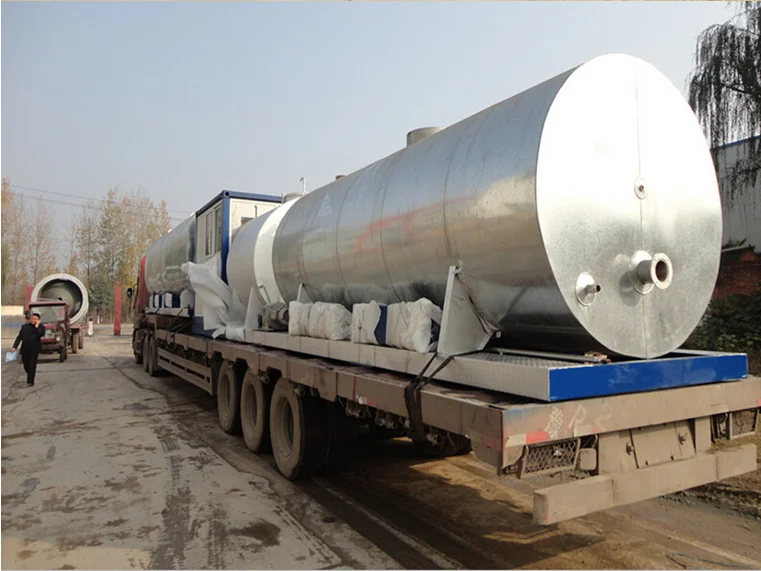

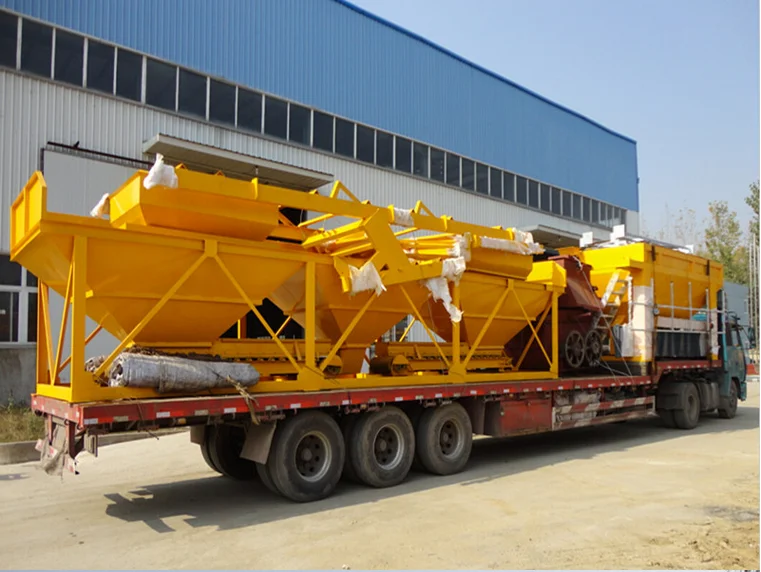

Packaging & Shipping

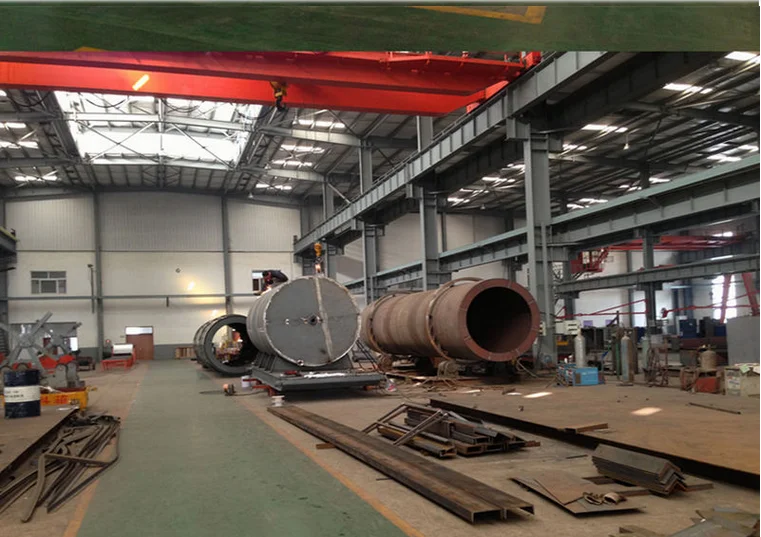

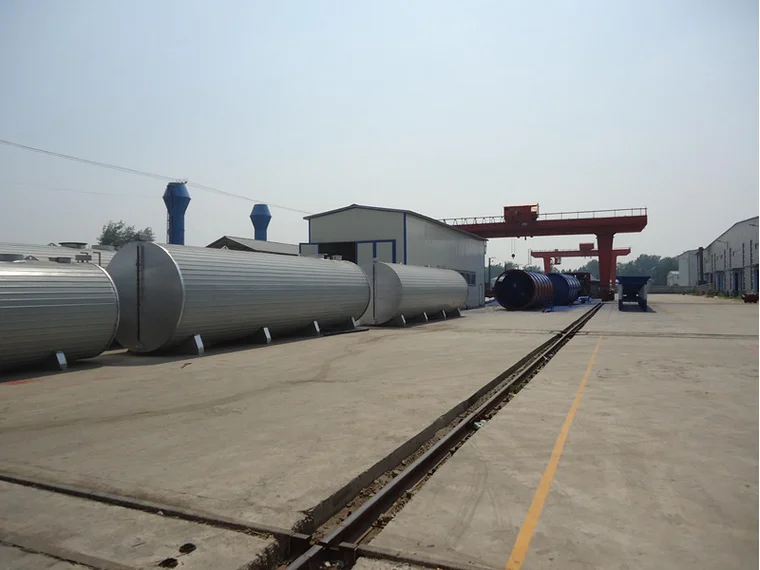

Company Information
