Product Overview

Description

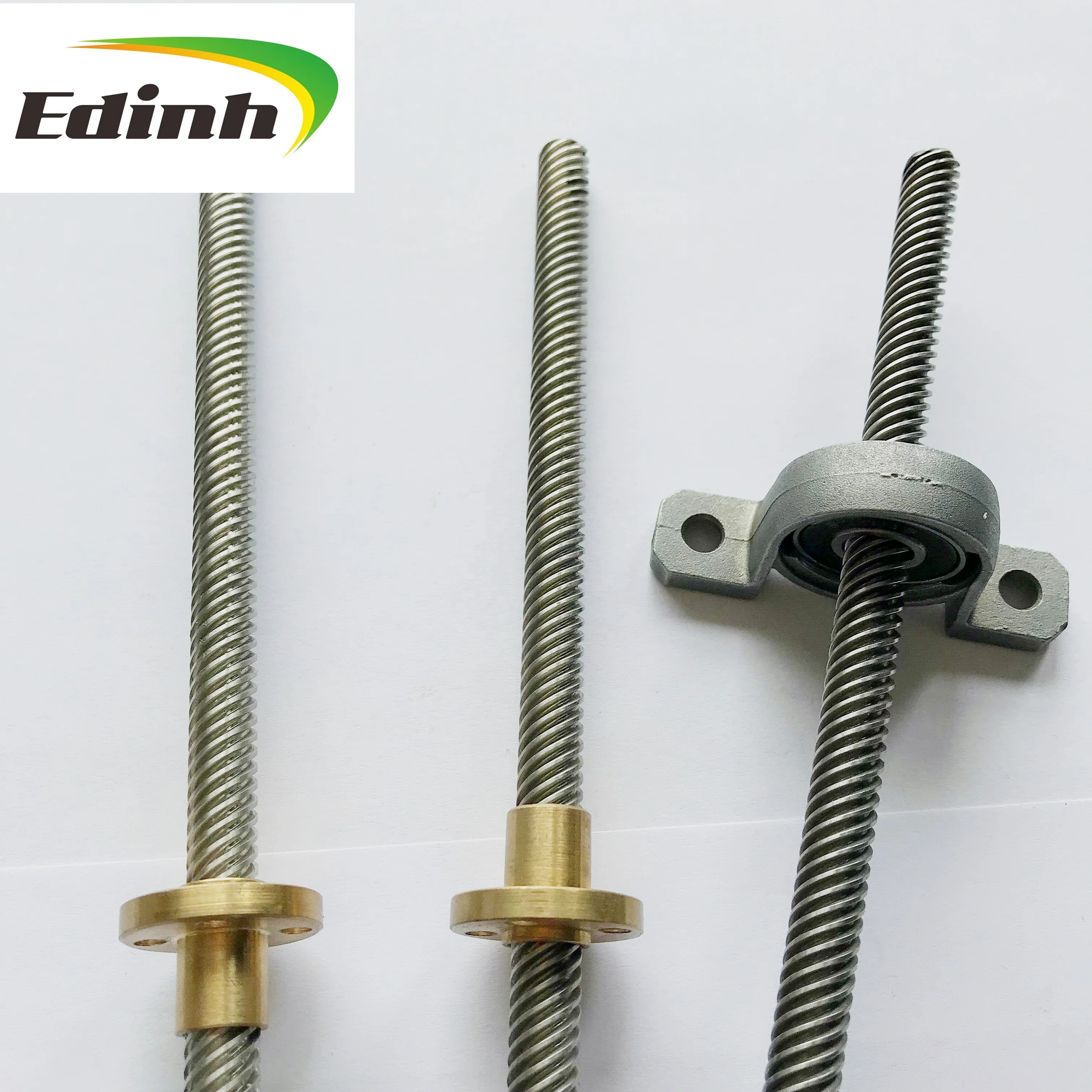

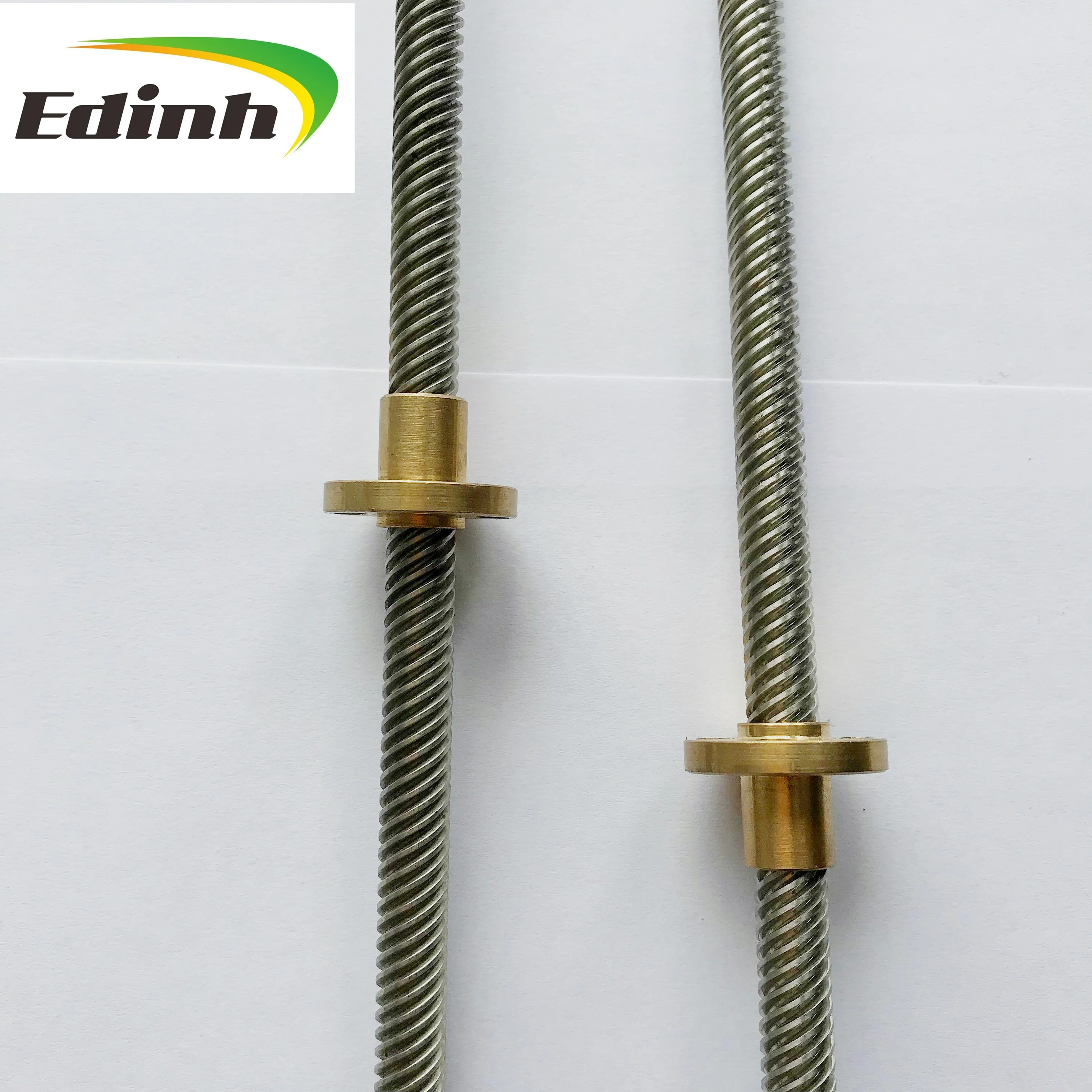

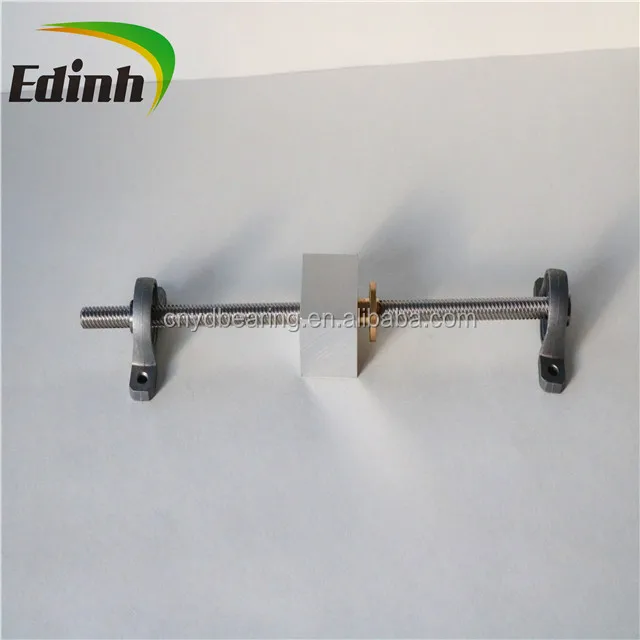

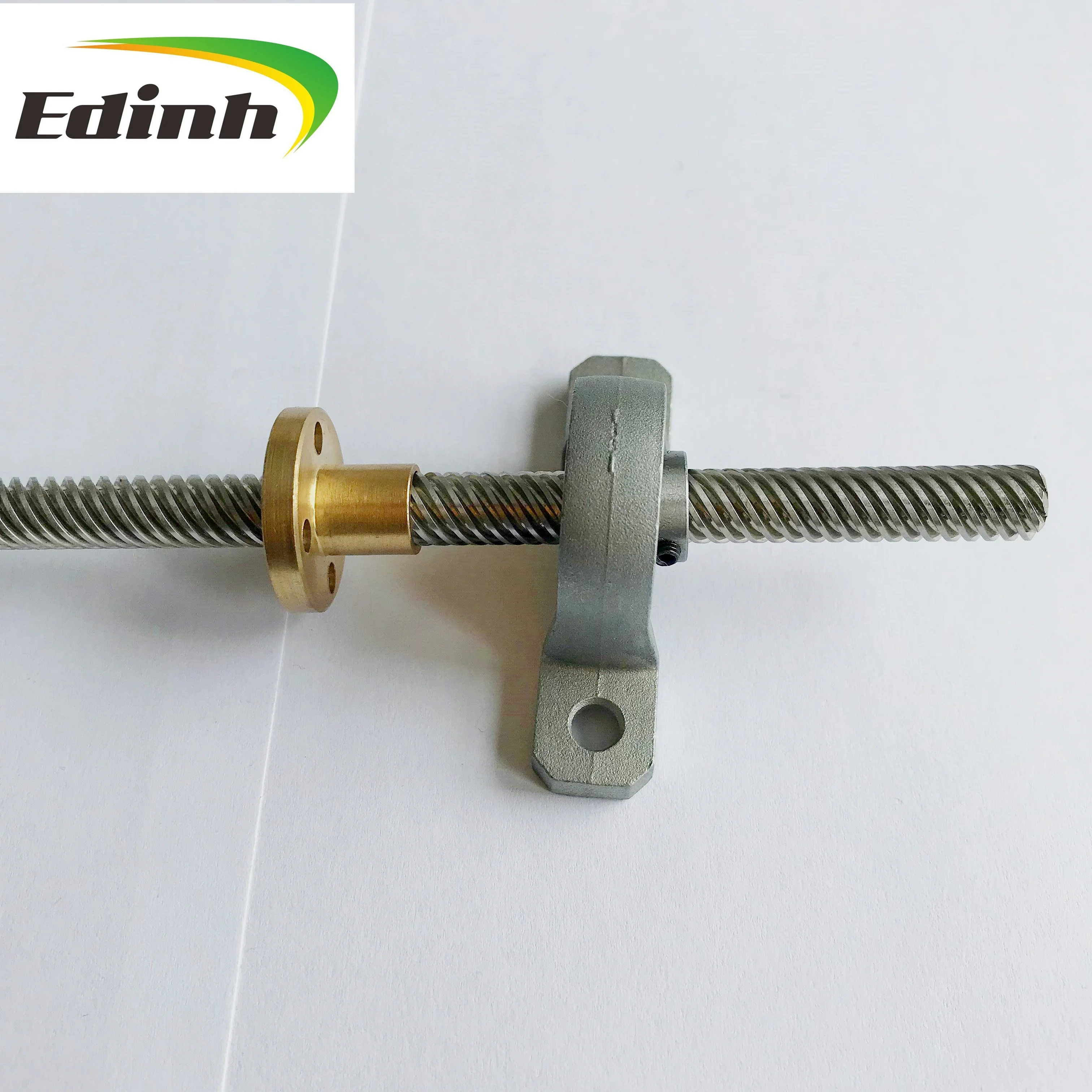

8mm 10mm lead screw with trapezoidal thread and brass nut



Product Description





 TR Series diameter 8mm 10mm 12mm 14mm 16mm 18mm 20mm customised trapezoidal screw








 TR Series diameter 8mm 10mm 12mm 14mm 16mm 18mm 20mm customised trapezoidal screw




































































































































Item



Model



Pitch



Screw Distance



Screw Number



Angle



Outer diameter



trapezoidal screw



Tr12*2



2



2



1P



30°



12



trapezoidal screw



Tr12*2.5



2.5



2.5



1P



30°



12



trapezoidal screw



Tr12*3



3



3



1P



30°



12



trapezoidal screw



Tr12*4-2P



4



4



1P



30°



12



trapezoidal screw



Tr12*5-2P



5



2.5



2P



30°



12



trapezoidal screw



Tr12*6-2P



6



3



2P



30°



12



trapezoidal screw



Tr12*8-2P



8



4



2P



30°



12



trapezoidal screw



Tr12*8-4P



8



2



4P



30°



12



trapezoidal screw



Tr12*10-4P



10



2.5



4P



30°



12



trapezoidal screw



Tr12*12-4P



12



3



4P



30°



12



trapezoidal screw



Tr12*12-6P



12



2



6P



30°



12



trapezoidal screw



Tr12*15-5P



15



3



5P



30°



12












































































































ItemModelPitchScrew DistanceScrew NumberAngleOuter diameter
trapezoidal screw Tr10*2221P30°10
trapezoidal screw Tr10*2.52.52.51P30°10
trapezoidal screw Tr10*3331P30°10
trapezoidal screw Tr10*4-2P422P30°10
trapezoidal screw Tr10*5-2P52.52P30°10
trapezoidal screw Tr10*6-2P632P30°10
trapezoidal screw Tr10*8-4P824P30°10
trapezoidal screw Tr10*10-5P1025P30°10
trapezoidal screw Tr10*12-6P1226P30°10
trapezoidal screw Tr10*12-4P1234P30°10


















































































































































Item



Model



Pitch



Screw Distance



Screw Number



Angle



Outer diameter



Middle Diameter



Lower diameter



trapezoidal screw



Tr8*1.5



1.5



1.5



1P



30°



8



7.25



6.5



trapezoidal screw



Tr8*3-2P



3



1.5



2P



30°



8



7.25



6.5



trapezoidal screw



Tr8*6-4P



6



1.5



4P



30°



8



7.25



6.5



trapezoidal screw



Tr8*2



2



2



1P



30°



8



7



6



trapezoidal screw



Tr8*4-2P



4



2



2P



30°



8



7



6



trapezoidal screw



Tr8*6-3P



6



2



3P



30°



8



7



6



trapezoidal screw



Tr8*8-4P



8



2



4P



30°



8



7



6



trapezoidal screw



Tr8*10-5P



10



2



5P



30°



8



7



6



trapezoidal screw



Tr8*12-6P



12



2



6P



30°



8



7



6



trapezoidal screw



Tr8*14-7P



14



2



7P



30°



8



7



6



trapezoidal screw



Tr8*16-8P



16



2



8P



30°



8



7



6

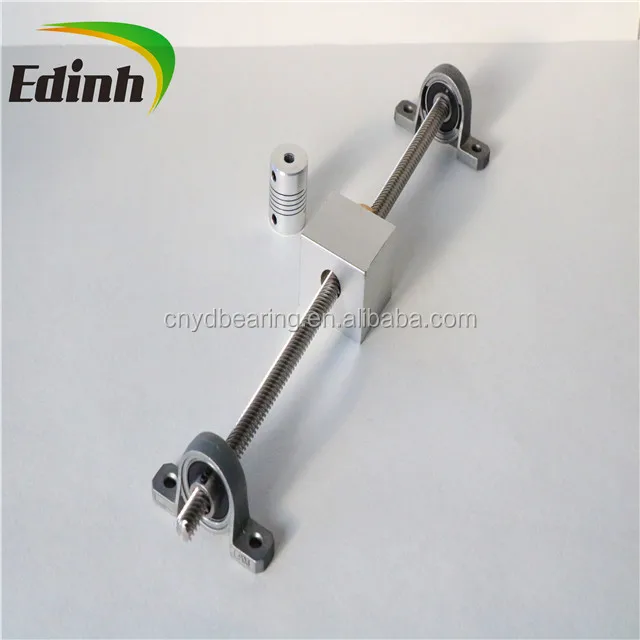

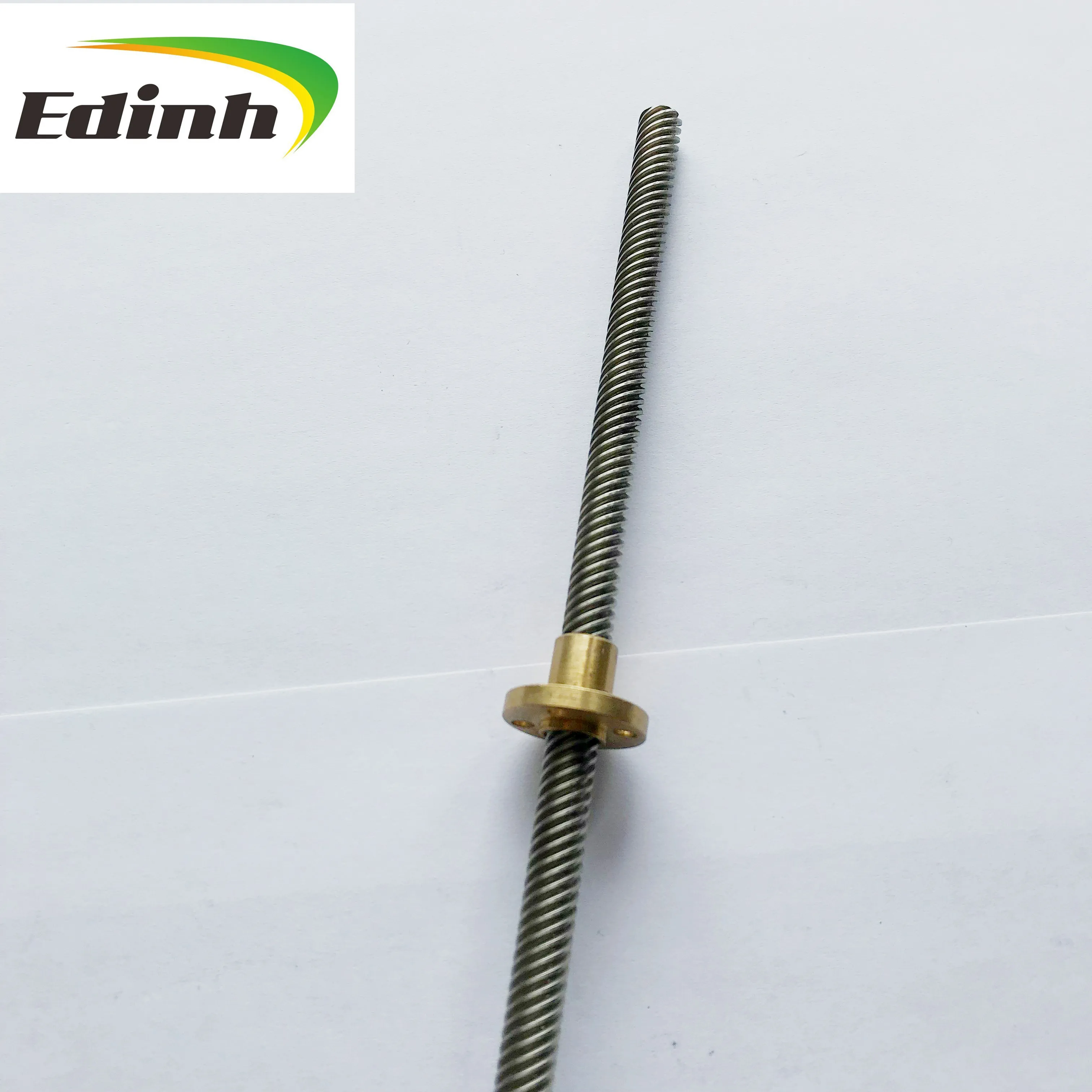

lead screwlead screwlead screw (18)
