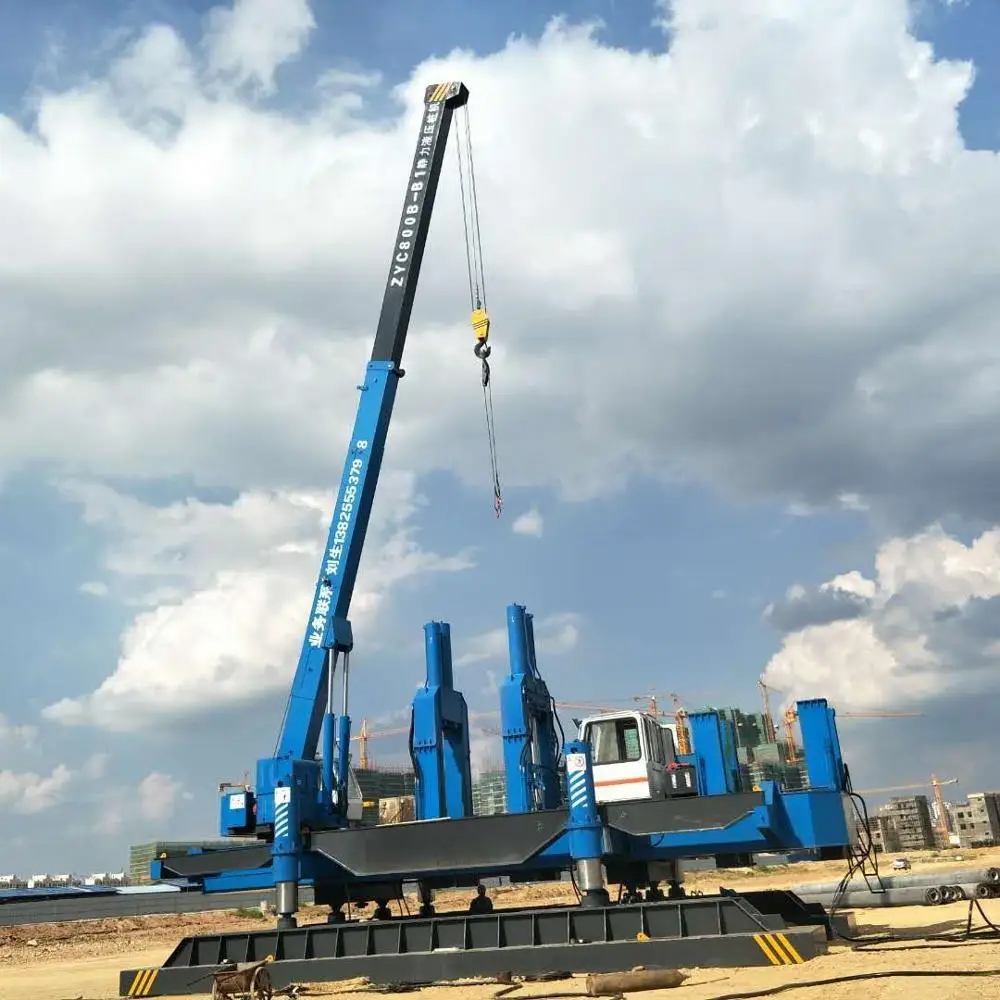

Hot sale ZYC280 jack in pile machine for PHC spun pile or square pile of foundation piling
Product Description
ZYC series hydraulic static pile driver is a new environmentally friendly pile foundation construction equipment with a number of national patents. It has the features of no pollution, no noise, no vibration, and fast pile driving, high quality pile. It is represent the future development tendency of pilling machinery.
Technology features
1.Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.
2.Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60% -70% of main piling. The performance is much better than hanging side/corner piling system.
3. Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.
4. Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.
5. Unique walking mechanism with lubrication cup design could realize durable lubrication so as to extend service life of rail wheel.
6. Constant & high flow power hydraulic system design ensures high piling efficiency.
7.Suitable working site: clay,soft soil,sand layer etc; noise regulated urban area; vibration regulated areas,such as near old buildings,precision instrument buildings,subway,overpass and so on.Meanwhile,we can provise special design for customer's requirements.
Parameters as following:
| Parameter / type | ZYC280B-B1 | |
| Rated piling pressure(KN) | 2800 | |
| Piling speed(m/min) | fast | 7.7 |
| low | 1.8 | |
| Piling stroke(m) | 1.9 | |
| Pace(m) | longitudinal | 2.4 |
| horizontal | 0.6 | |
| Angle range(°) | 15 | |
| Rise stroke (m) | 1.0 | |
| Square pile(mm) | max | 500 |
| min | up to customer | |
| Circle pile(mm) | max | 500 |
| min | up to customer | |
| Side piling space(mm) | 1250 | |
| Corner piling space(mm) | 2500 | |
| Lifting weight(t) | 12 | |
| Lifting pile's lengh(m) | 14 | |
| Power(KW) | piling | 60 |
| lifting | 30 | |
| Main dimension(m) | lenth of work | 12 |
| width of work | 6.1 | |
| transprorting height | 3.1 | |
| Total weight(T)≥ | 280 | |
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost
\\

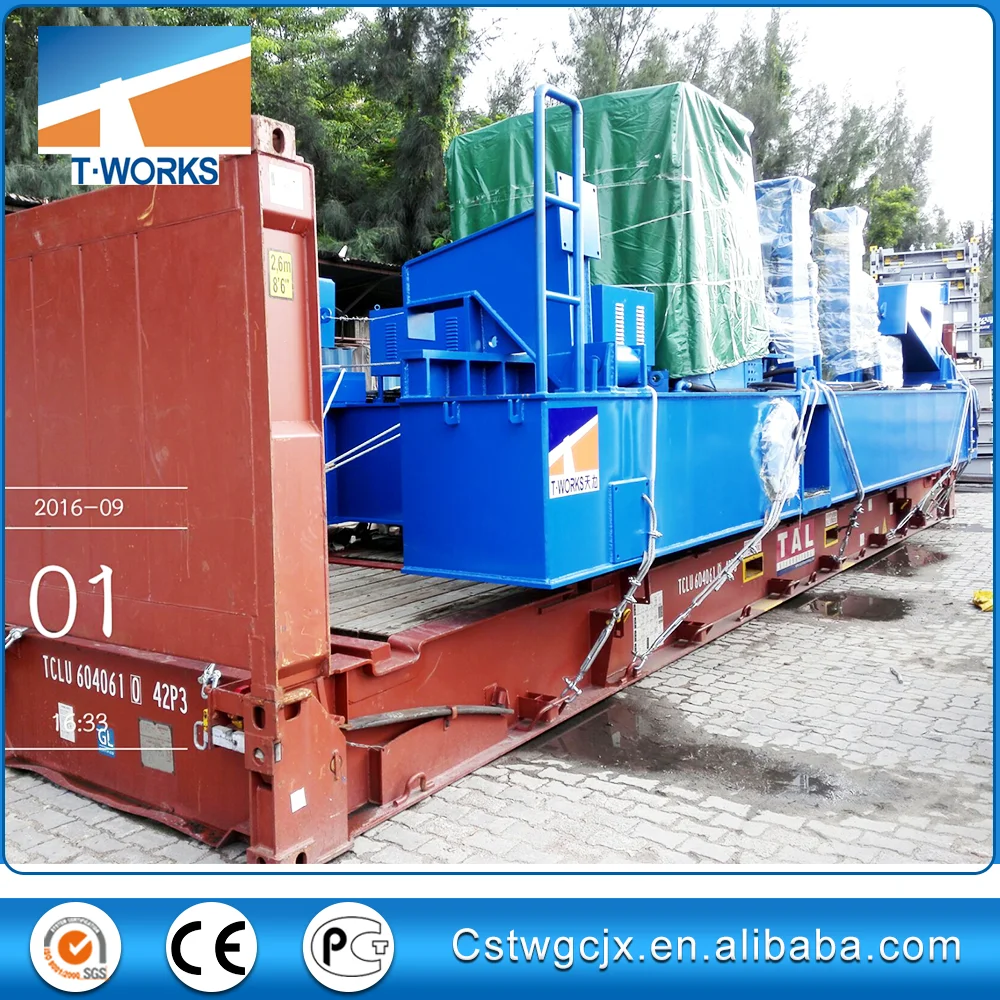

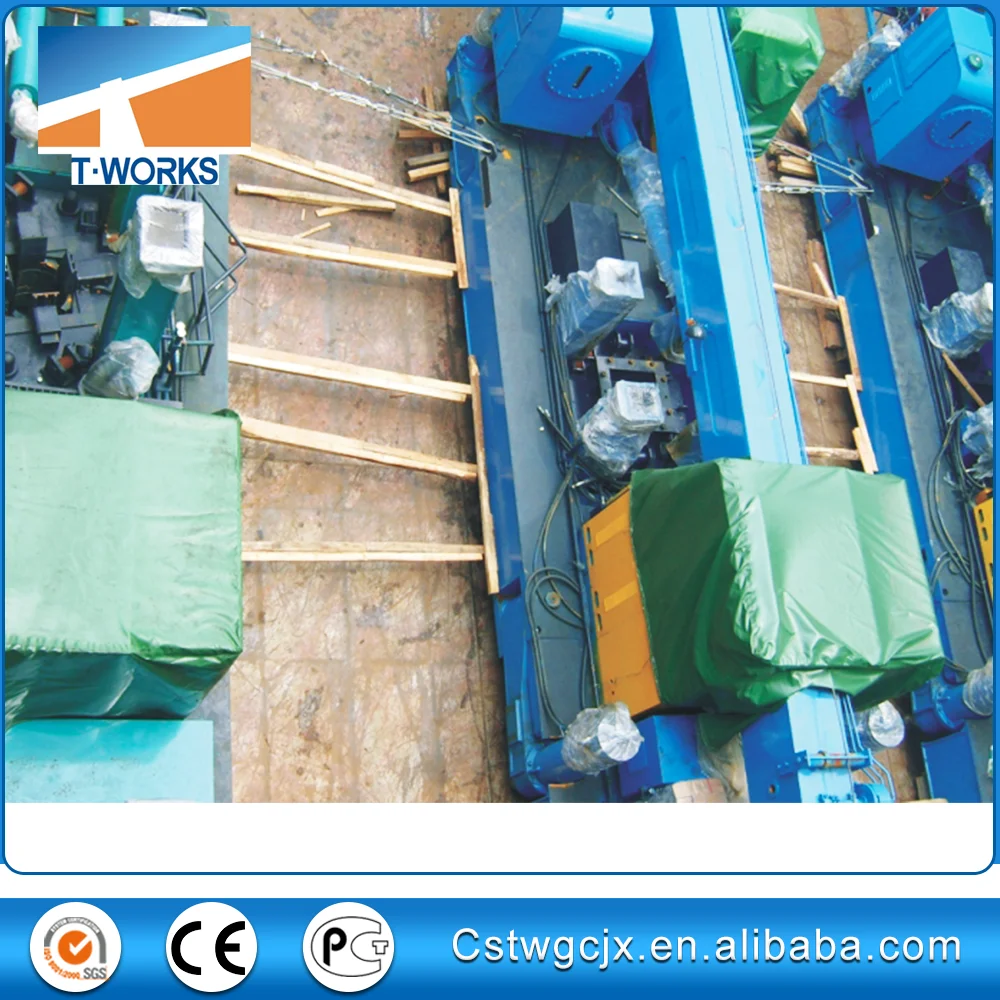

Packaging & Shipping
1) Minimum order: 1 unit.
2) Valid period: 15days.
3) Package: Nude package.
4) Payment: 30% of total contract price by TT as deposit, balance amount of total contract price by TT upon inspection before delivery to China sea port for export.
5) Delivery: Approximated 20 days ready for inspection at China factory from the day of receiving the deposit in full amount.
Our Services
To train operating,maintenance and construction people for our customers.
♣ Always be ready to answer technical questions concerned from our customers.
♣ Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
♣ To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
♣ Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
♣ We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.

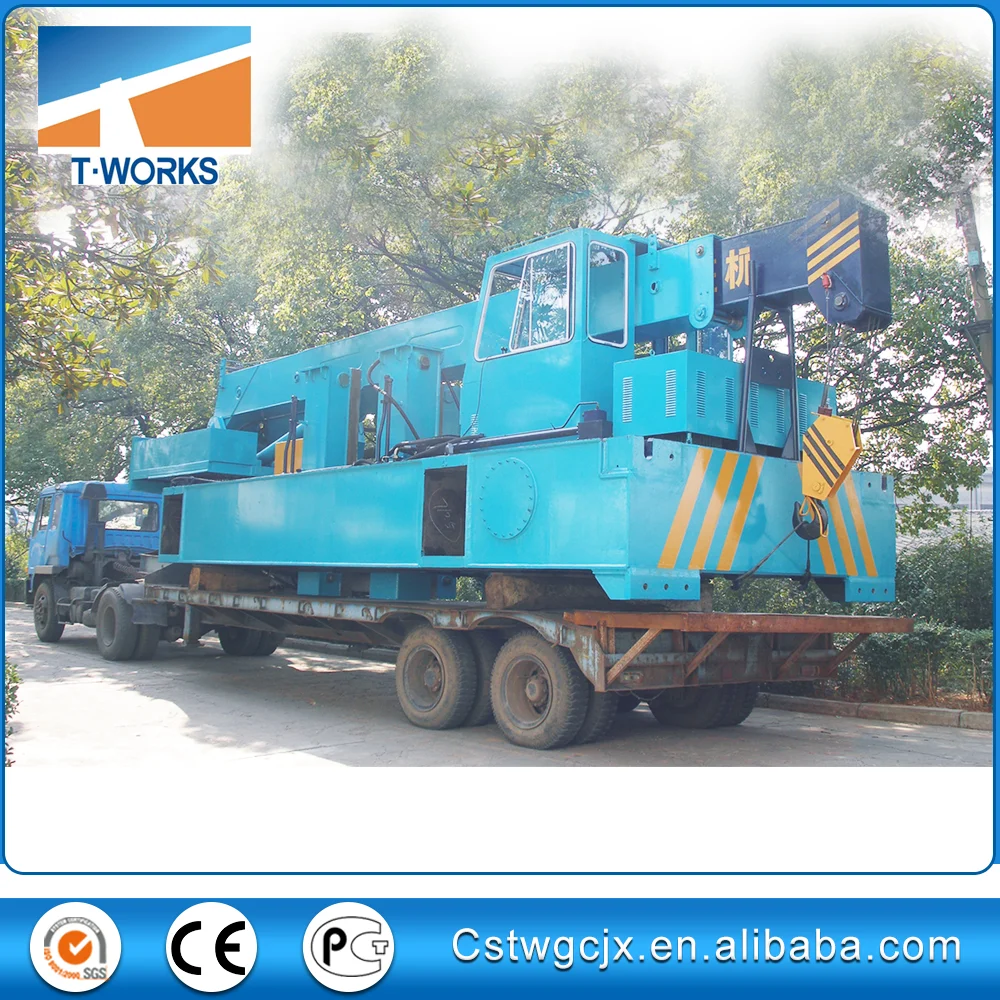

Transporation
