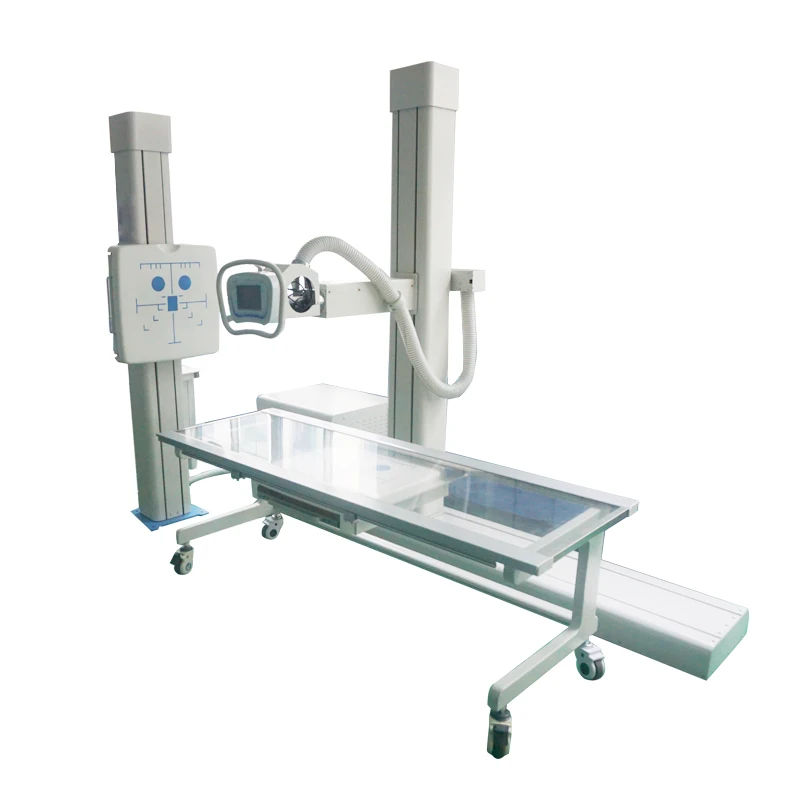

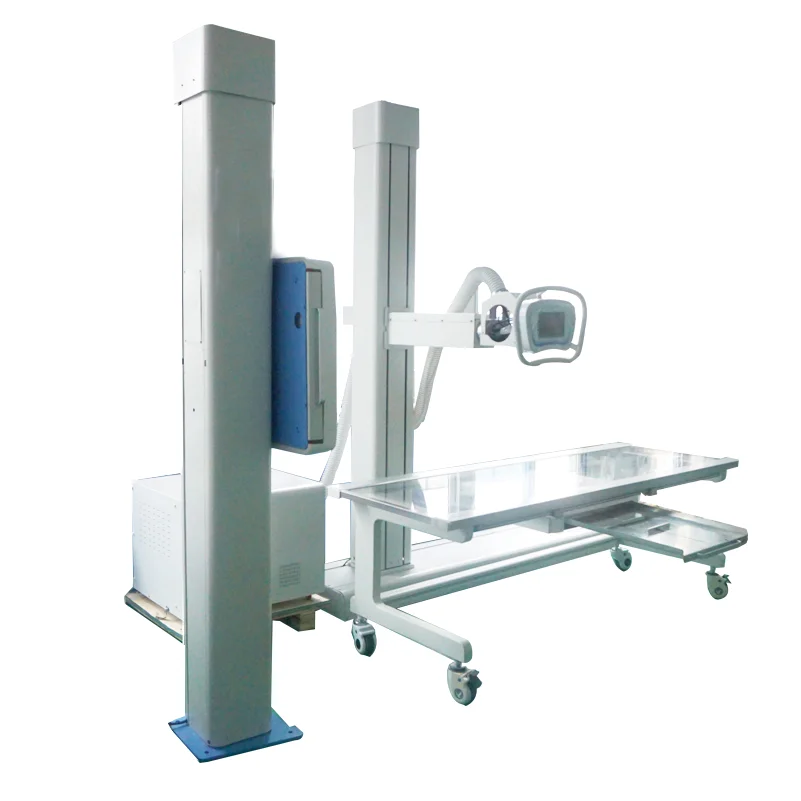

digital medical x ray machine floor mounted tube stand x ray machine

Brief Introduction

Newheek floor mounted tube stand is the ideal choice for different x ray radiology application when being assembled with the
mobile table and bucky stand. It only requires a floor mounted rail for support, which eliminating the costly of using the ceiling
suspending or walls of the radiography room. It can install in a room with ceiling height as low as 240cm (94.5”). Smooth
longitudinal and transverse travel assure complete radiology coverage.

Configuration & Specification

(1) Floor mounted tube stand:
- longitudinal column travel: 1550mm;
- transverse column height: 2390mm;
- tube stand travel: 1090mm
- tube stand rotation: 360°

(2) Motorized bucky stand:
- bucky stand height: 2240mm;
- bucky travel: 1130mm;
- tube to bucky auto syncronization

(3) Mobile table:
- table surface dimension:
2015mmx725mmx700mm;
- table bucky travel: 990mm.
