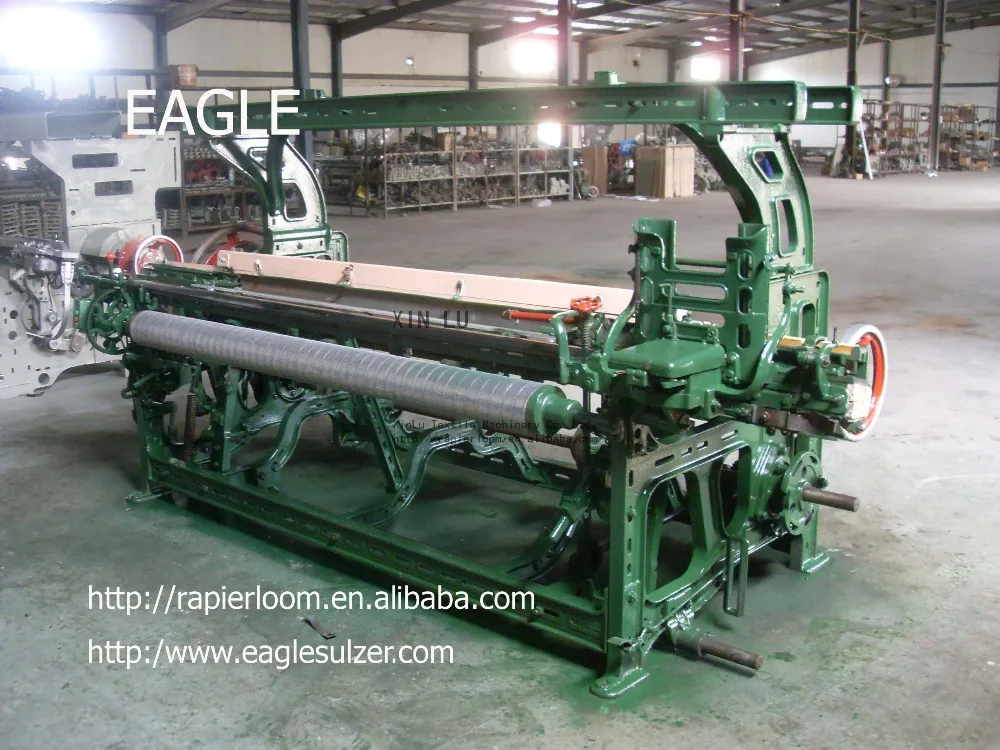

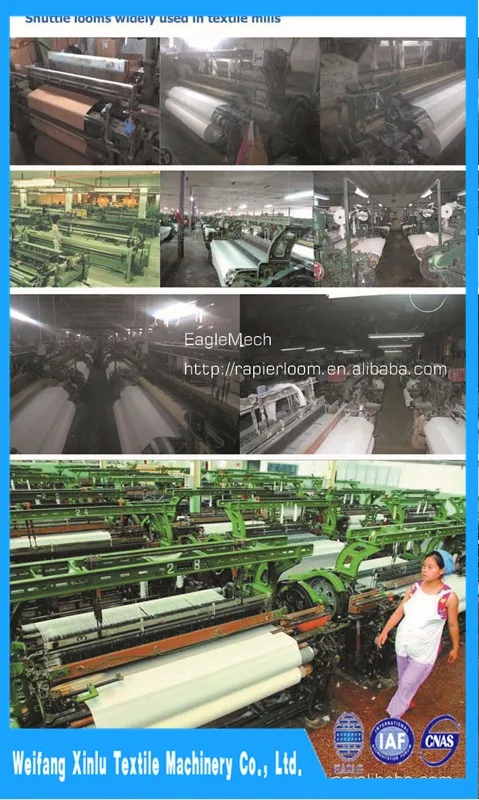

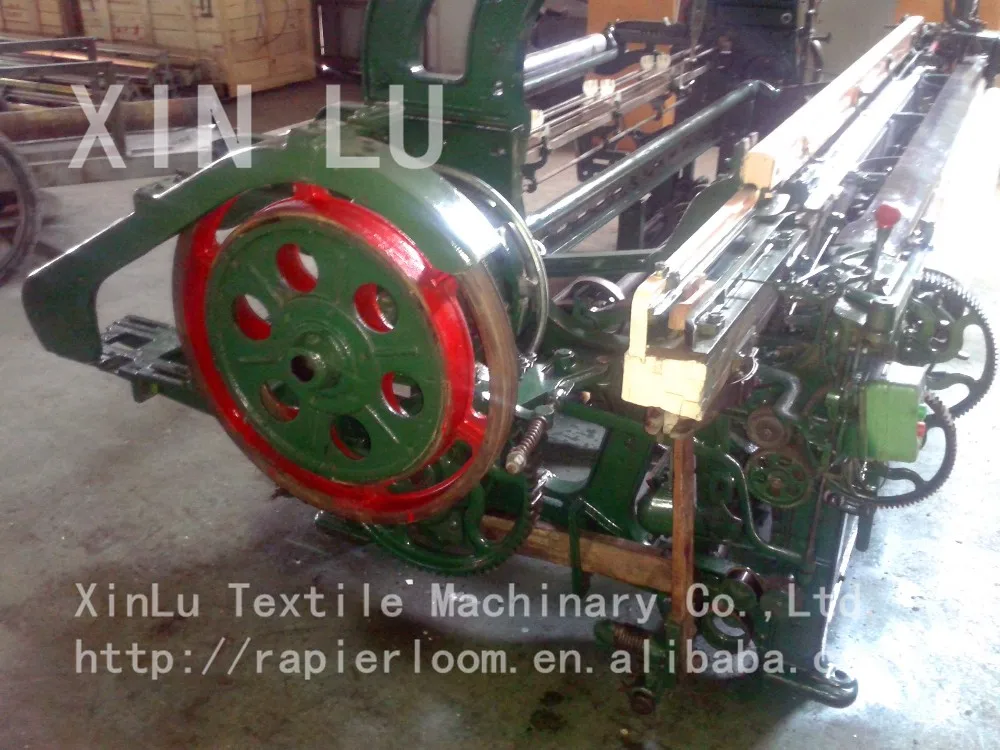

automatic shuttle weaving machine shuttle power loom

Technical features

Reed width (mm)

1000 – 2800.

Rotation speed

Design speed 150-180rpm.

Motor speed

960rpm.

Warp beam diameter

500cm (550cm optional)

Handle

Left or right.

Shuttles inventory

10 pieces.

Motor power

0.8KW.

Overall dimensions(mm³)

180cm: Tabby 3171x1596x1540,dobby 3171x1596x2250.

Net Weight

180cm: Tabby 1400kgs; dobby 1600kgs (not including motor).

Main components

Shedding device

Inner side tappet type top roller harness mounting shedding;

6 pages of spring heald return shedding.

Shuttle change motion

Automatic shuttle changing mechanism.

Picking motion

Under picking.

Weft supplying motion

Automatic changing shuttles without machine halt.

Beat-up motion

Crank shaft beating-up.

Take-up mechanism

7 tooth intermittently take-up.

Let-off motion

Semi positive and semi negative automatic let off.

Warp stop motion

Wiggling back and forth mechanical stop.

Weft stop motion

Nods pecking type of weft detector control automatic stop.

Temple

Ring type copper cylinder with pin.

Warp-protector motion

Movable reed.
