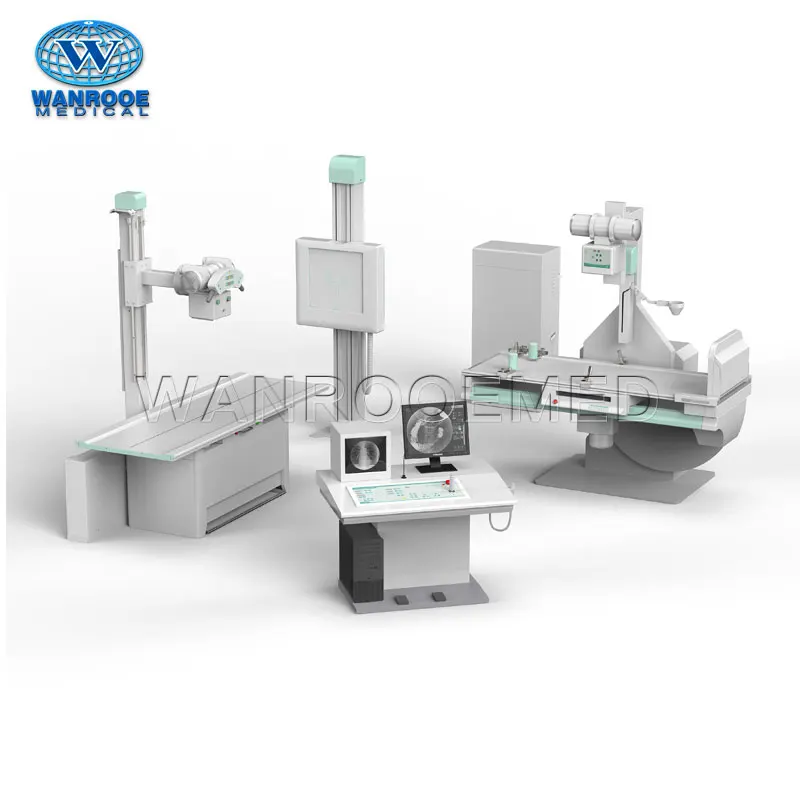

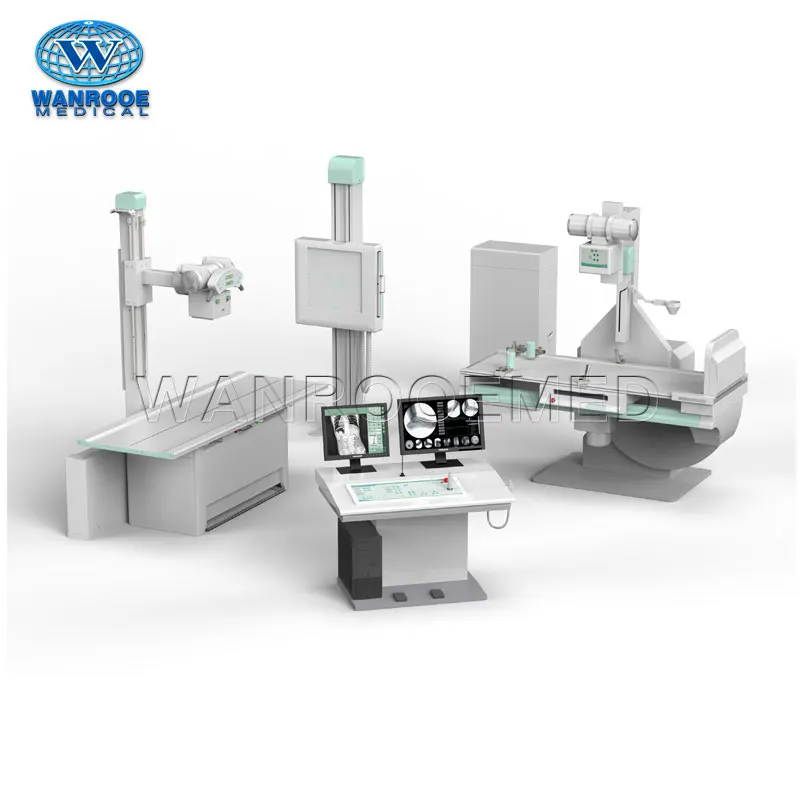

PLD5600 High Frequency Diagnostic Radiography Mobile Portable X-ray Machine
ⅠApplication:
Full support perspective, gastrointestinal spot film, GI (barium meal, barium enema), orthopedic photography, pediatrics photography, chest, urinary system angiography, peripheral angiography operations, gynecological Photography (HSG) and many other checks, the real machine can realize all these function.
Specification
| Specification 1:Digital Radiography |
High Frequency Generator | 50KW\\30KHZ10-630MA |
X ray tube | |
Image Intensifier | 9 inch |
CCD Director | 0.4 Mega Pixel |
Workstation | Digital workstation |
Ⅲ Main Specifications:
Item | Content | Technical parameter | |
Power supply | Voltage | 380V±38V | |
Frequency | 50Hz±1Hz | ||
Capacity | ≥65kVA | ||
internal resistor | ≤0.17Ω | ||
Digital X-ray high voltage system (import high-frequency generator )
| photography | Power Output | 50KW |
Inverter Frequency | 30kHz | ||
Tube Voltage | 40kv—150kv step regulation | ||
Tube Current | 10mA—630mA step regulation | ||
Exposure time | 1.0s—6300ms step regulation | ||
Control interface | Touched LCD | ||
Control hand | One-button operation handle | ||
fluoroscopy | Tube Voltage | 40kv—120kv ontinuous regulation | |
Tube Current | 0.5mA—6mA continuous regulation | ||
Digital Controlled X-ray Tube
| Tube Brand | Toshiba | |
Tube Focus:Large Focus/Small Focus | 1.2mm /0.6mm | ||
Input Power | Large focus: 50kW small focus: 19kW | ||
thermal capacity | 300 KHU | ||
Rotary anode speed | 2800rpm | ||
Micro-computer control remote diagnostic table
| Material of the tabletop | high strength,low absorb carbon fiber | |
Rotation of the table | 90°~0°~-25° | ||
Transverse travel of table | ±110mm | ||
Longitudinal travel of the photography holder and film spot device | ≥720mm | ||
X-ray Focus—film gauge | 1100 mm—1500 mm | ||
Rotating foot plate | ±360° rotation | ||
Full film photography size | 8″×10″—14″×17″ | ||
Compressor force | 80N-130N | ||
Dividing method for spot film | Full film, half dividing, three parts dividing, four parts dividing | ||
Control method for diagnostic table | Remote,table control,frequency conversion soft starting and stopping | ||
beam limiter | Electric Multi-leaf | ||
fixed bucky device for table | Grid density: 103L/INCH, Grid ratio: 10:1,focusing distance: 120cm,fixed type: 15″×18″ | ||
Intensifier and CRT Monitor | Image Intensifier | TOSHIBA (9″) Image Intensifier | |
high resolution CCD (digital cameras) | ultra-low-light,standard 400,000 pixel | ||
Monitor | 14 medical high definition monitor, horizontal central resolution ratio :1000 lines,fringe: 800 lines,video bandwidth: 12.5MHz,50bit,image number/second: 25 frame | ||
CCU System | High definition line by line output mode, 8 level noise reduction,store 8 image;LIH(freeze the last frame),the image can be turned vertically and horizontally,positive and negative image; OSD(monitor show) | ||
DR Detector | Toshiba portable flat panel detector | Material CSI, space resolution≥3.7lp/mm, active area 350(H)×430(V), Pixels matrix 2448(H)×2984(V), Pixels space 143 μm | |
DR acquisition workstation | Computer system | Brand: DELL OPTIPLEX 7010 business use desktop Processor: Core i5-3570 RAM: 4GB DDR3 Hard disk: 500GB 7200r, SATA Graphics: Intel GMA HD 3000 Integrated Intel 82579LM kilomega Ethernet LAN 10/100/1000 CD-ROM: Suitable for MT 16X variable speed DVD+/-RW, with double level read-in function Network card: BroadcomNetXtreme10/100/1000 PCIe fast Ethernet card. Graphics: 1GB AMD RADEON HD 7570, FH, with DVI-VGA Adapter Interface: PCIE serial and parallel port, Full-HD, MT | |
LCD colorful screen | Dell professional P1913S 19" monitor | ||
DROC workstation software | DROC and software dongle | ||
Related Products
| Related Products | |
 | Digital Panoramic X-Ray Machine Orthopaedics: osteopathy, diaplasis, nailing Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work. |

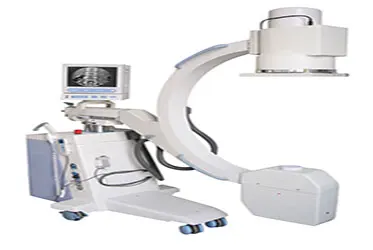

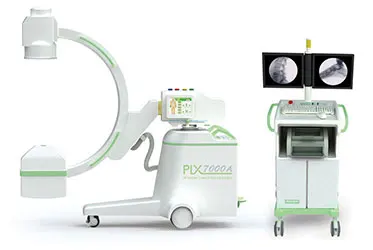

| Radiology CR C-arm System X-ray This machine is widely applied in surgical department, orthopedic surgery, urinary surgery, Spinal surgery, abdominal surgery, Pain Management, Cardiology, Gastroenterology dept., gynae and operating room etc. |  |

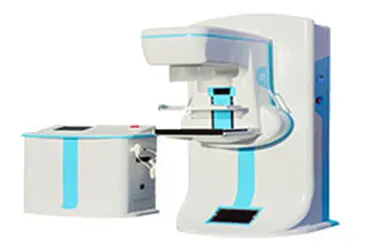

 | High Frequency X-ray Mammography System 1. The 9800D high frequency molybdenum target mammography machine are featured with very small focus, high resolution, low dosage and micro-computer controlled. |

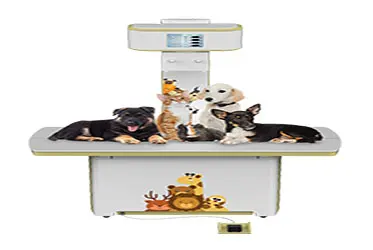

| Veterinary Dog X Ray Machine 1. Adopts high frequency inverter technology, X-ray quality is fine, stable and reliable, image is clear with good contrast. 2. Adopts kV and mAs closed-up controlling technology, micro computer real-time control, assures dose accuracy and high repeatability. |  |
