Клеевые машины прессового типа

Product Overview

Description

	MY-2200	MY-2000		MY-1800	MY-1500
Maximum size	2200*1100mm	2000*1100mm		1800*1100	1500*1100mm
Minimal size	200*260mm	200*260mm		200*260mm	200*260mm
Material required	3-7 layer corrugated sheet thickness3-7mm3-7 Cardboard gram over 350 g
Motor power	2.7KW	2.7KW		3.2kw
Mechanical speed	50m/min
Optional item	One head glue, two head glue, grinding device
Mechanical weight	1400kg	1350kg		1300kg	1000kg
Size length * width * height	2.6*2.5.3m	2.3*2.5*1.3m		2.2*2.4*1.3m	2.2*1.9*1.3m



Features:

1.application

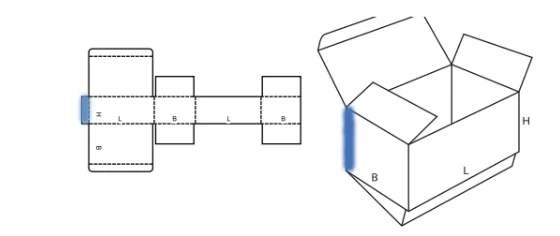

Wide range for ordinary and special shape carton box, both of cardboard and corrugated cardboard are ok.

2. Features

   1). Semi-automatic press folder gluer machine is developed to give companies the flexibility to produce short runs of any shape boxes, quickly and easily.

  2). The machine is set-up and ready to start making boxes in seconds.

  3). The machine just need small place, easy to operate, only minimal training required, no need for skilled labor. Change from one design box to next in seconds, ideal for small batch production and variety of replacement.

  4). Save glue, just need 1/3 glue than manual gluing.

  5). Save labor, the maximum speed of machine is 56 m/min, the efficiency is 3-4 times than manually operated.

  6). Carton box bonded firmly, tidy and no excess glue.

  7). The folding unit is manually, improving work efficiency and making better creasing.
