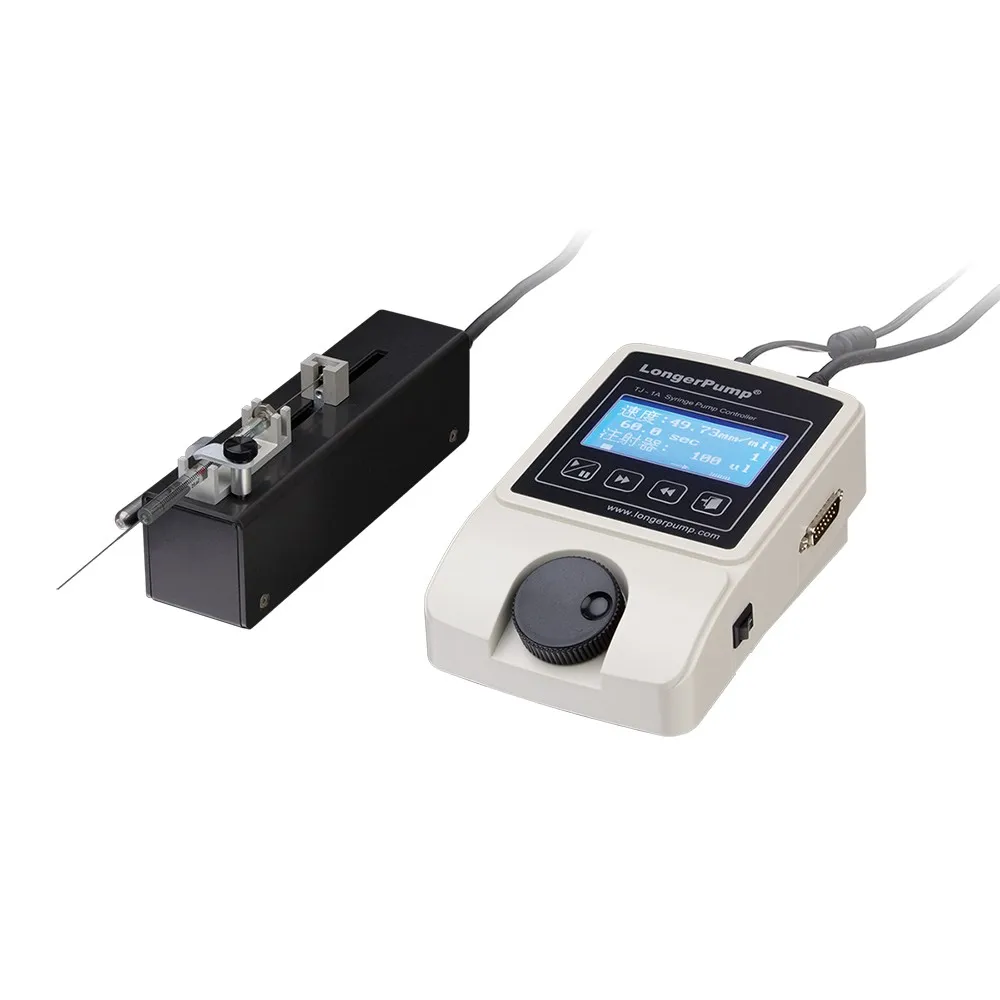

TJ 3A Single Channel Syringe Pump has infusion/withdrawal mode
TJ-3A - Single Channel Syringe Pump has infusion/withdrawal mode

TJ 3A Single Channel Syringe Pump has infusion/withdrawal mode

Share on (62010080380):


Price:

Quantity:


Product Overview

Description


Product Description

 TJ-1A/L0107-1A                                                                                          TS-1A/L0107-1A

\t
model
\t
TJ-1A/L0107-1A
\t
TS-1A/L0107-1A
TS-1A-B/L0107-1A
\t
TJ-2A/L0107-2A
\t
TS-2A/L0107-2A
TS-2A-B/L0107-2A
\t
Work mode
\t
                                      infusion
\t
infusion,withdrawal,infusion/withdrawal,withdrawal/infusion,continuous
\t
Drive unit
\t
1
\t
1to 4
\t
1
\t
1 to 4
\t
Stroke of drive unit
\t
                                                                              70mm
\t
Pusher advance per microstep
\t
                                                                           0.165μm
\t
linear speed
\t
7.94μm/min-79.4mm/min(flow rate=Linear speed*Section area of the barrel)
\t
linear speed resolution
\t
                                                                     7.94μm/min
\t
linear travel accuracy
\t
                      ≤+0.5% when travel≥30% of drive unit stroke
\t
linear force(max)
\t
                                                                       >20N
\t
syringe selection
\t
Built-in syringe branches,sizes and IDs for selection
\t
syringe user-defined
\t
can store four user-defined syringe IDs
\t
Flow rate calibration
\t
improve flow rate accuracy
\t
Running parameters setting
\t
Parameters,such as dispensing volume,can be seet by each channel. or all channels use the parameters of the specified channel
\t
Start setting
\t
each drive unit can be started separately,simultaneously or according to each delay time
\t
display setting
\t
Display volume,flow rate or linear speed
\t
power-off memory
\t
select keeping previous status or resetting parameters when powered on
\t
fast forward/backward
\t
infuse or withdraw liquid at full speed
\t
status signal output
\t
2 output signals(OC gate signal) to indicate start/stop and direction
\t
control signal input
\t
3 input signals(TTL signal) to control start/stop,fast forward/stop and direction
\t
communication interface
\t
RS485
\t
controller dimensions
(LXWXH)
\t
170x108x65
(mm)
\t
235x178x74(mm)
\t
170x108x65(mm)
\t
235x178x74(mm)
\t
controller weight
\t
0.5kg
\t
0.8kg
\t
0.5kg
\t
0.8kg
\t
Drive unit dimensions
(LXWXH)
\t
                                                                  180X46X78(mm)
\t
Drive unit weight
\t
                                                                    0.6kg
\t
power supply
\t
AC90V-260V/10W
\t
AC90V-260V/40W
\t
AC90V-260V/10W
\t
AC90V-260V/40W
\t
operating temperature
\t
0 to 40 ℃
\t
Relative humidity
\t
<80%

L0107 series flow rate reference:


\t
Controller Model(product code,language)/Drive unit Model(product code)
\t
syringe
(μl)
\t
syringeId
(mm)
\t
flow rate
(nl/min~μl/min)
\t
TJ-1A(05.03.10A,Chinese and english)/L0107-1A(05.03.00A)
TJ-2A(05.03.11A,Chinese and english)/L0107-2A(05.03.01A)
TS-1A(05.03.15A,Chinese)/L0107-1A(05.03.00A)
TS-1A-B(05.03.15B,English)/L0107-1A(05.03.00A)
TS-2A(05.03.16A,Chinese)/L0107-2A(05.03.01A)
TS-2A-B(05.03.16B,English)/L0107-2A(05.03.01A)
\t
5
\t
0.35
\t
0.764~7.64
\t
10
\t
0.50
\t
1.559~15.59
\t
25
\t
0.80
\t
3.991~39.91
\t
50
\t
1.10
\t
7.546~75.46
\t
100
\t
1.60
\t
15.96~159.6
\t
250
\t
2.30
\t
32.99~329.9
\t
500
\t
3.25
\t
65.87~658.7
\t
1000
\t
4.61
\t
132.5~1325

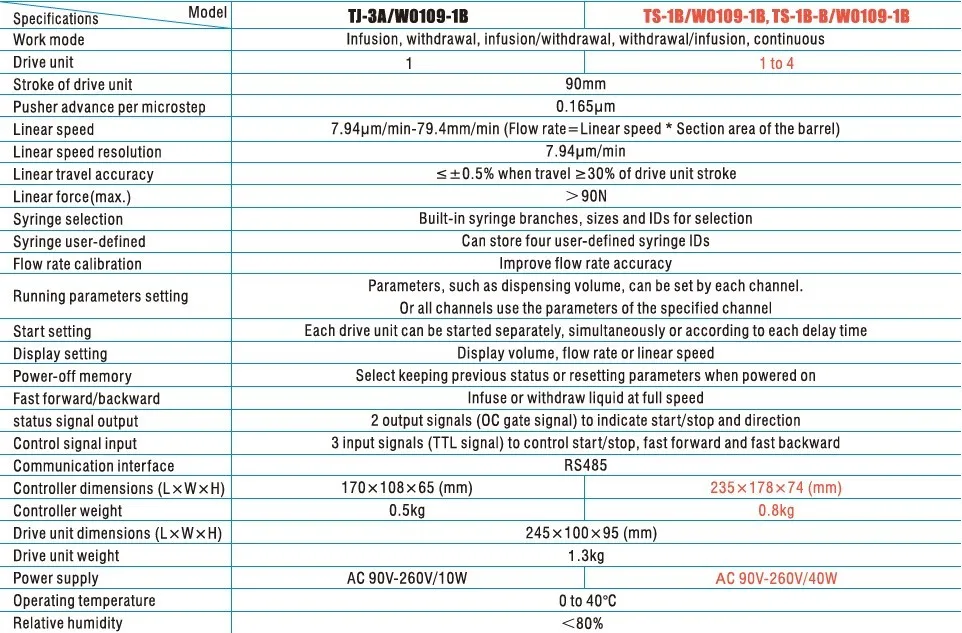

                  TJ-3A/W0109-1B

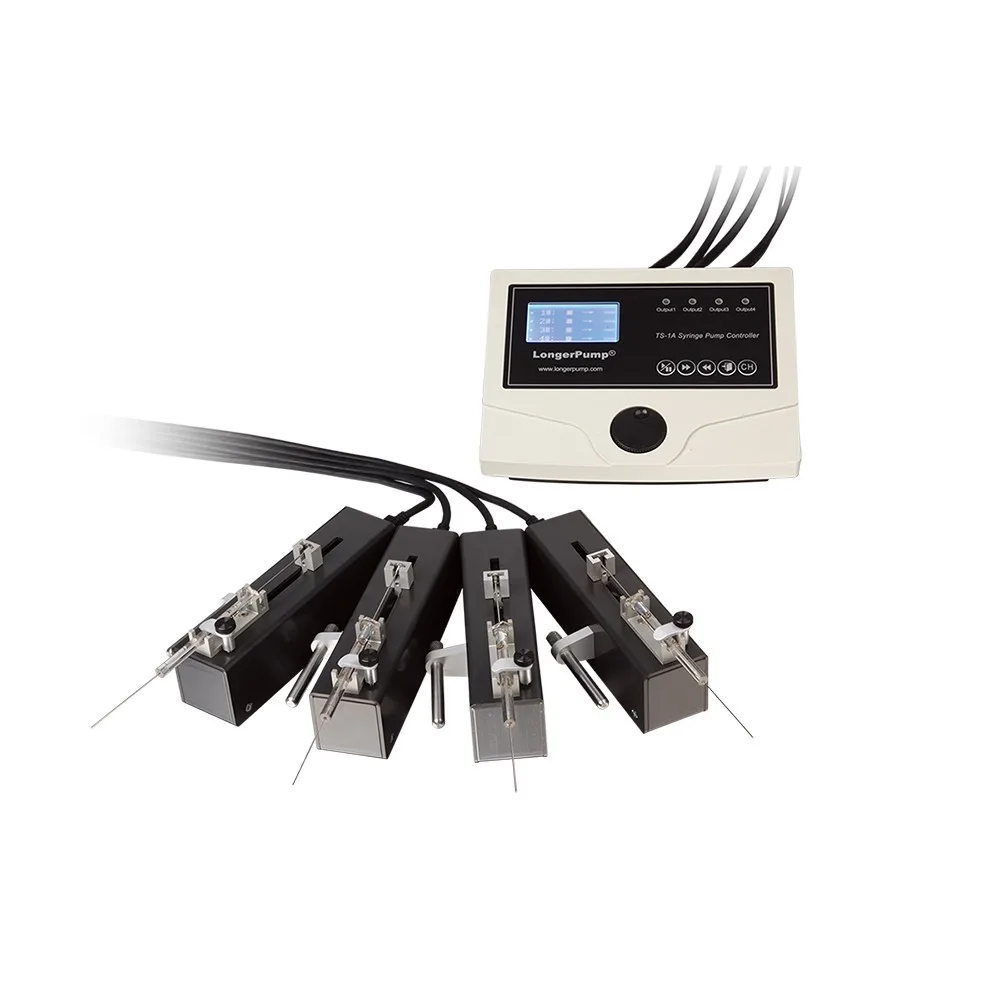

                           TS-1B/W0109-1B

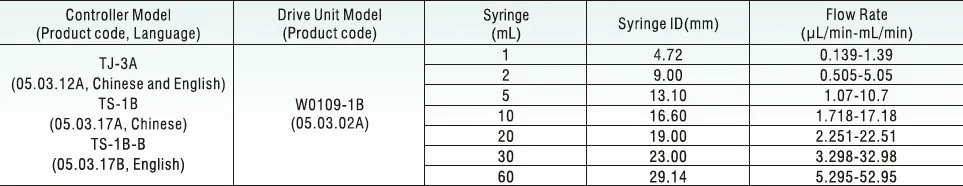

TJ-3A/W0109-1B,TS-1B/W0109-1B flow rate reference

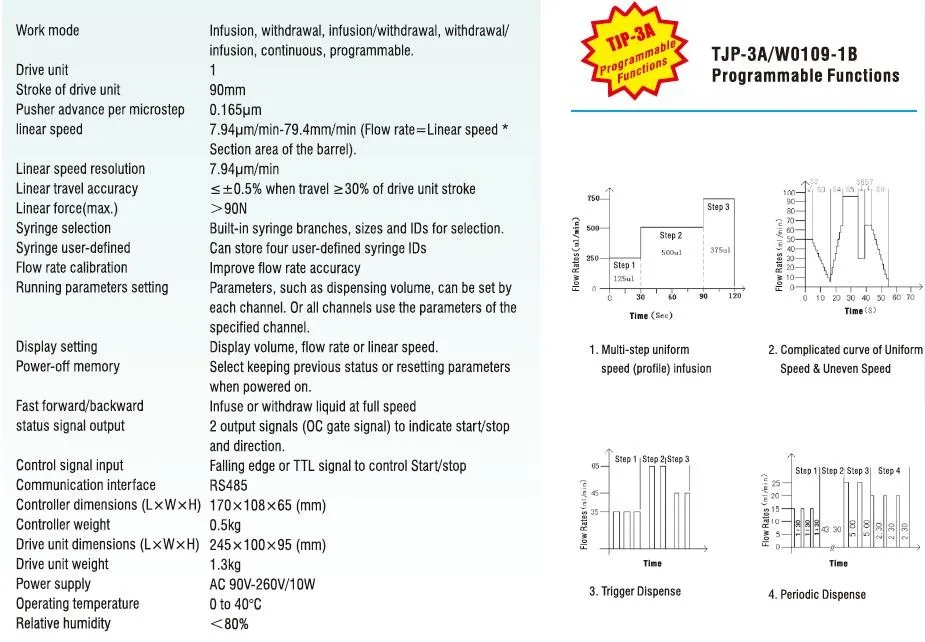

TJP-3A/W0109-1B

Mainly used in laboratorial applications.

Controller and drive unit are separated.

With the programmable function,you can customize complex

infusion/withdrawal process,such as stepped infusion,combination constant speed and ramped speed infusion trigger dispense or periodic dispense.

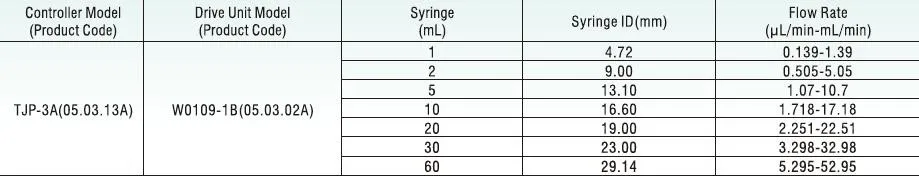

TJP-3A/W0109-1B flow rate reference

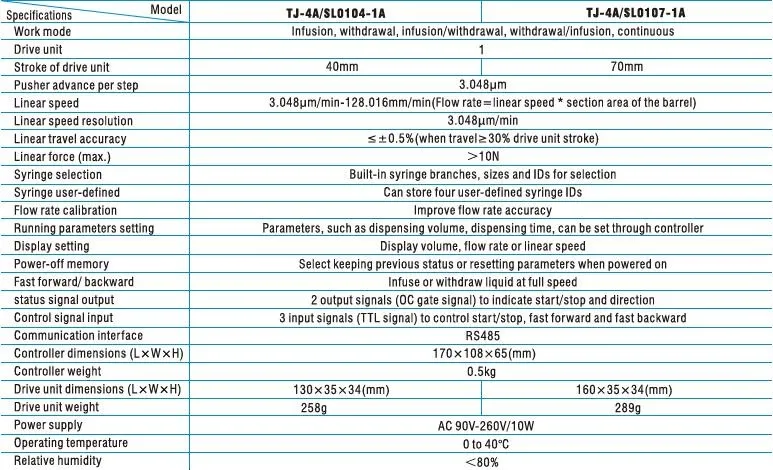

                          TJ-4A/SL0104-1A

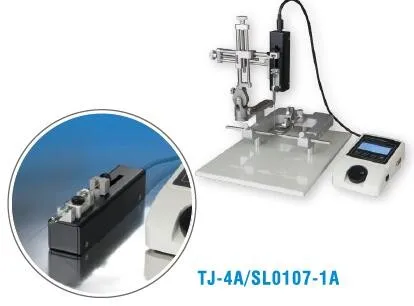

                               TJ-4A/SL0107-1A

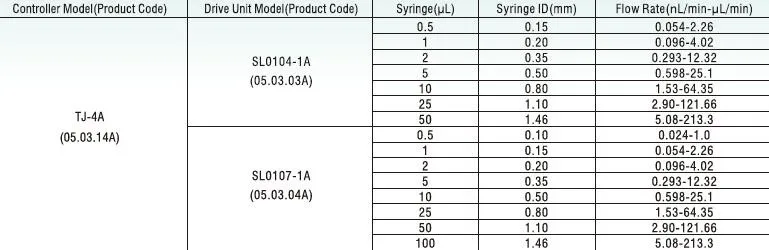

TJ-4A/SL0104-1A& TJ-4A/SL0107-1A flow rate reference
