Control 4 3H/2C Heat Pump thermostat (US market)
- Category: >>>
- Supplier: Beijing Brade Controls Tech Co. Ltd.
Share on (62010115462):
Product Overview
Description
Product Description

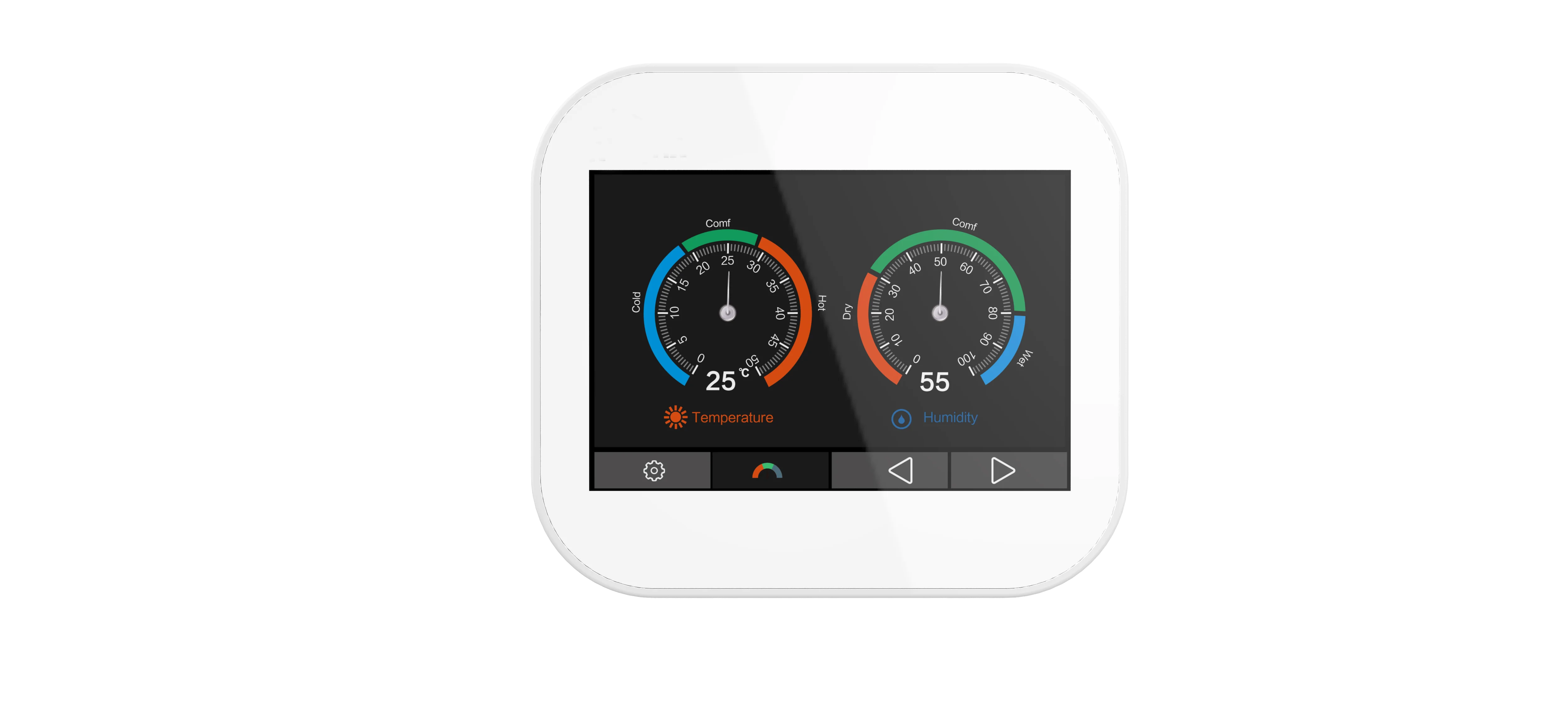

MC6-U™
3H/2C Color Touchscreen Thermostat
The MC6 is an universal, colorful touchscreen
thermostat available from cloud Systems. The MC6 can be hardwired which makes it ideally suited for use both in residential and light commercial applications.
Main Function
• Low-cost, universal colorful touchscreen thermostat
• Hardwired ,24VAC
• WiFi embedded , 2.4G , 802.11bgn
• Modbus RS485/TCP
• 3.5” TFT screen , 480*320 resolution
• Capcitive touch
• Humidity sensor embedded (+/- 3%)
• Programmable mode, 5/2 , 7days , 24hours
• C/F selection
• Frost protection
• Manual or auto changeover
• Up to 3H/2C, Gas / Electric / Heat Pump / Fossil Fuel /Conventional
• Keypad lockout
• Adaptive recovery
• Short cycle protection
• Adjustable heating and cooling setpoint limits
Warranty: 5 years
Specifications
Dimensions | 96mm Height * 86mm Width * 31.5mm Depth |
Display Resolution | 480*320 |
Display Size | 73.4 mm Height * 48.9 mm Width |
WIFI | 802.11 b/g/n (2.4G) |
Modbus RTU/TCP | RS485 (19200 bps) |
TOUCH | Capacitive |
Input Voltage | 24VAC, 50/60 Hz |
Relay Rating | 24VAC @ 1Amp maximum per relay |
Operating Temperature | 32° F to 150° F |
Operating | RH 0% – 90% (non-condensing) |
Storage Temperature | 32° F to 150° F |
Remote Sensors | 10K NTC type 2 |
Short Cycle | Protection 4 minutes |
Control Range | 41° F to 122° F |

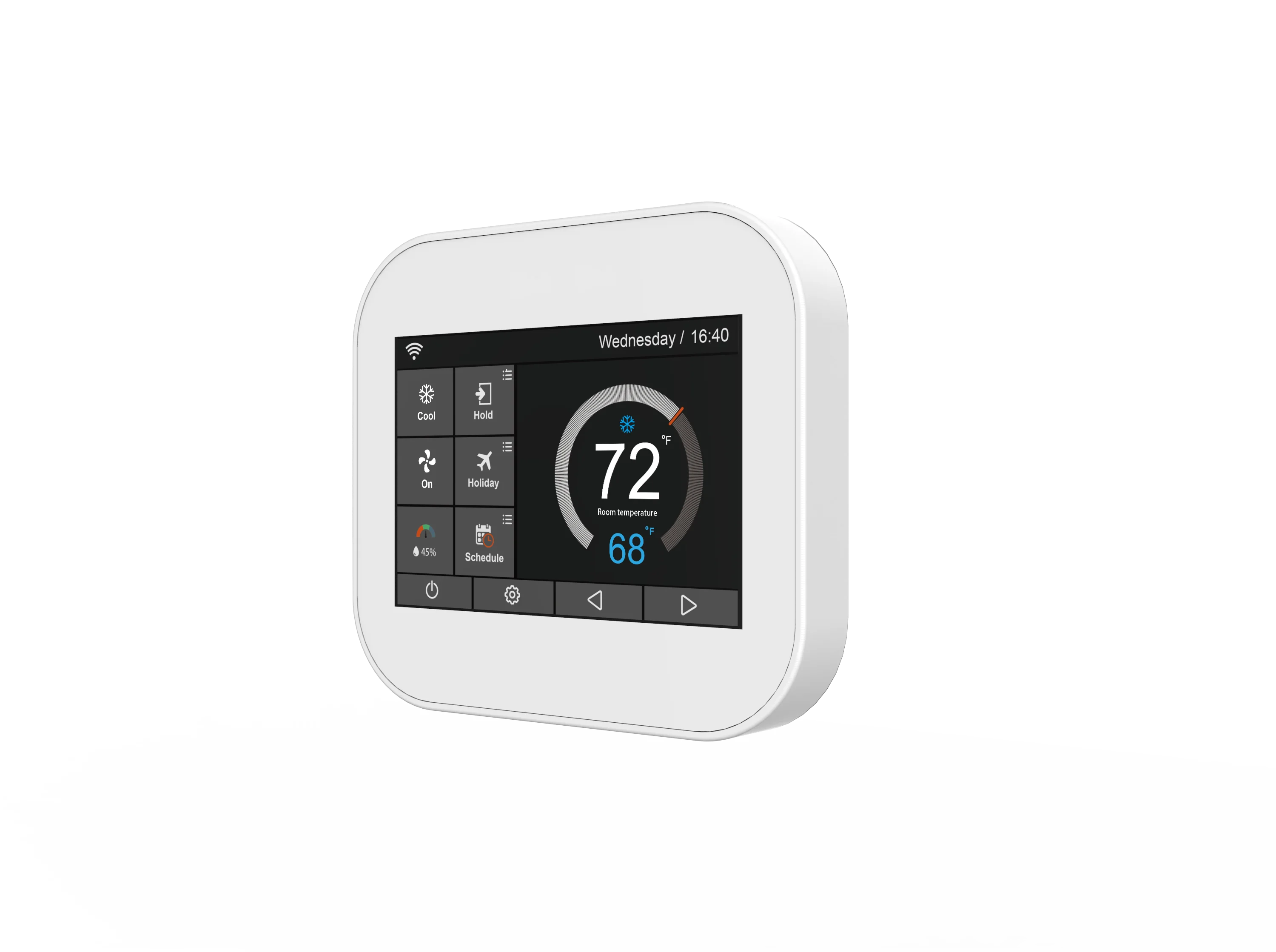

Product Display
Wiring Diagram
SYSTEMS WIRING DIAGRAM
