vibro sieve baobab powder processing machine

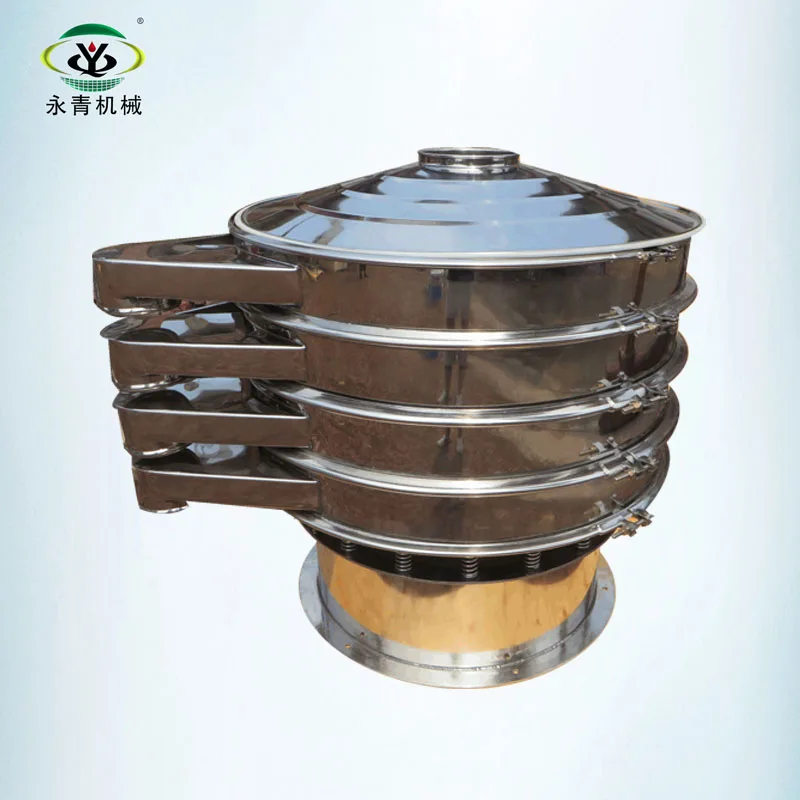

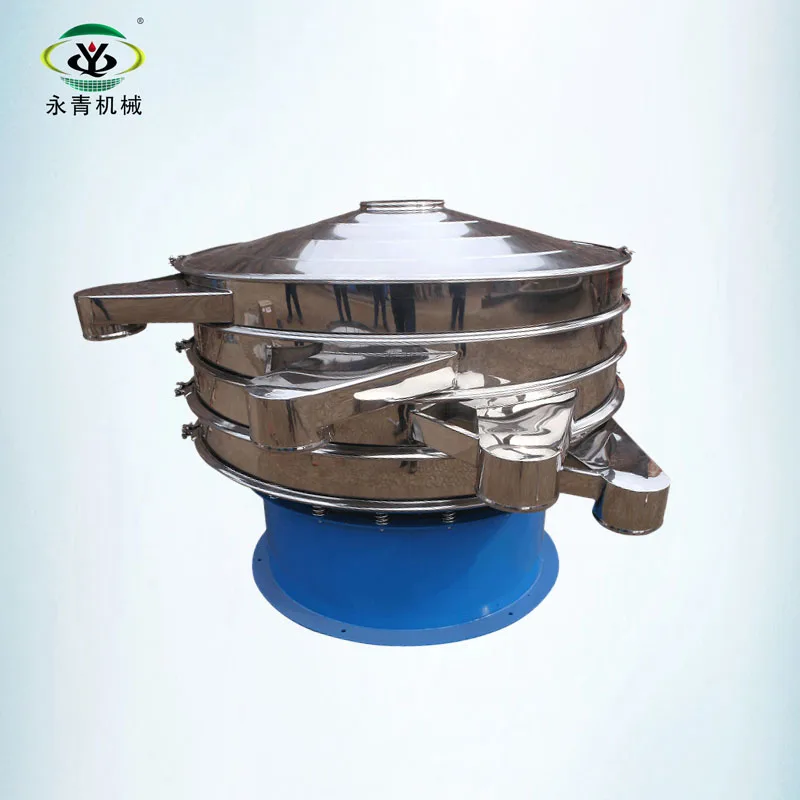

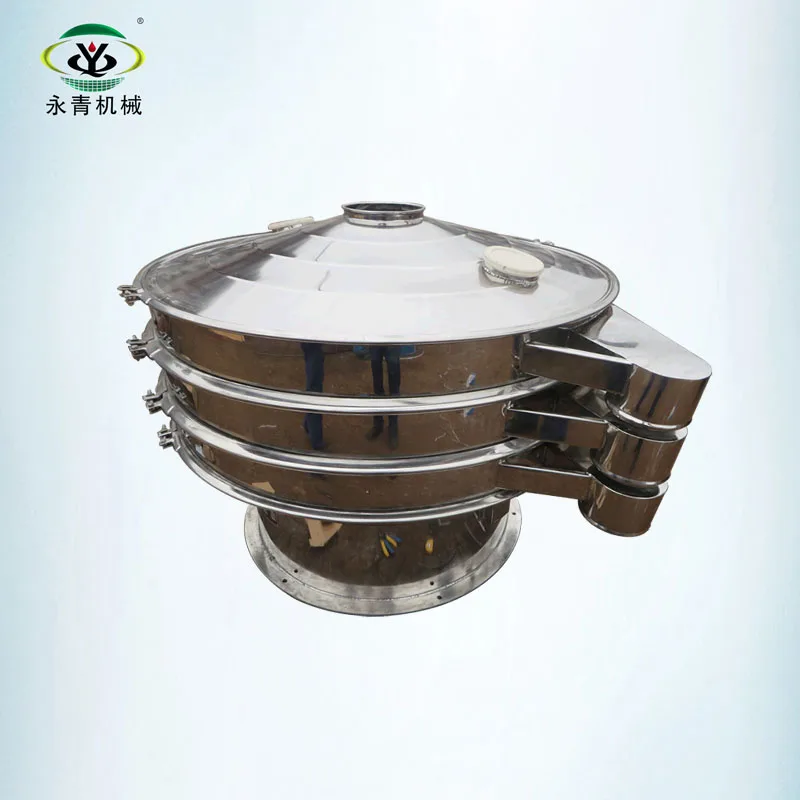

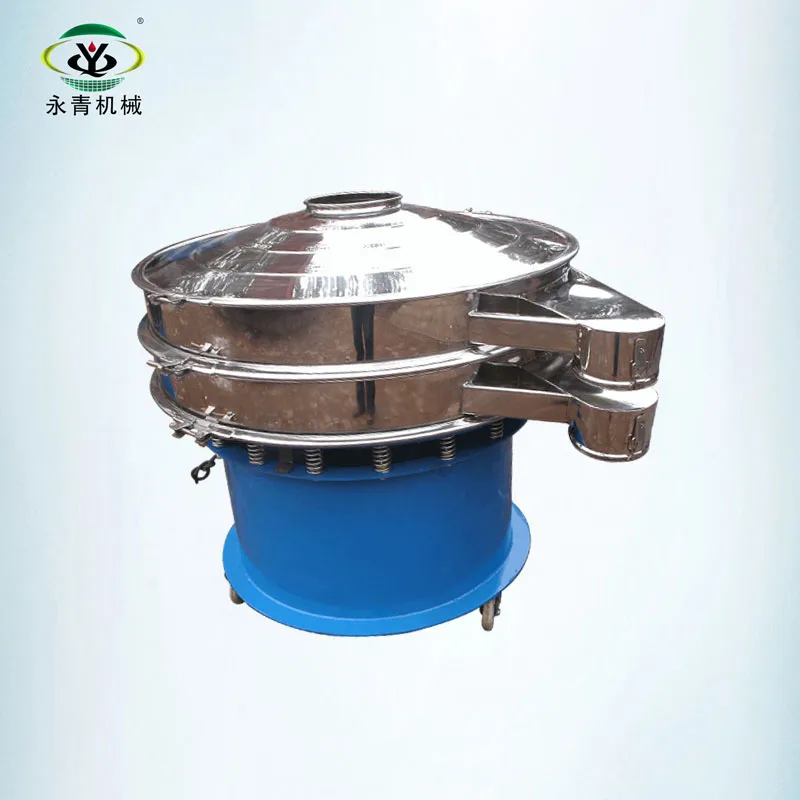

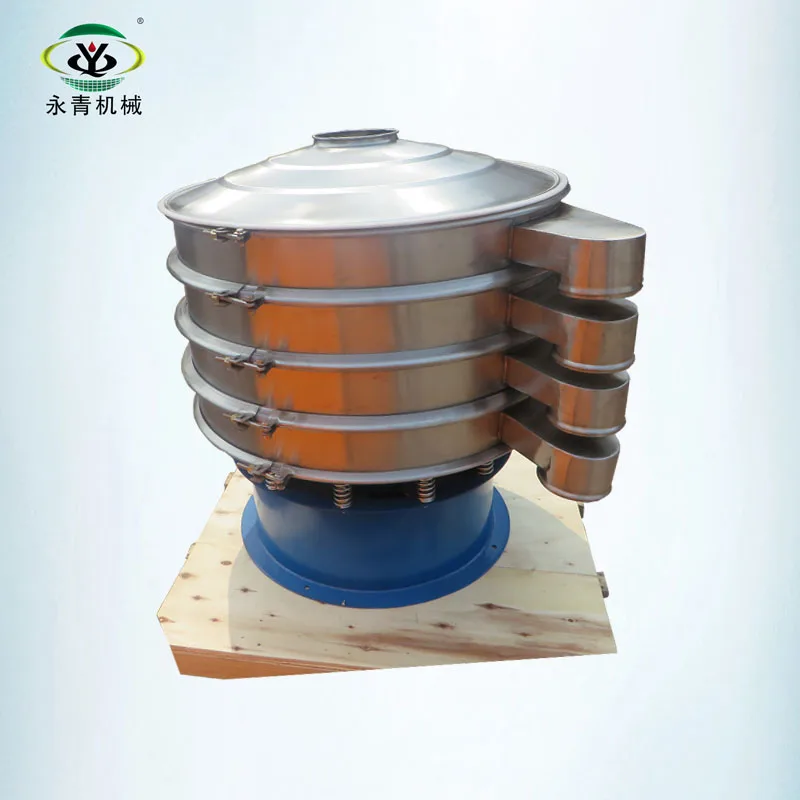

XZS Rotary vibratory sieve introduction

• XZS Model rotary vibrating sieve(also called vibration sieve, vibeo sifter machine) is suitable for screening all of dry material (from 0.074mm20 mm).
• The screening machine dimension is ranged from diameter 450mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm.
• It supports at most 5 layers. But 3 layers is highly recommended.
• It has 4 available material, all stainless steel 304 or 316 or touching part sus304 or carbon steel Q235A.
• The voltage is supported to be customized.  220/240/380/415/450V are all available. 50 or 60HZ.
• With large capacity, small volume, high screening efficiency,  easily changed screen and good safe performance.
• It is widely used for screening, grading and filtering, separating and classifying and sieving of powders, pellets, granule.
• It has been used in Food, Chemical, Construction, Paper-making,  Metallurgy and mining, Abrasive and ceramic industry etc.
• It is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cove

Feature vibrating screen classifier for abrasive powder

♦Dry separation
-Separation of  materials based on different powders size
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
♦ Dry classification
-Separation of solid particles from some foreign materials.
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives
♦ Solid-liquid separation
-Dewatering of solids
-Foods, chemicals, pulp, milk.
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal



XZS Rotary vibratory sifter specs

Application

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

XZS Circular vibratory Screen Material

1.All carbon steel. This kind of material is widely used in Gravel, sand, coal, ore, cement construction industry

metal powder and particle, etc. Especial for noncorrosive material, and these material that have a low request for sanitary condition.

2.Contact part stainless steel. It is generally suitable for Oxidized material, Chemical, foodstuff. medicine material, and corrosive material, etc.

3,All stainless steel. It is suitable for high sanitary condition foodstuff, strict chemical industry and high corrosive

material. Such as flour, milk, etc.

A:12 months warranty of our sieve products.

B:24 hours website online services.

C:Your inquiry will be replied in 12 hours.

D:All your information is well protected.

E:My cell phone is at your service at 24 hour a day.

F:12 months quality warranty

G:Free easily damaged vibration screen accessories.

Company: XinXiang YongQing Screen Machine CO., Ltd
