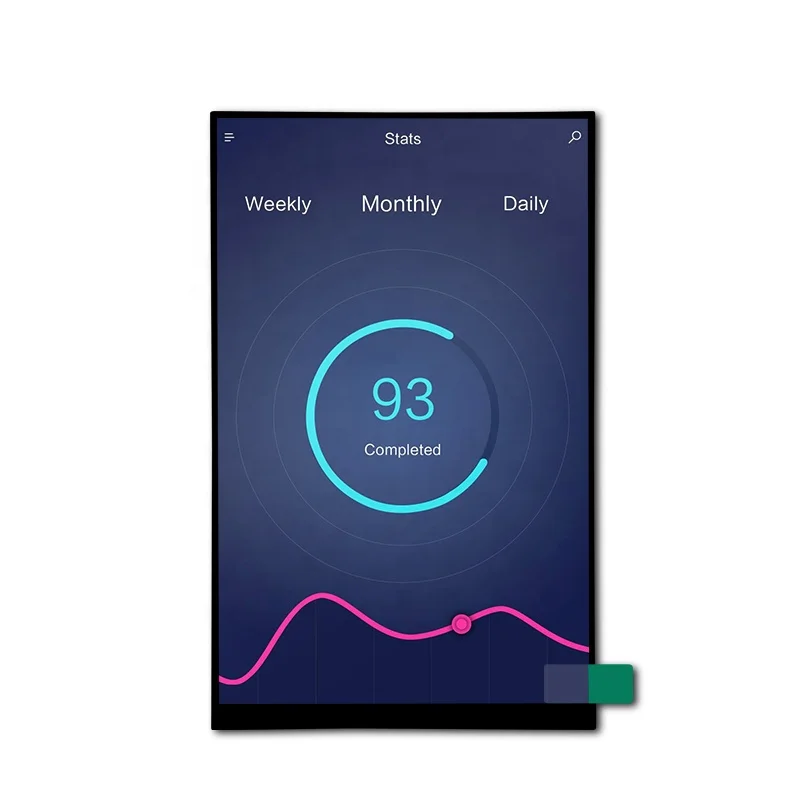

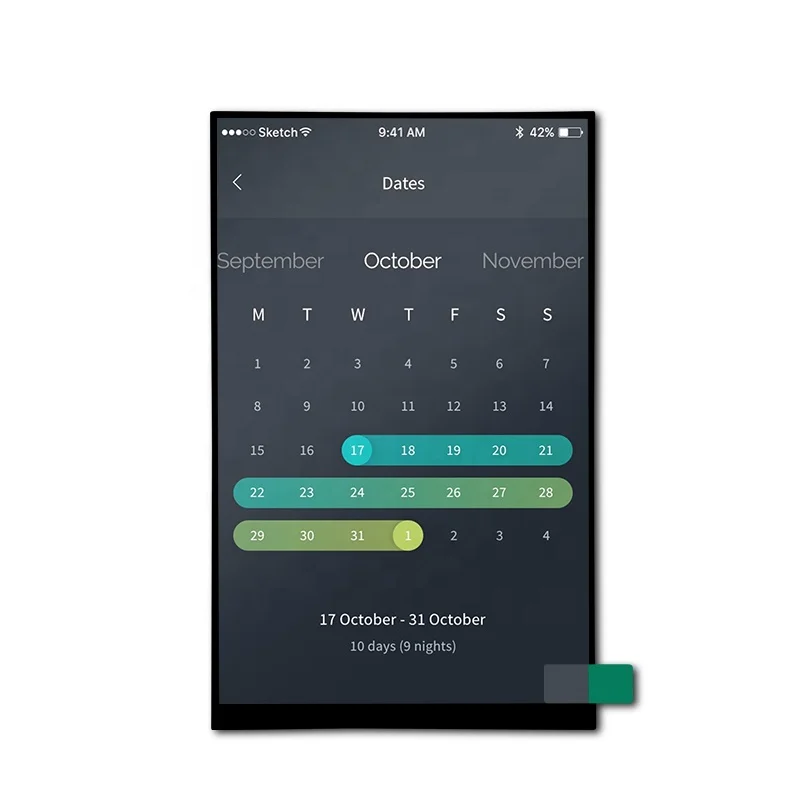

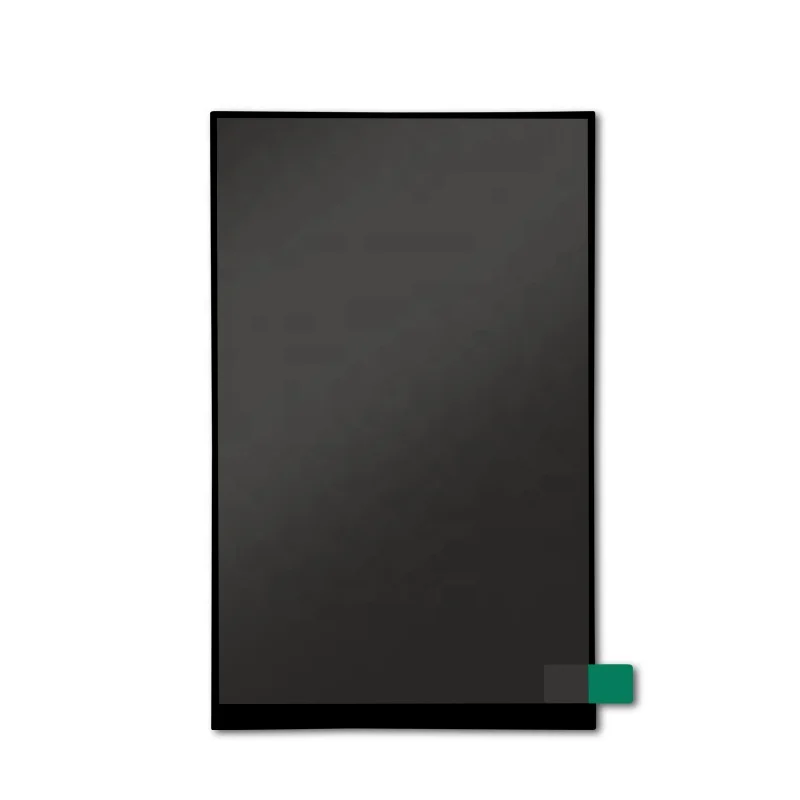

JD9366AB IC lcd screen 20 LEDs backlight transmissive ips panel 7 inch lcd

Product Overview

Description

JD9366AB IC lcd screen 20 LEDs backlight transmissive ips panel 7 inch lcd



Product Description

Item	7.0''TFT,Transmissive ,Normally Black,IPS

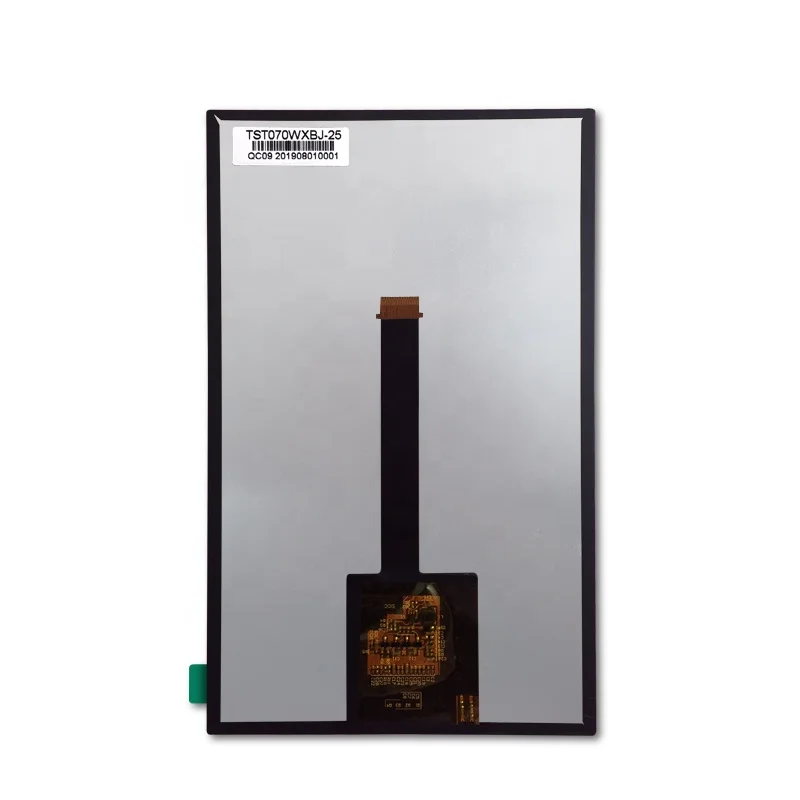

Part No.	TST070WXBJ-25
Resolution	800*(RGB)*1280
Viewing Direction	Free
Outline Size	99.85*161.7*2.6mm
Active Area	94.2*150.72mm
Driver IC	JD9366AB
Interface Types	MIPI
Color Depth	16.7M
Backlight LEDs	20EDs ,80mA
Luminance	400
Operating voltage	DVDD=3.3V
Surface Luminance	Anti-glare, Hardness:3H
Operation temperature	-10C to 50C
Storage temperature	-20C to 60C

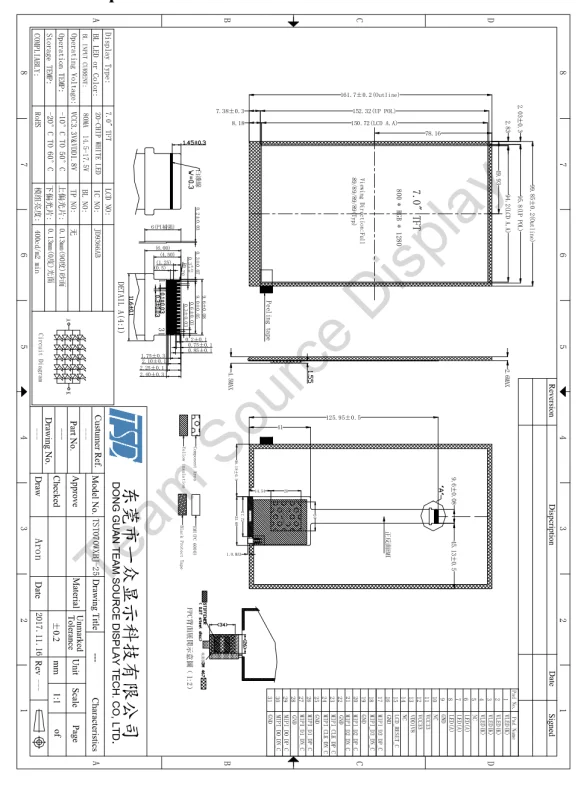

 Drawing

♥ Now we have developed thousands of products for Industrial, home appliance, consumer electronics, medical equipment and other applications. Besides, we provide the customized service, which customized the outlook and functions  products according to your demands.





Application



Packing & Shipping

About  TSD

♥  SHENZHEN TEAM SOURCE DISPLAY TECHNOLOGY CO., LTD.(TSD)

was established in 2004. Our head office located in Shenzhen, China. Factory is in FengGang, DongGuan, which has a modern production workshop, modern technology and equipment.

We worked on the full range of the LCD products and LCD solutions development. Offering customers unique, innovative and cost effective market leading modules,  in span of more than 10 years, we  follow a customers-oriented and customers-first approach in all of our dealings. Our professional experiences and services will support your requirements.



Certifications

Our Team

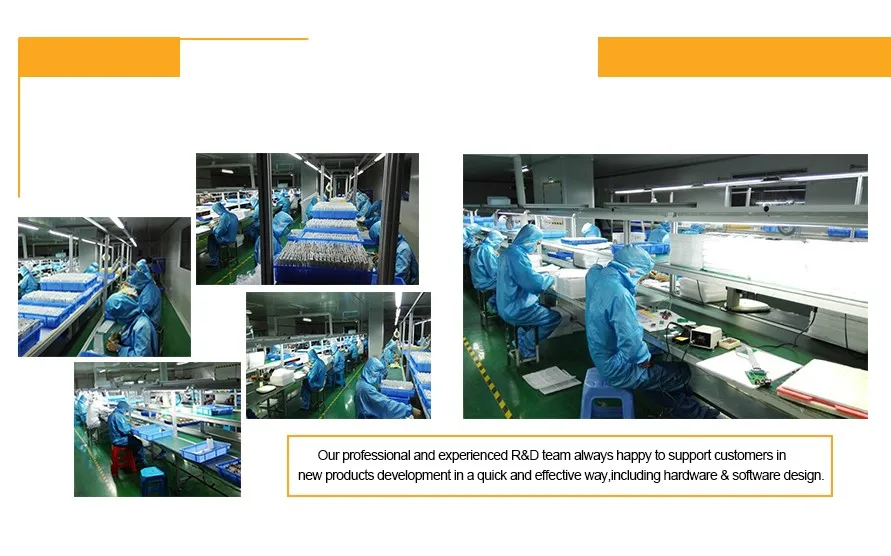

Our Workshop
