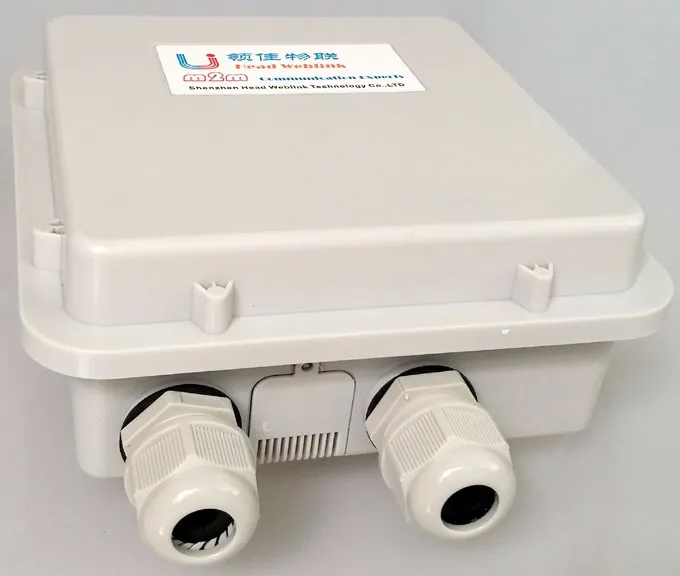

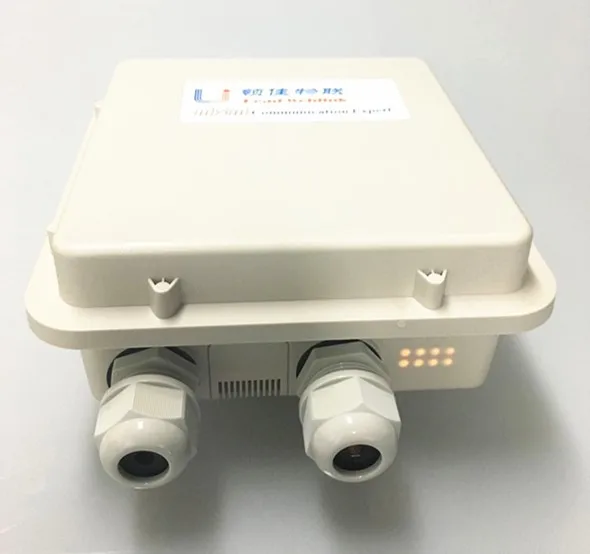

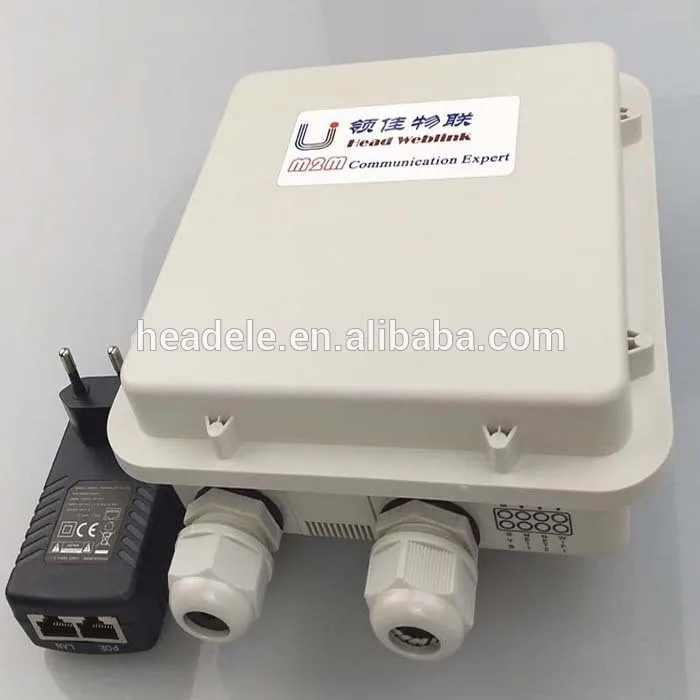

Industrial wireless 4g router outdoor lte cpe with POE and SIM card slot

HDR100 V2 series 3G/4G LTE router adopts the high performance professional router chipset and 4G wireless module. It is based on embedded real-time operating system as software support platform, and provides two LAN ports with which one port is used for POE power supply. It can connect Ethernet devices and Wi-Fi devices at the same time. It has accomplished wireless communication, Wi-Fi function and Ethernet router function, with transparent data transmission.

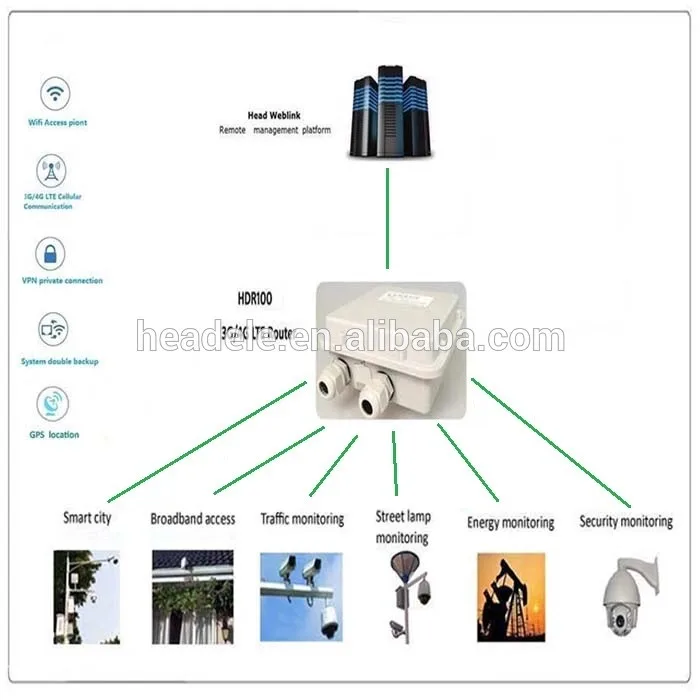

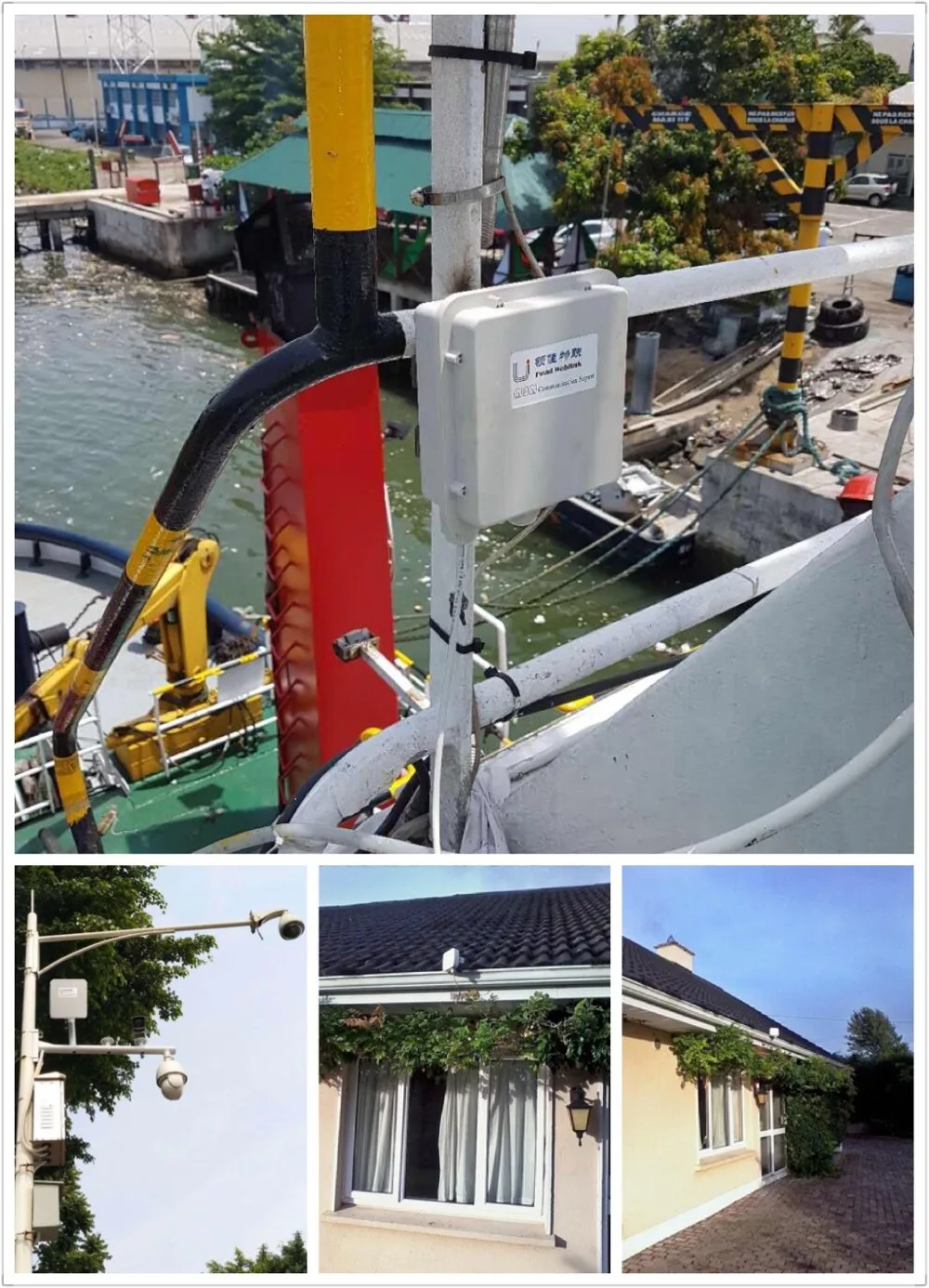

The GPS function can provide the precisely positions.The application fields of HDR100 V2 SERIES 3G/4G LTE ROUTER cover every IoT industry field in each aspect. Such as Smart Home, Finance, Transport, Security, Environmental protection, Military, Agriculture, Forestry, Water, Coal Mine and Petrochemical and so on.



High light
1) 3G/4G LTE data transmission;
2) Active auto connect;
3)Embedded watchdog , Auto recovery;
4)2*2 4G/WIFI MIMO antenna;
5)4G LTE antenna gain: >10DBi
6)Integrate 3G/4G LTE,WIFI,GPS feature;
7)2 LAN ports;

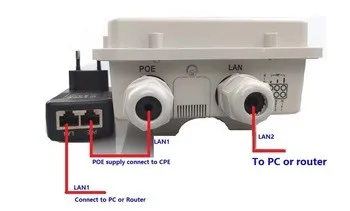

8)POE power supply (+12V~+48V), Supported
    POE output via LAN 2 port(Optional);
9)With SIM card slot;
10)Remote management platform;
11) Firmware version: Openwrt;
12) Waterproof,dustproof,lightning protection.

      Protection level, IP67

Main Features

1. Supports multiple WAN connection mode, including static IP, DHCP,L2TP, PPTP, PPPOE, 3G/LTE.
2. Supports VPN client (PPTP, L2TP, VPN, IPSEC &GRE).
3. Supports remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS and so on.
4. Supports APN/VPDN.
5. DHCP server and DHCP client, DHCP binding MAC address, DDNS, firewall and NAT DMZ host, QoS, traffic statistics, real-time display data transmission rate functions and so on.
6. Supports TCP/IP, UDP, FTP, HTTP network protocol.



Power supply

POE supply
Input. 100V~240V,50Hz~60Hz
Output. +12~+24V,1000mA


Conditions

Operating Temperature. -30℃ -- +70℃
Operating humidity. 5%--95%

Frequency bands
 Data rate
HDR100 V2/4G Series
HDR100 V2/3G
4G data rate
3G data rate
Version A
LTE FDD. B2,4,5,17
UMTS. 850/1900MHz

Version E
LTE FDD. B1,3,7,8,20
LTE TDD B38, B40
UMTS. 900/2100MHz
GSM. 900/1800MHz

Version C
LTE FDD. B1,3,7,8
LTE TDD B38, B39, B40, B41
UMTS. 900/2100MHz
TD-SCDMA. 1880~1920MHz & 2010~2025MHz
GSM. 900/1800MHz

Version JC
LTE FDD. B1,B3,B8,B18,B19
LTE TDD. B41
UMTS. B1,B6,B8
GSM. 900/1800MHz

Version JE
LTE FDD. B1,B8
UMTS. B1,B8
GSM. 900/1800MHz
HDR100 V2/3G (WCDMA)
WCDMA. 850/1900MHz & 900/2100MHz
GSM. 850/900/1800/1900MHz


HDR100 V2/3G (EVDO).
EVDO 800MHz & 800/1900MHz
HDR100 V2/4G
FDD LTE. DL,100Mbps UL,50Mbps
TDD LTE. DL,50Mbps UL,25Mbps
WCDMA. DL 42Mbps UL5.76Mbps
TD-SCDMA. DL 2.8Mbps UL 2.2Mbps

Or

LTE Category 4 - 150 Mbps (DL)
LTE Category 4 - 50 Mbps (UL)
1). HDR100 V2/3G (WCDMA)
WCDMA. DL14.4Mbps,
UL 5.76Mbps


2).HDR100 V2/3G (EVDO)
EVDO. DL 3.1Mbps, UL 1.8Mbps


Machine Parts

Name: Outdoor router

Brand: head weblink

Original: China



Main Features

Name: Power adapter(POE)
Brand:  Head weblink
Original: China



Packaging
Size
 (L) *  (W) *  (D)
Weight
according to the actual package



Packaging Details
The normal package is wooden box(Size: L*W*H).

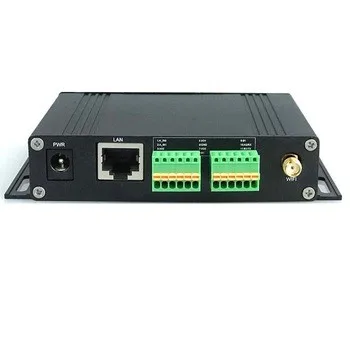

HTB1_EtaafvsK1Rjy0Fiq6zwtXXat.jpg_350x350

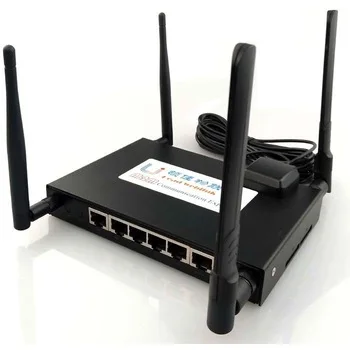

HDRM200-1
