Nickel catalysts for ammonia decomposition Z204

 Z204 type transformation catalyst for ammonia decomposition furnace

(I) Product overview

Z204 conversion catalyst is a two-stage conversion catalyst with nickel as the active component and alumina as the main carrier. It is mainly applicable to the second stage conversion furnace, hydrogen production plant and ammonia decomposition device of the synthetic ammonia plant which is made of gaseous hydrocarbon. The long-term use has proved that the product has stable performance, good activity and high strength.

(2) Physical and chemical characteristics:

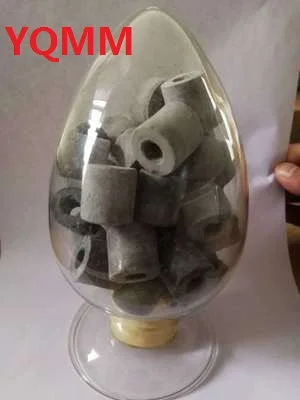

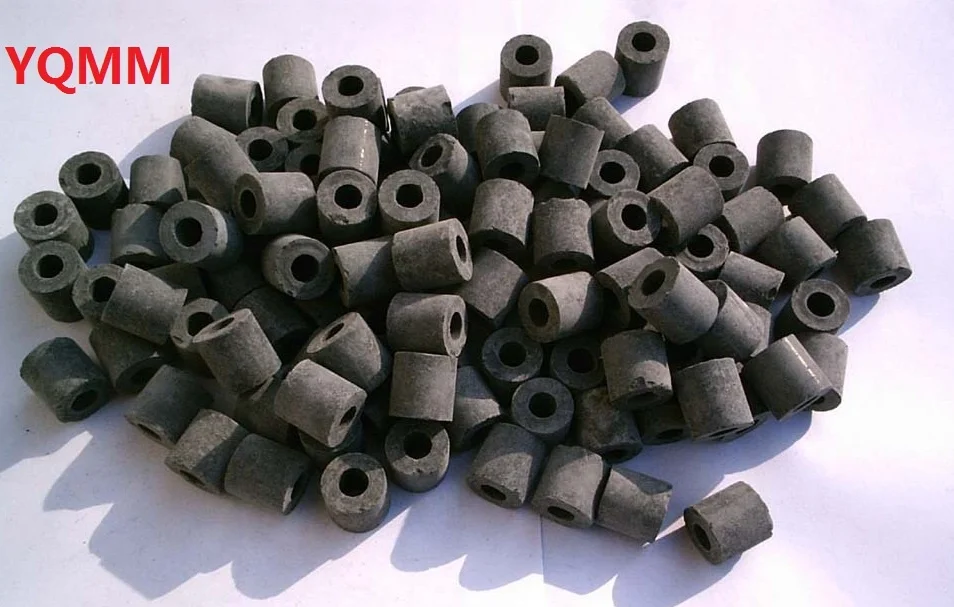

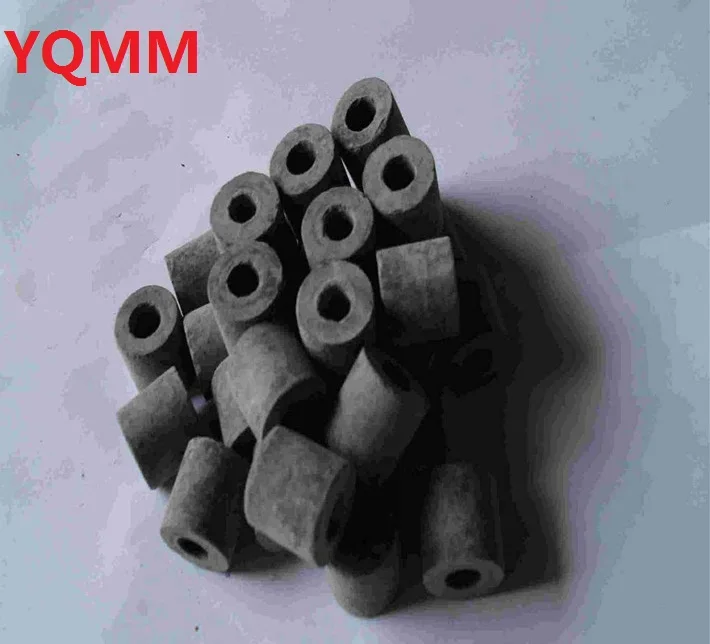

1. Appearance and size: wah grey lacey ring

2. Geometry size (outer diameter x height x inner diameter) :

19 * 19 * 9

3. Heap density:1.10 ~ 1.15Kg/L

4. Chemical components, % (mm)

NiO:14.00min; SiO2 :0.20 Max

Burning weightlessness 20.00 or less

5. Radial crushing strength of granules (average), N/pc:400min

Low strength particle percentage (%) : 5.0.MAX

Heat resistant performance: can long-term operation under 1200 ℃, 1400 ℃ high temperature melting, shrinkage, deformation, high temperature structure relatively stable in operation, good strength.

Packing and storage

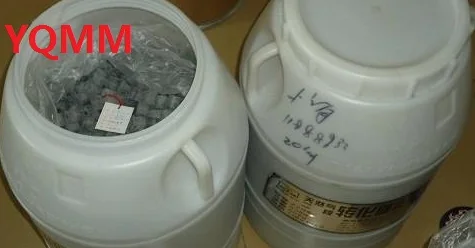

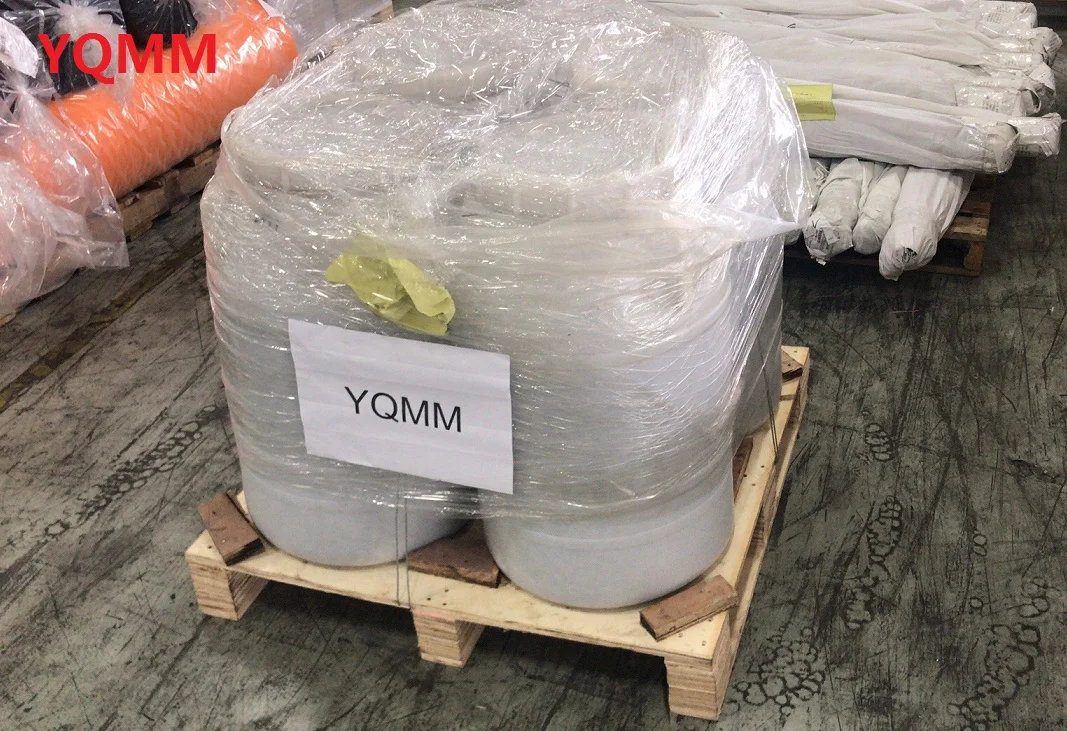

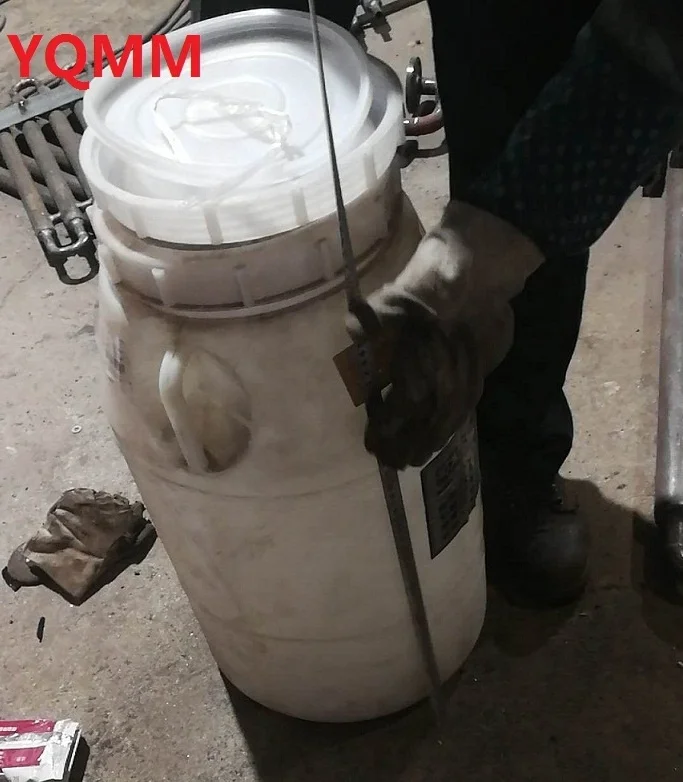

The catalyst product packaging adopts the white plastic bucket which can prevent moisture and pollution, and the net weight of each barrel is 50Kg. The name, model, specification, weight (kg) and the name of the manufacturer are clearly marked on the outside of the barrel, with the quality certificate of the product in the package. In the transportation, should be moistureproof, anti-collision drop, no rolling handling. The products shall be stored in a dry warehous
