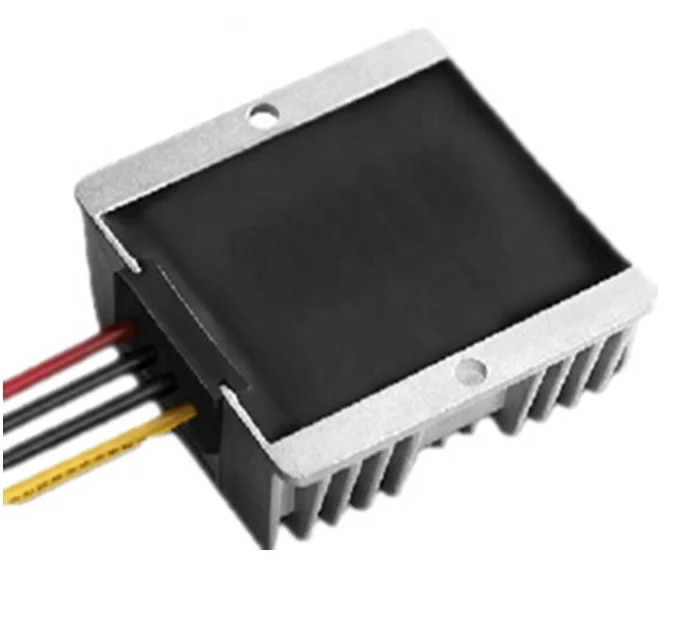

IP 68 Factory Price DC DC converter 8 40V to12V 10A Power Converter 120W WS8 40T1210

Product Overview

Description



DC 8-40V to DC 12V 10A Power Converters 120W



Features



1. 100% full power & stable current output



2. 100% Imported components



3. Wide input voltage from 8-36Vdc



4. 100% waterproof & anti-shock protection, Ultra compact size, light weight



5. Industry grade DC8-40V to DC12V step-up/down converter, efficiency up to 90%



6. Waterproof level: IP68



7. Plastic shell, epoxy potting, Cooling by free air convection,



   8. Protections: Over-current, Over-voltage, Over-        temperature, Over-load and Short-circuit, Auto-recovery when device is back to normal operating



9.   Non-Isolated Module



10.1-year warranty, lifetime up to 100,000 hours.

Specifications

Model	WS8-40T1210
Input rated voltage	9V/12V/24V/36V DC
Input voltage range	8-40V DC
Efficiency	92% (half load) ; 90% (full load)
Output voltage	12V DC
Output current	10 Amps
Output rated power	120 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 25mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Over-voltage, Short-circuit
Machine size	74*74*32mm
Package size	98*82*34mm
N. Weight	290g
W. Weight	300g
Cooling way	Free air convection
Other	White box packing

COMPANY INFORMATION



FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converter.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
