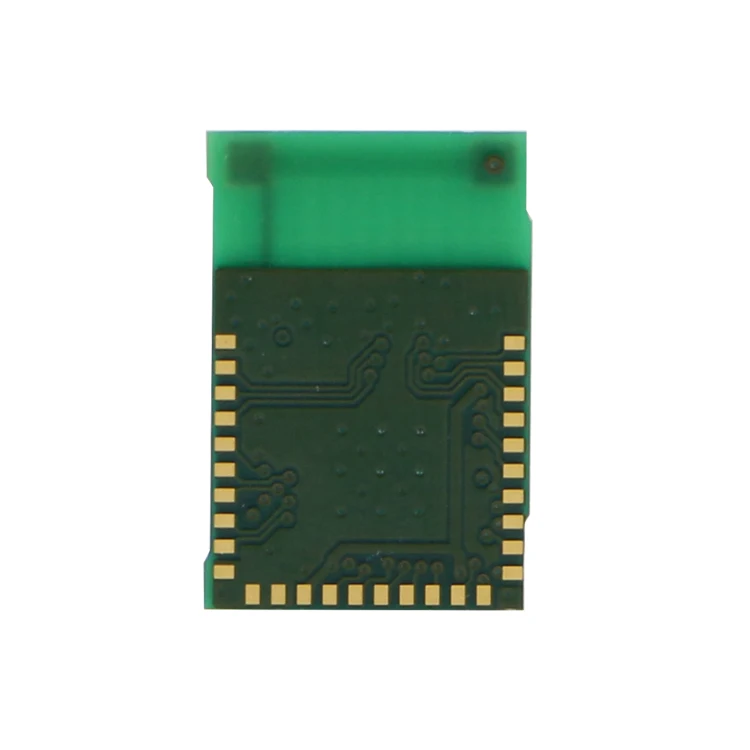

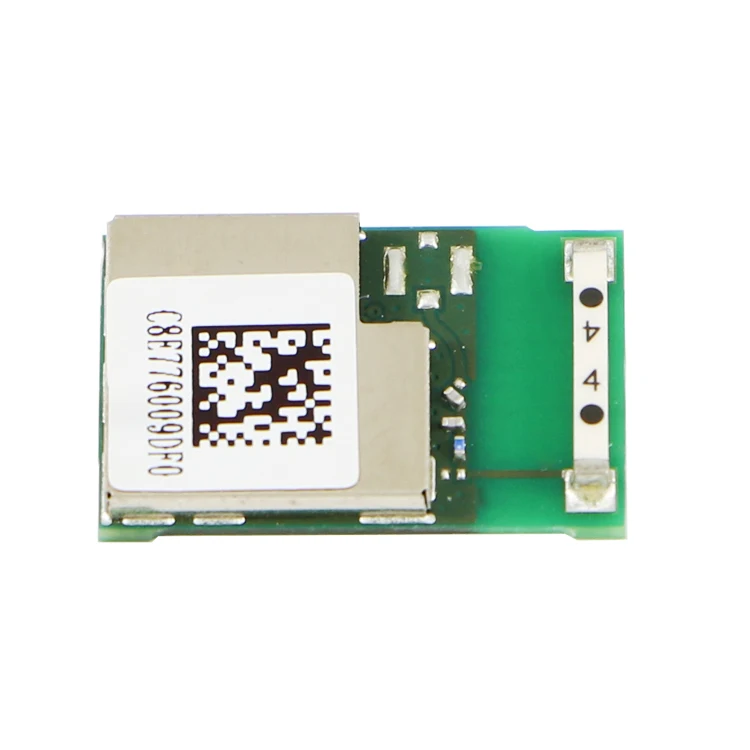

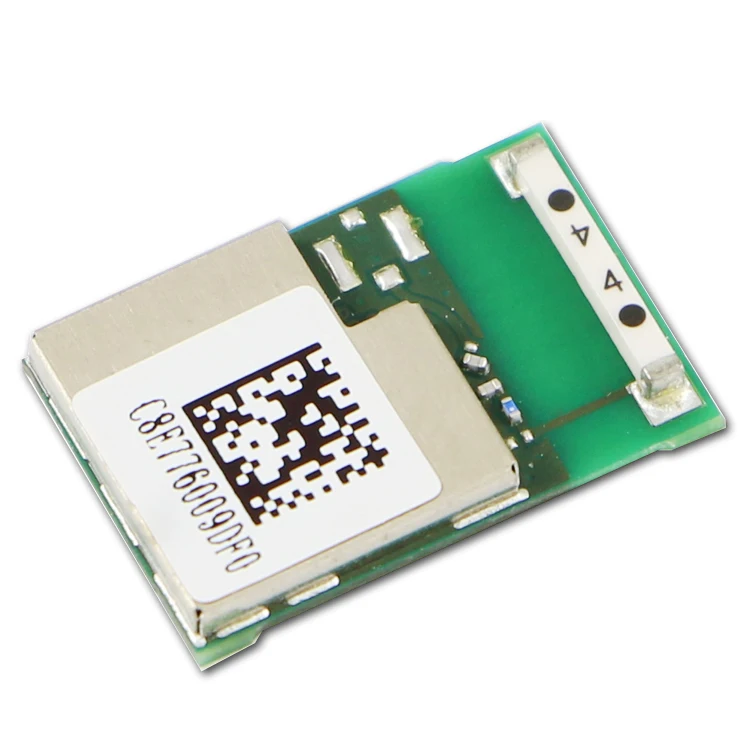

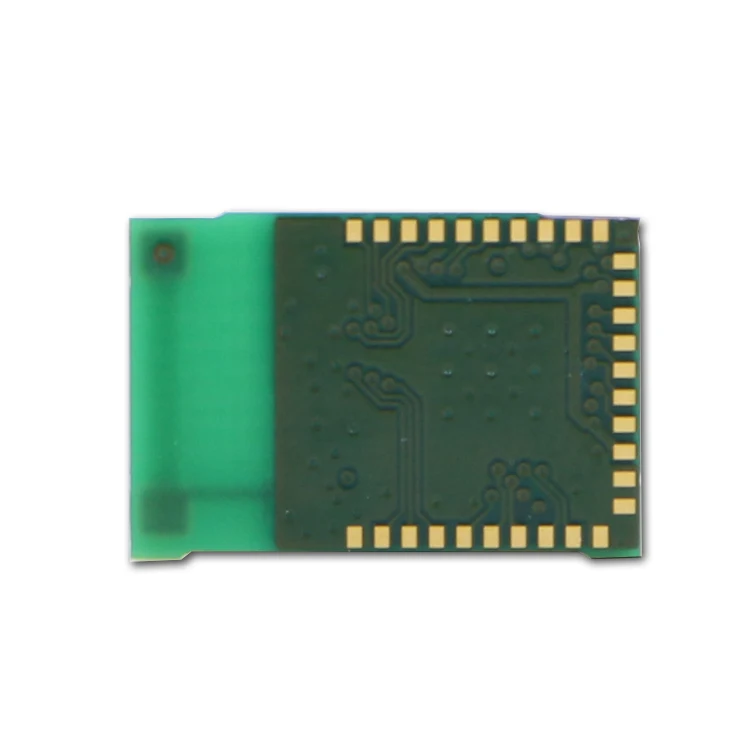

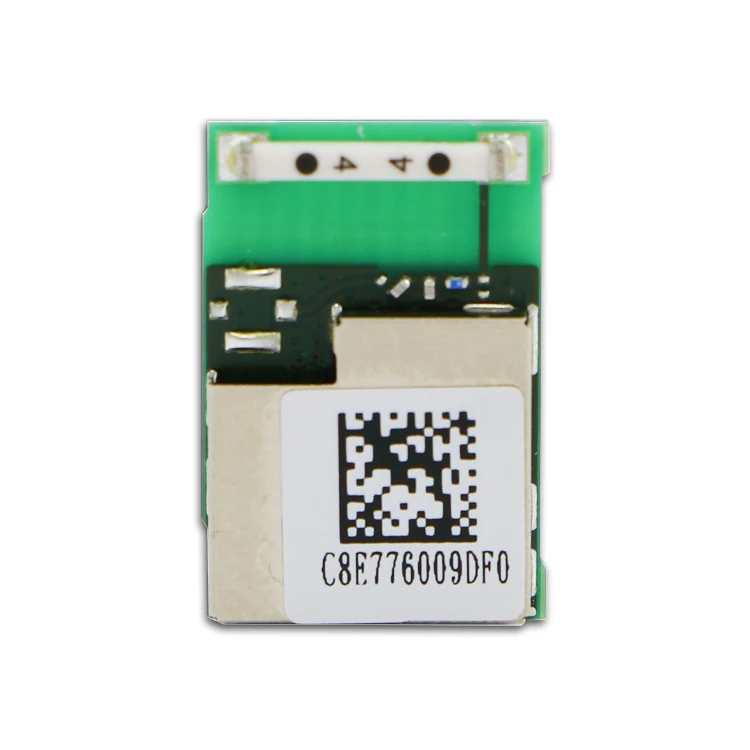

The PTCOM Technology® PT1601B-SX is a low-cost and low-power consumption module which has complies with Bluetooth version 4.2 with LE packet length extension feature. The highly integrated PT1601B-SX with RF front end BLE module makes the possibilities of Bluetooth Low Energy HID(Human Interface Device) and other applications.
PT1601B-SX is Very low active and low power mode current consumption as well as fast mode transitions provide excellent battery lifetime and allows operation on small coin cell batteries and in energy harvesting applications. Embedded 4Mbit flash has high flexibility for customer software development. The support of 9 AIOs is used for game controllerapplication.
Features
Model Name
PT1601B-S
Product Description
BLE module
PCBA Dimension
15 mm x 10 mm x 1.7 mm
Module Interface
UART / SPI / I2C
Operating Temperature
-10°C to 65°C
Storage Temperature
-20°C to 85°C
Humidity
Operating Humidity: 10% to 80% Non-Condensing Storage Humidity: 5% to 95% Non-Condensing
1. Lead Free design which is compliant with R3HFrequirements.
2. Integrated Ceramic ChipAntenna
3. Integrated Power Inductor 10uH for DC/DC converter
4. 2.4 GHz RF transceiver compatible with Bluetooth 4.2 low energy andproprietary communication protocols
5. Programmable GFSK modulation mode.
6. Excellent receiver sensitivity (-90 dBm for BLE), selectivity and blockingperformance
7. Programmable output power up to 0dBm
8. Suitable for systems targeting compliance with worldwide radio frequencyregulations
