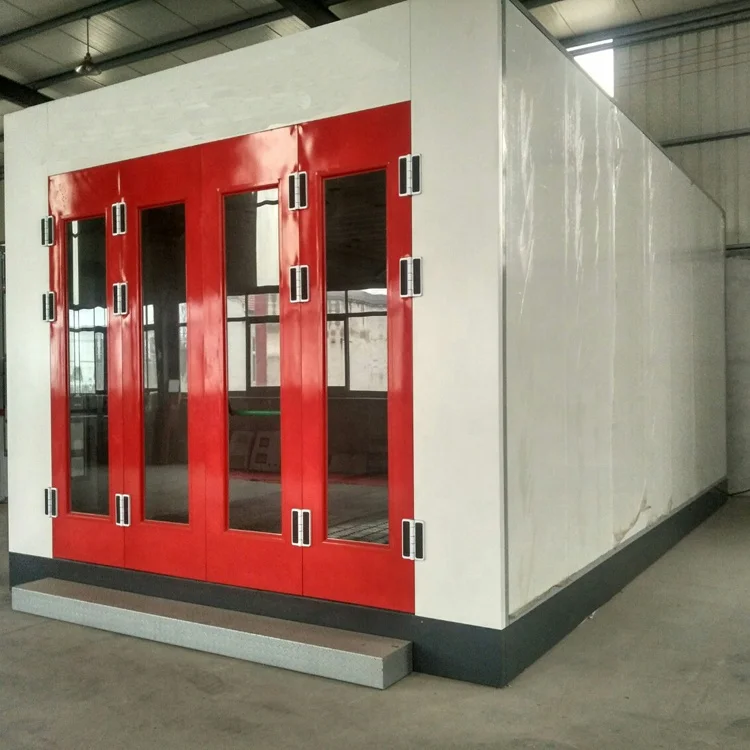

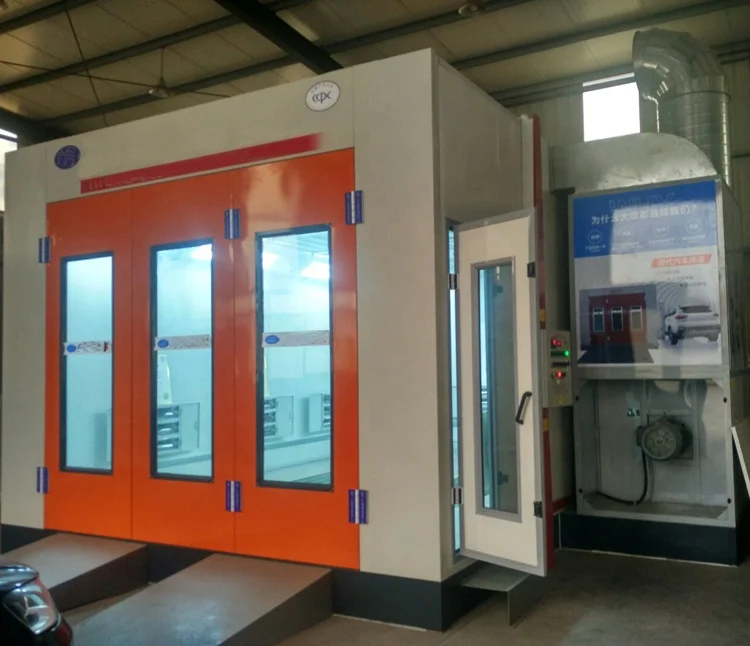

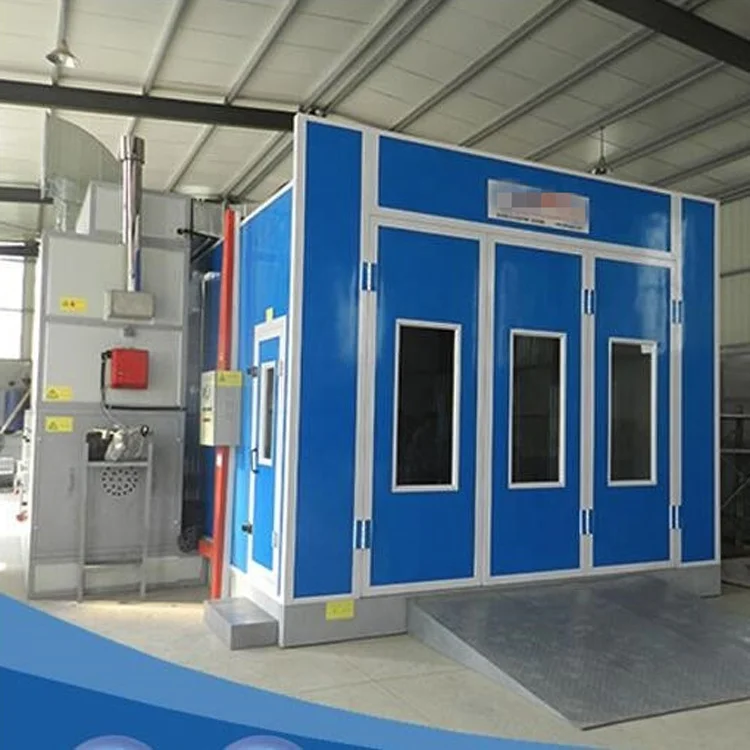

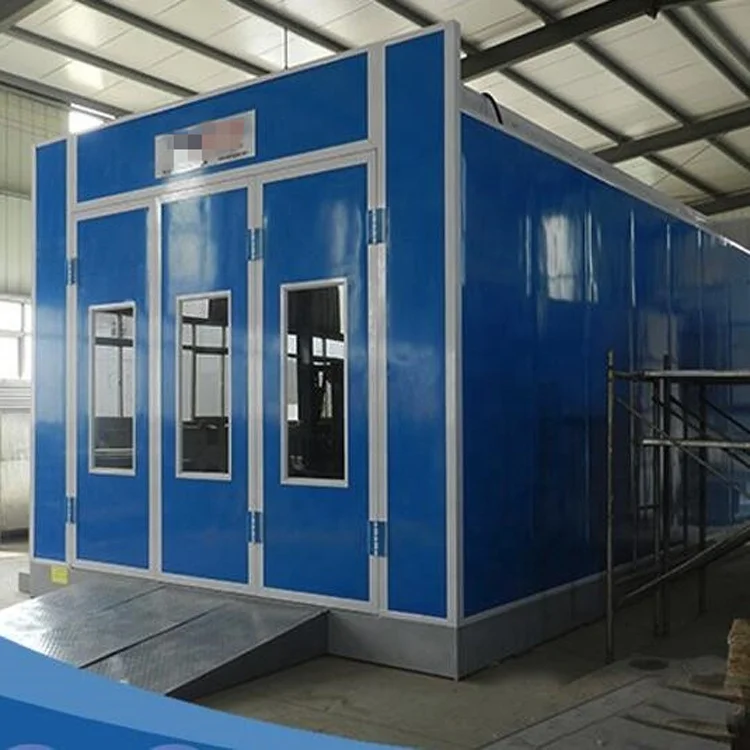

Good quality of Spray Booth on sale from China

Parameters

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000x2600 mm(W×H), bending steel without covered frame

Emergency door

650*1800mm(W*H),equipped with handle lock

Main System

Cabin system

Wall panel

-Sandwich style EPS 50mm,0.426mm thick steel,  anti-flame and heat-insulation.

-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,300mm high,quadrate steel support,5 rows of grills

-2 ramps,external setting,900*2000mm(W*L)/pc

Ventilation system

Inlet fan

2*4kw double-intake centrifugal fans, model:  YDW4.5L1, air capacity:12500m³/h for each set

Outlet fan

1*5.5kw double-intake centrifugal fans, model:  YDW4.5S, air capacity:16000m³/h for each set

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .

-Cabinet for the fan*1unit ,air duct*2m long*1unit,

-Elbow:90°*1 unit

Airflow speed

0.35m/s,ventilation rate:280time/h

Heating system

Burner

Italy RIELLO G20 oil burner, heating capacity: 200000Kcal/h, with BELIMO 10N electric damper

Heat Exchanger

1.2mm thickness SUS304 stainless steel

Cabinet

Rock-wool insulation*1 unit

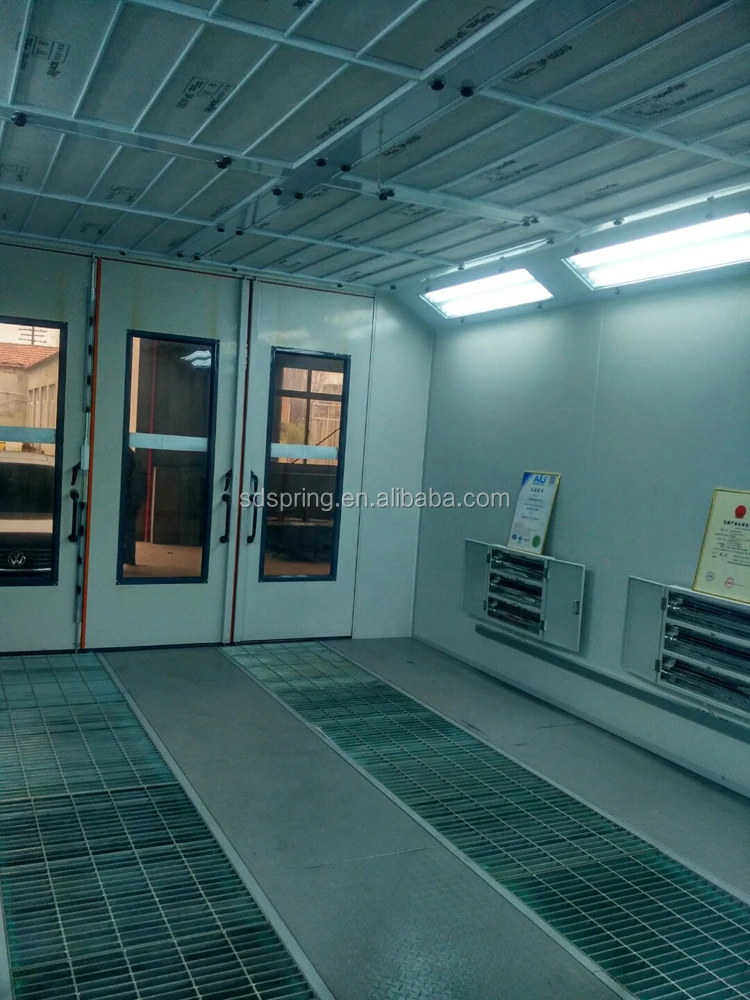

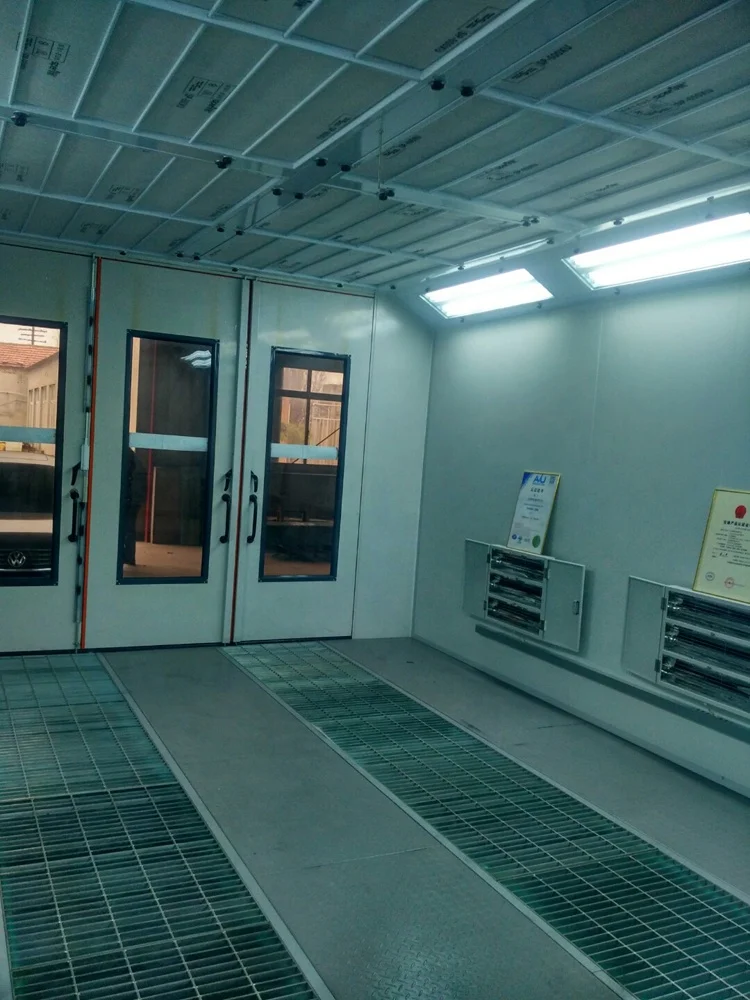

Lighting system

Ceiling lights

32pcs*36w Philip tubes with electronic ballast .

Side lights

16pcs*36w Philip tubes with electronic ballast .

Filtering system

Primary filter

Grade G2 plate type , filtering rate>83%

Ceiling filter

EU5 grade high efficient filter,filtering rate>98%

Floor filter

Multi-layer fiberglass filter,filtering rate>70%

Active carbon

Grade G4,purifying rate of bug dust≥85%

Control system

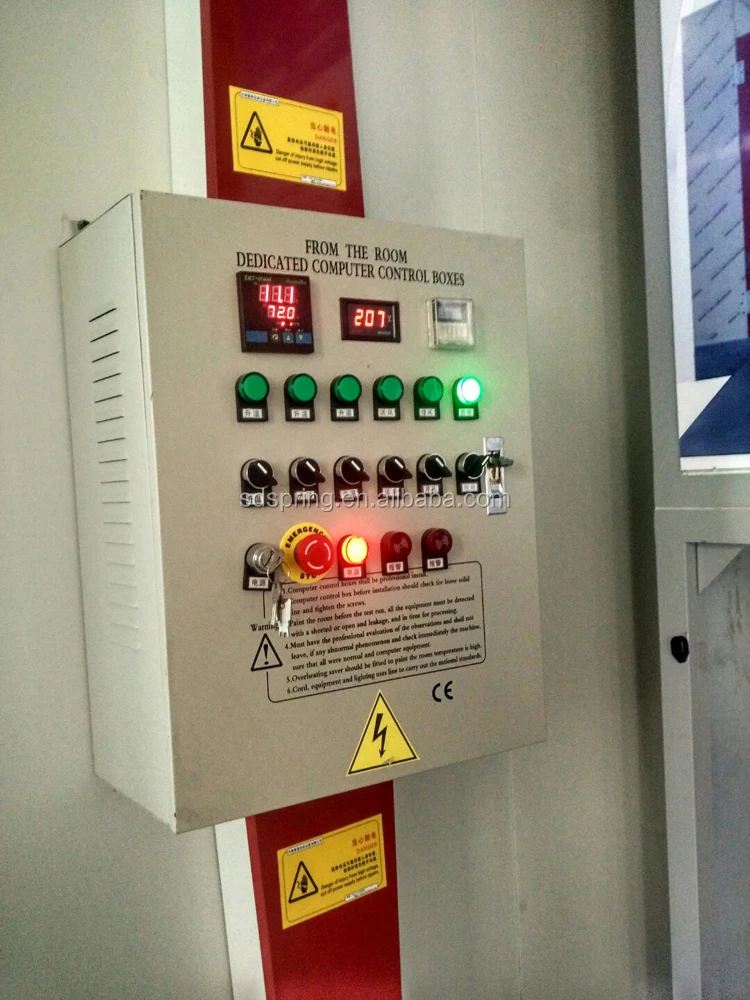

Control panel

Intelligent control system

Function

Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc

Total power

15.5KW

Voltage/Frequency

380V,50HZ,3 phase

 Frequently Asked Questions

Q

How can I make my payment secure?

A

You can pay by Alibaba Trade Assurance. You will get 100% payment protection, 100% production quality production, 100% on-time shipment protection.

Q

What is your payment terms?

A

We accept Alibaba Trade Assurance, TT, LC, Western Union, etc.

Q

How long can I get the goods?

A

Our lead time is 20 days after order. The shipping time on the sea is around 30 days. So you will receive the goods around 50 days.

Q

Can I buy your machine in my country?

A

Yes, if we have distributor in your country, you can buy directly from them. This is better, you can get service locally. If we don’t have distributor in your country, you need to buy from us.

Q

Where can you deliver for me?

A

We usually deliver to your sea port. If you don’t know your sea port, you can tell me your address. We will check the nearest sea port we can deliver to you.

Q

How much is the shipping fee?

A

Please tell us the models and quantity of each model you need, we will check the latest shipping fee.

Q

If I pay machine and shipping, do I still need to pay any fee at my side?

A

Yes, you also need to pay customs fee and tax. You can check local custom office or import agent for exact value.

Q

Can you deliver to my address directly?

A

Yes, we can.

 Q

What is your warranty? How can I get spare parts?

A

Our warranty is one year. We will provide you spare parts freely by DHL.

Q

Can you provide the voltage of my country?

A

Yes, we can. We have sold our products in over 50 different countries all over the world. We can offer all the different voltages in different countries.
