Hot Sale Low Price XK7124 mini metal cnc milling machine |
 |
Main Feature 1.High Precision Hard guideway and screw 2.Taiwan-made spindle unit,6000,8000rpm speed available 3.Taiwan OKADA Funnel Type 10T/12T ATC can be choosen 4.Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK. 5.Automatic Central Lubrication System. 6. Full Machine Cover can be choosen.
|

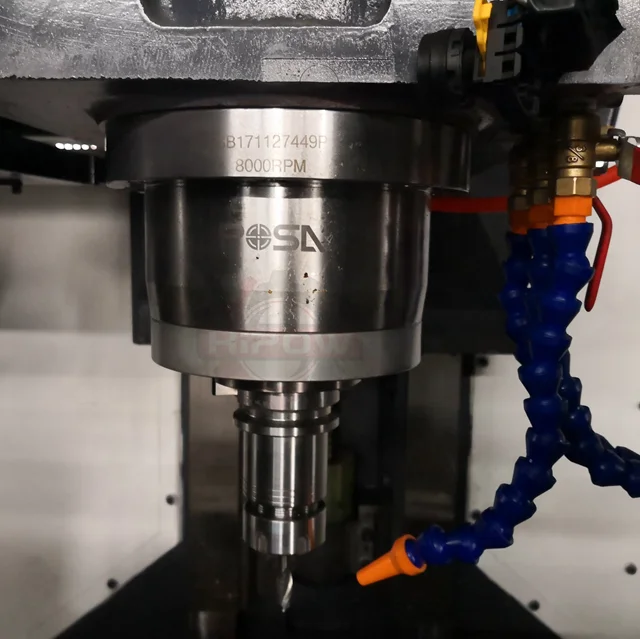

1. TAIWAN High Precision Speed Spindle
1)6000,80000 rpm Speed Spindle available
2)BT30,BT40 Spindle Taper freely choosen
3)High Speed, Stable Performace

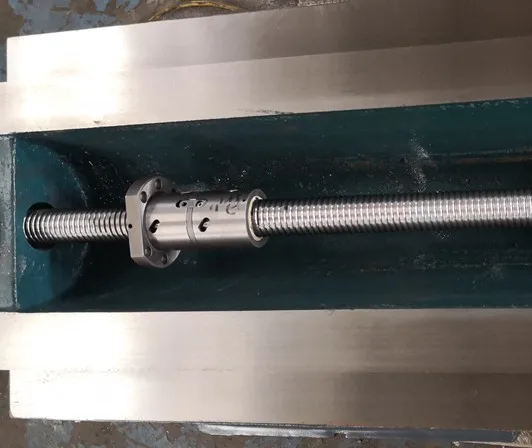

2. High Rigidity Hard Guideway and Screw
1)High Rigidity,High Performance
2)High Precision,Long Using Life

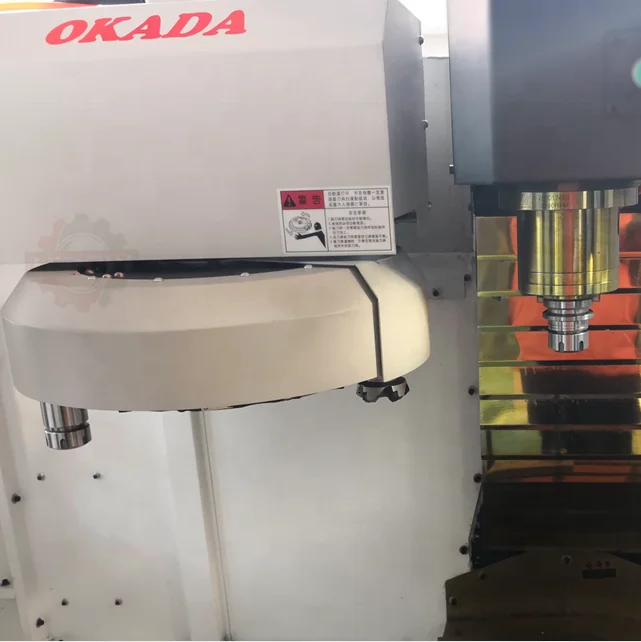

3. TAIWAN Funnel Type Tools Magazine
1)OKADA Funnel Type ATC 10T,12T ATC can be choosen
2) Funnel Type Tools Magazine is optional parts

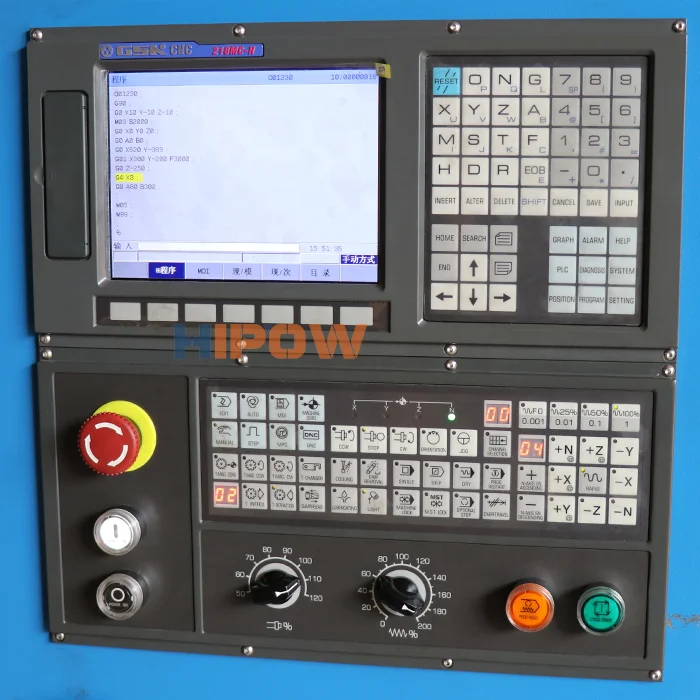

4. Reliable Control System
1)Standard : GSK980, KND System,
2)Optional:Fanuc,Siemens,Mitsubishi and other system
5. High Quality Electrical Parts
1)High Quality Electrial Compotents is used
2)Make the Machine performance Better.
 |
Size of worktable(length×width) | 900mm×240mm |
T slot (width x qty) | 14mm×3 |
Max loading weight on worktable | 150Kg |
X-Axis travel | 400mm |
Y-Axis travel | 240mm |
Z-Axis travel | 400mm |
Distance between spindle nose and table | 100-450mm |
Distance between spindle center and column | 315mm |
Spindle taper | BT40 |
Max. spindle speed | 8000r/min |
Spindle motor power | 3.7Kw SERVO MOTOR |
Rapid feeding speed: X,Y,Z axis | 8/8/6 m/min |
X,Y,Z axis Servo motor | 6/6/6 N.m |
Feeding Speed | 1-2000mm/min |
Positioning accuracy(mm) | 0.015mm |
Repeatability accuracy(mm) | 0.01/300mm |
Air Pressure | 0.6Kpa |
Tool clamping way | Pneumatic |
N.W (include machine stand) | 1800Kg |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
