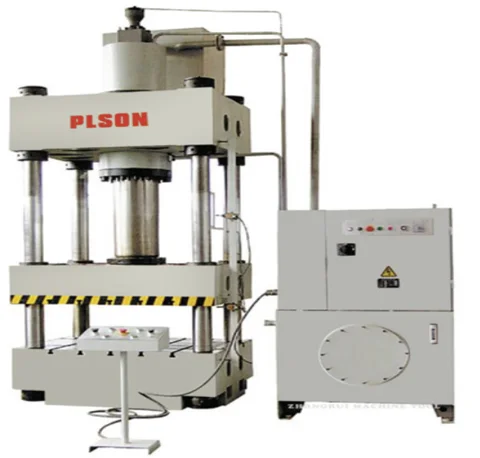

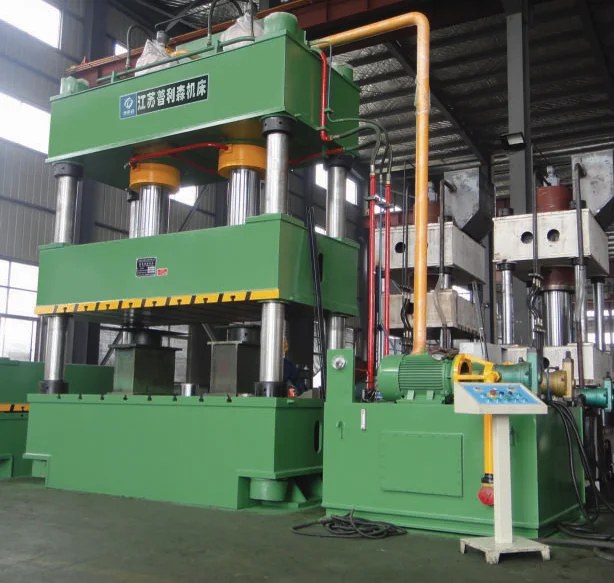

Y32 2000 Hydraulic Press 200ton Hydraulic Hose Press Machine Hydraulic Cylinder For Press Pneumatic Punching Machine

Performance and Features:

1.Computer optimized structure design, 3-beam&4-column compact structure:simple, economic and practical

2.Cartridge Valve Integrated System equipped in hydraulic control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design, shorter connection pipeline and fewer release points. Hydraulic integrated system adopts separate control unit.

3. Independent drive structure and electrical control system are reliable, audio-visual and convenient for maintenance,ensuring reliable operation with centered control buttons.

4. Centralized button control system with adjustment, hand and semi-auto operation modes at operator's choice (semi-automatic has two type set-stroke single and set-pressure single).

5.Stroke and pressure is adjustable according to practical use and technological requirements.

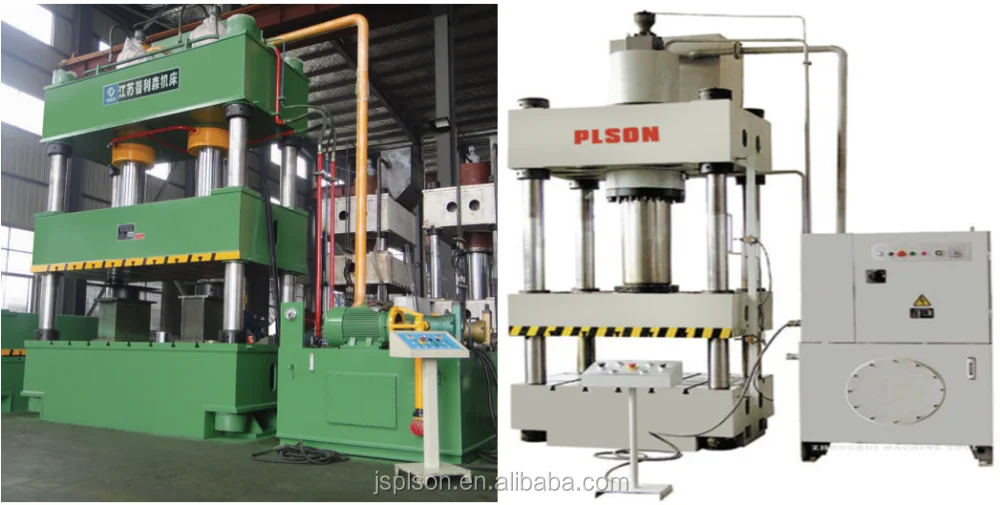

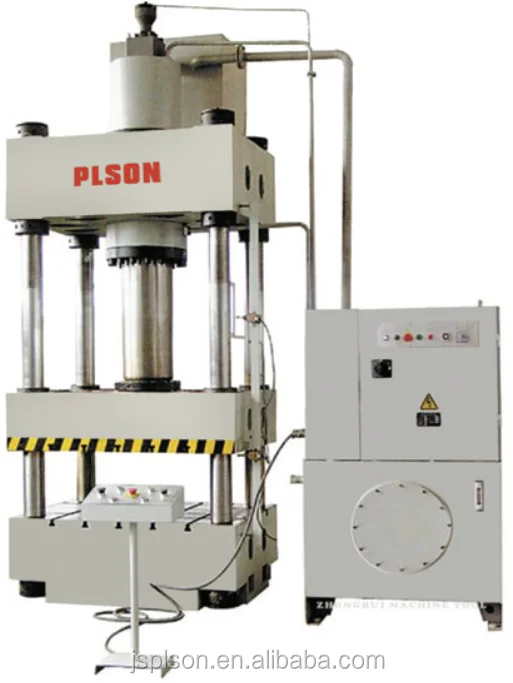

YCG32 Series four-column hydraulic press

1.\tComputer optimized design, 3-beam&4-column structure,easy,utility

2.\tCartridge valves widely used for hydraulic system, reliable, durable and less hydraulic impact

3.\tIndependent electrical control system,reliable, audio-visual and convenient for maintenance

4.\tButton centralized control: adjusting, semi-auto

5.\tOperation panel:constant stroke & pressure, with pressure holding and time delay functions.

6.\tStroke and pressure are adjustable according to practical use.

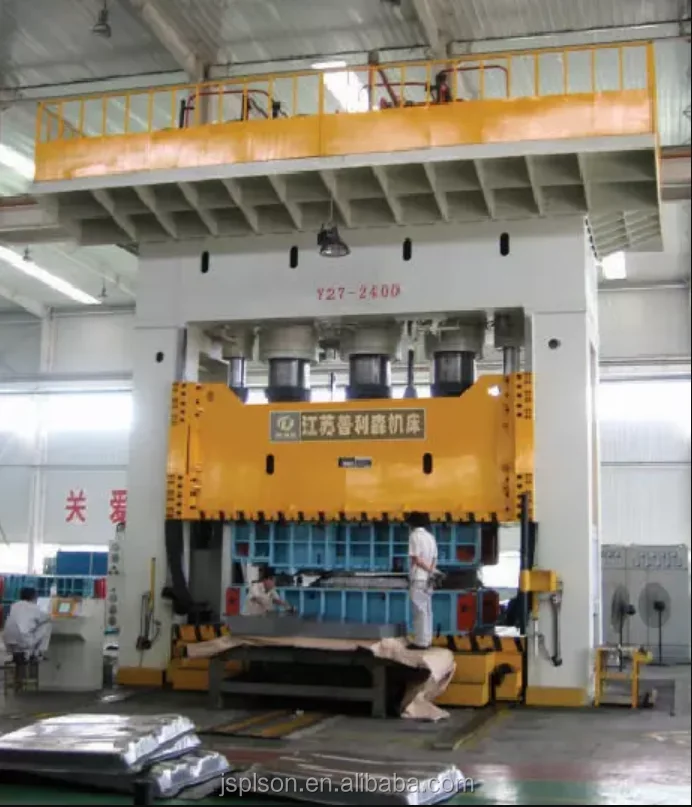

YCG27 Series Four-column single action hydraulic stamping press

This hydraulic press machine is suitable for metal pressing, such as sheet forming, sheet metal deep drawing etc. It can also be used for straightening, press in, and plastic molding.

This hydraulic press machine has two kinds of electric apparatus control system with PLC which has three operation modes: manual, semi-automatic and automatic. It has pressure hold and time delay functions while pressing shape.

1.Y27 Series Hydraulic Press is a sort of multifunctional precision machine which has high speed.

2.Optimized design, the frame is entirely welded with steel plates, and treated to relive stress by tempering for high precision.

3.Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.

4.Centralized button control system, with adjustment, hand and semi-auto operation modes at operator's choice (set-stroke single and set pressure single).

5.Four-angle and eight-side guide rail in high precision and with strong capacity against deflection, concentrated lubrication.

6.New type of oil cylinder sealing components marked by high reliability and long service life.

7.Sliding blocks operating in high speed, ensuring high efficiency.

8.The slide operating pressure, no-load quick travel and low-speed movement can be adjusted according to technological requirements.

9.Hydraulic cushion is fitted beneath the worktable; adequate knockout hole and hydraulic cushion are prepared on the plate of worktable with the operating modes including drawing, ejection and no ejection.

10.The working speed of this equipment is 3 to 4 times faster than that of Y41. It employs eight-side guide device and ejecting device, which can automatically eject workpieces with accurate guiding and fast speed.

11.The drawing device can be added to this equipment in order to change moulds easily. But the stretching of large metal parts needs to add hydraulic cushion to this equipment.

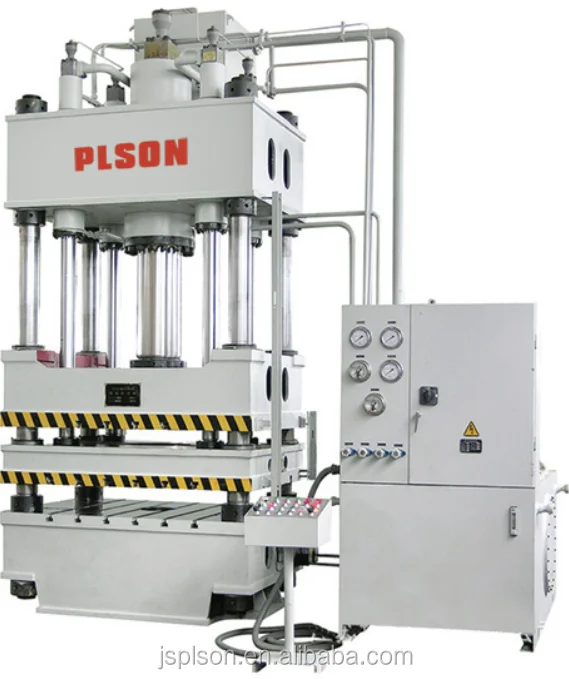

YCG28 Series four-column double action hydraulic press for sheet metal drawing

1.The hydraulic press of this series is the double-movement hydraulic press for sheet metal drawing. It is particularly fit for drawing, forming, flanging, bending and stamping of sheet metals for making parts and components. It is also fit for stamping process and pressing process.
2.The hydraulic system has a two-way cartridge inserted valve; the electrical system has PLC for control. Thus,the machine can be conveniently operated.
3.The hydraulic press is characterized with high speed under no-load condition,high efficiency energy utilization and low power consumption with the blank holder pressure and drawing force adjustable.
It is an ideal equipment for the forming of sheet metal.

Jiangsu PLSON Metalforming Equipment Co., Ltd.  is located in the Binhai Industrial Zone of Haian County, Jiangsu Province. The company mainly produces "Prison" brand series hydraulic press, press brake, shearing machine, rolling machine, etc. The products are manufactured according to German technical standards, and the performance of the machine has reached the advanced level in China.Some products have entered the international market, through Nantong, Southeast Asia, the Middle East, Africa and other areas of the product launch. Thanks for your business and welcome to visit our factory.
