1. Scope The specification shall be applied to the field of communications
2. Quote Criterion 2.1 Safety:accord with TUV/GS-(EN60950-1),CCC-(GB4943) AS/NZS: 60950-1, UL/CUL-(UL60950-1),
2.2 EMI STANDARD EMI
Fcc part15Class-B, EN55022
3. Electrical Characteristic

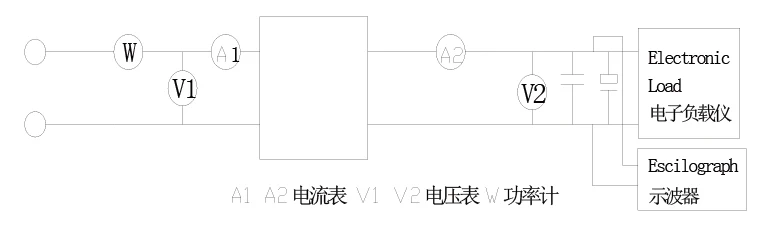

Test Circuit If the test is to be made on a specified circuit, be sure to use the following circuit.
4. Input Characteristics 4.1. Rated Input Voltage
It is normal for 100Vac to 240Vac input AC voltage.
4.2. Input Voltage Range
The adapter shall operate from 90Vac to 264Vac and the range switching is unnecessary.
4.3. Rated Frequency
It is normal for 50Hz or 60Hz and single phase.
4.4. Empty loaded wasting The Input power is 75mW or less in empty loaded. (Output Voltage:5V) 4.5. Frequency Range
The adapter shall operate with an input frequency from 47Hz to 63Hz.
4.6. Steady AC Current
Maximum steady state input current is 1.5A (Max) Measured at 100Vac input and maximum load.
4.7. Input Inrush Current
With cold starting, the Input Inrush current should less than 100A.
4.8. Efficiency (5V/3A) ≥76.41% ,(9V/3A) ≥82.96%, (12V/3A) ≥84.77%,(15V/3A) ≥86.18%,(20V/3A) ≥87.99%. measured at 115Vac and 230Vac input, output (5V/3A),(9V/3A),(12V/3A),(15V/3A),(20V/3.25A) . Meet CEC,Energy Star 2.0 (level V), All data was measurement at pcb end.

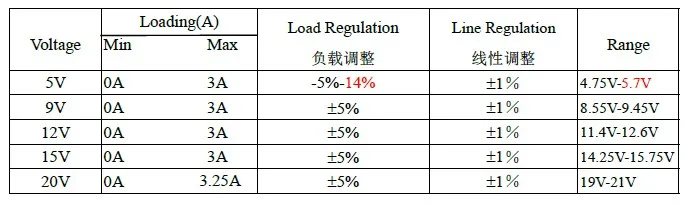

5. Output Characteristics 5.1. Rated Output Voltage Current
5.2. Rated Power This adapter is capable to support 60Watts continuously at all specified conditions. Note: the test shall be made under the following conditions, unless otherwise specified: Ambient Temperature 25°C, Relative Humidity 35~85%RH Air Pressure 86~106kPa

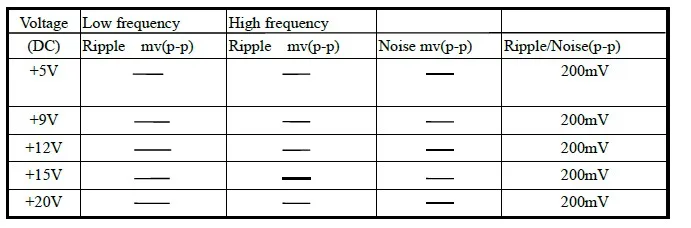

5.3. Output Ripple and Noise 5.3.1 Output ripple voltage is less Measured methods:Performed by 20MHz bandwidth in oscilloscope. Applied 0.1uF ceramic capacitor and 10uF electrolytic capacitor across output connector terminals Measured at the end of DC cable.
5.3.2 Turn on delay time
3Second Max.at 115Vac input and output Max.load. 5.3.3 Rise time 40 mS Max.at 115Vac input and output Max load. 5.3.4 Hold up time 5 mS Min.at 115Vac input and output Max.Load.
5.4. Protection 5.4.1. Over Current Protection Output current will be limited and less than(5V,9V,12V,15V,20V) 4.4A Max. Short Circuit Protection When the output is shorted, the input power is reduced and will not damage, there will be (burp state). When the fault condition is removed, the product will be automatically returned to normal 5.4.3 Over voltage protection The power supply will auto recovered when faults remove 120%~170%.
6. Reliability Items 6.1. Electrostatic Discharge At 150pF:330Ω, for each point, 10 shots of direct discharge or air discharge. (1 MΩ/SHOT), have no malfunction. Direct discharge: ±4kV, Air discharge: ±8kV 6.2. Hi-Pot Test After AC 3000V1min between input plug-DC plug. cutoff current 5mA, the adapter have no failures like damages, arch, insulation damage etc.(at 25°C) 6.3. Insulation Resistance At 25°C after DC 500V 1min between input plug- DC plug,insulation resistance 7MΩ/min) 6.4. Leakage Current 0.25mA maximum, at nominal AC input voltage and frequency 6.5. Temperature Rise At 25 ℃ with the rated input 100-240Vac charged to the primary a rated load 5V,9V,12V,15V,20V (Io=3250mA) on the secondary ,every parts of the case surface rise 65℃or less,
7. Environmental Requirement 7.1. Operating Temperature -10°C TO 40°C Full load, Normal operation. 7.2. Storage Temperature -25°C TO +70°C With package 7.3. Operating Humidity 5%(0℃)~90%(40℃),RH,72Hrs,Full load, Normal operating. 5%(0℃)~90%(40℃) 7.4. Storage Humidity 5% ~ 95% RH. Non-condensing
8. Mechanical Requirement 8.1. Input plug type IEC-320-C8 8.2. Drop Test from 100cm height to the most likely to cause adverse results to the horizontal position of the surface drop test bed three times, the adapter in addition to surface scratches, it should be no dysfunction can cause the adapter and other potentially the harm. (Horizontal surface of the test rig shall be composed of at least 13mm thick hardwood installed in two layers of plywood, each layer of plywood thickness 19-20mm, and then placed on a cement base or equivalent on the ground inelastic)
Experiment condition, Salty water thickness: 5%, Equipment Temperature: 35 ~ 40 ℃ ,put the adapter(unpacking)in the test equipment for 24h, after 24h recovery at 25℃ checking the appearance, the metal parts have no erode and rust.
9. Mechanical Characteristics 9.1. Appearance Visual inspection the case have no visual abnormality, no obvious nick, burr and other mechanical damage, outer metal have no rust. Use limit sample to check for any failures. 9.2. Case/Resin Materials Flame resistance applies to UL94-V1
10.Environmental Performances 10.1.Operating at the Lower temperature At -10±2°C, with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary, no abnormality in electric and mechanical characteristic, after 2 hours recovery at the room temperature. 10.2.Operating at the High Temperature At 40±2℃, with the rated voltage100-240Vac charged to the primary and unloaded and full load on the secondary. No abnormality in electric and mechanical characteristic after 2 hours recovery at the room temperature. 10.3.Storage at the Lower Temperature At -25±2 ℃, test of non-operated, No abnormality in electric and mechanical characteristic after 2hours recovery at the room temperature. 10.4.Storage at the Higher Temperature At 70±2 ℃, test of non-operated, No abnormality in electric and mechanical characteristic after 2hours recovery at the room temperature. 10.5.Storage at High Temperature and High Humidity with the Adaptor Turnedon At 40±2℃,90~95%RH, test of operating 48hours,no abnormality in electric and mechanical characteristic, after 4hours recovery at the room temperature. 10.6.Storage at low Temperature and Low Humidity with the Adaptor Turnedon At -10 ℃ ± 2 ℃ ,10%~40%RH, test of operating 48hours,no abnormality in electric and mechanical characteristic, after 4hours recovery at the room temperature.

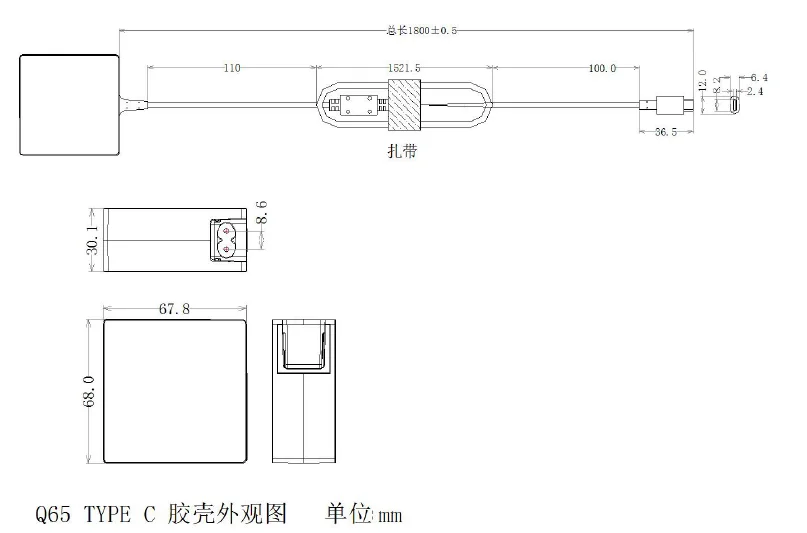

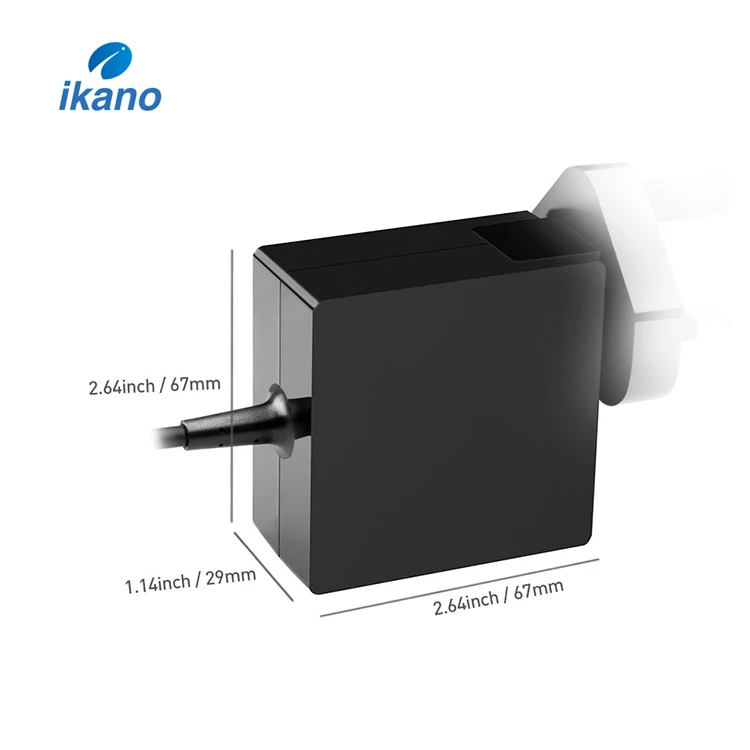

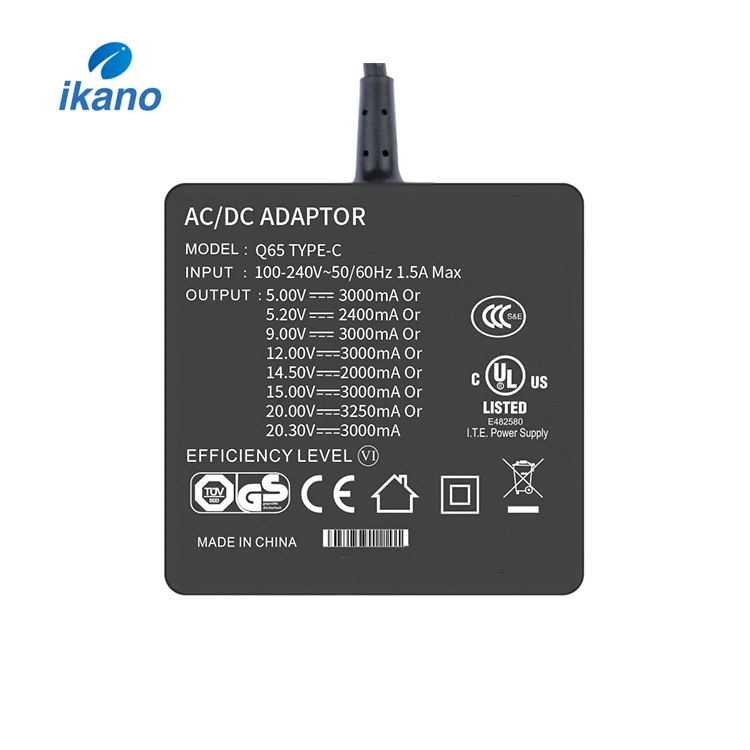

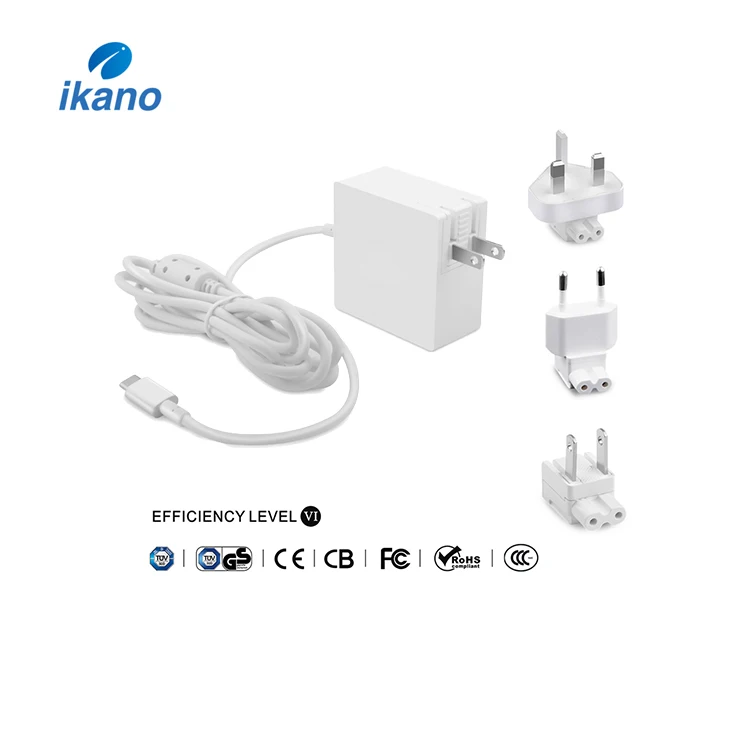

11.Photograph of the Product 11.1 Enclosure The power supply size: L67.8x W68x H30.1mm

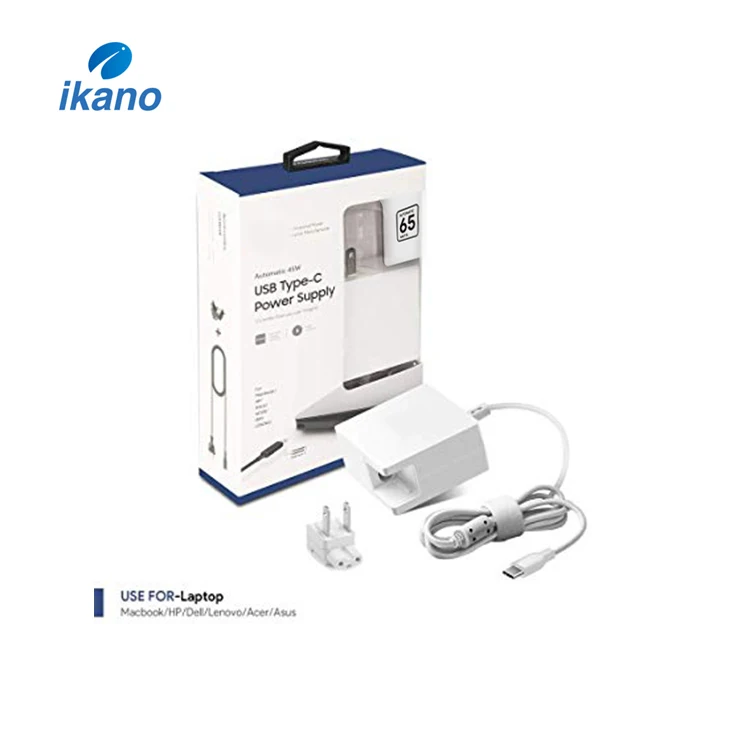

Packing & Delivery
