Managed Water Proof M12 Industrial PoE Switch with 8G TX M12 Copper ports and 2G FX LC Fiber Ports L2 outdoor PoE switch

Industrial PoE Switch with 8G TX M12 Copper ports and 2G FX LC Fiber Ports L2+ Managed Water-Proof PoE switch

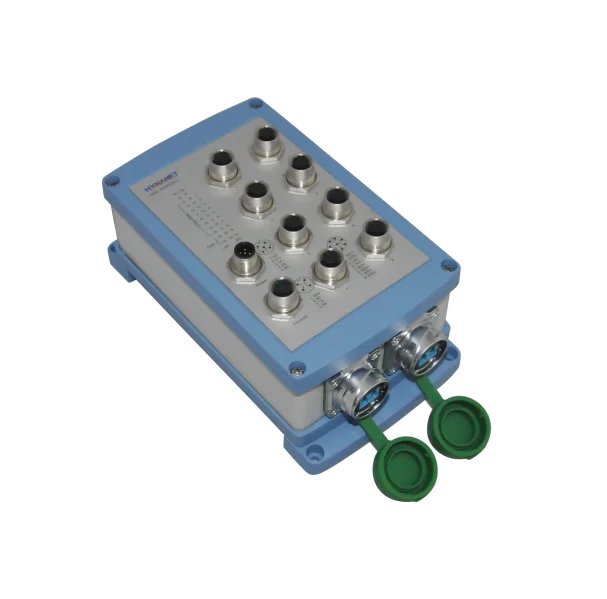

The IWS-1908F2-M12 is a high performance L2+ Managed Ethernet Switch with 8 x10/100/1000TX M12 Copper ports and 2 x1000FX LC Fiber Ports, which meets the high reliability requirements demanded by industrial rolling stock applications.

Product features

Ø Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
Ø Provide 8 10/100/1000TX M12 Copper ports and 2x1000FX LC Fiber ports
Ø High back-plane bandwidth 20Gbps
Ø Support standard IP/ Extend IP / MAC IP / ARP ACL
Ø IGMP snooping and IGMP Query mode for Multi-media application
Ø Port mirror and bandwidth control
Ø IEEE802.3x Flow control
Ø Support Port Based VLAN / 802 .1Q Tag VLAN
Ø Support IEEE802.3ad Port trunk with LACP
Ø Support Spanning tree protocol IEEE 802.1d
Ø Support IEEE 802.1p class of service
Ø Support IEEE 802.1x user authentication
Ø Support Broadcast storm filter
Ø Support DHCP server and client
Ø Support System event log
Ø Support command line interface management
Ø Management by Web/SNMP/Telnet/Console
Ø Surge protection for power port and data ports
Ø Wide power input: 12~60VDC
Ø Wide working temperature: -40~75℃
Ø IP67 Aluminum case
Ø 200,000 hours MTBF (Parts count reliability prediction)
