2.8mm Tungsten Carbide Rod By Carbide Rods Factory
US $2.15-$2.40
tungsten carbide bar length 330mm large
- Category: Cemented Carbide >>>
- Supplier: Zhuzhou Cemented Carbide Works Import & Export Co. Ltd. [Hunan China]Zhuzhou
Share on (62010331395):
Product Overview
Description
Product Description

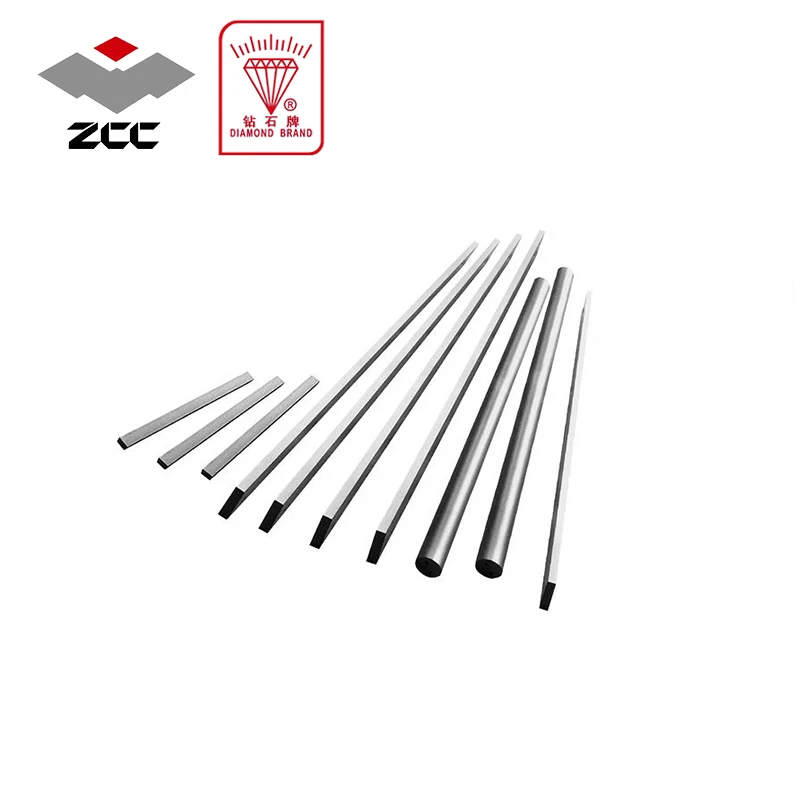

Application of Carbide rods and bars
We supply premium grade tungsten carbide rod from stock in unground, centerless ground and polished form.
Recommended Grade for tungsten carbide rod: YG6, YG8, YG6X, YG012, YG013, YG8A etc
Tungsten carbide rod applications include drill bits, end mills, and reamers. Custom diameters and length are also available in these grades as well as metric sizes.
Specification of Carbide rods and bars
| GRADE | YL06C | YL10.2 | YL10A | YF06 | XF20S | XF30S | XT30S | XU30 | XU09S | XU10W | |
| Drilling | * | * | * | * | * | ||||||
| Milling | * | * | * | * | * | * | * | * | * | ||
| Reaming | * | ||||||||||
| P | General carbon steel | ^ | # | ^ | ^ | # | |||||
| M | Stainless steel | # | ^ | ||||||||
| K | Cast Iron | ^ | # | ^ | ^ | # | |||||
| S | Ti | # | ^ | ||||||||
| HRSA | # | ||||||||||
| N | Al-Mg | ^ | # | ^ | ^ | ^ | # | ||||
| H | Hard steel | ^ | |||||||||
| Others | Plastic | # | # | ||||||||
| CFRP | ^(coated) | ||||||||||
| Wood | ^ | # | ^ | ||||||||
| Ceramic | ^(coated) |
|
Carbide Rods |
|||
|
Ground to h5/h6 |
|||
|
Length 330mm |
|||
|
Chamfered 45° |
|||
|
Type |
D (mm) |
L(mm) |
Tolerance L(mm) |
|
φ1.0×330 |
1 |
330 |
0/+10.0 |
|
φ1.5×330 |
1.5 |
330 |
0/+10.0 |
|
φ2.0×330 |
2 |
330 |
0/+10.0 |
|
φ2.5×330 |
2.5 |
330 |
0/+10.0 |
|
φ3.0×330 |
3 |
330 |
0/+10.0 |
|
φ3.5×330 |
3.5 |
330 |
0/+10.0 |
|
φ4.0×330 |
4 |
330 |
0/+10.0 |
|
φ4.5×330 |
4.5 |
330 |
0/+10.0 |
|
φ5.0×330 |
5 |
330 |
0/+10.0 |
|
φ5.5×330 |
5.5 |
330 |
0/+10.0 |
|
φ6.0×330 |
6 |
330 |
0/+10.0 |
|
φ6.5×330 |
6.5 |
330 |
0/+10.0 |
|
φ7.0×330 |
7 |
330 |
0/+10.0 |
|
φ7.5×330 |
7.5 |
330 |
0/+10.0 |
|
φ8.0×330 |
8 |
330 |
0/+10.0 |
|
φ8.5×330 |
8.5 |
330 |
0/+10.0 |
|
φ9.0×330 |
9 |
330 |
0/+10.0 |
|
φ9.5×330 |
9.5 |
330 |
0/+10.0 |
|
φ10×330 |
10 |
330 |
0/+10.0 |
|
φ10.5×330 |
10.5 |
330 |
0/+10.0 |
|
φ11×330 |
11 |
330 |
0/+10.0 |
|
φ11.5×330 |
11.5 |
330 |
0/+10.0 |
|
φ12×330 |
12 |
330 |
0/+10.0 |
|
φ12.5×330 |
12.5 |
330 |
0/+10.0 |
|
φ13×330 |
13 |
330 |
0/+10.0 |
|
φ14×330 |
14 |
330 |
0/+10.0 |
|
φ15×330 |
15 |
330 |
0/+10.0 |
|
φ16×330 |
16 |
330 |
0/+10.0 |
|
φ17×330 |
17 |
330 |
0/+10.0 |
|
φ18×330 |
18 |
330 |
0/+10.0 |
|
φ19×330 |
19 |
330 |
0/+10.0 |
|
φ20×330 |
20 |
330 |
0/+10.0 |
|
φ21×330 |
21 |
330 |
0/+10.0 |
|
φ22×330 |
22 |
330 |
0/+10.0 |
|
φ23×330 |
23 |
330 |
0/+10.0 |
|
φ24×330 |
24 |
330 |
0/+10.0 |
|
φ25×330 |
25 |
330 |
0/+10.0 |
|
φ26×330 |
26 |
330 |
0/+10.0 |
|
φ28×330 |
28 |
330 |
0/+10.0 |
|
φ30×330 |
30 |
330 |
0/+10.0 |
|
φ32×330 |
32 |
330 |
0/+10.0 |
|
φ33×330 |
33 |
330 |
0/+10.0 |
|
φ34×330 |
34 |
330 |
0/+10.0 |
|
φ35×330 |
35 |
330 |
0/+10.0 |
|
φ36×330 |
36 |
330 |
0/+10.0 |
|
φ38×330 |
38 |
330 |
0/+10.0 |
|
φ40×330 |
40 |
330 |
0/+10.0 |
