OEM Tungsten Carbide Strip/Bar Cutting Tool Strips Made in China

Product Overview

Description

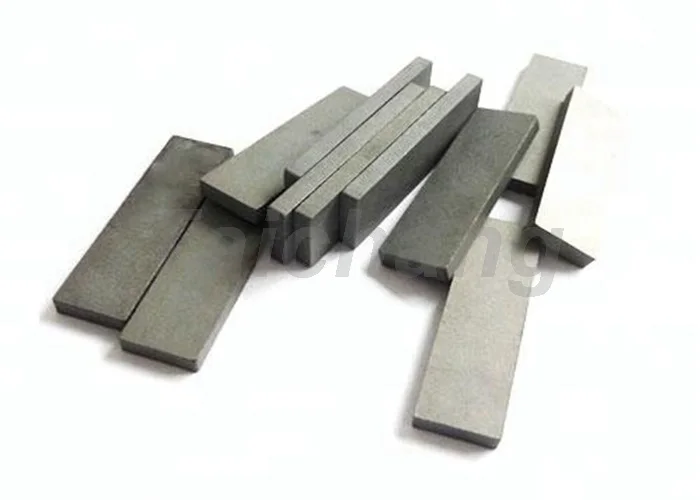

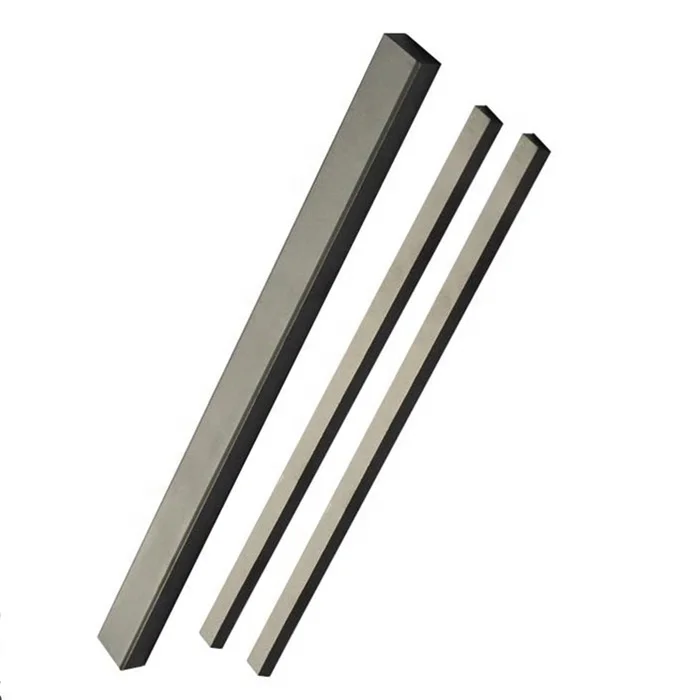

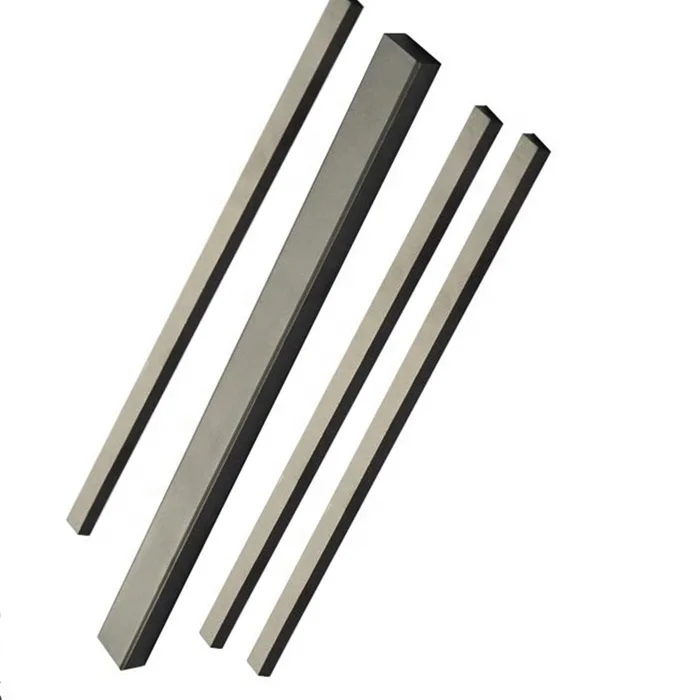

Taichang K20 Cemented Tungsten Carbide Strips Long Lifespan For Cutting Tools





Brief:



The main composition of tungsten carbide strips is tungsten carbide powders and cobalt powders. With its wear-resistant and corrosion-resistant ability, tungsten carbide nowadays is widely used in many areas such as: cutting tools, moulds, oil and automobile industry etc.



Cemented carbide strip, also known as cemented carbide strip plate, is mainly made of WC and Co powder by metallurgy. The content of WC and CO in different kinds of cemented carbide strips is different, so they are widely used.



Grades	ISO Grade	Chemical Composition	Density (g/cm3)	HRA	T.R.S (N/mm2)
YG4C		96%WC, 4%Co	15.00	89.5	1800
YG6	K20	94%WC, 6%Co	14.80	89.5	1700
YG8	K20-K30	92%WC, 8%Co	14.70	88.5	2300
YG8C	K30	92%WC, coarse	14.70	88.0	2300
YG9C	YK20	94%WC, 6%Co	14.45	87.0	2400
YG11C		89%WC, 11%Co	14.40	86.5	2450
YG13C		87%WC, 13%Co	14.30	86.0	2500
YG15	K40	85%WC, 15%Co	14.00	86.5	2500
YG16		84%WC, 16%Co	14.10-14.30	87.5	2400
YG20		80%WC, 20%Co	13.40-13.70	85.0	2254



Features:

1. 100% virgin raw material

2. High hardness, excellent wear-resistance

3. High elastic modulus and compressive strength

4. Stable chemical properties

5. Blanks, precision grinding and polished





Our advantage:



1. High and new advanced equipment
2. The unique new technology: vacuum high temperature and high-pressure sintering. The product uses pressure sintering at the last stage, greatly reduces the porosity, improves the compactness, and greatly improves the mechanical properties of the product.
3. Our factory professionally produces customized, non-standard, special and non-magnetic parts.
4. Material: 100% virgin raw material with submicron grain size Grade: various grades for choice





Company preview:



Zigong Taichang Carbide Co., Ltd. is specialized in customized design cemented carbide products in the production, R&D and value-added machining since 1993.



With the experience of nearly 20 years in the production, R& D and management, the company has established the quality insurance system which is accomplished by the state of art equipment such as Dorst presses, Sinter-hip furnaces, CNC machines the measurement and inspection instruments and the competitive staff of management and researching.





Workflow:



1, Soon after the order is confirmed, tungsten carbide strip products will start to prepare the RTP powder as per customer's requirement with our wet-grinding machine

2, Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of tungsten carbide strip samples with a micrometer, projectors etc. to ensure that the requirements of the drawings can be met before batch production

3, Bulk production, press the raw materials to shape blanks, and all tungsten carbide strip blanks must be passed by semi-finished inspection

4, Then sinter blanks to finish and finished tungsten carbide strip inspection, we have 5 sets of vacuum sintering furnace and 1 set of High-Temperature Sintering Furnace in the factory to ensure the best quality and production capacity.

5, 1). cleaning/tumbling is to make the tungsten carbide strip look more beautiful.
2). The tungsten carbide strip can be ground according to customers' order tolerance requirement



package and shipment:





FAQ:



Q: Can you support customized design?
A: Yes, we accept OEM & ODM.



Q: Can I negotiate the Prices?
A: Yes, we may consider discounts for bulk orders of individual products.



Q: What is your minimum order requirement?
A: We accept the sample and trial order.



Q: How long will it take to execute my order?
A: For the stock items, we can arrange the shipment within 3-5 days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.



Q: Can you give a warranty for your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. The detailed inspection pictures and the report of the order will be sent to you for confirmation before delivery. For the overseas orders, if there is a quality problem, please kind to provide the pictures to show the problems by e-mail. We will provide the replacements to you at our cost according to actual conditions.
