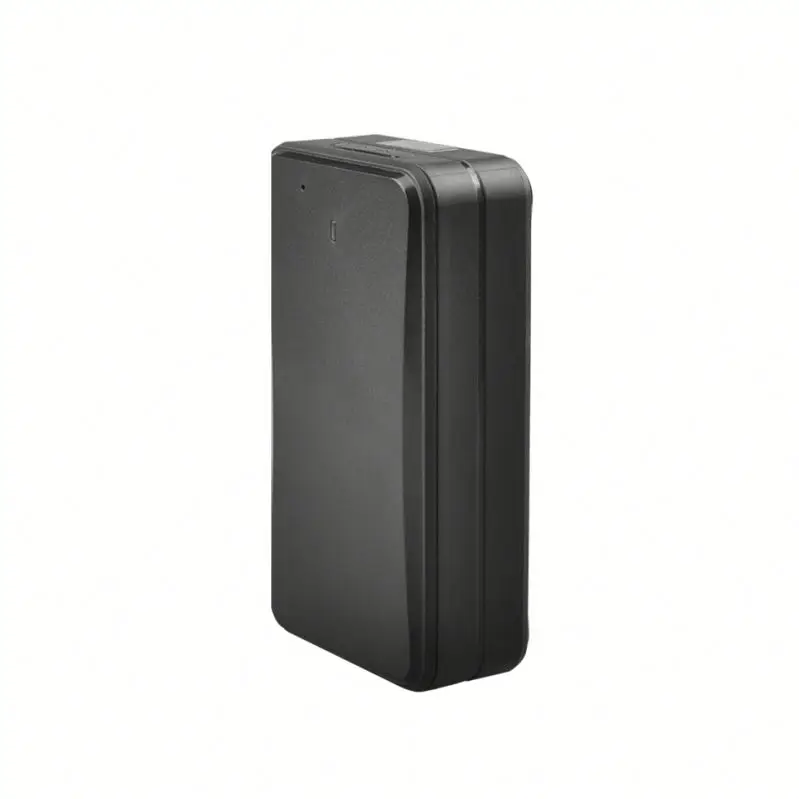

JIMI Wholesale Small Waterproof Magnet Vehicle Gps Tracker Concox

Product Overview

Description

GSM Specification
GSM frequency	850/900/1800/1900MHz
Receive sensitivity	Class II RBER2%(-102dBm)
GPRS	Class 12, TCP/IP
Receive sensitivity	Class II RBER2%(-102dBm
Memory	32+32Mb
Phase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm
	GSM1800/GSM1900:30±3Bm
Max frequency error	±0.1ppm
GPS Specification
GPS chipset	High sensitivity GPS chip
Frequency	GPS L1, 1575.42MHz
GPS channel	66
Location accuracy	<10 meters
Tracking sensitivity	-165dBm
Acquisition sensitivity	148dBm
TTFF (open sky)	Avg. hot start≤1sec
	Avg. cold start≤32sec
Function
Switch	1 for base falling detection
	1 for inner disassembly detection
	1 for power control
LED Indicator	Red: working status; Green(4); battery
Working Voltage/current	3.7V/60mA
Operating temperature	-20℃~ 70℃
GSM/GPS antenna	Built-in quad band GSM antenna, GPS dual-mode antenna
Charger	5 VDC / 2A
Charging hour	8 hours
Tracking mode	30 days(drive for 2 hours per day)
Battery	10000mAh/3.7V industrial grade lithium polymer battery



Feature list:

GPS+LBS positioning

Listen-in

IPX5 water proof

10000mAh battery

Intelligent power management

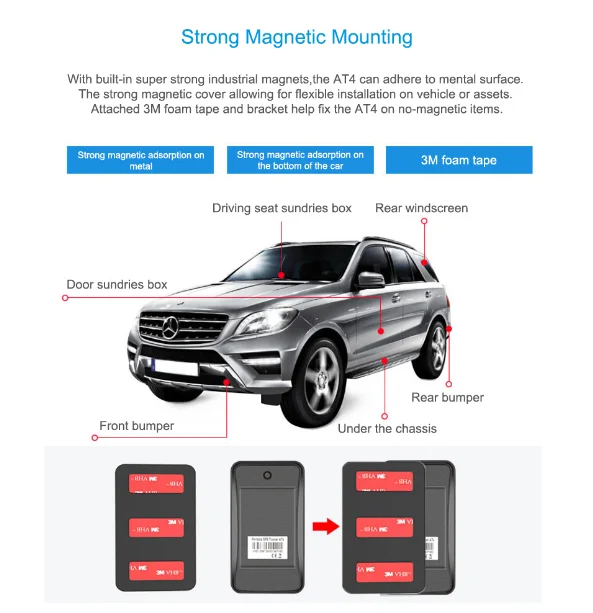

Strong magnet

Tamper alert

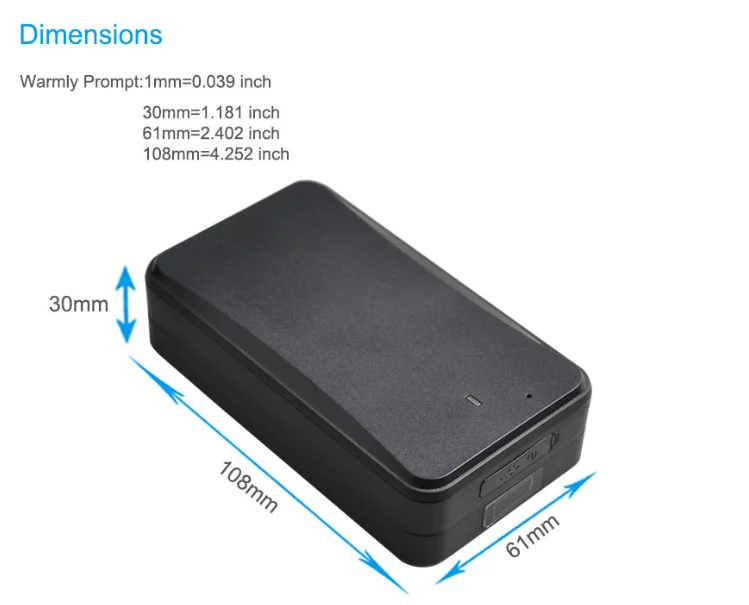

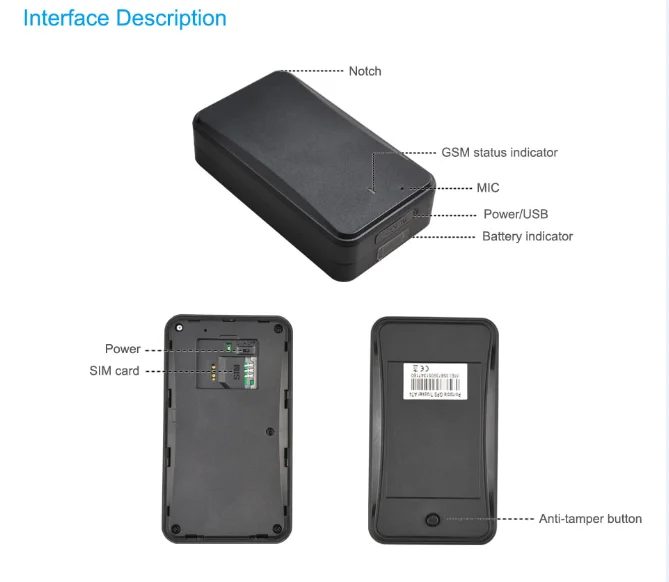

Details:

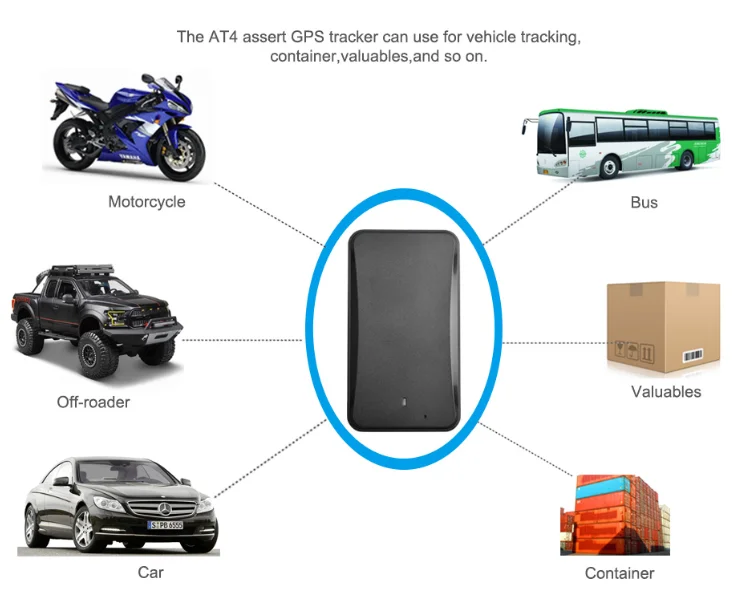

Application:



Advantages:

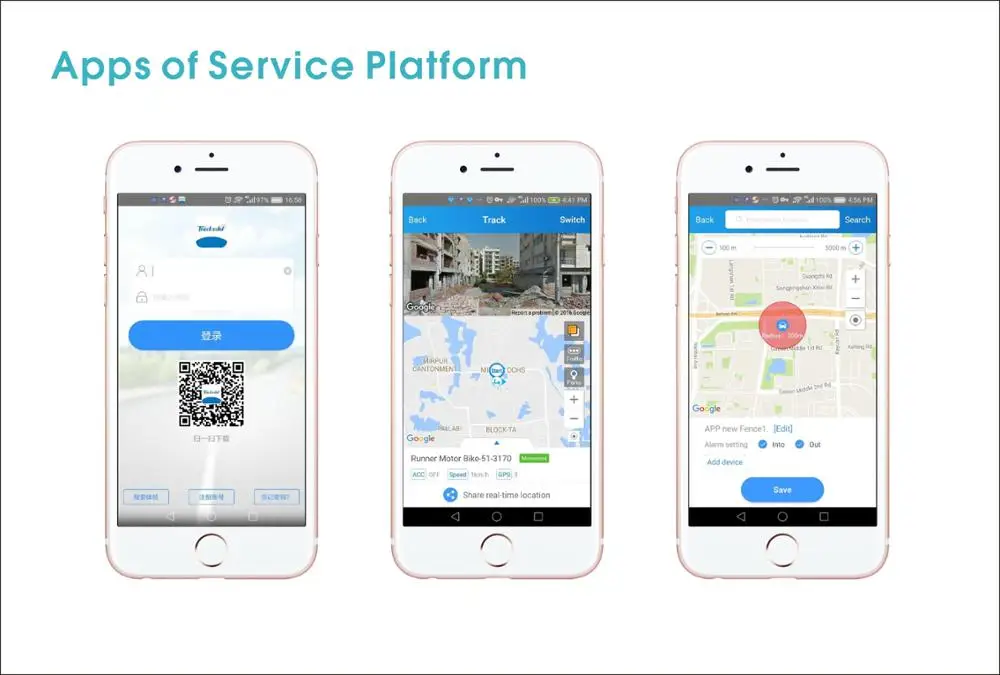

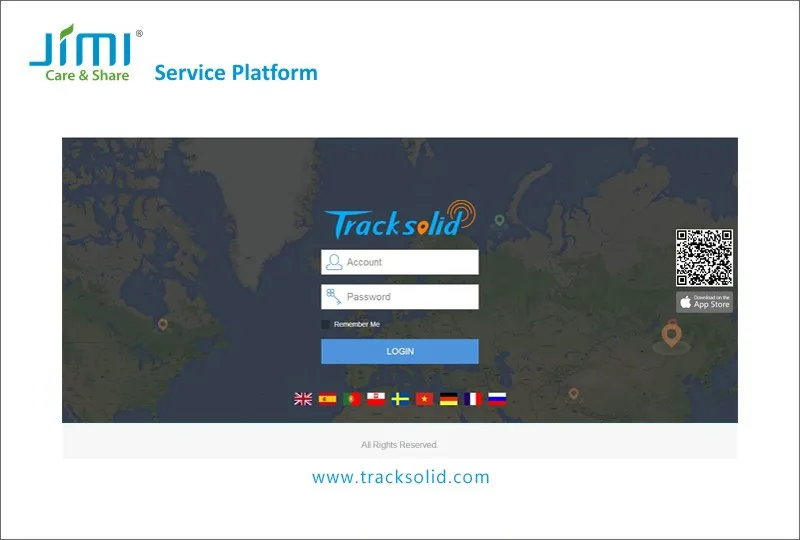

Platform:



Delivery:

1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.

2. For order over 500pcs or customized order, lead time will be 4-6 weeks after the receipt of payment. Please contact our sales to make sure the current inventory.





Company information:

Jimi Electronics is a leading and advanced wireless communication solution provider in China, we mainly manufacture GPS Tracker.



Our advantages:

1. Focus on wireless communication with more than 14 years experiences.

2. Powerful R&D team with 80+ engineers.

3. 3 factories for manufacturing chips ,integrating and assembling.

4. Complete Solution –hardware/software and mobile APP.
