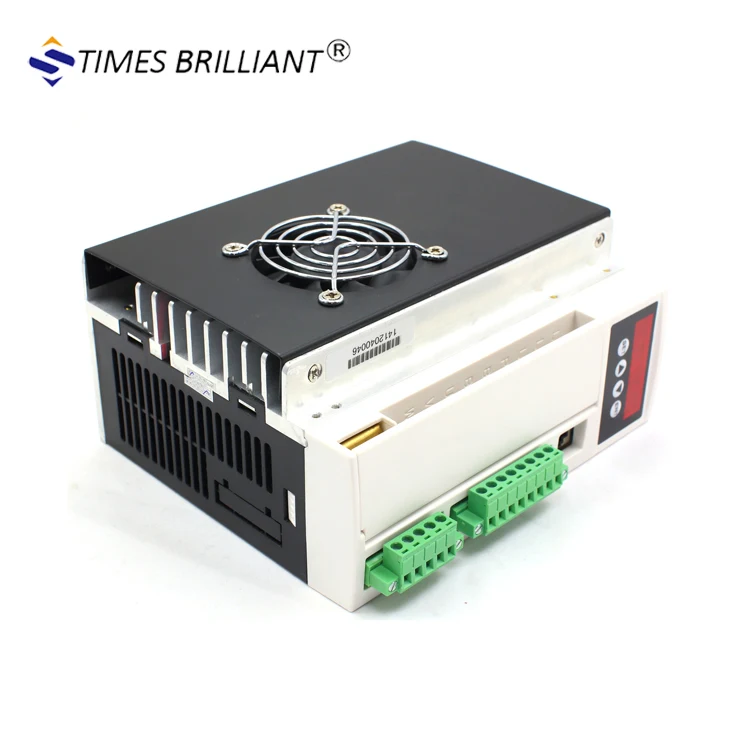

ZM 7206 China factory 220V high voltager 1.2KW 6A brushless dc motor driver controller with LED display for 310V BLDC motor

Product Overview

Description

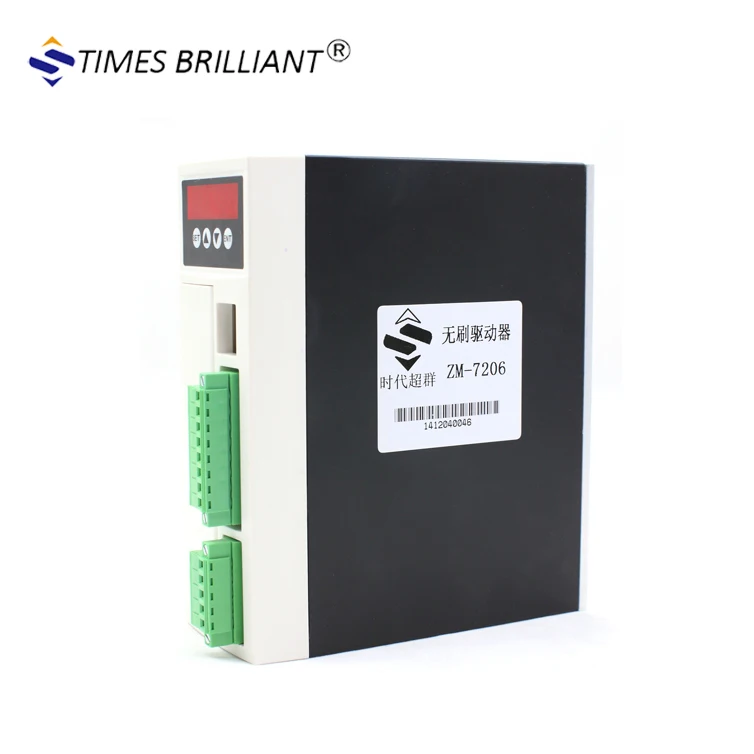

ZM-7206 China good performance high power 220V 6A brushless dc motor driver controller for 310V BLDC motor

Introduce:



1.It has the function of slow starting, avoiding current overcharging and protecting motor effectively
2.Cooling mode: active radiator mode
3.Control letter input and output signal: fully isolated
4.Protection function: overcurrent, overheat, overspeed, overvoltage, undervoltage control power source and Regular protection

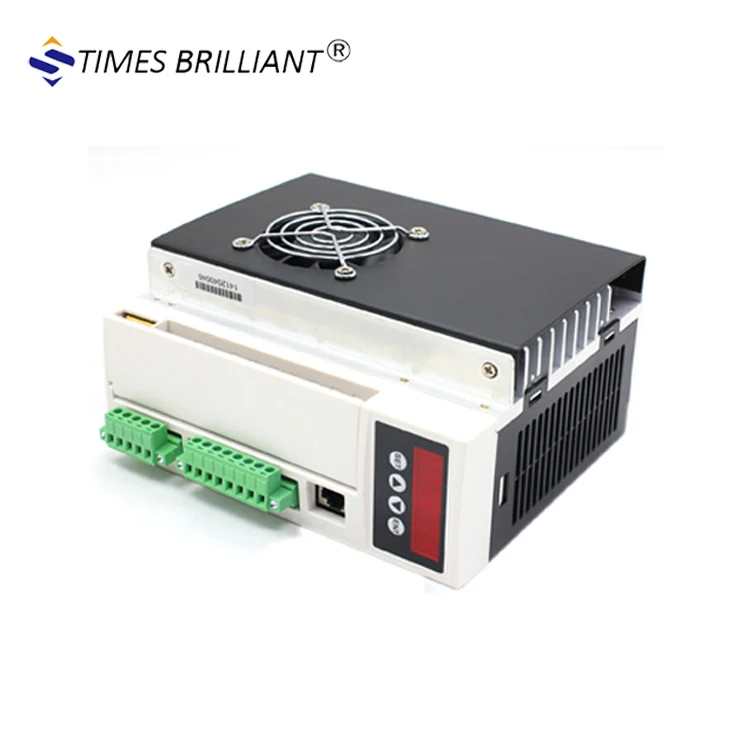

5.Panel interface: 6-bit LED displays 4-Bit key operation



Function Overview

 1. Three speed adjustment mathods  Analog voltage  speed adjustment ,   external digital signal speed adjustment  and communication order controlling adjustment

2. Motor operate/stop control (EN) by terminal

3. Motor rotation direction control ( F/R ) by terminal

4. Break the motor to stop ( BK )

5.  Speed signal output (PG)

6.  Alarm output (ALM)





Electrical Performance Index

electrical properties (ambient temperature Tj=25℃)

Power supply	AC180V~250V 50/60HZ
Output Current	Peak:9.9A  Rate:6A
Rated Power	Max 1300W
Insulation Resistance	Normal Temperature    over500MΩ
Dielectric Strength	Normal Temperature and Voltage  0.5KV,1min



Use Environment Parameters:

Cooling mode		Natural air cooling with fun (recommended use of forced air cooling)
Use Environment	Occasion	Avoid dust, oil mist and corrosive gases as far as possible
	Temperature	0℃~+45℃
	Humidity	less than 80%RH, No condensation, no frosting
	Shock	5.9m/s2  Max
Storage temperature		-20℃~+85℃

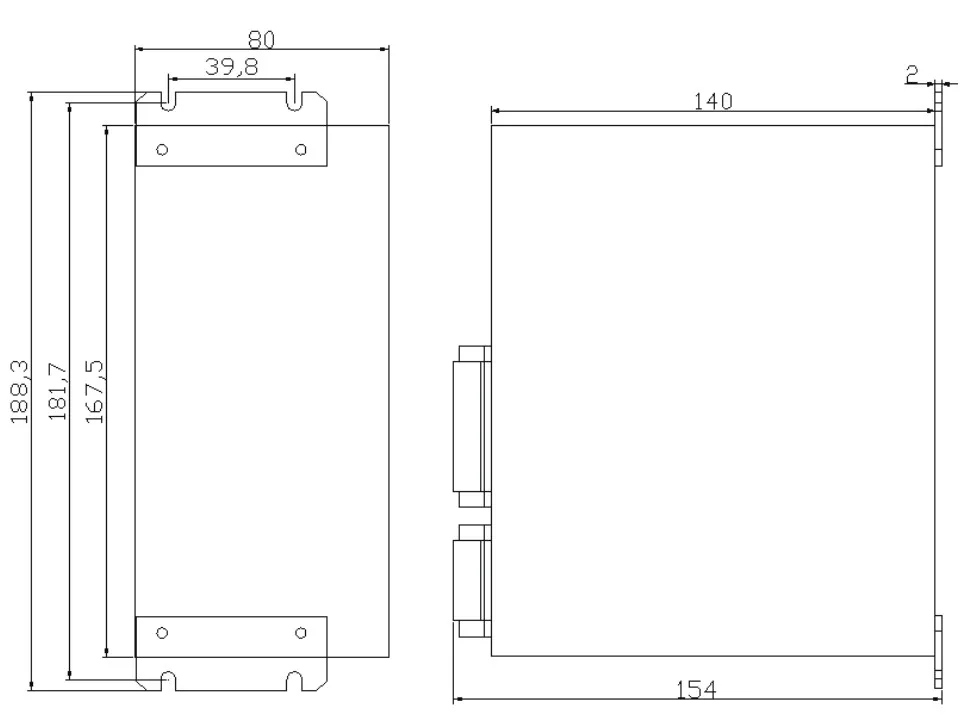

Out size		180mmX140mmX75mm
Weight		1.5Kg

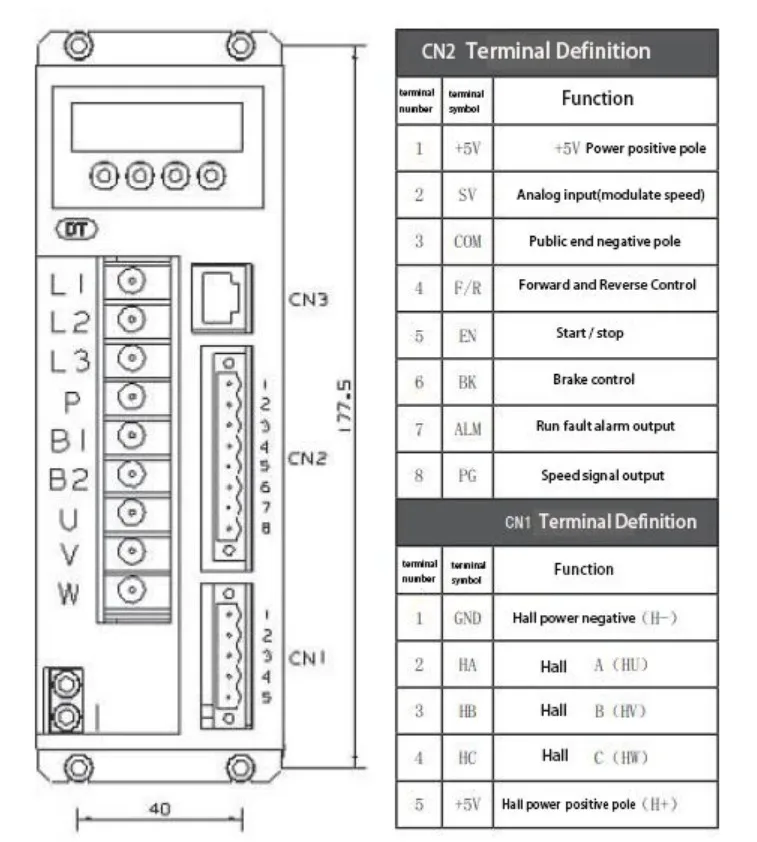

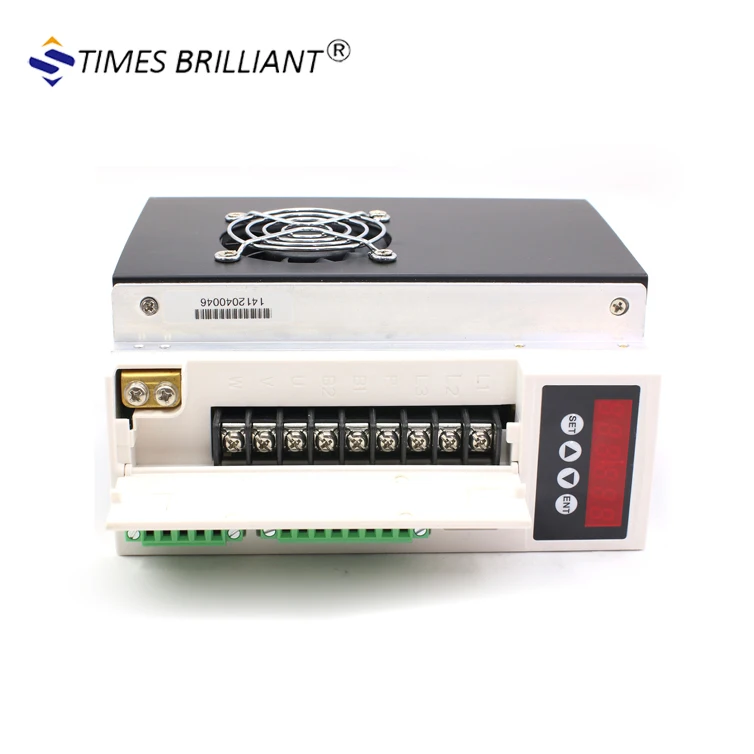

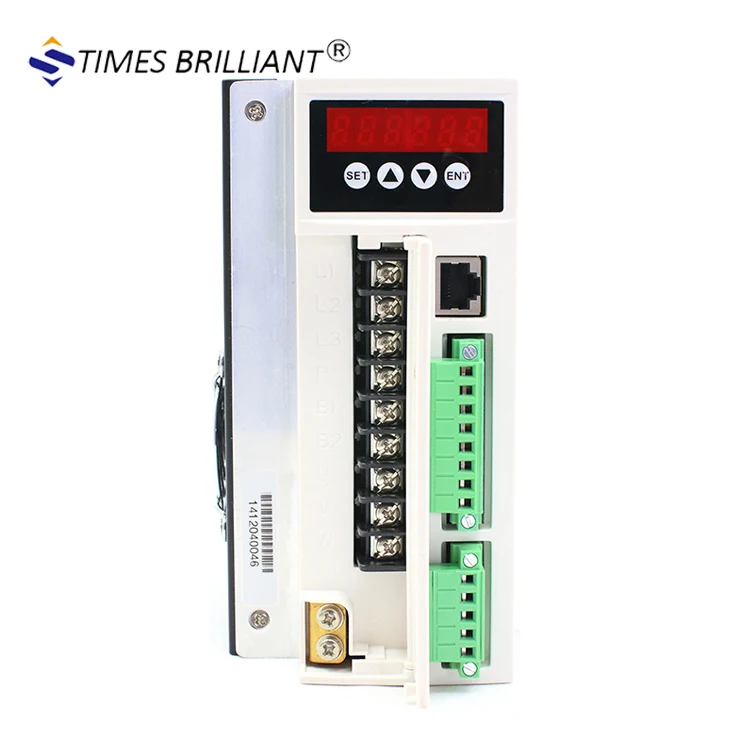

Port Defination:

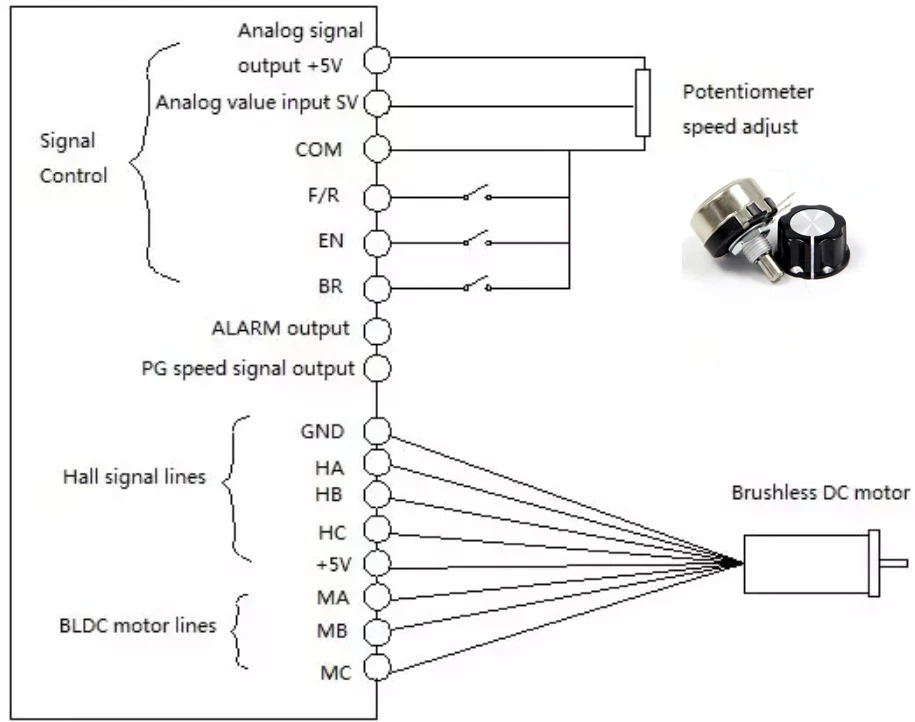

Connection Diagram of motor and driver





Protection type:



  When the motor is running abnormally, the digital tube will display:



  (1) OL   motor locked.



  (2) OC   over current.



  (3) HE   hall signal failure.



  (4) LV   under voltage input .



  (5) HU   over voltage input.



  (6) EE    IPM failure protection.



  (7) OT    motor too hot



size:

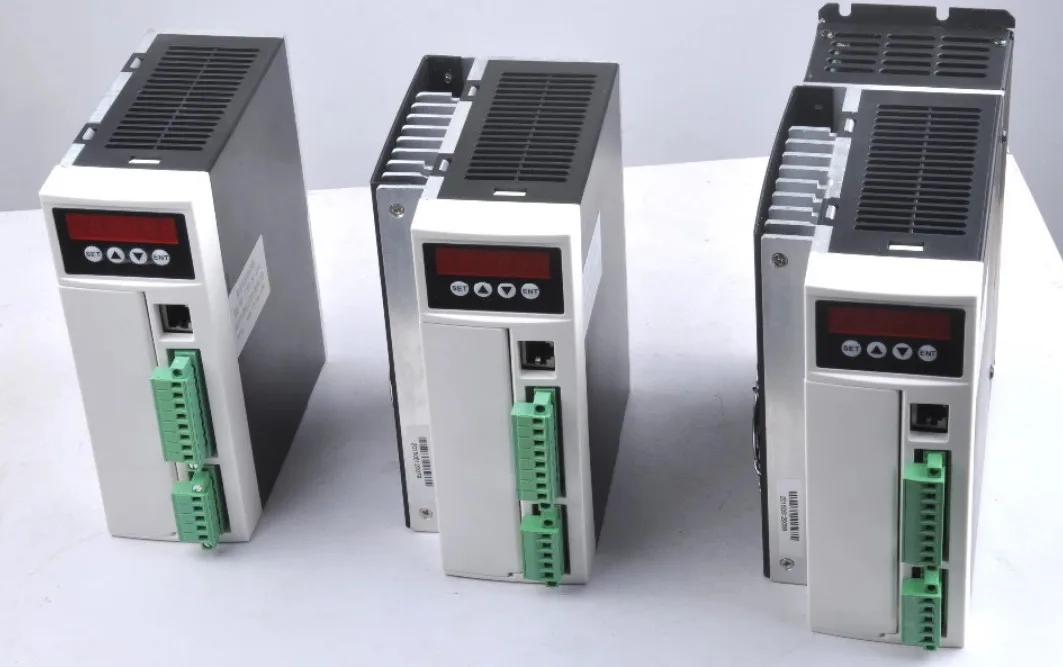

others 750W 1.2KW 1.5KW:
