Warn, Detect, Indicate, Monitor and Track : All In One Sticker
Find Out the Real Reason of Cargo Damage
THE WORLD'S PIONEER :
2 SHOCK INDICATORS IN 1 LABEL!
Dual Impact Label is featured in 2 indicators to detect more WIDELY impact forces for Pre-Warning & Determining Return the Shipment! Functions are all in 1 Label!

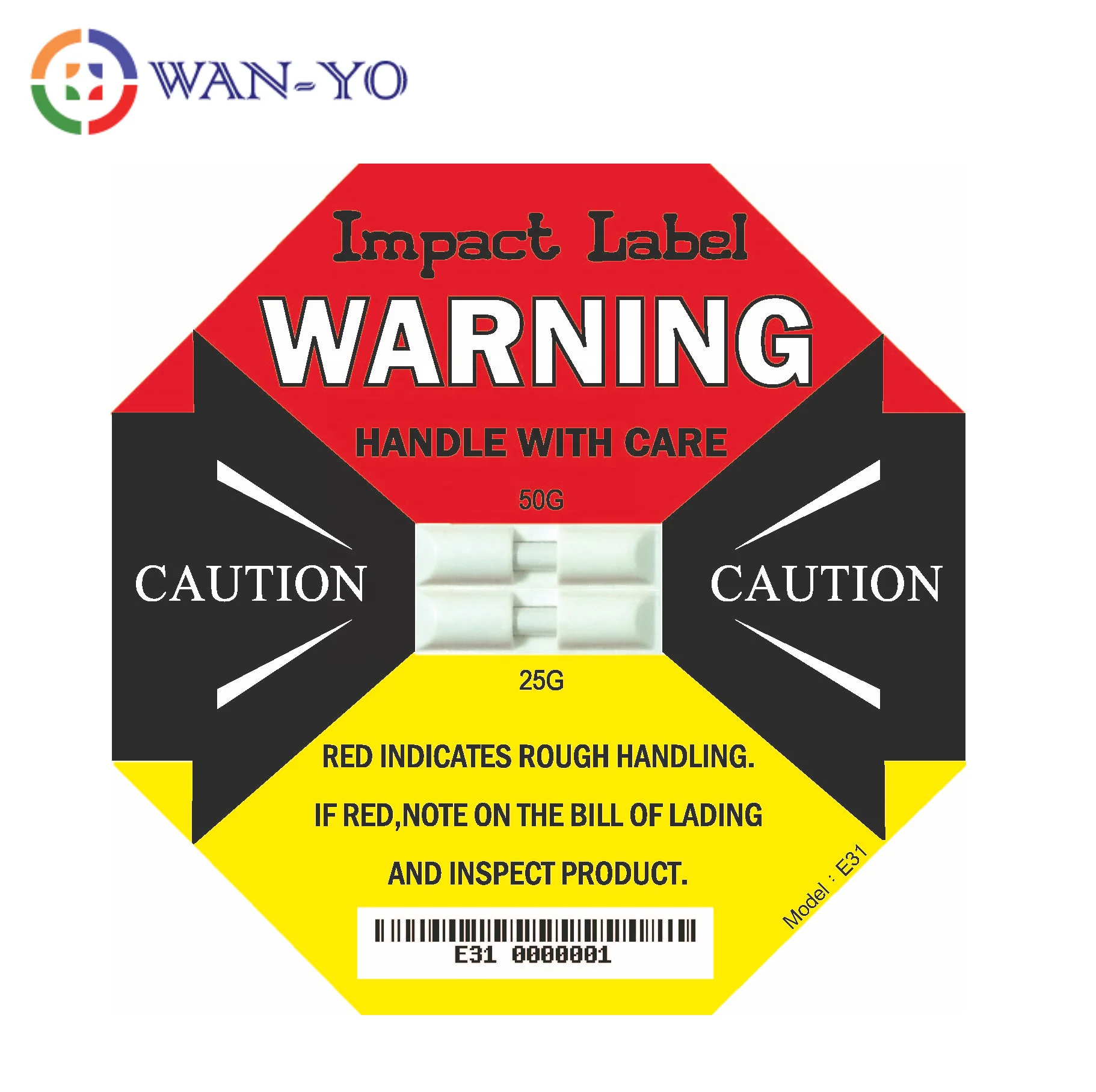

What is DualImpactLabel ?
Dual Impact Label, an upgraded brand new version of the traditional impact indicator with 2 shock indicators, can detect 2 different impact set G-force, from 10G to 100G shock forces and provide more Accurate Shock Detection and monitor your goods during transit or in storage.
General impact indicators have only 1 display window and usually fail to reflect the accurate impact force. The impact force is much Larger than the selected impact detector label and makes the products More Serious Damaged.

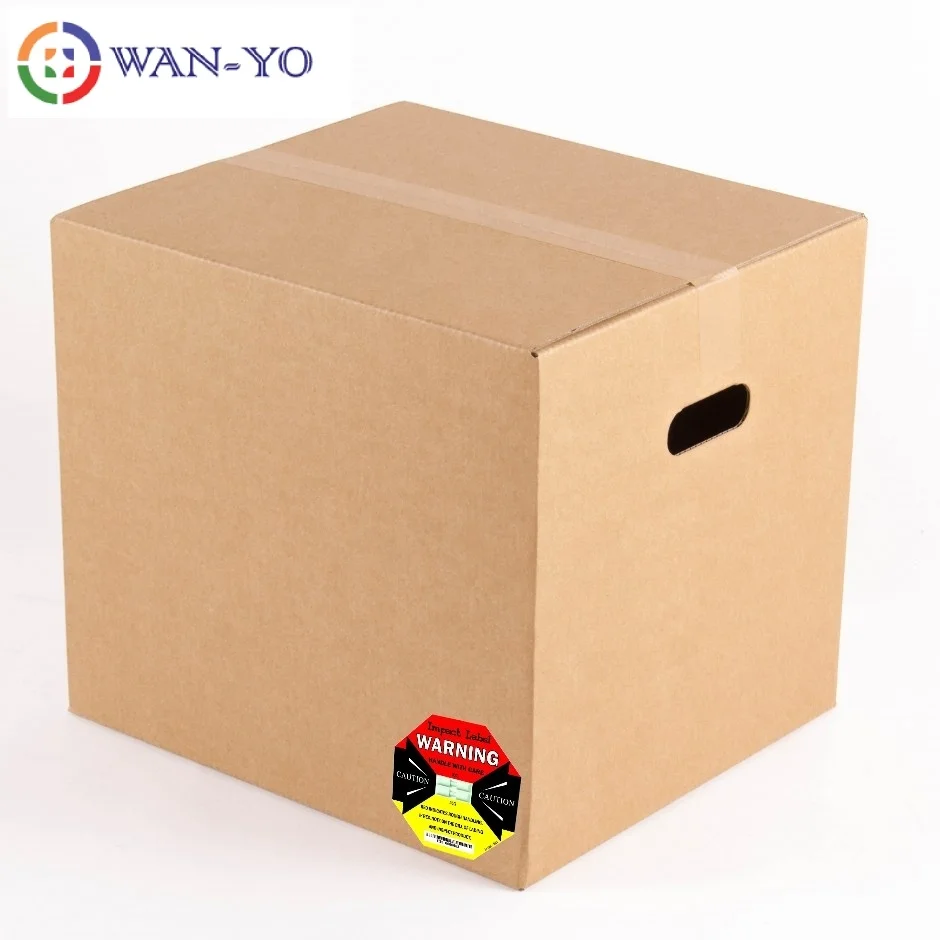

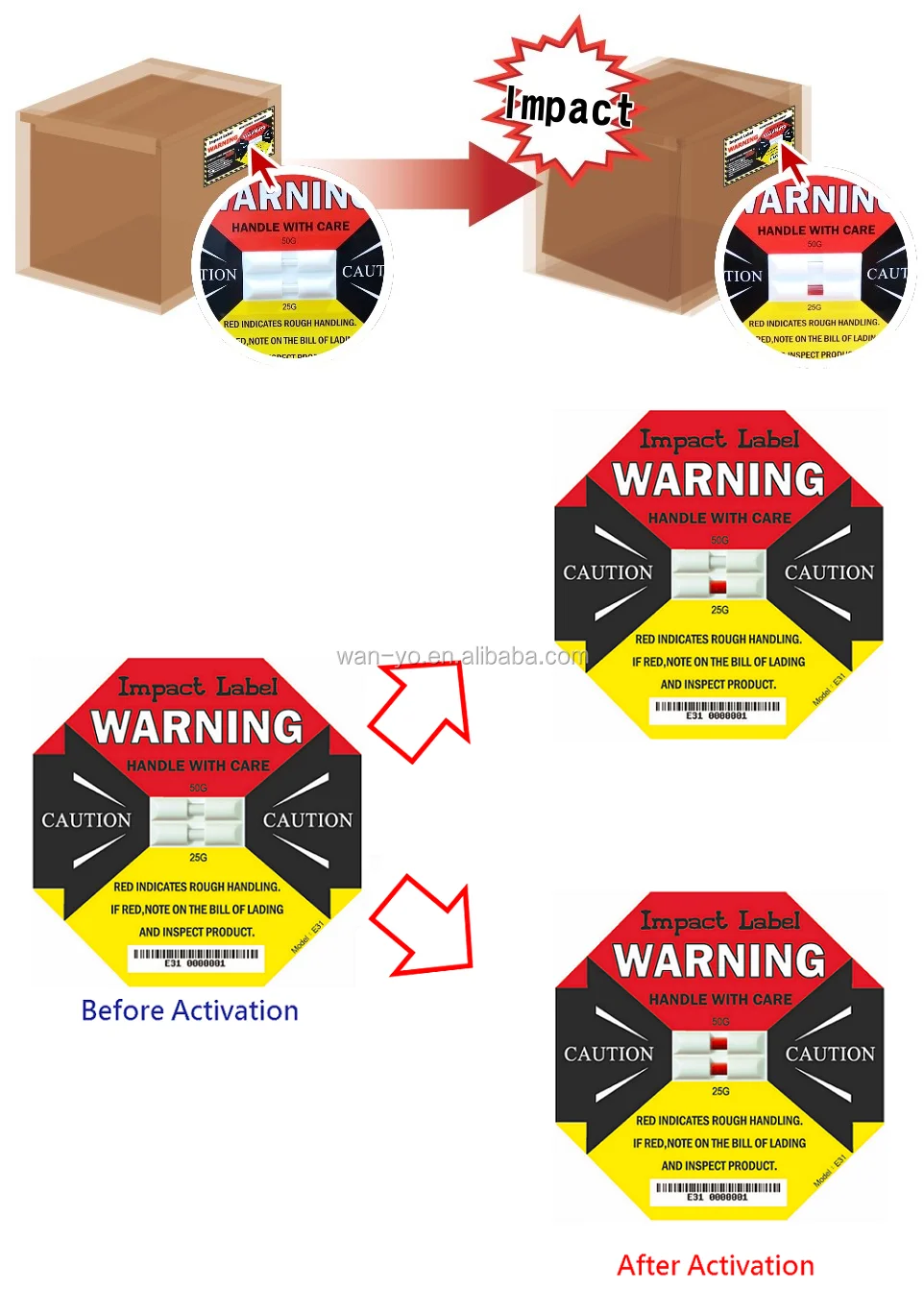

Dual Impact Label can shorten the working time and brings more benefits for corporates. For sure, use is the same as Impact Label, can be applied on packaging, a carton or equipment directly. Once the item was dropped, impacted, shaked, collided...etc, the middle window of Dual Impact Label will indicate accordingly.
Impact Label has been proven to reduce and decrease the possibility of damage goods occurred by 70%.
2 Shock Indicators in 1 Label:
Customized Accepted!
The most popular of model of Dual Impact Label is E31 which is always in stock and is widely used in High-Precision, High-Priced, High-End Goods, such as Solar Cell, Semi-Conductors, Precision Instrument, Appliances, TV Monitor, Printer, Server, Computer, ATM Machine, Wafer, Microscope, Gyro Sensor IC, Medical Instrument, Nuclear Magnetic Resonance Machine, X-ray Machine, Ultrasonic Detector, Aero or Automotive Parts...etc.
However, if customers need to use different detection impact force, for example 37G+50G, we can customize the label for our clients.
How to Choose the Second Shock Indicator?

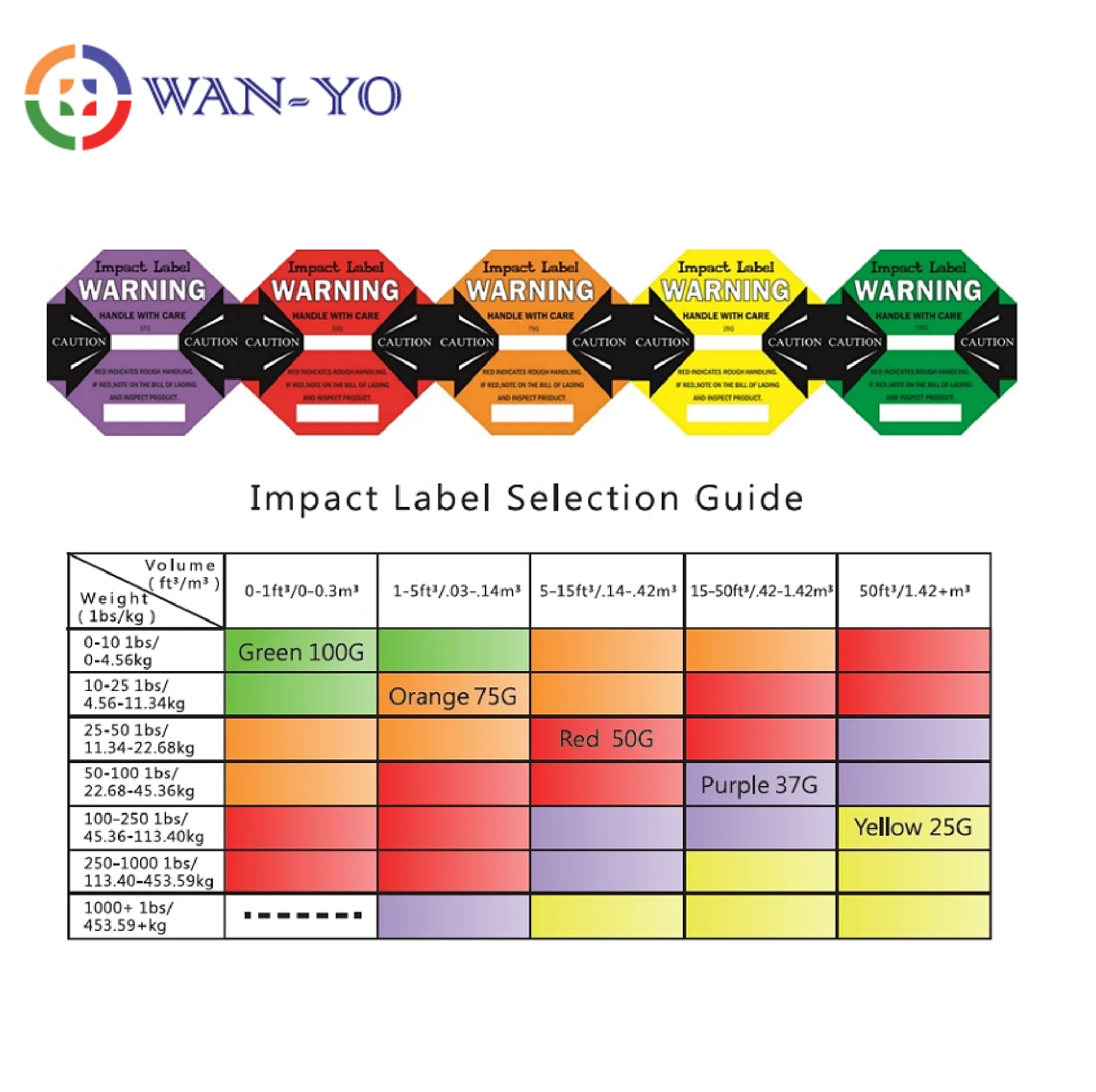

∴ Step 1: Select the model of the correct impact indicator for your goods according to the Selection Guide. ( Or refer to the Officail Video Channel on Youtube: Wan-Yo Protect Cargo Specialist )
∴ Step 2: Select the Functions you need

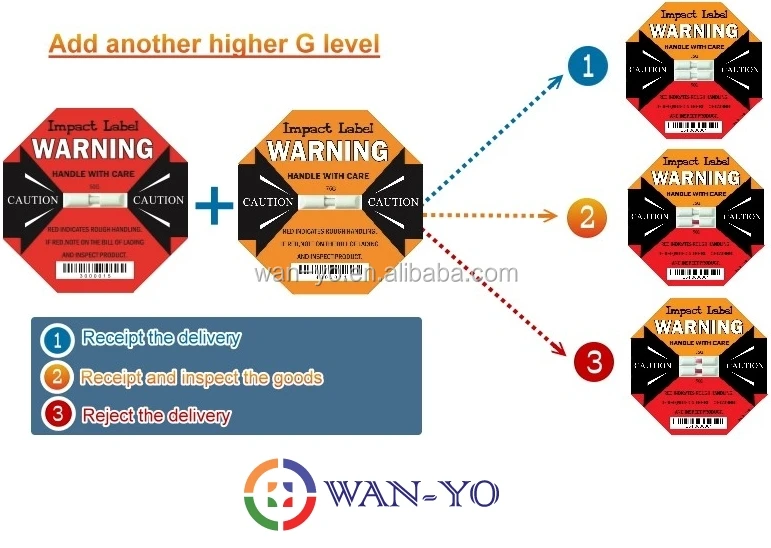

Determine Returning The Goods / Shipment
Add an impact indicator that the G Value is Higher than the original one
For Example:
The Selected Label is Impact Label 50G in the first step.
Then you can choose 75G or 100G.
As the both indicators are activated which indicates that the impact to the goods / shipment is much Greater than the g value of the selected Impact Label, and the probability of product damage is extremely high, so the Receipt can Be Rejected.
Per-Warning
Add an impact indicator that the G Value is Lower than the original one
For Example:
The Selected Label is Impact Label 50G in the first step.
Then you can choose 25G or 37G.
As the indicator of the lower g value activates and the indicator of the standard g value does not activate which indicates that the goods / shipment has been subjected to a slight collision during the delivery process. This may cause the product defected, so we can pre-warning and strengthen the inspection of the goods / shipment.
Specification:
Product name
Dual Impact Label
Dimension
97mm*97mm (3.82 in 3.82in)
Operating temperature
-25°C to 80°C (-13°F to 176°F)
Sensitivity
Choose 2 Different G Values Between: 10G, 15G, 25G, 37G, 50G, 75G, 100G
Tolerance
± 15%
Reaction time
0.5 – 50 ms
Installation
Back Adhesive
Shelf life
Two years
GoodsTrackingSystem
GOODS TRACKING SYSTEM:
Track & Monitor Your Shipments
5 Features:
Goods Tracking : Track the shipping route and the date of uploading
Label Condition: The status of the label - OK (Normal Situation), NG (Damaged) with photos evidence.
When transporting goods from A to B, there are often some goods that are damaged and the causes and liabilities are usually not traceable. Sometimes the goods disappear on the way and cannot be found. If the value of the goods being transported is high, it is always necessary to make sure the goods are traceable and in good conditions. In order to solve this problem, Good Tracking System was born. It is a logistic solution that can identify the endpoints of the problem and tracking goods.
From the service side, you can clearly see the address and upload time of the goods, the status of the label, the photo, and the name of the uploader.
The good tracking system is perfect in terms of security and privacy. Each company’s information is separate, so you don’t have to worry about others seeing your own information, and it is well protected in terms of security and privacy.
Volume 57cm*59cm*63 cm or 51cm*51cm*57.5cm | Gross Weight 18kg
Small Quantity & Mixing with Different Models of Labels are Acceptable! : )
Please Contact us to Service Your Needs!
Services
4 FEATURED SERVICES :
Simple & Convenient Services Support !
Wan-Yo provies Widely Payment channel, from Paypal, Visa, MasterCard, WesternUnion, Trade Assurance on Alibaba platform... to Bank T/T. Meanwhile, Wan-Yo also provides FAST SHIPPING & Qualified SHIPPING Services for customers. Checking Shipping Feeis supported. ( Wan-Yo has collaborated with most of international couriers for ages, therefore, speacial price for shipping cost is provided! ) However, we always Work with Our Customersif customers would like to use their own account. : )
FAQ
Q: Do you provide samples for customers? How to proceed?
A: Yes, Wan-Yo provides Free Samples and Without CHARGING ANY FREIGHT COSTS. There are 5 models 25G, 37G, 50G, 75G and 100G of Impact labels, and there are 3 modes of Leaning Labels.
Please Click 'Contact Us' of the bootstrap above to get Free Samples from Wan-Yo. We will have customer's contact information and address to send out the inquired samples. It takes about 3-7 days to your place, it depends on the distance.
Q: Is it possible to mix with different models of Impact Label and Leaning Label in a carton?
A: Yes, we can do it for each customer's needs! If there's any other special requirement, please click 'Contact Us' above and send your requirement to us. We promise to reply your needs within 1 working day!
Q: How does Goods Tracking System work? How do we use this system?
A: First of all, the couriers should install the applications on IEI mobile or smartphone. The system will guide them on how to upload the situation of labels. Second, as the goods is ready to ship, the relative personnel from the warehouse should stick the labels on each cargo, take a photo of the label and upload the situation of the label. After that, the cargo will send out and start to transit. It should be that there are lots of different couriers transit the cargo. Within this process, every courier should install the applications on IEI mobile or smartphone and upload the condition to see if the labels activated or not until the goods arrives at the destination. Within this process, you may see where the cargo is located at backstage. If the label is activated, the system will automatically send an email of notification to you.
For more details, Please refer to the Operation Manual from our official website and download.
( https://wan-yo.com )
Q: Is Goods Tracking System free for customers?
A: Yes, Goods Tracking System from Wan-Yo is Free for each customer.
Q: Do you accept OEM of shock indicator labels (Impact Label)?
A: YES, we do! We can make as per customer's request. For more customization order info, please contact our sales manager below directly. We promise to contact you within 1 working day!
Q: Since Impact Label is sensitive, what do you do for packing?
A: Considering Impact label is very sensitive and the WHITE tube in the middle is easy to be activated. It requires packing weight must heavy enough when they are packed and shipped, otherwise they will be easy to be broken caused by rough handling in shipping. We also put some foam sheets into each carton and other buffer materials.
However, If customer finds Impact labels activated as receive, we promise to Compensate Customer's Lost. We will either send the replacement to the customer or refund the defected ones cost!
Q: What does G mean in models 25G, 37G, 50G…?
A: G means Gravity Value that is a unit of impact label. It's like the G-force that you may experience in amusement park.
Q: Do you have any certificate for your own brand Impact Label?
A: YES, Wan-Yo owns different Patents for Impact Label, Leaning Label, Goods Tracking System and Pallet Cushions. Moreover, Wan-Yo also has SGS(RoHS) Test Report, and other regular authoritative test reports.
Q: I also heard about shock indicators from the US. What is the difference between Impact Label and the American brand?
A: The Quality between Impact Label and the US brand is the same, but the Price of Impact Label is much LOWER than the shock indicator labels from the US. Moreover, Wan-Yo developed and owns Dual Impact Label, the world's pioneer patent, which come with functions of Pre-Warning and Determining Return the Goods.
Q: I also heard about Tilt indicator from the US. What is the difference between Leaning Label and the American brand?
A: The Quality and Functions are the same as the US brand, but the Price of Leaning Label is much LOWER than the tilt indicators from the US. Moreover, Leaning Label II can Indicate the Tilt Direction, left or right, while Leaning Label Plus is featured in GROOVE DESIGN to Prevent Cheating.
Q: How about your lead time?
A: Lead time is different as per different order quantity and model. In our stock, total quantity is always kept more than 10,000pcs. If we have enough of the model you want, we can send out after payment in short time. If not, generally, it takes 2 to 10 working days to produce.
