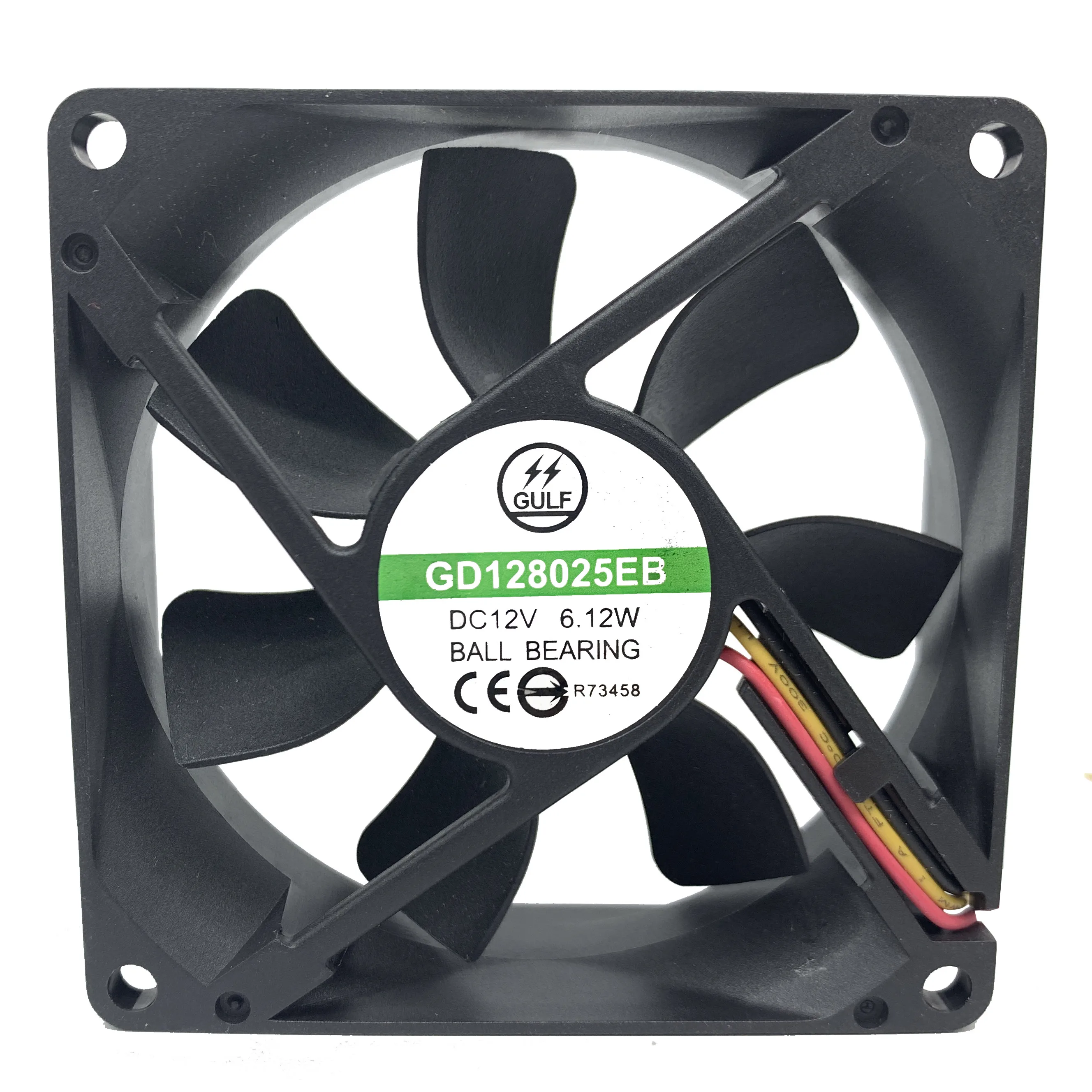

Industrial 80x80x25mm High Speed 2Ball 12V DC Fan

Industrial 80x80x25mm High Speed 2Ball 12V DC Fan

Category: >>>
Supplier: GULF ELECTRICS CO. LTD.

Price:

Quantity:

Product Overview

Description

ABOUT GULF ELECTRICS

Product Description

Model NO.	Bearing	Rated Voltage	Operating Voltage Range	Speed	Airflow	Static Pressure	Current	Power	Noise
		VDC	VDC	RPM	CFM	mm-H2O	mA	W	dBA
GD128025LS	SLEEVE	12	7~13.2	1900	27.9	1.3	100	1.20	22.5
GD128025MS	SLEEVE	12	7~13.2	2400	35.4	2.1	160	1.92	27.5
GD128025HS	SLEEVE	12	7~13.2	2900	43.7	2.9	230	2.76	33.5
GD128025ES	SLEEVE	12	7~13.2	3200	47.4	3.6	260	3.12	36.0
GD128025LB	2BALL	12	7~13.2	2000	30.0	1.5	100	1.20	23.5
GD128025MB	2BALL	12	7~13.2	2500	37.0	2.1	160	1.92	30.0
GD128025HB	2BALL	12	7~13.2	3000	45.2	3.1	230	2.76	34.5
GD128025EB	2BALL	12	7~13.2	3300	48.5	3.8	260	3.12	37.0
GD128025EB	2BALL	12	7~13.2	4000	59.8	5.4	450	5.40	43.0
GD248025LB	2BALL	24	12~26.4	2000	30.0	1.5	60	1.44	23.5
GD248025MB	2BALL	24	12~26.4	2500	37.0	2.2	80	1.92	30.0
GD248025HB	2BALL	24	12~26.4	3000	45.2	3.1	130	3.12	34.5
GD248025EB	2BALL	24	12~26.4	3300	48.5	3.8	150	3.60	37.0
GD488025LB	2BALL	48	24~56.0	2000	30.0	1.5	30	1.44	23.5
GD488025MB	2BALL	48	24~56.0	2500	37.0	2.2	50	2.40	30.0
GD488025HB	2BALL	48	24~56.0	3000	45.2	3.1	90	4.08	34.5
GD488025EB	2BALL	48	24~56.0	3300	48.5	3.8	110	5.28	37.0

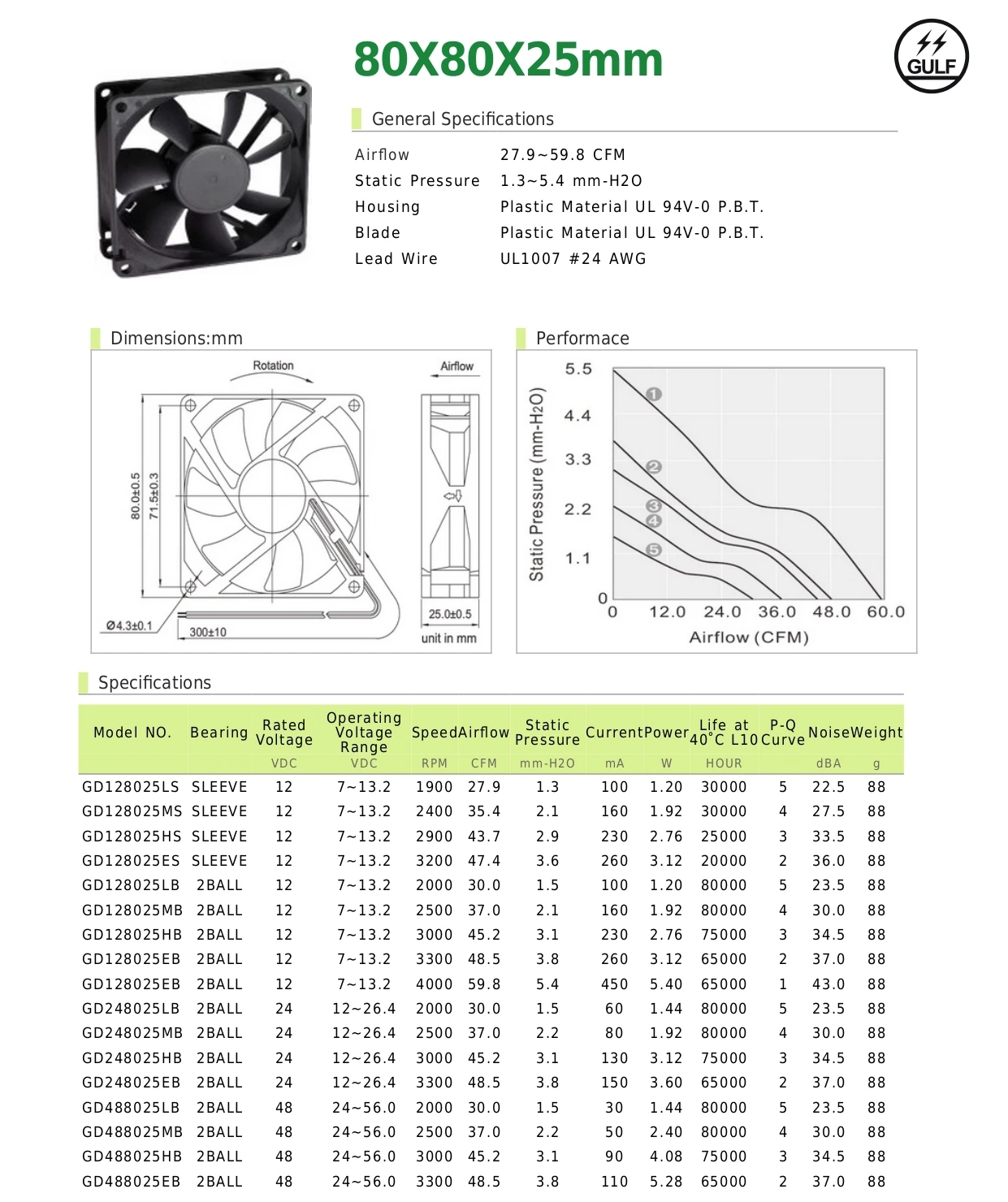

GD128025EB spec.jpg
