19 дюймов водонепроницаемый открытая рамка УВИДЕЛ сенсорный экран монитора
- Category: Monitors >>>
- Supplier: KeeTouch Co. Ltd.
Share on (62010435407):
Product Overview
Description
Product Description
19 inch open frame SAW touch monitor
| Model No. | KOT-0190US-SA4BCW (P/N:KOT-190C-013) |
| Series | OT |
| Display Type | 5:4 Ratio 19" TFT-LCD |
| Active Area | 376.32*301.06(mm) |

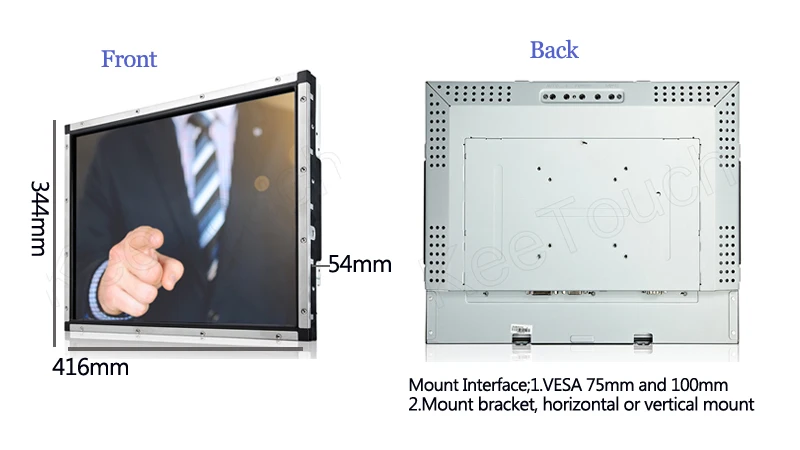

| Monitor Dimensions (W*H*D) | 416*344*54(mm) |
| Suggested Resolution | 1280*1024 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel 250cd/m2 |
| With Touch Monitor 225cd/m2 | |
| Response Time (Typ.) | 5ms |
| Viewing Angle(Typ.at CR>10)) | Horizontal(left/right) 85°/85° Vertical(up/down) 80°/80° |
| Contrast Ratio (Typ.) | 1000:1 |

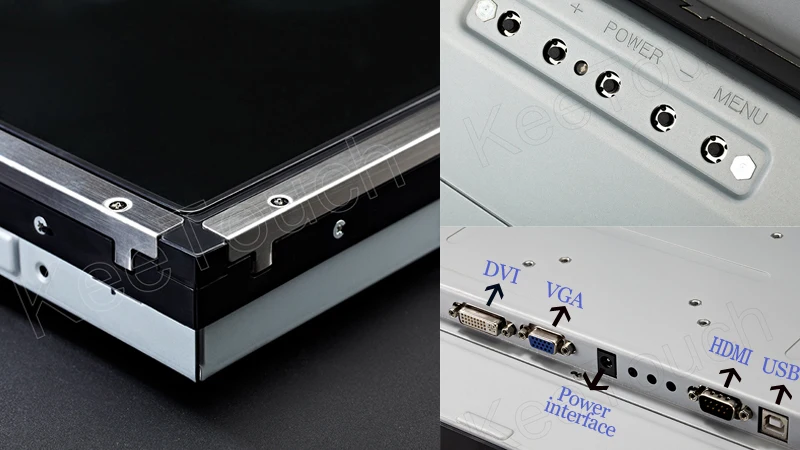

| Video Input | VGA/DVI |
| Environment | Operating Temp. 0~50°C Operating RH 20%~80% Storage Temp. -20~60°C Storage RH 10%~90% |
| LED Back Light Life (Typ.) | >50,000 Hours |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤20W |
| Mount Interface | 1.VESA 75mm and 100mm |
| 2.Mount bracket, horizontal or vertical mount | |
| Agency approvals | ISO, Intertek, FCC, CE, CB, UL, RoHS, TCO |
| Regular Warranty | 1 year (2-3 year optional) |
Product Description
1.The IP65 waterproof seal standard.
2.Compact size, easy to install, and a variety of mounting options, including horizontal mounting bracket mounting, vertical mounting bracket mounting, VESA standard mounting, and customer self-designed mounting.
3.USB and Serial (RS232) touch interface for flexible customer selection.
4.The product has a long life cycle, and the upgrade or replacement of the LCD screen does not cause external dimensional changes.
5.High brightness, high contrast, fast response time, multi-color support, wide viewing angle.
Detailed Images
| Custom options | |
| Size: | 8~55" |
| Brightness: | 250cd/m2-1500cd/m2 |
| Resolution: | 800x600-19080x1090 |
| Touch Panel: | Saw touch .PCAP touch ,IR Touch.Resistive Touch |
| Interface: | VGA/HDMI/DVI/AV/Audio in/out Rs232 |
Performance Customization: | Anti glare/Anti-Vandal/Anti-EMI/Wide Temperature(-40℃~90℃) Waterproof (IP65/IP67 Optional) |
Special requirements require special products.If you have a custom need.you can contact us .Our professional R&D team will assistance you .
<<<Click here to tell us your special requirement.
(our R&D Team is always available to help answer any and all your technical questions.)
Product Application
Packaging & Shipping
Our Services
Why Choose KeeTouch ?
13 years experience
Founded in 2006 with an authorized capital of 14 million yuan (2.33 Million USD), keetouch is a professional
touch screen,Touch monitor manufacturer for over 13 years’ mature factory experience.
Factory you can trust
KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001.
In 2012.KeeTouch was awarded the high and new technology enterprise of china and recognized by the chinese government.
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick
after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
Strict QC Before delivery
The shipment you receive is inspected by strict QC,Such as burn-in test, anti-vibration test and working temperature test to ensure quality.
Company Information
KeeTouch is a High and New-Technology Enterprise, integrating development, manufacturing and sales in-house since 2006. We provide touch screen, touch monitor, all-in-one touch computer and OEM products with ETL,UL,CE,ISO 9001 and ISO14001 authorized.
The company expand rapidly, employing more than 200 staffs and 45 trained R & D engineers. we have five production lines including three touch screen lines, one touch monitor lines and one hardware accessories line.
KeeTouch has already formed State-Of-The-Art equipment quality equipment, which enables us to control over every aspect of the production.
Nowadays, our branches offices widely spreads in Russian, Brazil, Germany and India, offering worldwide sales networks and after-sales service system.
FAQ
Q: Does the touch screen require software to enable it to work on my PC?
A: Our Touch products supports Microsoft Windows7/8/10/XP, Linux and Android
operating systems and it’s pnp. If you are using any other operating system, our engineer
manager will discuss this with you and ensure all the systems meet all of your requirements.
Q: When I use the touchscreen, the mouse cursor doesn't follow my touch,
how can I fix that?
A: If the mouse cursor doesn't correspond to the location of your touch,then you will need to run
calibration or upgrade the firmware. If the issueis still cann’t be dealt with,our engineer will figure
it out for you and discuss with you to solve this problem to your satisfactory.
Q: Will these touch screens connect to any PC?
A: Yes, the touchscreen connects to any PC with a standard VGA/DVI/HDMI video port and a
serial (RS-232) or USB port.
Q:What is your warranty period?
A: 12month warranty is a standard for all the products sold to customers.
2-3 years Warranty (optional).
Q: What’s your minimum order quantity?
A: We have no limit for MOQ, so you can take a sample for you check quality and function.
Q: Do you provide OEM service?
A: We have 40+ Professional R & D engineers to meet your requirements and offer professional
assistance to you .
Q;What payment methods your company accept?
A;We accept T/T,L/C,Western Union,Pay Later,Boleto,Credit card ,paypal and eChecking, Alipay.
For bulk order: deposit T/T in advance and the balance before the shipment(L/C can be negotiated)
