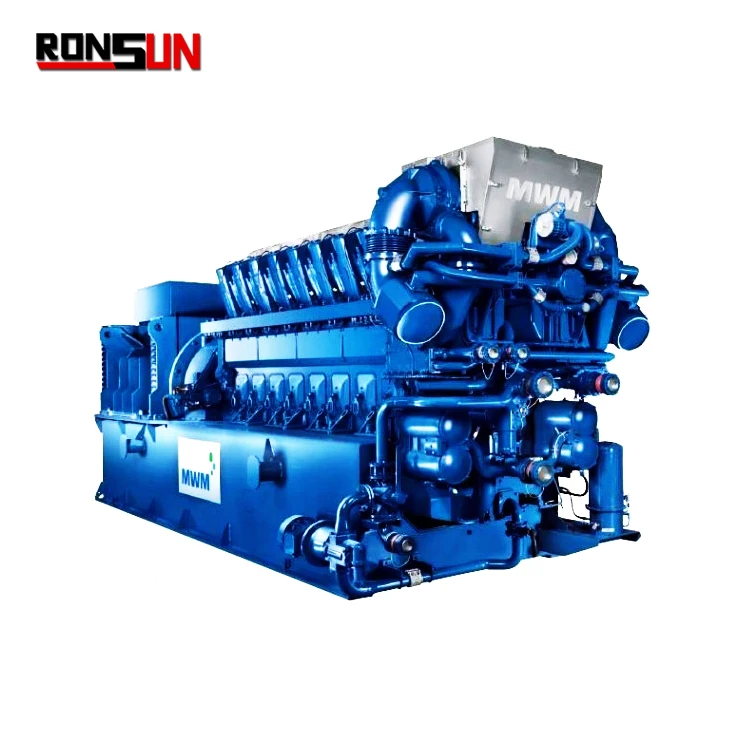

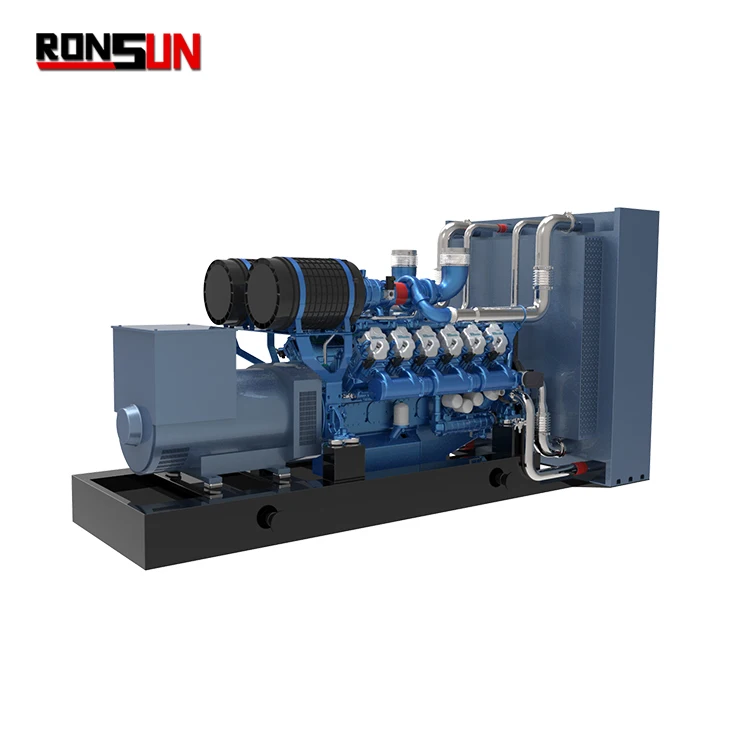

500kW 625kvA biomass/syngas generator with world famous brand engine
1)10500V, 6300V, 400V high, medium and low voltage output can be customized according to the need, lower initial investment and operating costs, can both parallel operation and use directly with the load, to meet the different needs of users.
2)Having advantages such as large diameter, long stroke, low speed and big power reserve, more suitable for low pressure gas than high speed machine, power output is stable and constant.
3)Low speed greatly reduces gas engine components wear, extends the service life span, and reduces the components inventory.
4)Inline structure simplified engine layout and convenient for maintenance.
5)Naturally aspirated gas intake system, no turbocharger, intercooler and other equipment, adapting to a wide range of gas, low failure rate, have obvious advantages.
6)The inner mixing gas generator set, realizing gas and air intake separately and co-combustion in the combustion chamber, can be adapted to safety use of high hydrogen gas, no tempering and blasting danger.
7)Intake system is configured with emergency shut-off valve, flame arresters, valves, and other explosion protection facilities, alarm protection measures are taken to ensure the safe operation of the unit.
Packaging & Shipping
sea worthy package & door to door service
Our Services
1)Before-sale Service: we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service
Technical Data
500kW 625kvA Biomass/syngas/wood gas Generator Set
| Product Type | biomass/syngas/wood gas generator set | |
| Genset Model | LH-500GFT | |
| Rated Power | 500KW/625KVA | |
| Rated Frequency | 60Hz | |
| Phases Arrangement | 3P 4W | |
| Rated Voltage | 450V | |
| Rated Current | 802A | |
| Rated Power Factor | 0.8 | |
| Engine | Engine Series | RONSUN |
| Engine Model | LH550-8300.2160G | |
| Engine Power | 550KW | |
| Rated Speed | 500rpm/600rpm | |
| Cylinde Qty | 8 | |
| Bore | 300mm | |
| Displacement | 216L | |
| Air Intake Method | Natural Aspirated | |
| Exhaust temperature (℃) | ≤550 | |
| Start Method | Compressed air start | |
| Heat consumption(MJ/kW·h) | ≤11.0 | |
| Rotate direction(From flywheel) | Clockwise | |
| Oil consumption(g/kW·h) | ≤0.8 | |
| Alternator | Brand | SIEMENS |
| Model | 1FC6 408-4LA4 | |
| Dimension(L*W*H) | 6500×1620×2850 | |
| Net Weight | 22300kg | |
Gas requirements
Biomass gas should be subject to appropriate tar cleaning, filter, gas-liquid separation, and pressure regulation. If the temperature is too high, should also be through cooling treatment, and ensure no liquid ingredients in the gas. Gas temperature≤ 40℃, gas pressure 2.5~10kpa, pressure change rate≤1kPa/min, tar content≤50mg/Nm3, H2S≤50mg/Nm3, NH3≤20mg/Nm3, moisture content≤20mg/Nm3, impurity size≤5μm, impurity content≤30mg/Nm3, calorific value≥4MJ/ Nm3.
Ronsun gas genset description:
1. 10-1000kw(12.5kva-1250KVA) gas generator (Natural gas/Biogas/ LPG,biomass etc) with Deutz,Man,Steyr,Cummins brand engine etc.
2. Alternator "Marathon" "Leroy Somer" “Mecc Alte” "Siemens" Brand 100% copper brushless alternator. Brushless excitation and "H" class insulation.
3.Controller : Deepsea,comap,smartgen etc.
4. Super silenced canopy / container type canopy
5. Longer life: Special design engine has longer life and overhaul time of 25000hours
6. Moistureproof and derusting processing, effectively protect the generator from humid weather
7. High quality steel
8. Green environmental protection paint
9. Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
10. Advanced reasonable structure, high efficiency, low vibration and noise, smooth running, good reliability, easy handling. It is widely used in national defense, telecommunications, field construction, high-rise buildings, commercial buildings, industrial and mining enterprisers, oil fields,roads, ports, villages, banks, hospitals etc.
11. ISO, CE approval
12. Warranty: 1 Year
Application area:
Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry
Biogas generator : dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill
LPG generator : Crude oil industry
Biomass generator: agriculture straw, wood chips etc.
