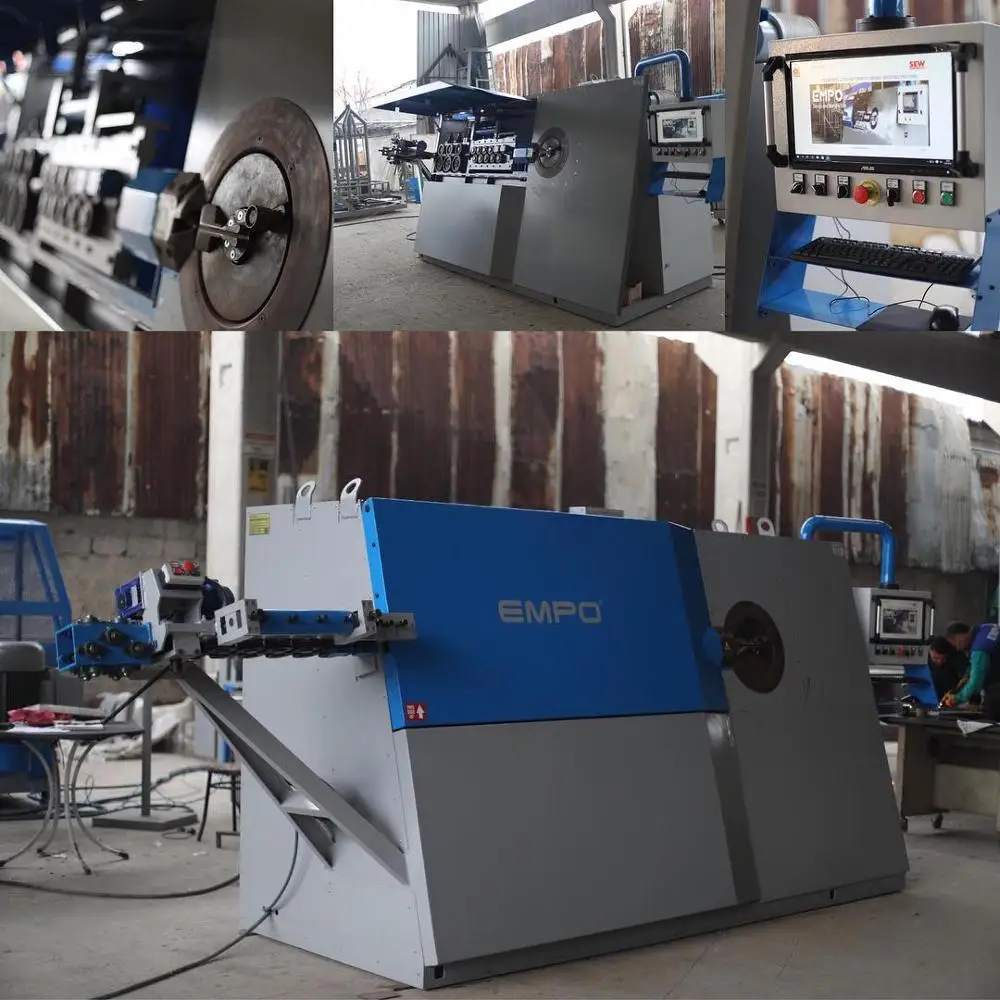

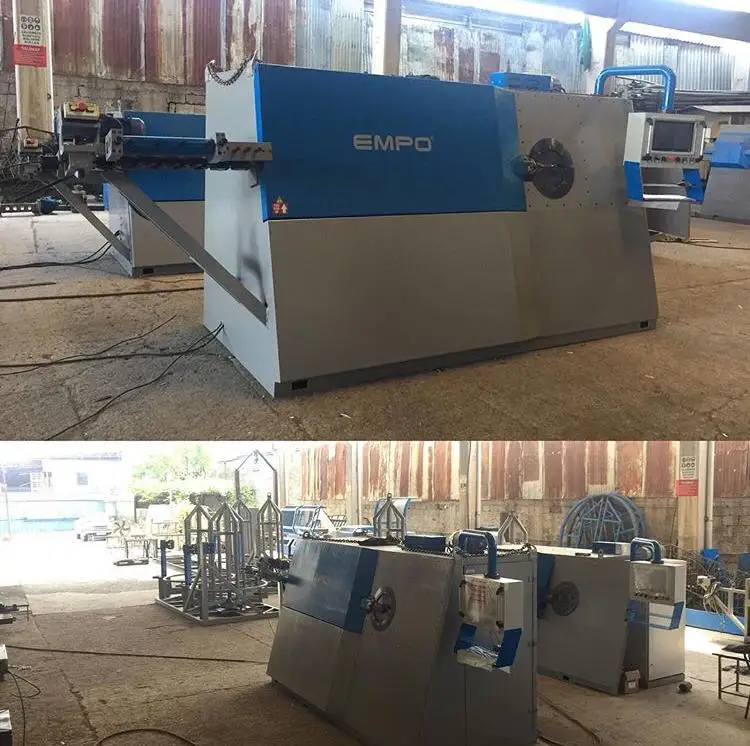

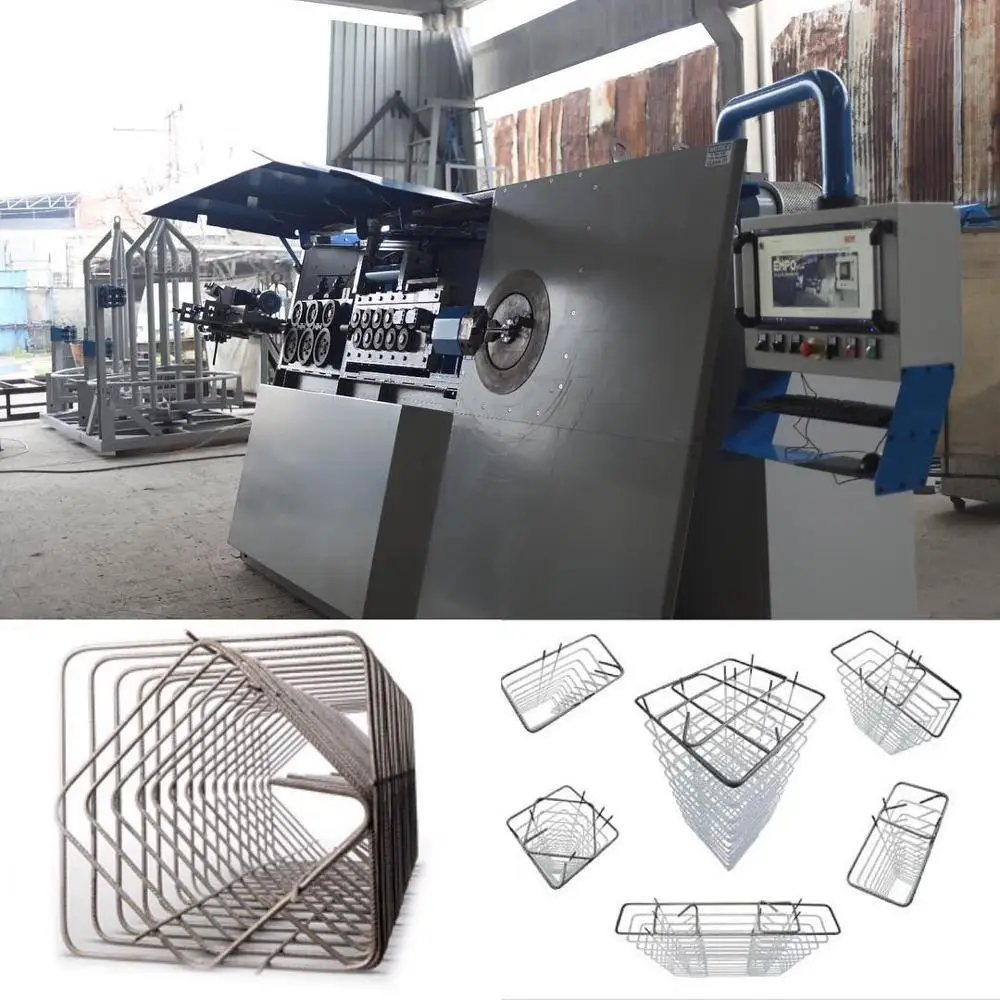

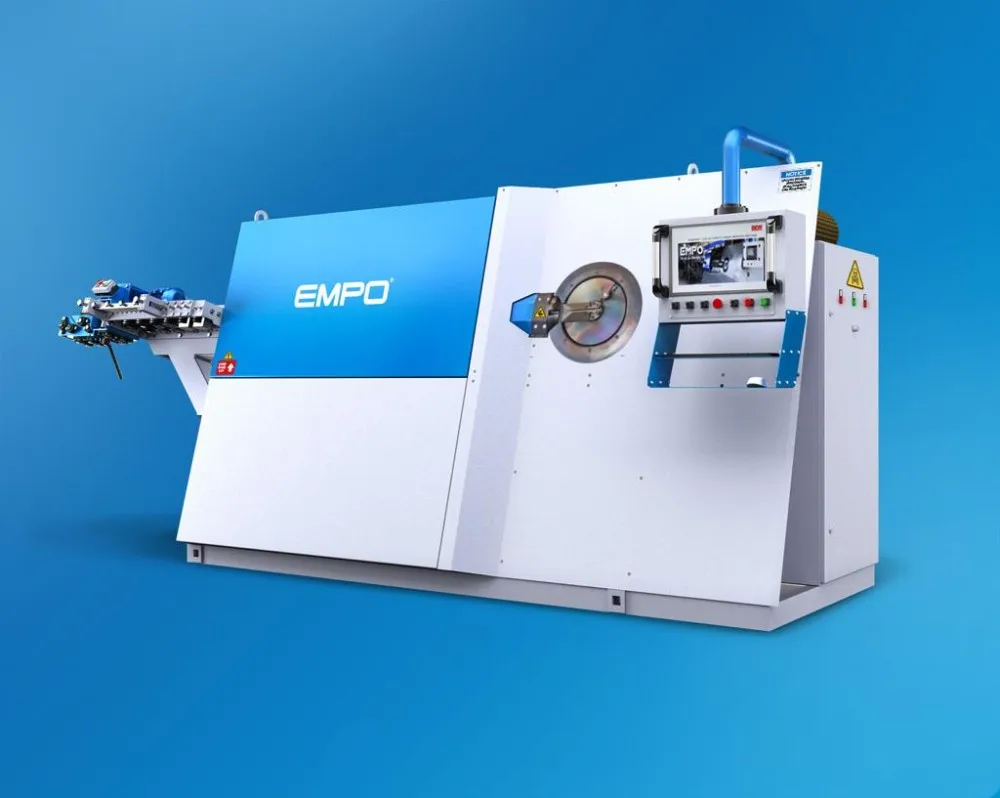

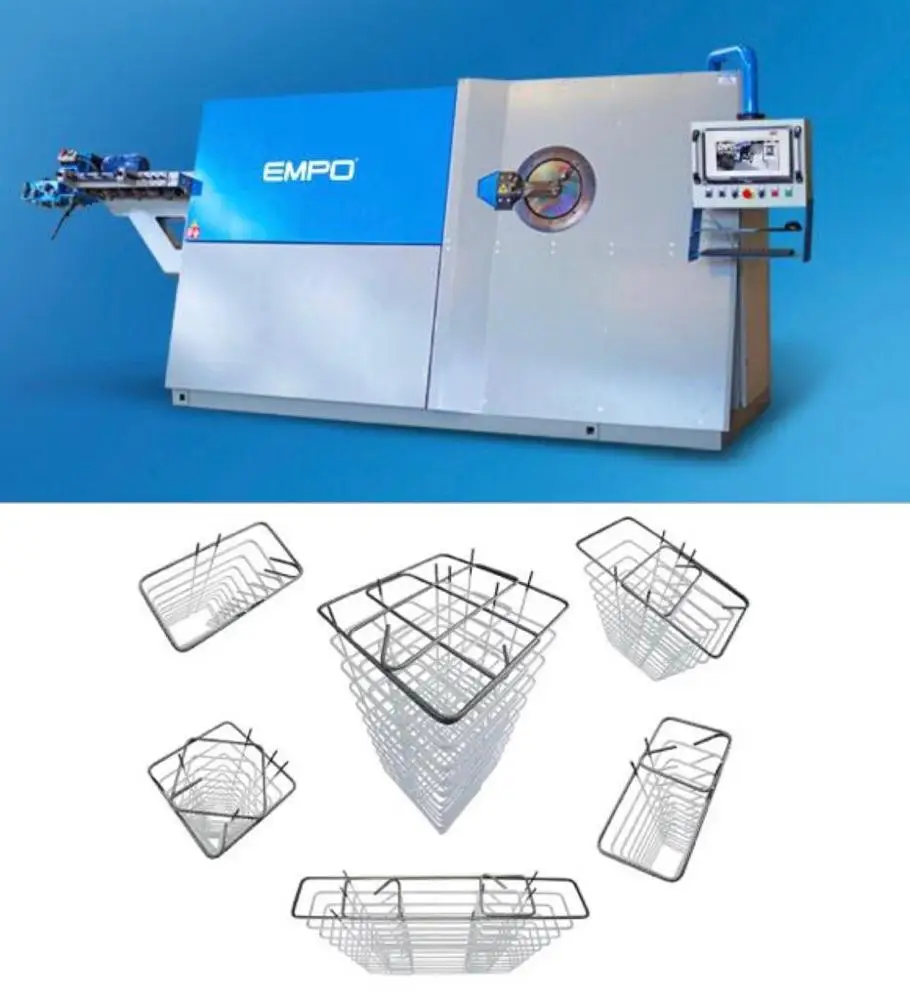

Stirrup Rebar Bending Machine

Model ROBOMAT-2212
Production Capacity Single Wire 10-12mm
Double Wire 6-8mm
Max.Bending Opportunity CW&CCW /Bidrectional
Max.Driving Opportunity Manuel & Automatic Forward &Backward
Rated Power 2 Servo ServoMotor 7.5Kw+5.5Kw
Driving Motor 7.5Kw (Servo Motor)
Bending Motor Power 5.5Kw (Servo Motor)
Length Tolerance +/-1mm
Bending Tolerance +/-10
Drivin Speed 90m/minutes
Bending Speed 12000 /min.

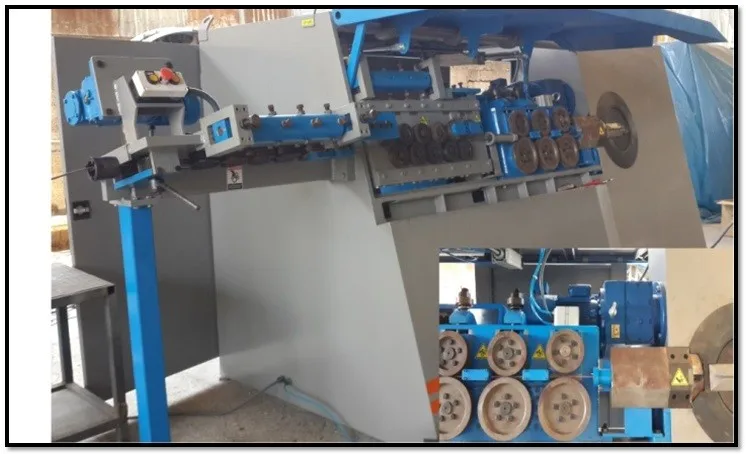

Pre-Straightening Unit X&Y Axis Multipla Rollers
Control Units
Operator sensitive /friendly program ,Shapes can be easly created helping with angles &length by operator.The program was written by SEW Engineer.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certification ISO CE

Detailed Images

Machine Parts

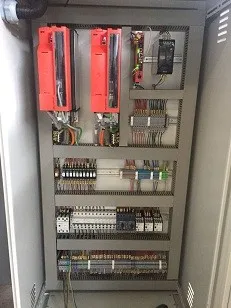

Name: SERVO DRIVERS

Brand: SEW EURODRIVE

Original: Germany

Main Features

Name: SERVO MOTORS
Brand: SEW EURODRIVE
Original: Germany

Machine Parts

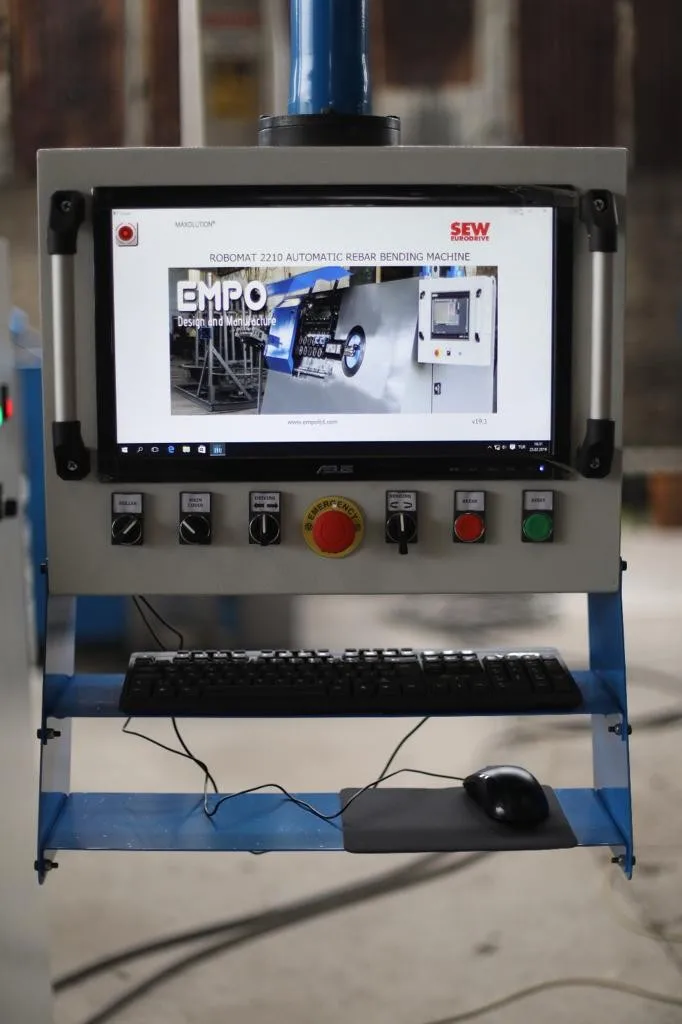

Name: Control Panel

Brand: ASUS
Original: JAPAN

Main Features

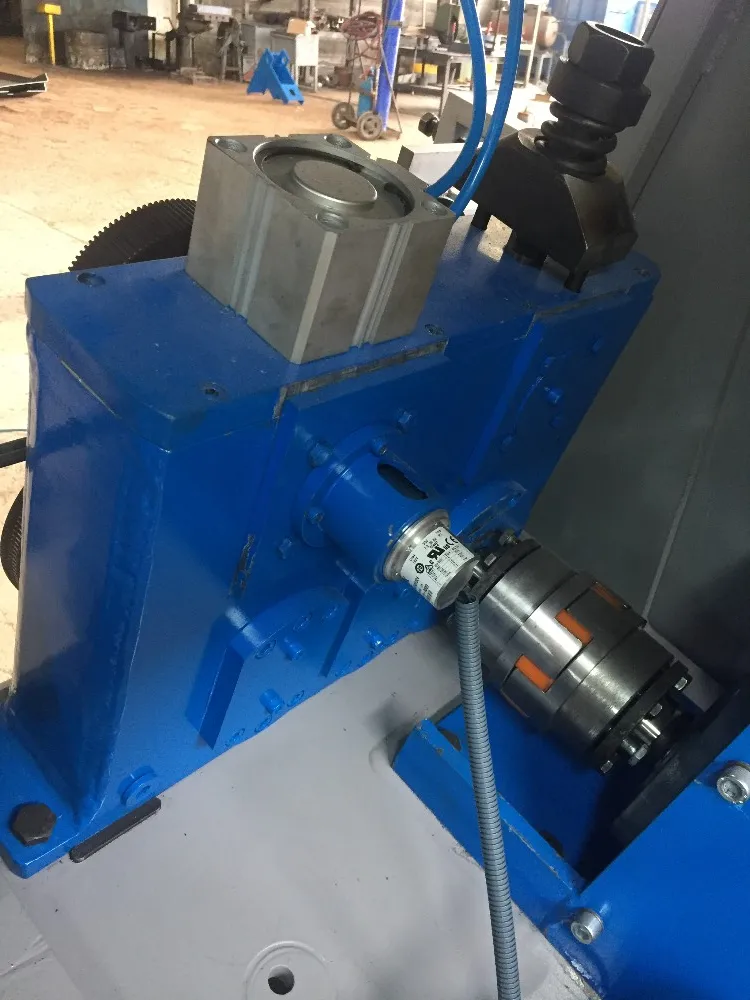

Name: PNEUMATIC PISTONS
Brand: FESTO
Original: Germany

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1530 (L) * 4560 (W) * 1789 (D)
Weight	2750 Kg
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1530 (L) * 4560 (W) * 1789 (D)
Weight	2750Kg
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
