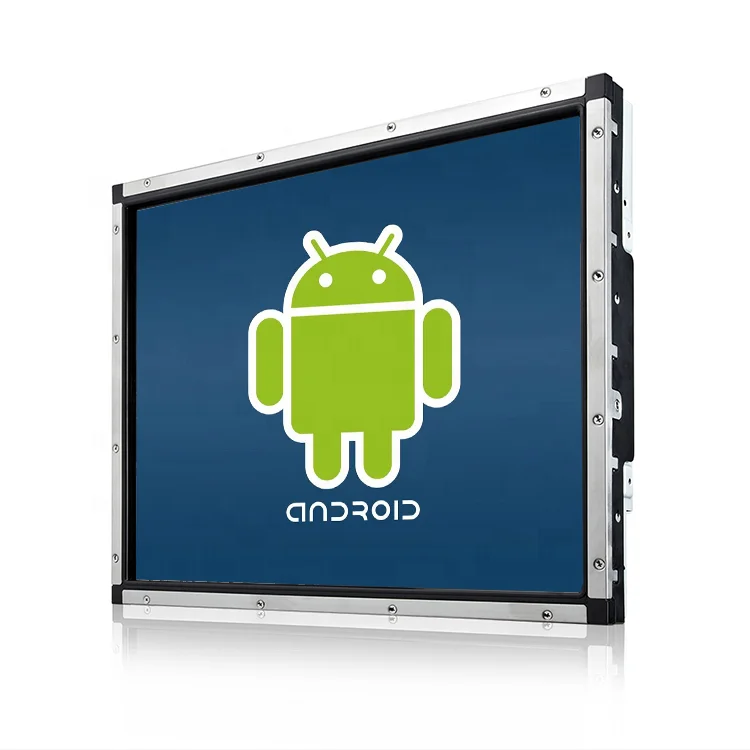

Открытая рамка Настольный ПК 15,15.6,17,19 дюймов пила TFT LCD монитор USB Type C монитор с сенсорным экраном,
- Category: Touch Screen Monitors >>>
- Supplier: KeeTouch Co. Ltd.
Share on (62010701641):
Product Overview
Description
Product Description

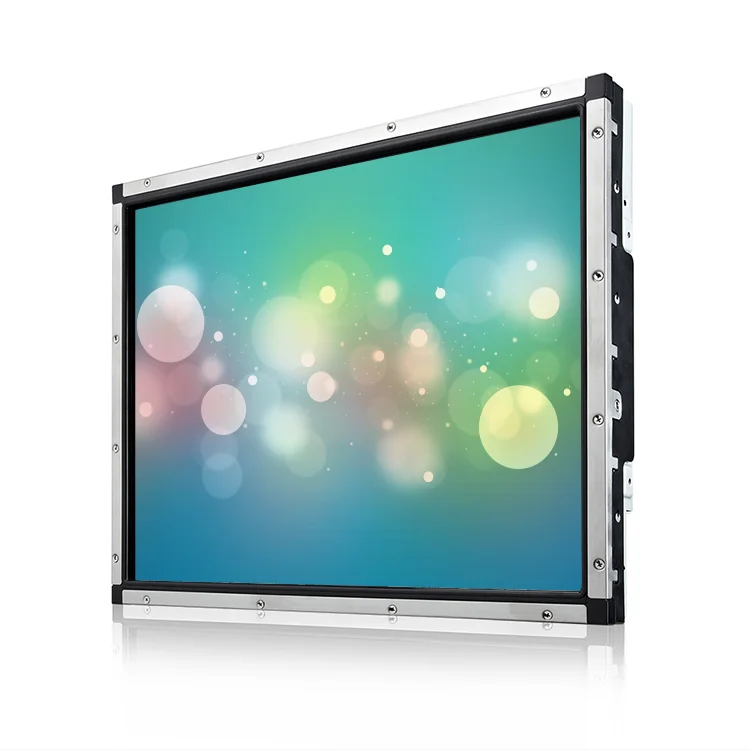

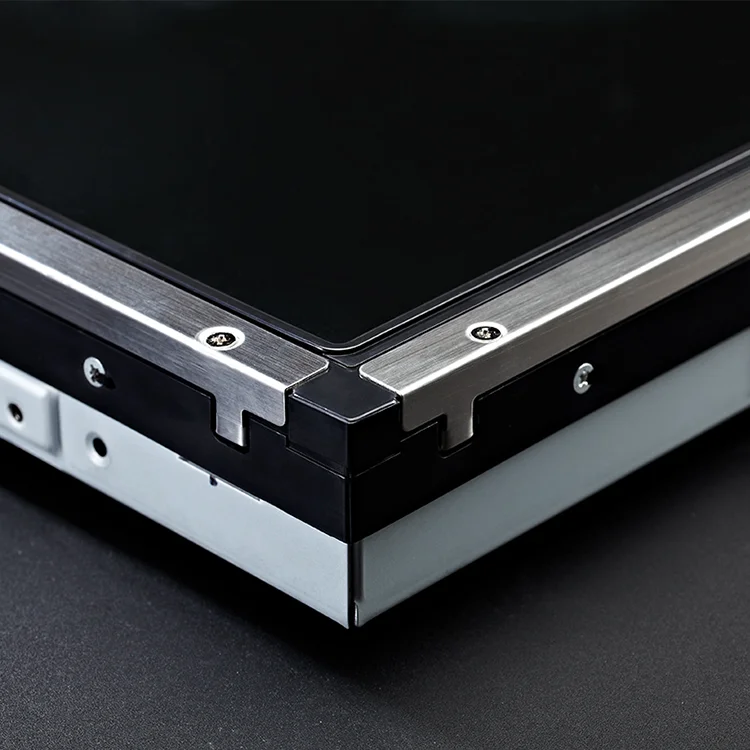

high quality table pc 15.6 inch open frame SAW screen TFT-LCD monitor USB interface
PRODUCT FEATURES Model No: |
KOT-0156U-SA4BP |
| Series: | OT |
| Display Type : | 16:9 Ratio 15.6" TFT-LCD |
| Active Area : | 344.23*193.54(mm) |
MonitorDimensions(W*H*D) : | 388.5*237.5*39(mm) |
| Suggested Resolution: | 1920*1080 @ 60Hz |
| Support Colors: | 16.7M |
Brightness (Typ.) :
| Pure LCD Panel220cd/m2 |
| With Touch Monitor 200cd/m2 | |
| Response Time (Typ.): | 5ms |
| ViewingAngle(Typ.atCR>10)): | Horizontal(left/right)45°/45° Vertical(up/down) 15°/35° |
| Contrast Ratio (Typ.) : | 650:1 |

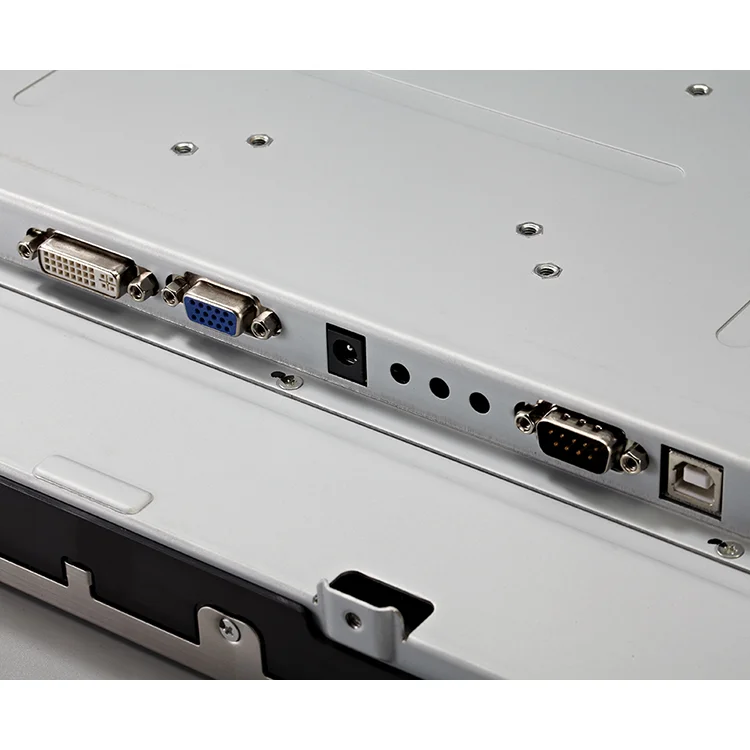

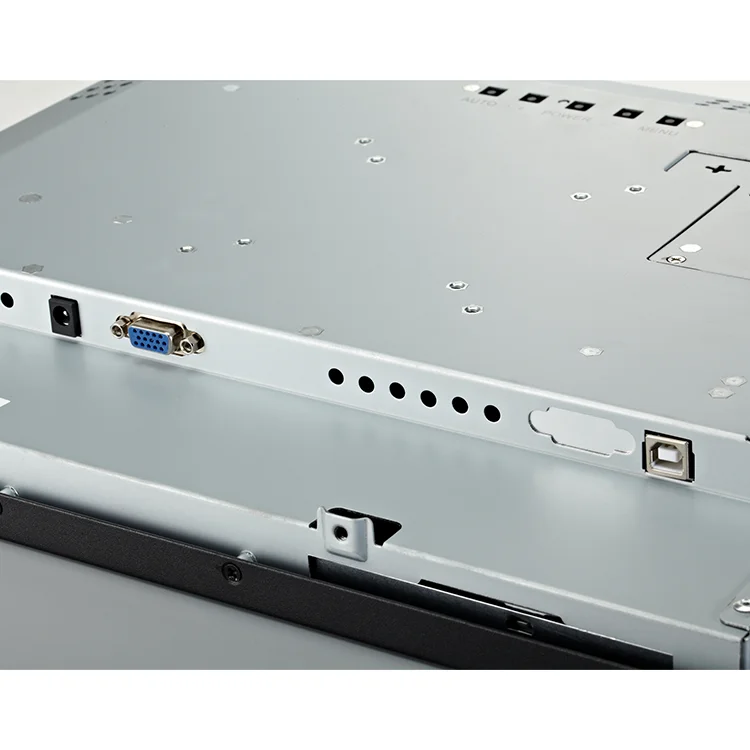

| Video Input : | VGA/DVI |
Environment:
| Operating Temp. 0~50°C Operating RH 20%~80% Storage Temp. -20~60°C Storage RH 10%~90% |
| LED Back Light Life (Typ.): | ≥30,000 Hours |
Power Consumption: | Standby Power: ≤1.5W / Operating Power: ≤15W |
Mount Interface:

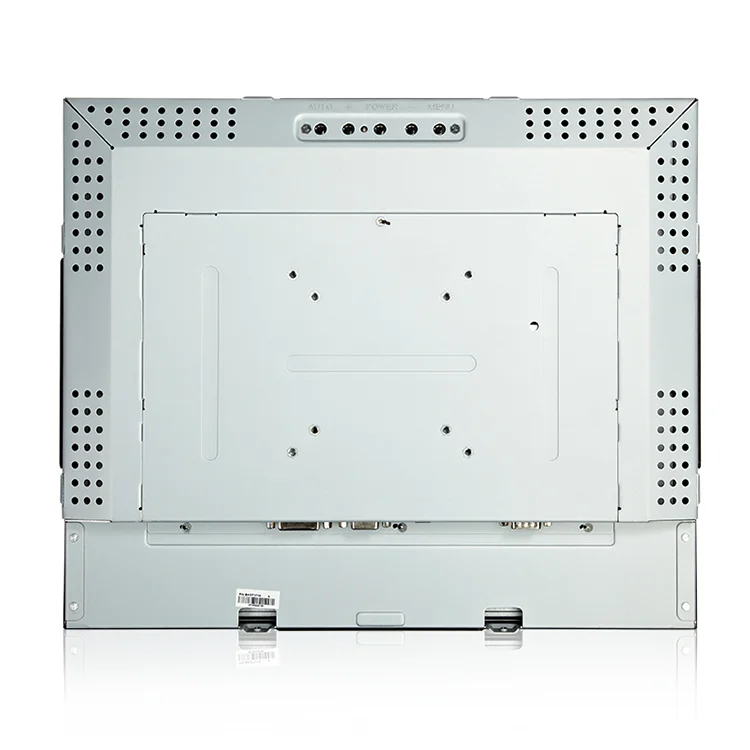

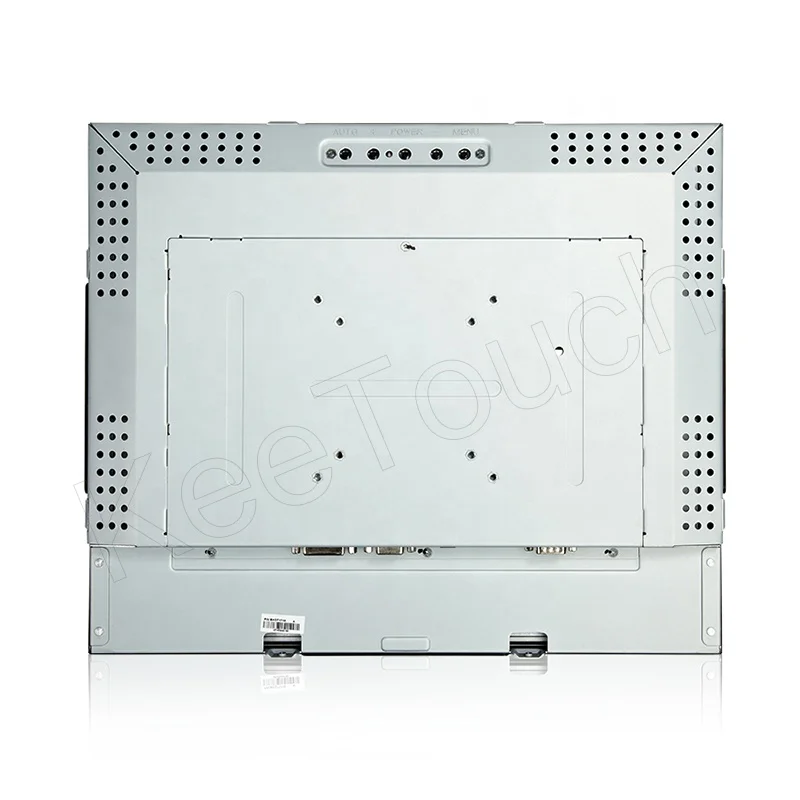

| 1.VESA 75mm and 100mm |
| 2.Mount bracket, horizontal or vertical mount | |
| Agency approvals: | CCC, ETL, FCC, CE, CB, RoHS |
Regular Warranty:
| 1 year |
Company Information
Packaging & Shipping
FAQ
Q: Software
A: One of our project managers will sit down with you and plan your system,such as Windows, Linux,IOS and we will then present content designs and a roadmap. Throughout the process we will liaise with you in order to ensure the system to meet all of your requirements.
Q: Low Sensitivity
A: The sensitivity level in the touch driver control panel can be adjusted and Level 4 is recommended.
Q:Drifting
A: If the cursor always goes to the positions which are different from the points touched, it is diagnosed as a drifting issue. There are two kinds of drifting symptom as stated below:
1. If the drifting of the cursor is regular, this kind of problem can be solved by calibration.
2. If the drifting of the cursor is irregular, it seems that there is some interference around the touch system.Please try to lower the sensitivity level.
Q: Environmental Qualification
A: Our touch monitors can be very environmentally friendly – some are made up of up to 95% recycled materials and can be recycled again once they reach the end of their lifespan. However, there are others that are made from non-degradable materials and cannot be recycled after usage.Most of our products use minimal power and can be programmed to sleep or shut down outside of business hours.
Q: Product Warranty
A: A the touch units come complete with a cover 12 month RTB warranty, and you can take out full parts and labour warranties for up to 3 years.
