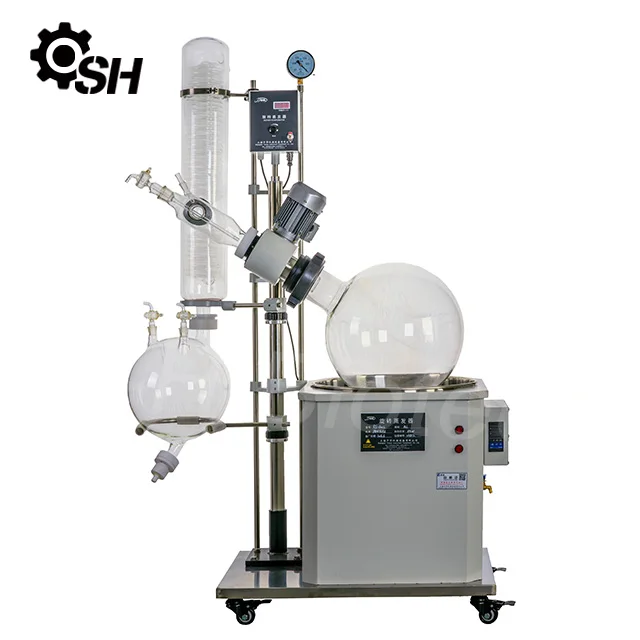

20 л роторный испаритель охладитель с вакуумным насосом

Product Overview

Description

Model	RE-1002	RE-2002	RE-3002	RE-5002
Rotary Flask (L)	10L	20L	30L	50L
Collection Flask (L)	5L	10L	20L	20L
Evaporating Speed(H2O)	>3L/h	>5L/h	>7L/h	>9L/h
Condenser Surface (cubic miter)	0.57	1	1.2	1.5
Condenser Pipe	Vertical, Main condenser+Vice condenser
Motor Power(W)	180W			250W
Rotation Speed (rpm)	3~110rmp,Digital Display			3~90rmp,Digital Display
Bath Power(KW)	3KW			6KW
Reachable Vacuum Rate	<133Pa (1.33mbar, 1 Torr)
Static Temp. Control Range& Wave(℃)	Water: RT-99  Oil: RT-180 ±0.2
Power	220V/50HZ, AC motor (ATEX Optional)
Glass Material	GG-17(3.3) High Borosilicate Glass
Heating Bath	Stainless Steel,Hand-worked lift/Motor-driven lift
Bath Size(L*W*H)	95*85*90cm	95*85*90cm	100*90*95cm	106*62*120cm
