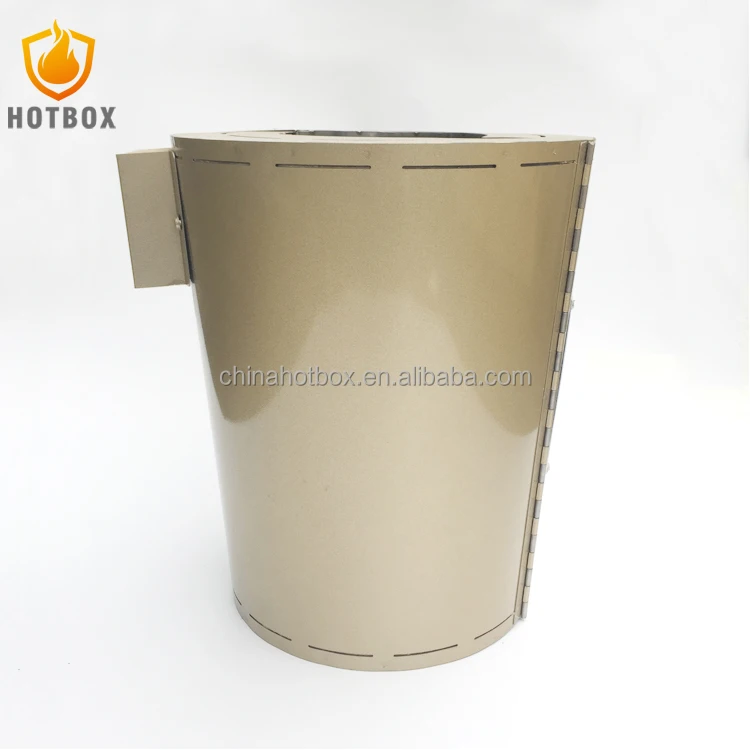

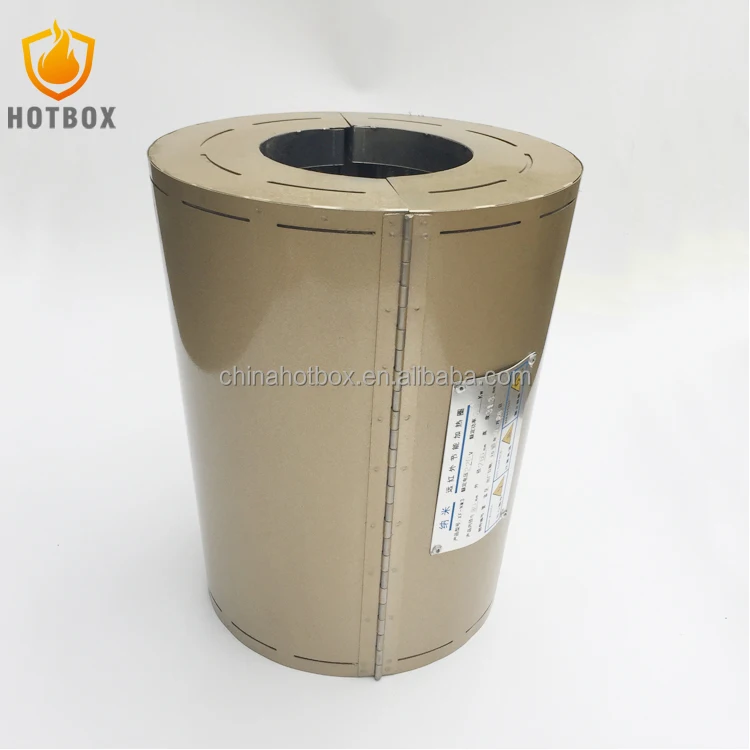

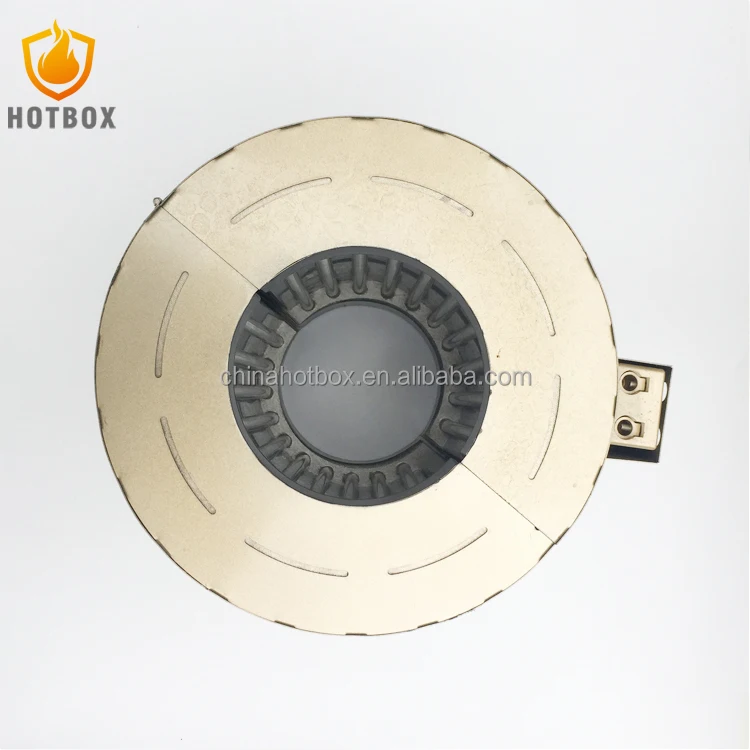

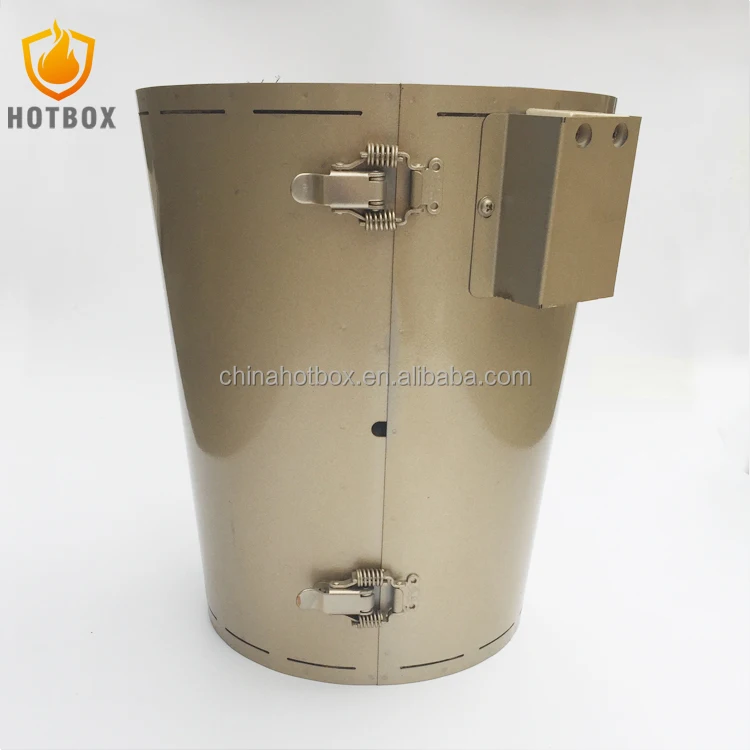

Good Performance Energy Saving Electric Nano Infrared Band Heater Supplied by Factory Directly

Energy Saving Extruder Band Heater is one of the best heating solution for plastic machines which has better structure and higher heating effciency than the traditional band heater such as ceramic or mica band heater.Infrared energy saving band heater is called nano infrared heating band,far infrared energy heating band,nano band heater etc.

Energy saving nano heaters changed the traditional heating mold,which heat the barrel directly by infrared radiation,rather than heating conduction from the resistance wire to the heater than to the barrel like traditional heaters,and the heat losing badly during the pricess.The heating efficiency of our infrared energy-saving band heater is as high as 99.8%,which is much higher than traditional heaters,the heating efficiency of which is only around 60%.

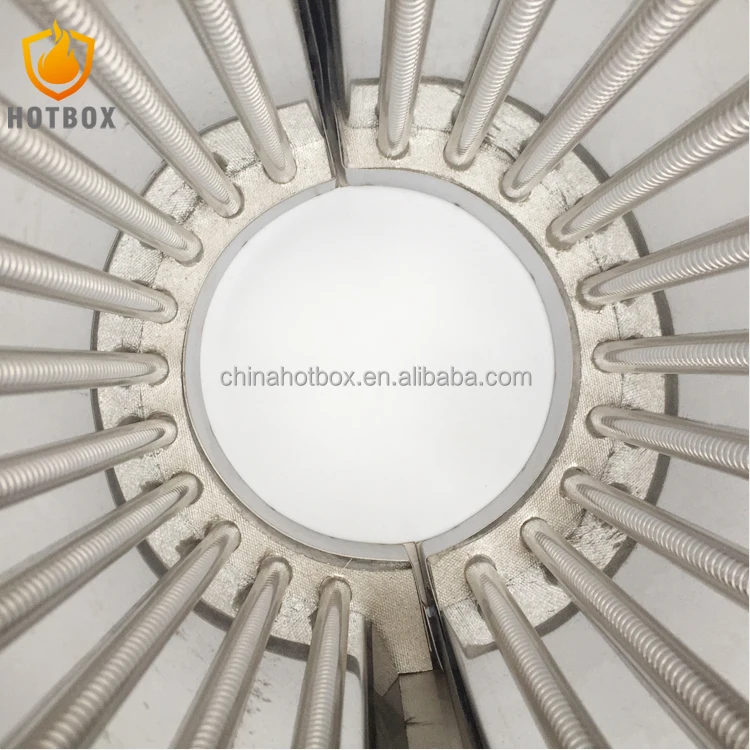

The construction of our infrared energy-saving band heater is infrared heating tube insulated by aerogel insulation and covered by stainless steel 304 shroud.Aerogel blanket is the insulation materials with smallest heat conductivity coeffiecient,which could reduce heat losing obviously.

As the infrared heating tube heat the barrel directly,and the aerogel insulation stopped heating loosing efficiently,the surface temperature of our infrared energy-saving band heater could be as low as 30-50 deg c.

Speciifcations:

1.Improve electro themal conversion rate---over 99.8%

2.Improve heat transmission effciency(zero medium heat radiation,specific wave length infrared radiation).

3.Reduce heat loss(aerogel insulation layer).

4.Energy-saving rate: 30%-60%.

5.Surface temperature is around 50C-significantly improves workshop environment.

6.Simple installation-just like installing normal resistance heaters,

7.SUS cover which is stable and long usage life.

Feature:

1.Low surface temperature,the surface temprature could be as low as 35-50 deg C.

2.High energy-saving rate,the maximum energy saving rate could reach 60%

3.High heating speed,our infrared energy-saving band heater could heat the barrel from room temperature to the working temperature rapidly,saving 50% heating-up time

4.Long service life,the normal life time of infrared energy-saving band heater is more than 3 years.

5.Simple installation,our infrared energy-saving band heater does not change the wiring,which could replace your original directly.

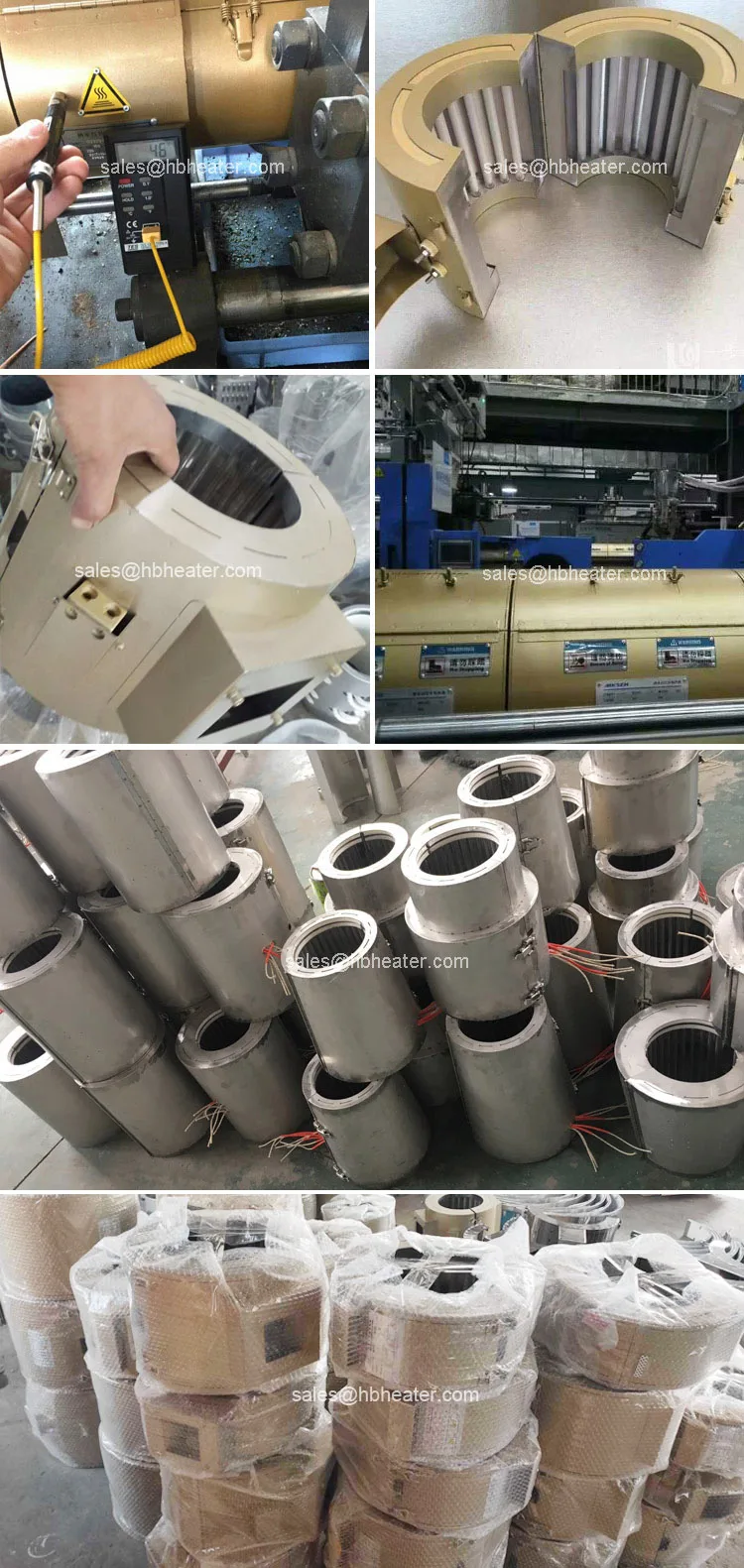

6.Wide application:injection molding machine,granulator,extruder,drawing machine,blow fim machine,blow molding machime,Laminating machine and other plastic machinery and other equipments.

1.Why the price is so low?

A:You are ording directly from the factory.

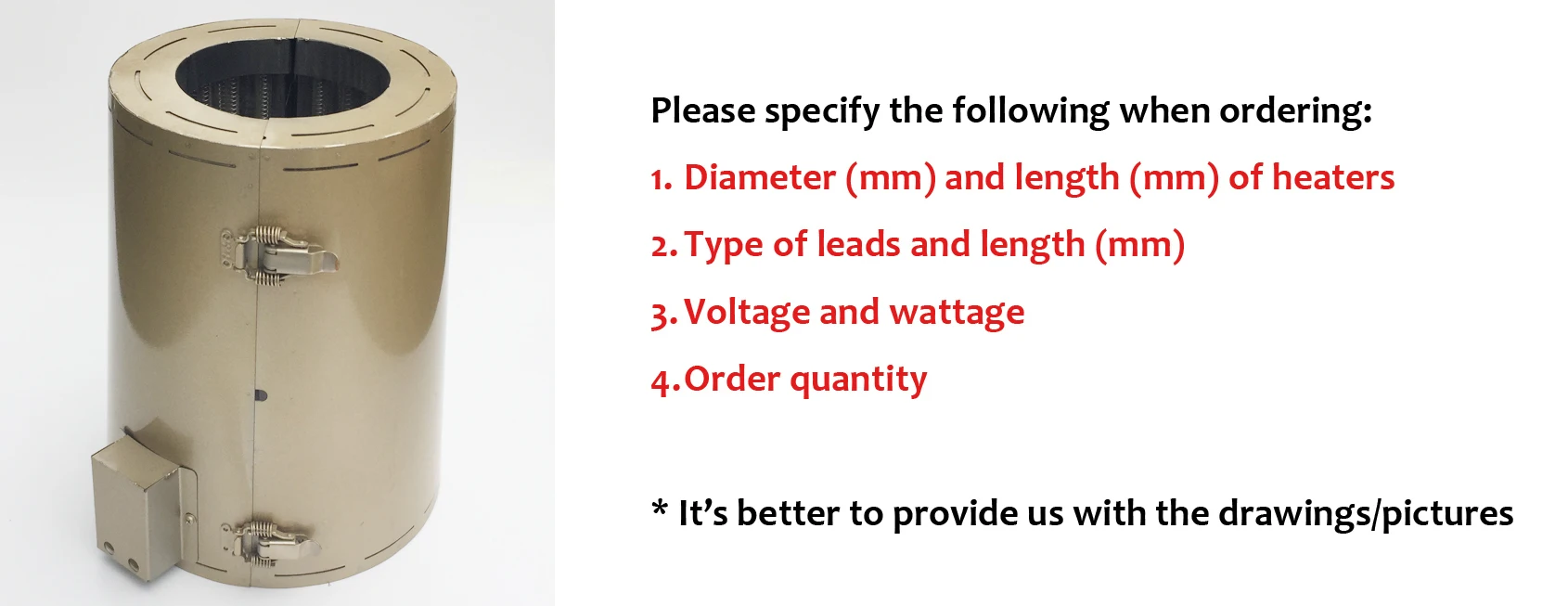

2.How can I get the quotation and specifications?

A:HotBox's heating element and temperature sensor is customized,can produce based on clients' requirments.

3.Where is your factory located?How can I visit there?

A:Our factory located in Yancheng City,Jiangsu Province,China,about 4 hours bus ride from shanghai

4.What type of payment do you have available?

A:TT and L/C are accepted,for sample,the West union/Moneygram,Aliexpress and Paypal are available

5.How can I get some samples?

A:Samples are available,just contact HotBox

6.How does your factory do regarding quality control?

A:HotBox has over 15 years experience for heating elements,quality is controlled by CE,ISO and other quality certification
