1). It is suitable for drying of granule and powder materials in pharmaceutical, food stuff and chemical industries and so on.
2). Using screw to extrude, vibrate granule and to get them dry in a high speed way.
3). Big granule, small block, particle with viscosity.
Features
1). The structure of fluid bed is round to avoid dead corner.

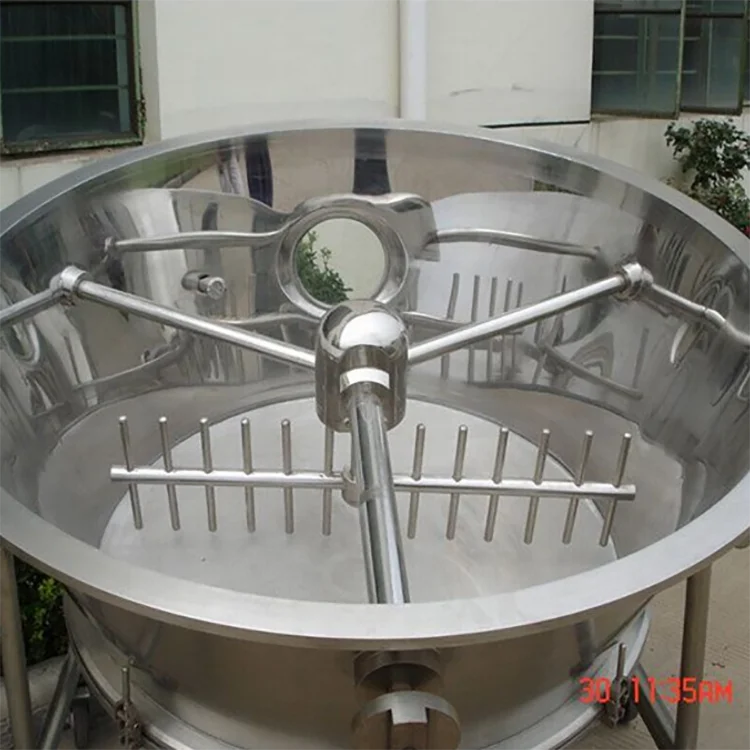

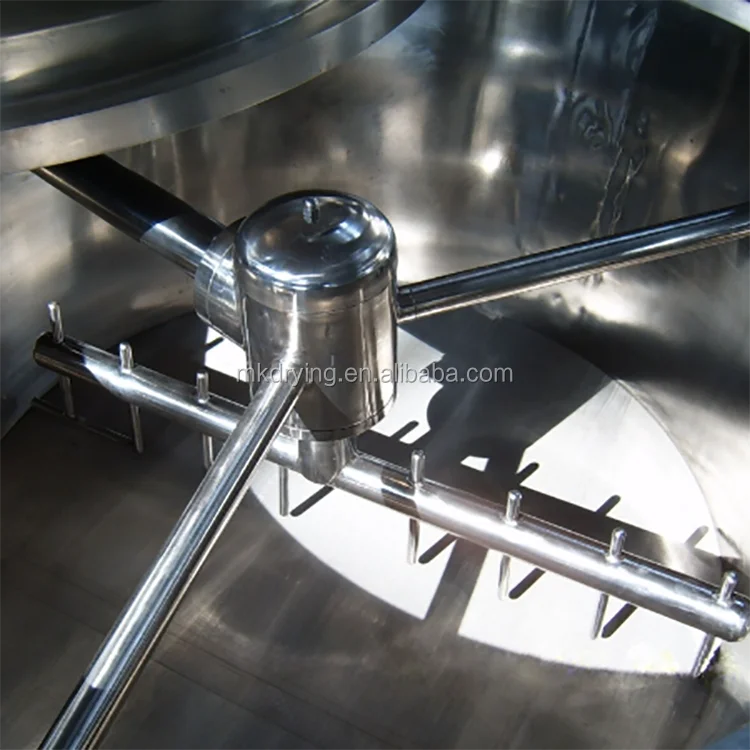

2). There is glitter in the fluid bed to avoid agglomerating of raw material and forming canal of flow.
3). Bag dust remover is made of anti-static fiber for safety operation.
4). The finished material is discharged by turning over the bottom plate which makes the dump and cleansing become fast and more convenient.
5). It is operated at the conditions of negative pressure and seal in accordance with "GMP" requirements.
Working principle
The air which is drawn by air blower through the bottom after heating up passes through net board of material hopper. Inside the chamber, the air becomes state of flow under agitating and negative pressure. The moisture is brought away after rapid evaporated. Then target material gets dried in a short time.
Technical data:
Model
GFG-60
GFG-100
GFG-120
GFG-150
GFG-200
GFG-300
GFG-500
Batch charging(kg)
60
100
120
150
200
300
500
Blower
Air flow(m3/h)
2361
3488
3488
4901
6032
7800
10800
Air pressure(mm)
494
533
533
679
787
950
950
Power(kw)
7.5
11
11
15
22
30
45
Agitating power(kw)
0.4
0.55
0.55
1.1
1.1
1.1
1.5
Agitating speed(rpm)
11
Steam consumption(kg/h)
141
170
170
240
282
366
451
Operating time(min)
~15-30 (According to the material)
Height
(mm)
Square
2750
2850
2850
2900
3100
3300
3650
Round
2700
2900
2900
2900
3100
3600
3850
Pre-service: 1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service 1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking. 3. Delivery on time; 4.Provide full sets of documents as customer’s requirements.
After-sale service 1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
