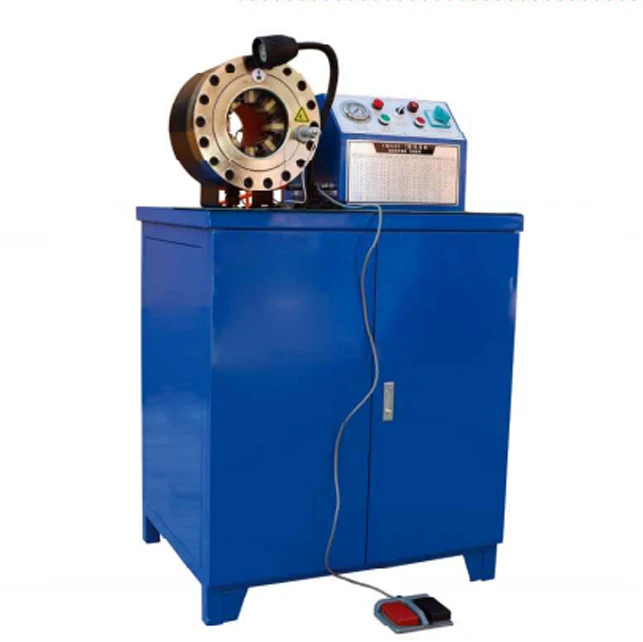

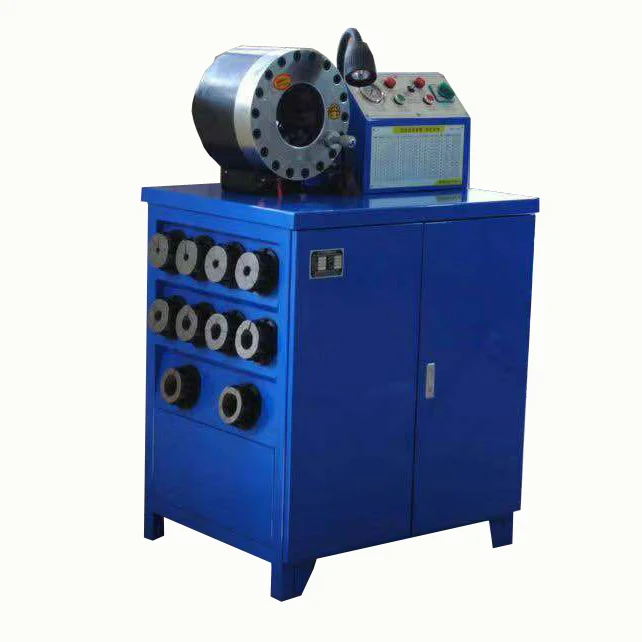

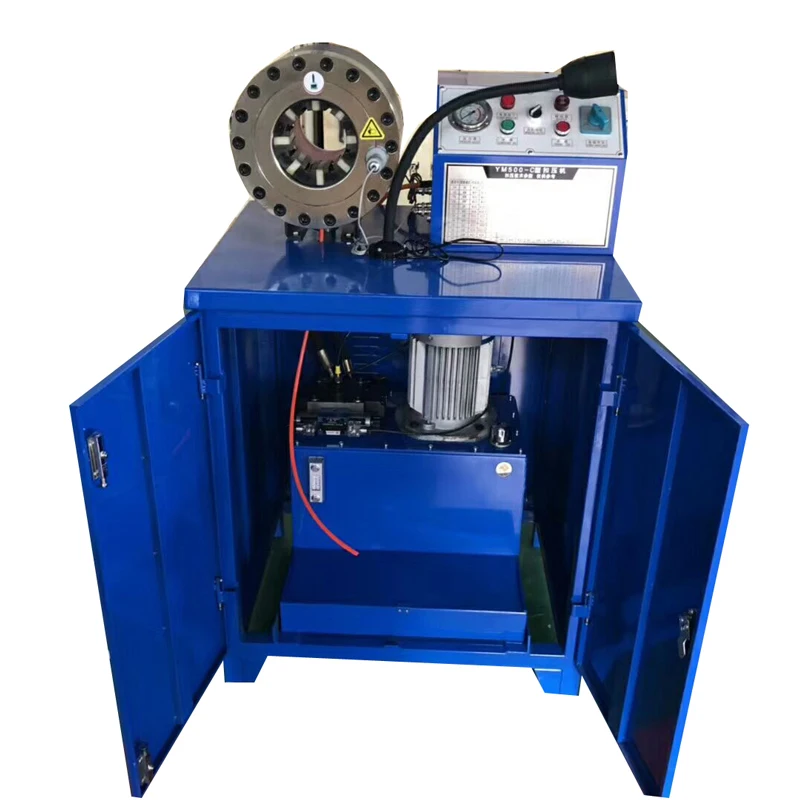

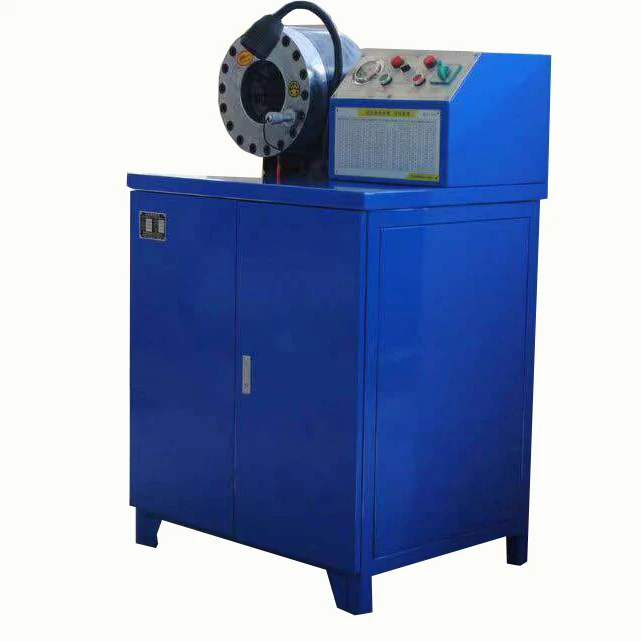

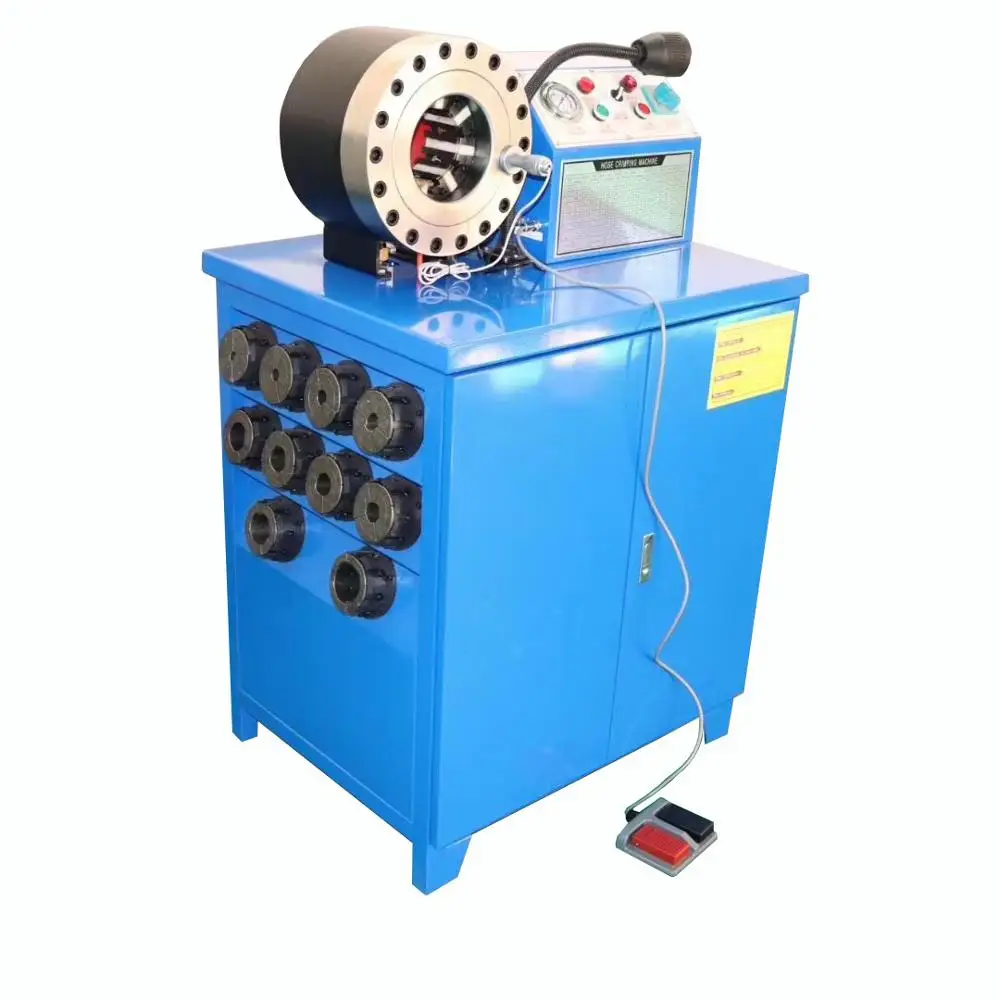

good price pipe swager JH500-C hydraulic hose crimping machine
Hydraulic Hose Crimping Machine Specifications
Hydraulic Hose Crimping Machine appliction:
1.Hydraulic Hose Crimping Machine Suitable for high precision pressing of low and high pressure hose diameter, starting from 1/8" to 2" internal hose pipe.
2. Hydraulic Hose Crimping Machine Used rubber hose to transmit hydraulic pressure as there working power.
3.Hydraulic Hose Crimping Machine Used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
Hydraulic Hose Crimping Machine is easy to crimping hydraulic hose 2inch, 4SP and eblow fittings. Base on its force is 6400KN. And max opening 125mm.
Hydraulic Hose Crimping Machine techincal data:
Crimp range | 6mm-51mm |
The amount of die | 10 sets |
Withhold accuracy | 0.01mm |
The system pressure | 31.5MPA |
Power | 3KW |
Voltage | 220V |
Optional voltage | 380V, 440V |
Buckling pressure | 500T |
Press number | 120/hour |
Type | New |
Machine size | 800*640*1300mm |
Weight without oil | 300KG |
Hydraulic Hose Crimping Machine just has two function: Hand & semi-auto.
Die information | ||||||
Hose I. D. | Die bore | Die length | Ferrule length | |||
1/4(6mm) | 15mm | 65mm | Less than 65mm 5/16(8mm) | |||
5/16"(8mm) | 18mm | 65mm | Less than 65mm | |||
3/8(10mm) | 20mm | 65mm | Less than 65mm 1/2(13mm) | |||
1/2"(13mm) | 23mm | 65mm | Less than 65mm | |||
5/8(16mm) | 26mm | 65mm | Less than 65mm 3/4(19mm) | |||
3/4"(19mm) | 29mm | 65mm | Less than 65mm | |||
1(25mm) | 37mm | 65mm | Less than 65mm 1 1/4(32mm) | |||
1 1/4"(32mm) | 46mm | 78mm | Less than 78mm | |||
1 1/2(38mm) | 51mm | 78mm | Less than 78mm 2(51mm) | |||
2"(51mm) | 63mm | 78mm | Less than 78mm | |||
NOTE: We can make speical dies as your HOSE AND FERRULE SIZE. | ||||||

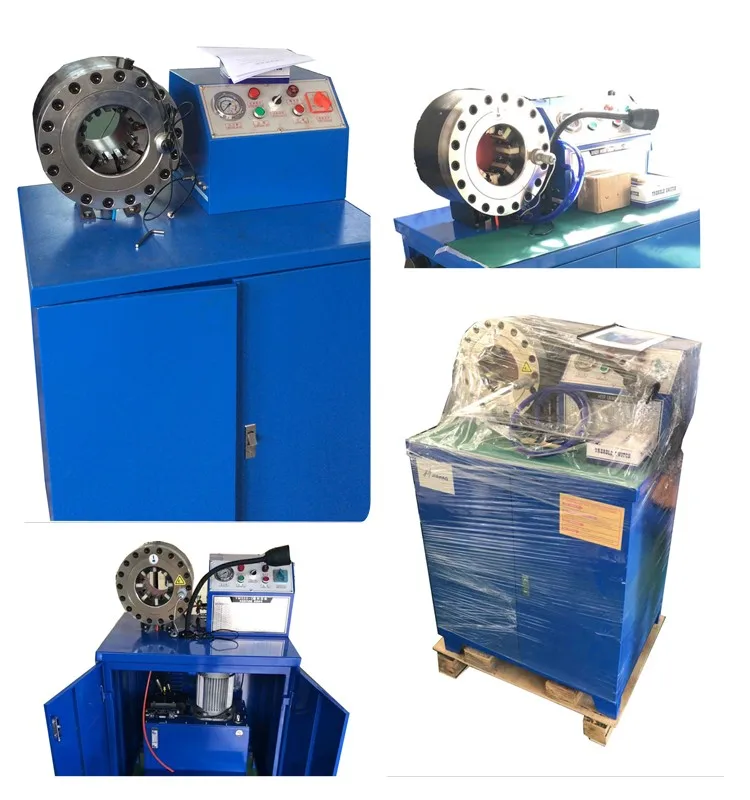

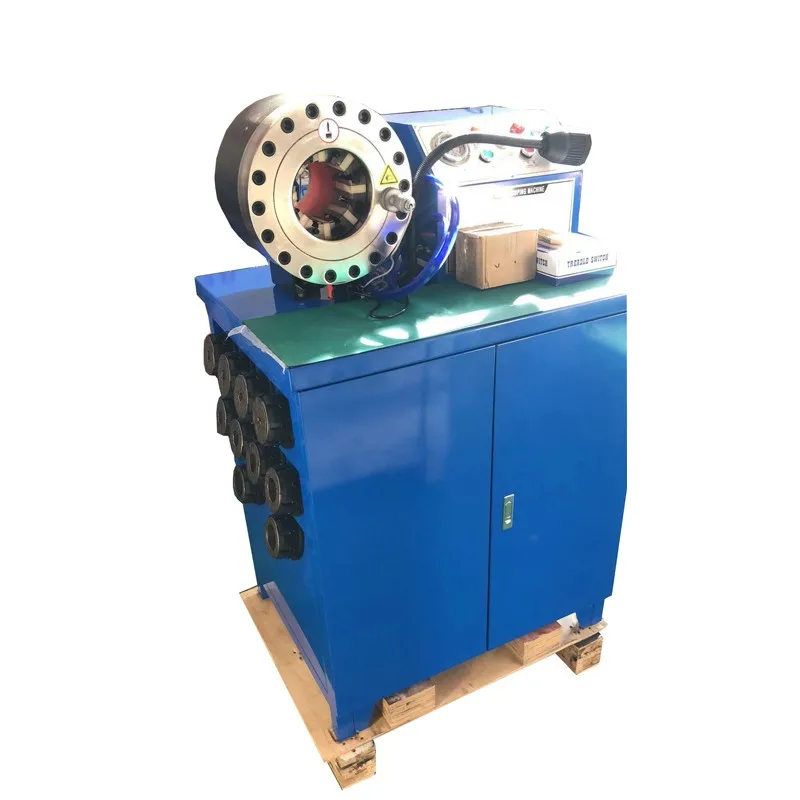

Detailed Images
