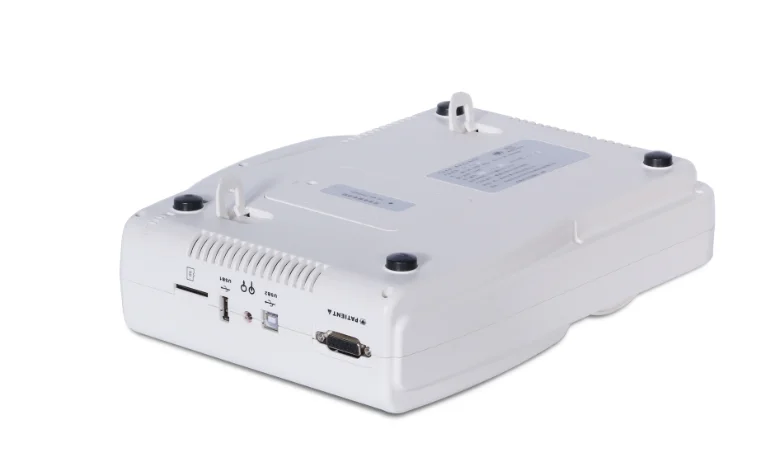

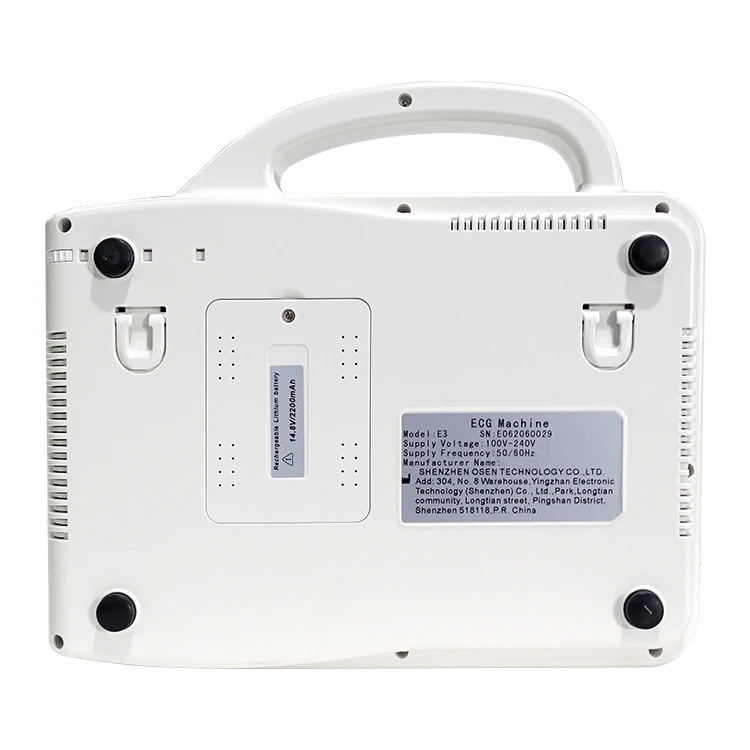

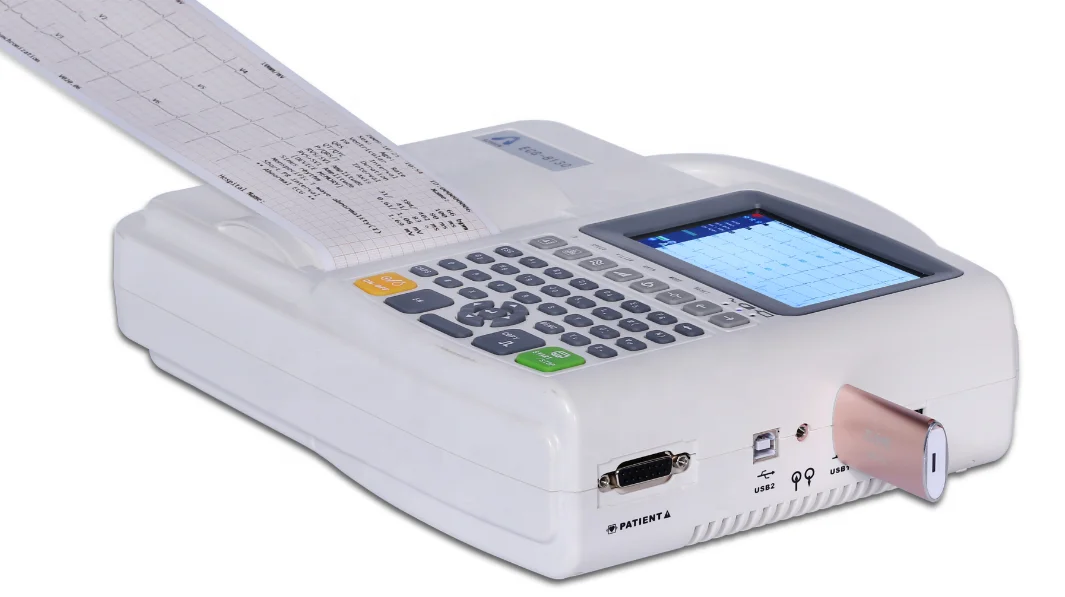

New Design Three Channel ECG Machine with Analyzer Portable 12 Lead ECG Machines with Silicone Keyboard EKG Machines
- Category: >>>
- Supplier: Shenzhen Osen Technology Co. Ltd.
Share on (62011155459):
Product Overview
Description
Product Description
New Design Three Channel ECG Machine with Analyzer Portable 12 Lead ECG Machines with Silicone Keyboard EKG Machines
E3 Technical Specication | |
Lead: Standard 12 leads | Polarization Voltage Tolerance: ≥±500mV |
Acquisition: Simultaneous 12 leads | Time Constant: ≥3.2s |
A/D Converter: 14bit | Frequency Response: 0.05 Hz～250Hz |
Sampling Rate: 1000Hz | Noise Level: ＜15μVp-p |
Working Mode: Manual/Auto | Sensitivity Threshold: ≤20μV |
Interference Filter: AC Filter and EMG Filter | Printer: Thermal printer |
CMMR: ≥100dB (with AC filter) | Paper: 80mmx20m, roll |
Input Circuit Current: ≤0.1μA | Page Speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3％) |
Input Circuit: Floating, protection circuit against debrillator effect | Sensitivity: 10mm/mV (AUTO), 2.5mm/mV 5mm/mV, 10mm/mV, 20mm/mV |
Input Impedance: ≥50MΩ | Safe Class: GB9706.1, Class I, Type CF |
Patient Current Leakage: ＜10μA | Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA,AC 85～265V, 50/60Hz,DC14.8V (2200mAh), rechargeable Li-ion battery |
Calibrating Voltage: 1mV±2％ | Dimension: 310mm×270mm×73mm, weight: 1.45 kg (with battery) |
Recommend Products
FAQ
Q: Where is you factory located? How can I visit there?
A: Our factory is located in Shenzhen,Guangdong Province,China. All our client are most welcome.
Q: When will you send the machine after the payment?
A: It depends on the quantity you ordered. Normally, we will deliver the machine in 15 days if the quantity of the order is below 50 sets. And the sample will be sent in two days after the payment.
Q: What certification do you have.
A: FSC & ISO
Q: Can you do OEM for me?
A: Sure. We absolutely do that for you if you send us your logo design or artwork.
Q: How to contact you to talk more details?
A: Mob:+86 133 1689 8447. Or send an email to osen01@szosen.com.
Sandy will be glad to help you find the right medical product to fit your needs
Q: When will you send the machine after the payment?
A: It depends on the quantity you ordered. Normally, we will deliver the machine in 15 days if the quantity of the order is below 50 sets. And the sample will be sent in two days after the payment.
Q: What certification do you have.
A: FSC & ISO
Q: Can you do OEM for me?
A: Sure. We absolutely do that for you if you send us your logo design or artwork.
Q: How to contact you to talk more details?
A: Mob:+86 133 1689 8447. Or send an email to osen01@szosen.com.
Sandy will be glad to help you find the right medical product to fit your needs
