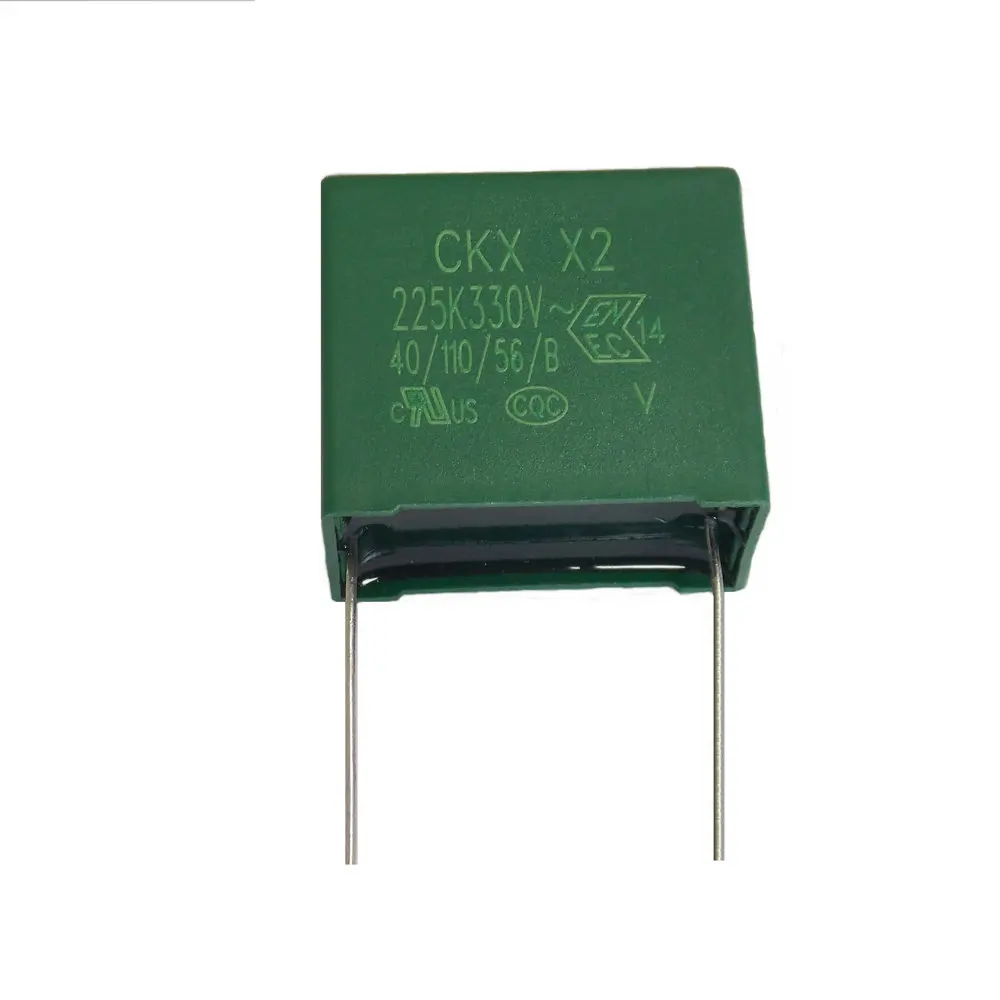

Taiwan Manufacturer of AC Metallized Polypropylene Film Capacitors, X2 safety capacitor, 300VAC~330VAC
- Category: >>>
- Supplier: SUPERTECH ELECTRONIC CO. LTD.
Share on (62011266041):
Product Overview
Description

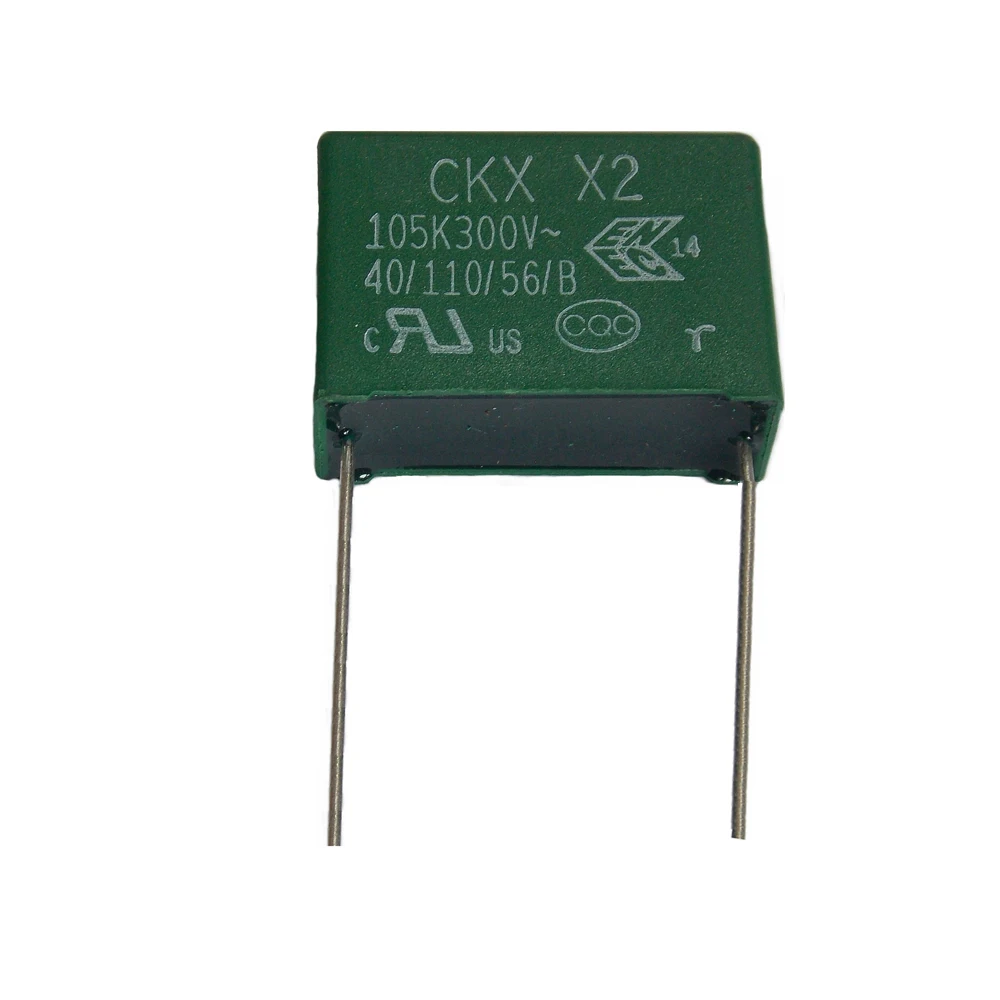

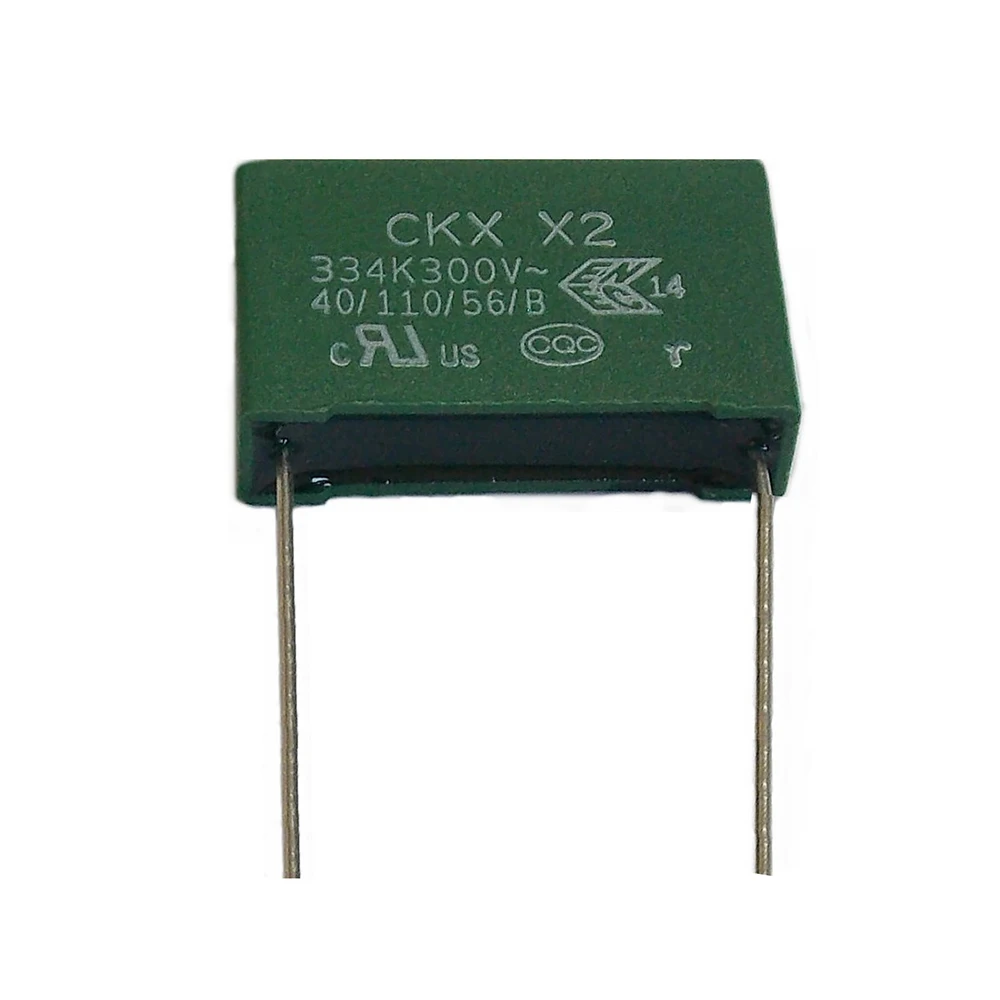

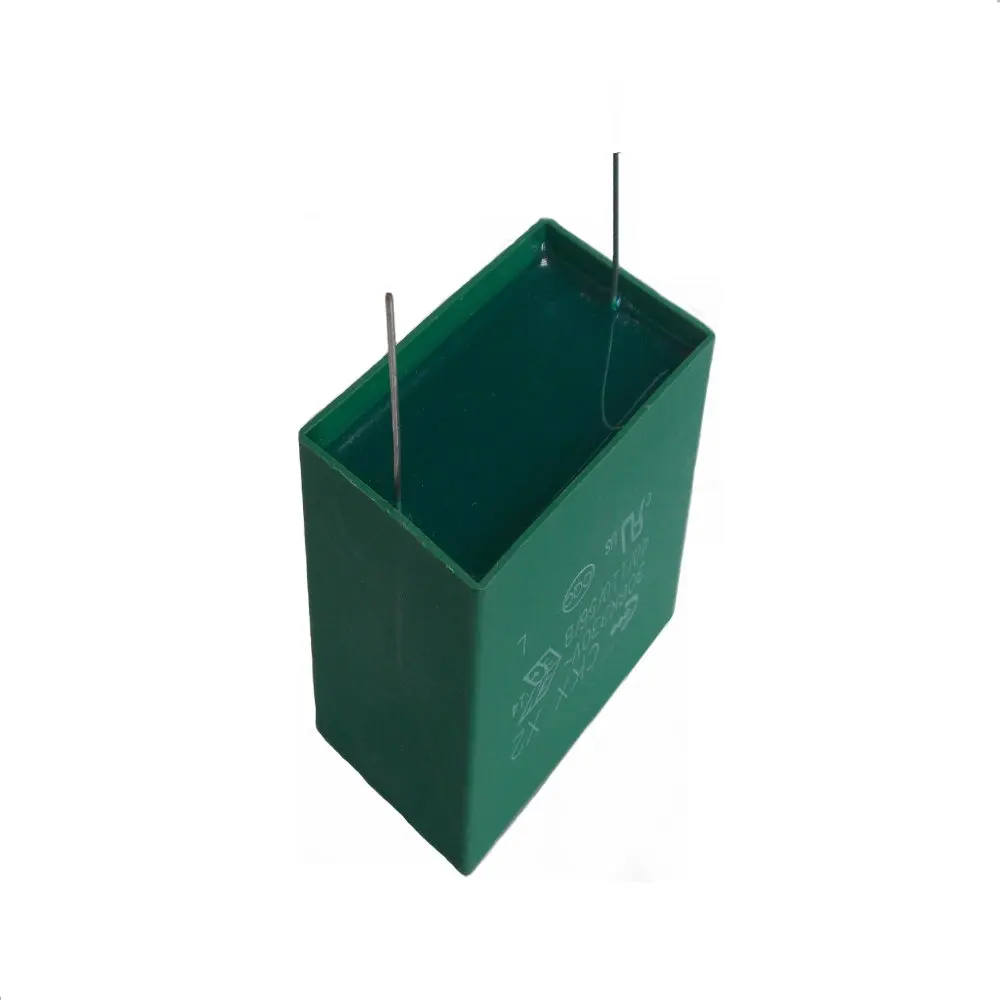

Taiwan Manufacturer of AC Metallized Polypropylene Film Capacitors, X2 safety capacitor, 300VAC~330VAC
Product Description
APPLICATIONS:
lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...
FEATURES:
Provides interference suppression, all safety approval.
Overvoltage stress withstanding.
Self-healing properties.
Active and passive flame retardent.

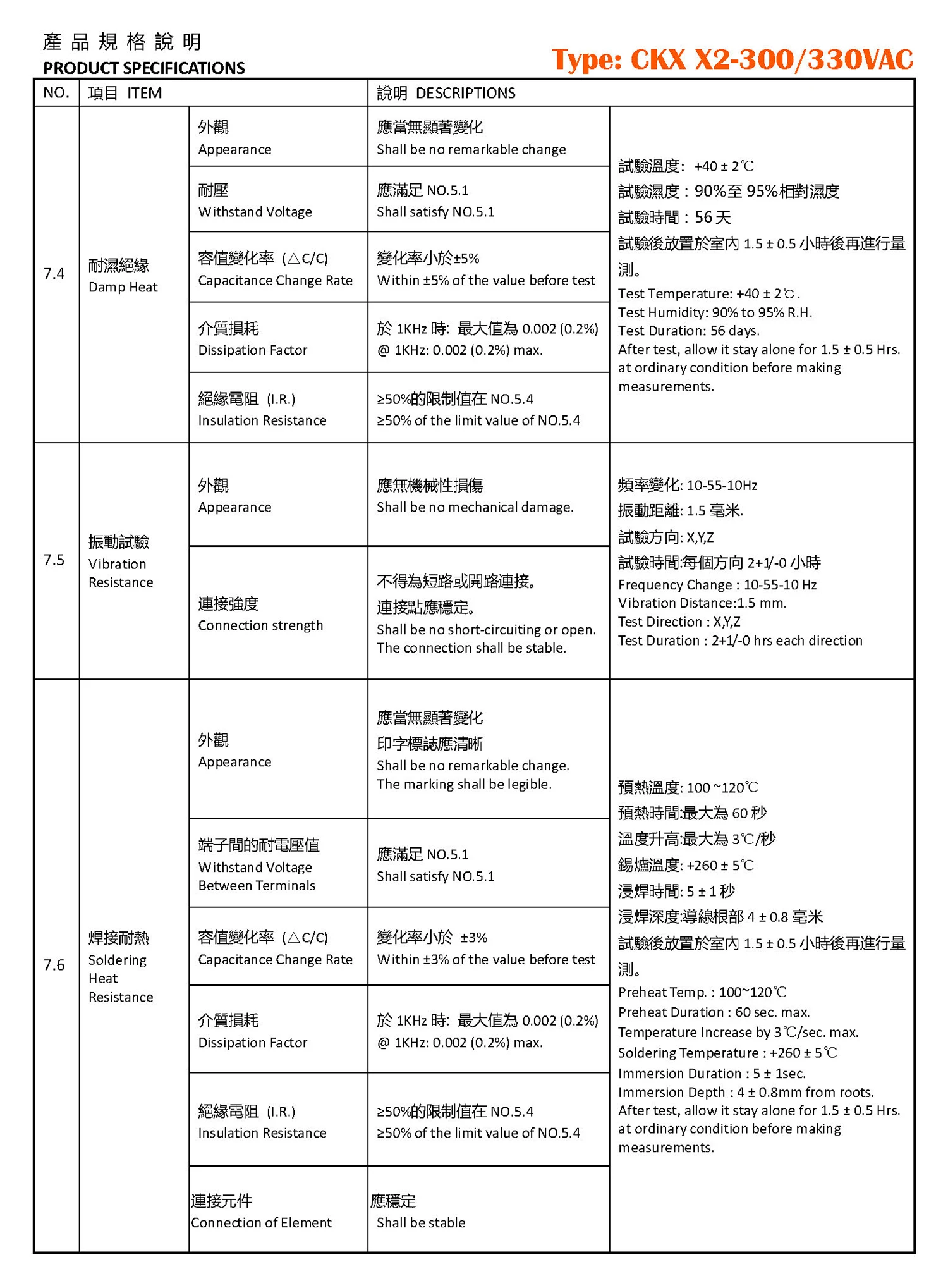

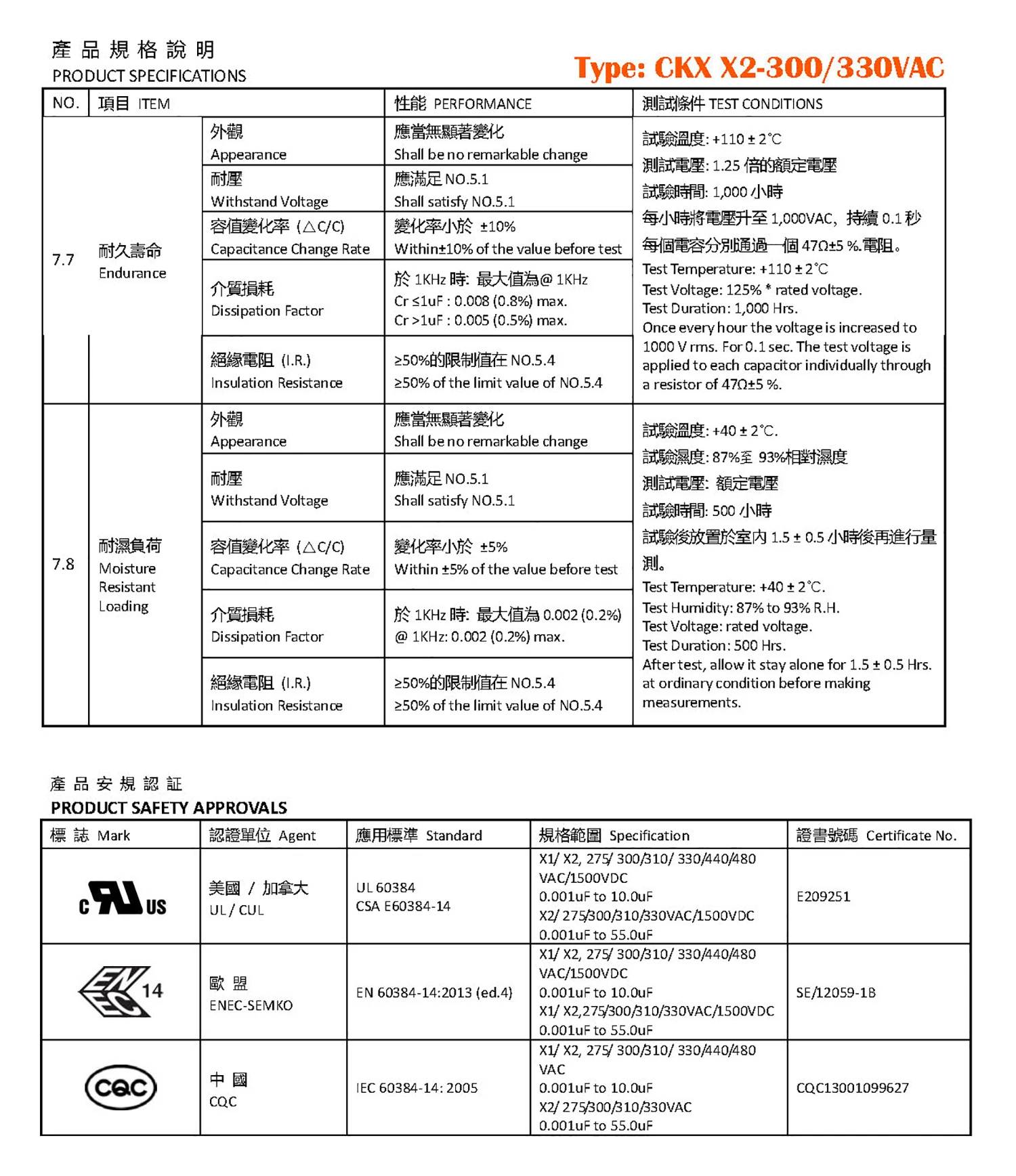

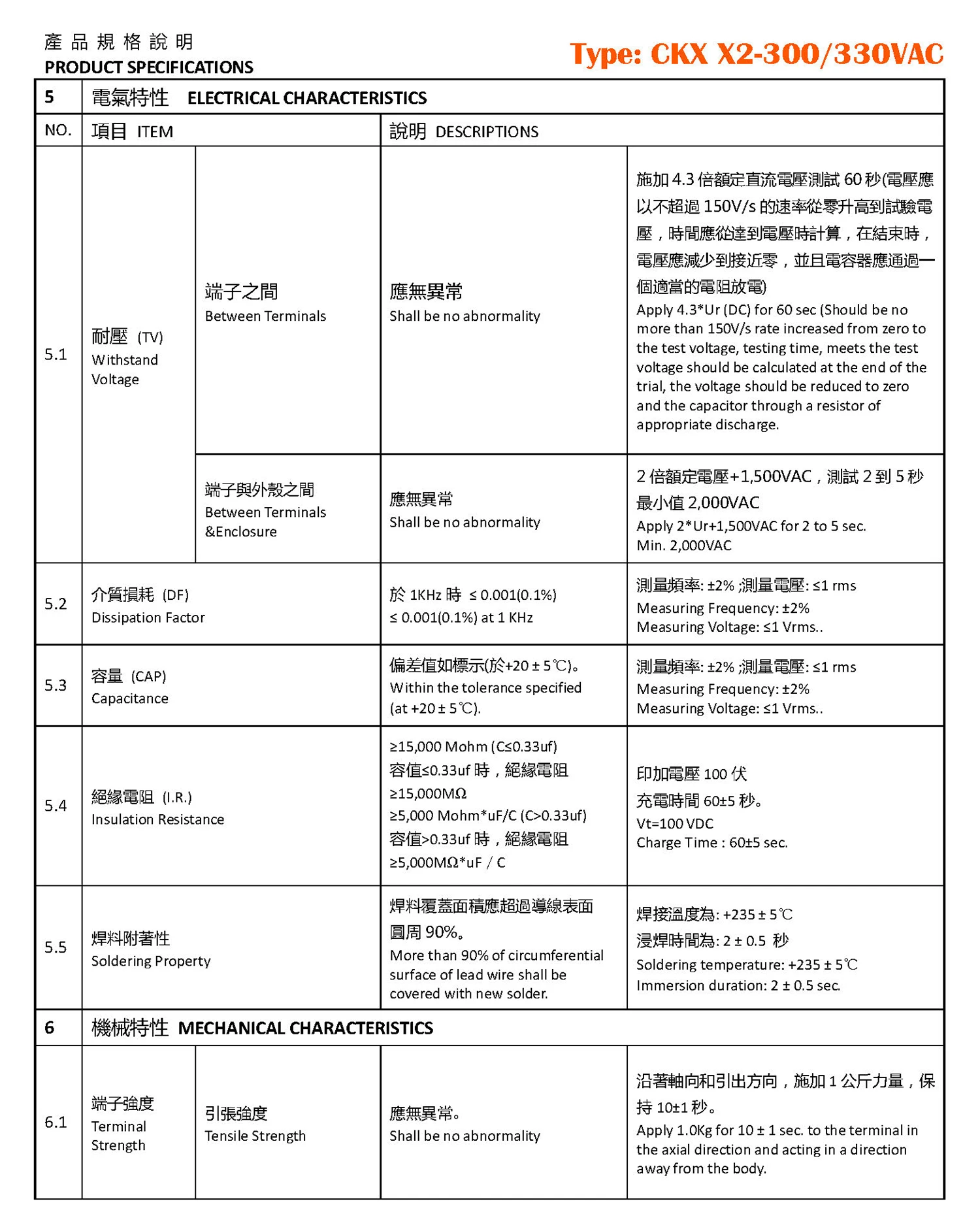

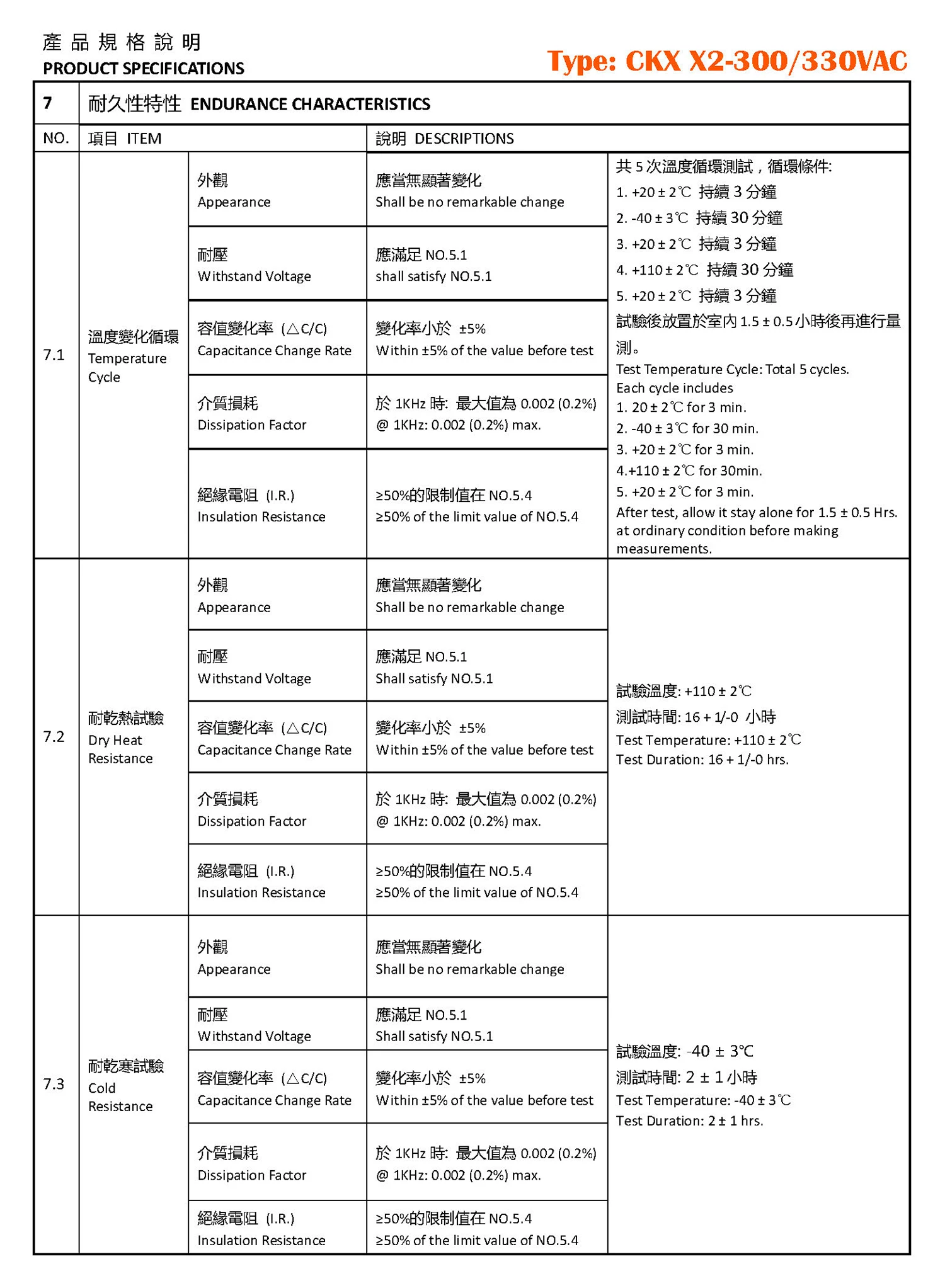

SPECIFICATIONS
Rated Voltage : 300V.AC, 50~60Hz
Capacitance : 0.047UF
Capacitance Tolerance : ±10% (K )
Climatic Category: -40 ℃ ~+110℃ , 40/110/56/B
Climate Category : In accordance with DIN40040 GMF
a) G=Minimum Limit Temperature -40℃
b) M=Maximum Limit Temperature +100c
c) F=Humidity Category Average relative humidity <=75%, 95%
for 30 days per year, continuously: 85% for the remaining days, occasionally.
Withstand Voltage :
a) Between Terminals ... 1200V.AC, 60Hz or 2200V.DC Is.
b) Between Terminals and Case ... 2200V.AC, 60Hz, 60s.
Dissipation Factor :
a)<=0.1% at 1 KHz and 20℃
b)<=0.3% at 10 KHz and 20℃
Insulation Resistance :
a) Between Terminals ...3x104MΩ for C<=0.33μF;
>=1x104MΩ.μF for C>0.33μF
b) Between Terminals and Case ... 3x104MΩ Measured at
100 ±15V.DC, 60s 20℃
Company Information
Our factory is an expert manufacturer of Film Capacitor which provides DC capacitors and AC capacitors.
So far, our products have obtained UL, VDE, ENEC, CE, CQC, KC, safety approval and company certification by ISO-9001:2008 quality assured firm.
We use efficient automatic equipment which ensures maximum consistency in your OEM orders
to produce each capacitor. With 28 years of industrial experience, Don't hesitate to contact us
if you have any question, we always supply competitive price and good quality products.
